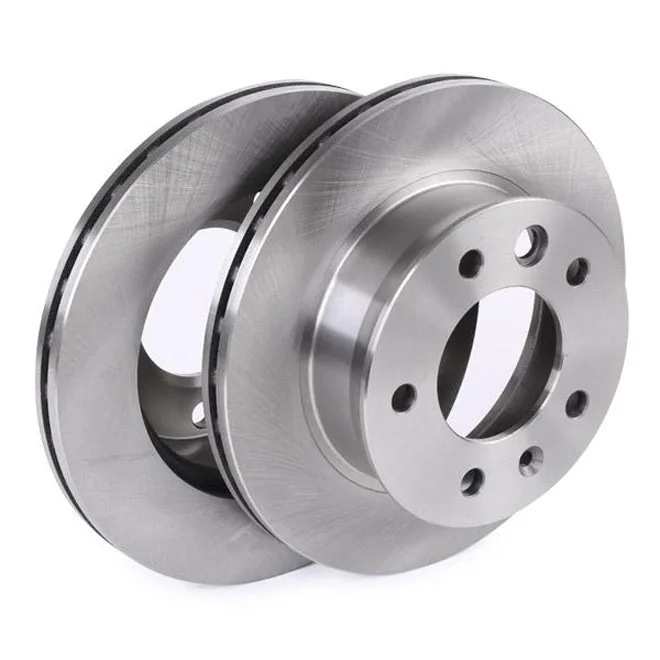

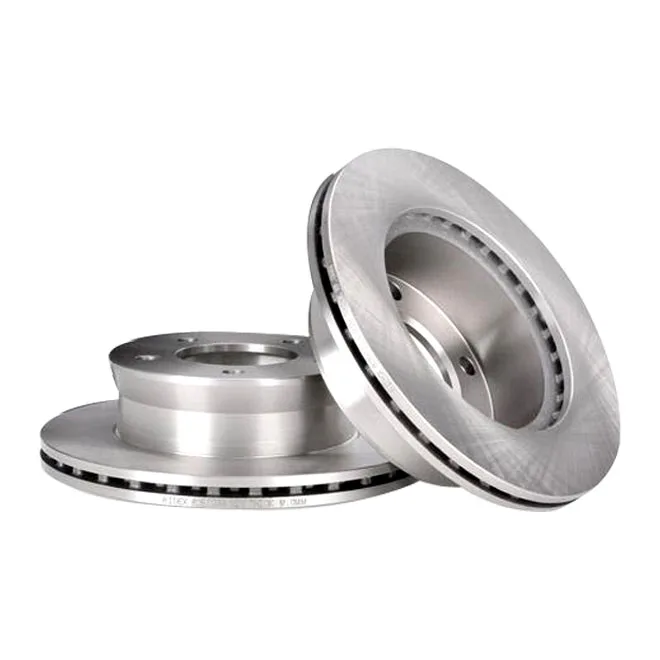

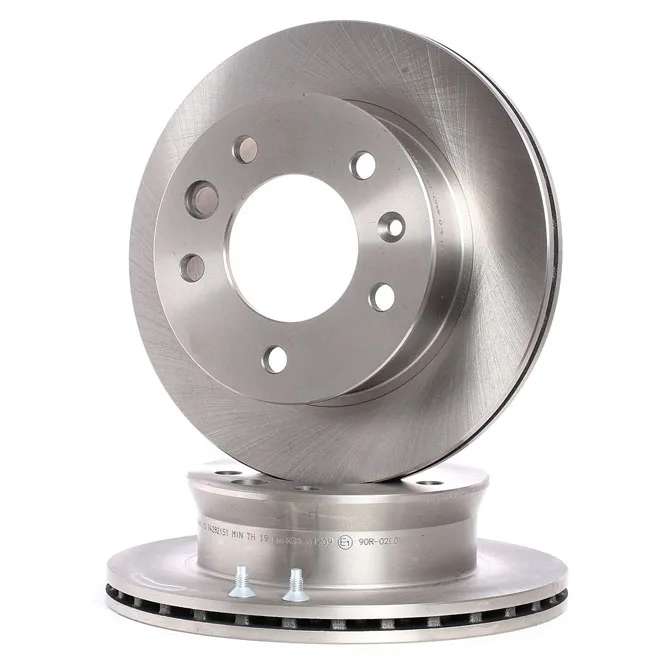

Sprinter Brake Disc 9024210312 9024210412 9024210612 9024210912 for Sprinter 901 902 903 904
- Category: >>>
- Supplier: Yantai Longton International Trading Co. Ltd.
Share on (60544133207):
Product Overview
Description
Product Description
OE No. | 9024210312 | to fit MB Sprinter 901/ 902 /903 / 904 |
902 421 04 12 | to fit MB Sprinter 901/ 902 /903 / 904 | |
902 421 06 12 | to fit MB Sprinter 901/ 902 /903 / 904 | |
902 421 07 12 | to fit MB Sprinter 901/ 902 /903 / 904 | |
902 421 09 12 | to fit MB Sprinter 901/ 902 /903 / 904 | |
2D0 615 301 A | to fit MB Sprinter 901/ 902 /903 / 904 | |
2D0 615 301 B | to fit MB Sprinter 901/ 902 /903 / 904 | |
2D0 615 301 C | to fit MB Sprinter 901/ 902 /903 / 904 | |
2D0 615 301 D | to fit MB Sprinter 901/ 902 /903 / 904 | |
Outer Diameter [mm] | 276 | |
Thickness [mm] | 22 | |
Minimum Thickness [mm] | 19 | |
Height [mm] | 77.2 | |
Hub Bore Ø [mm] | 85 | |
Pitch Circle Ø [mm] | 130 | |
No. of Holes | 5 | |
Brake Disc Type | Vented |
Chemical Composition | ||||||||||||
Material | C | Si | Mn | S | P | Cr | ||||||
HT250/G3000 | 3.10-3.55% | 1.90-2.40% | 0.50-0.90% | 0.15% max. | 0.15% max. | 0.25% max. | ||||||
Microstructure
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min.
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min.
Ferrite: 5% max.
Mechanical Property
Hardness: 187 - 241 HB
Mechanical Property
Hardness: 187 - 241 HB
Tensile Strength: 220 Mpa (min.)
Machining Requirement
Runout: 0.05mm (max.)
Machining Requirement
Runout: 0.05mm (max.)
DTV: 0.127mm (max.)
Roughness: Ra 1.6μm (max.)
Roughness: Ra 1.6μm (max.)
Dynamic Balance: 100% Balanced
1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars
2) TS16949 Quality System Certification & ECE R90 Certified
3) Competitive Factory Price
4) 100% crucial dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.
1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars
2) TS16949 Quality System Certification & ECE R90 Certified
3) Competitive Factory Price
4) 100% crucial dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.
CV Brake Discs
- Over 500 part numbers
- Basic material, as well as in high carbon
- Automatic production lines are used
- Basic material, as well as in high carbon
- Automatic production lines are used
Car Brake Discs/Drums
- Over 2600 part numbers
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available
High Carbon Brake Discs
- Increased noise damping capability
- Improved heat dissipation
- Better resistance to thermal cracking and distortion
- Improved heat dissipation
- Better resistance to thermal cracking and distortion
Coated Brake Discs
- Environmentally friendly hexavalent chromiumfree
anti-corrosion coating
- Install the disc right out of box, no cleaning needed
- Install the disc right out of box, no cleaning needed
- Provides a long lasting clean appearance
Drilled/Slotted Brake Discs
- Enhanced braking power
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator
Black Hat Brake Discs
- Black coating on the hat
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks
Casting finish
- Smooth
- Even
- Free of blow holes
Machined Area
- Sharp cutting tool
Vent configuration
- Correct design used as OE design
or better
Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant
controlled temperature to give
correct hardness
- Smooth
- Even
- Free of blow holes
Machined Area
- Sharp cutting tool
Vent configuration
- Correct design used as OE design
or better
Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant
controlled temperature to give
correct hardness
Company Profile
We specialize in aftermarket auto parts for Commercial Vehicles and Passenger cars, supplying a wide range of high performance Brake Discs, Brake Pads, Brake Drums, Brake Shoes, Brake Linings, Aluminum Wheels, Steel Wheels, and Clutch Discs & Covers. Main markets include Europe, South America, North America, and Middle East.
Manufacturing through automatic production lines ensures that LONGTON auto parts perform to the highest standards. To guarantee a quality product it's essential to start with the right materials, and prior to production all raw materials are tested. Each part is then precision manufactured using state-of-the-art equipment. A first class manufacturing process coupled with stringent quality testing ensures safety, reliability and performance from each and every LONGTON auto parts.
We are endeavored to supply high quality truck parts at affordable prices, and always focus on the wishes and requirements of our customers and partners, doing our ultimate to meet the highest level of customer satisfaction.
Certifications
IATF16949, ECE R90, TUV, DOT Certified.
Product Category
PRODUCT CATEGORIES VIEW ALL
Why Choose Us
* 18 Years Experience in CV Parts & Car Parts
* Skilled workers
* State-of-the-art Equipment
* Spend more on R & D
* 100% inspection from raw material to finished products
* Develop products as per Customers' Samples/Drawings
* Accept OEM & ODM
* Excellent After-sale Service
* Skilled workers
* State-of-the-art Equipment
* Spend more on R & D
* 100% inspection from raw material to finished products
* Develop products as per Customers' Samples/Drawings
* Accept OEM & ODM
* Excellent After-sale Service
FAQ
Q1: What is your packing?
A: Generally we pack our goods in White boxes or Brown boxes or Neutral printed boxes. Customized boxes as per your design can be supplied.
Q2: What is your payment terms?
A: T/T 30% Deposit and the balance 70% made before shipping. Photos of products and packages will be supplied upon request.
Q3: What is your price terms?
A: EXW, FOB, CFR, CIF, or CIP.
Q4: How about your delivery time?
A: It will take abt. 15~50 days after order being confirmed. The specific delivery time depends on the items and order quantity. Samples usually are ready within 10 days.
A: Generally we pack our goods in White boxes or Brown boxes or Neutral printed boxes. Customized boxes as per your design can be supplied.
Q2: What is your payment terms?
A: T/T 30% Deposit and the balance 70% made before shipping. Photos of products and packages will be supplied upon request.
Q3: What is your price terms?
A: EXW, FOB, CFR, CIF, or CIP.
Q4: How about your delivery time?
A: It will take abt. 15~50 days after order being confirmed. The specific delivery time depends on the items and order quantity. Samples usually are ready within 10 days.
Q5: What certificates do you have?
A: IATF16949, ECE R90, TUV, DOT......
Q6. Do you test all your goods before delivery?
A: Yes, we do 100% test before delivery
Q7: How is your warranty?
A: Brake Disc/ Drum/Brake Shoe (not lined)/Steel Wheels: 1 Year since B/L date
Aluminum Wheels: 5 Years since B/L date
Brake Pad & Brake Lining: no less than 50000KM.
Q8: Can you produce to the supplied samples/drawings?
A: Yes, your samples or technical drawings are welcome, and the tooling cost will be free if initial quantity meets our
requirements.
Q9: What is your sample policy?
A: Sample can be supplied if we have ready stock, but the sample and shipping cost will be charged, and this cost can be deducted from 1st formal order.
Q6. Do you test all your goods before delivery?
A: Yes, we do 100% test before delivery
Q7: How is your warranty?
A: Brake Disc/ Drum/Brake Shoe (not lined)/Steel Wheels: 1 Year since B/L date
Aluminum Wheels: 5 Years since B/L date
Brake Pad & Brake Lining: no less than 50000KM.
Q8: Can you produce to the supplied samples/drawings?
A: Yes, your samples or technical drawings are welcome, and the tooling cost will be free if initial quantity meets our
requirements.
Q9: What is your sample policy?
A: Sample can be supplied if we have ready stock, but the sample and shipping cost will be charged, and this cost can be deducted from 1st formal order.
