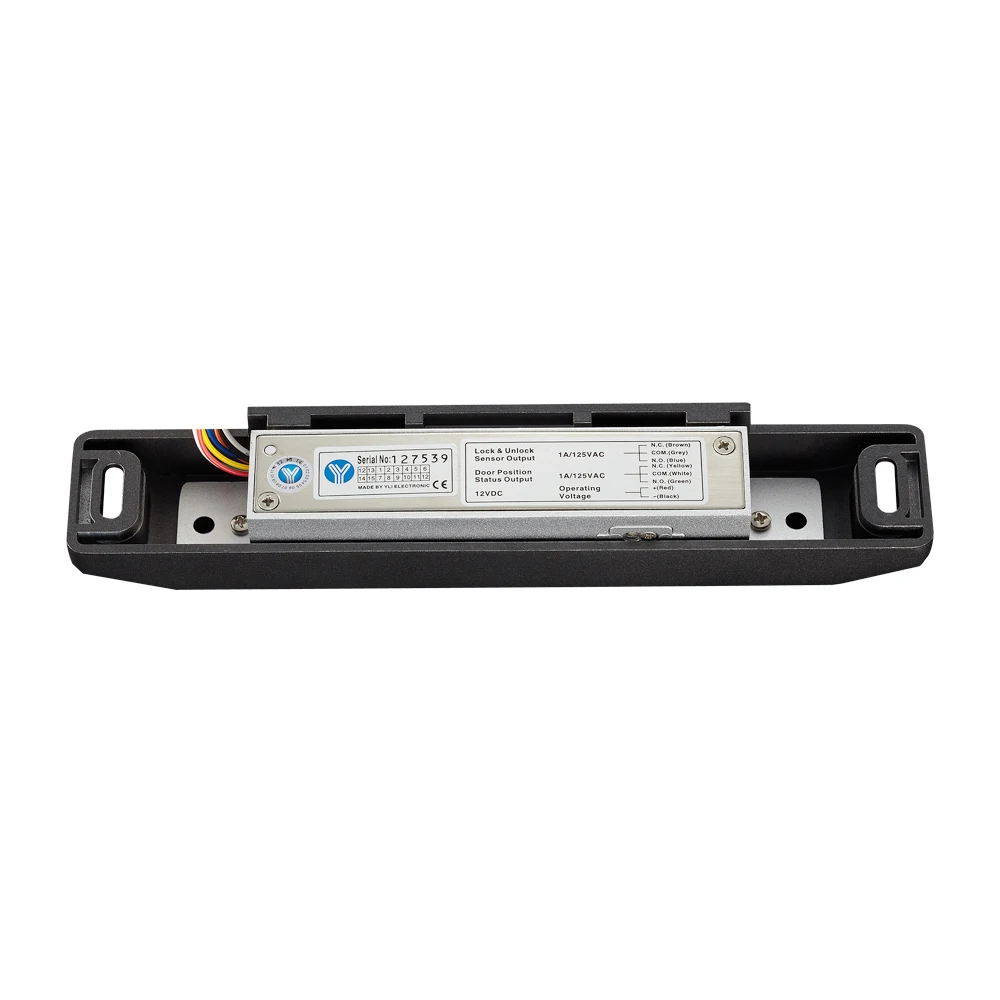

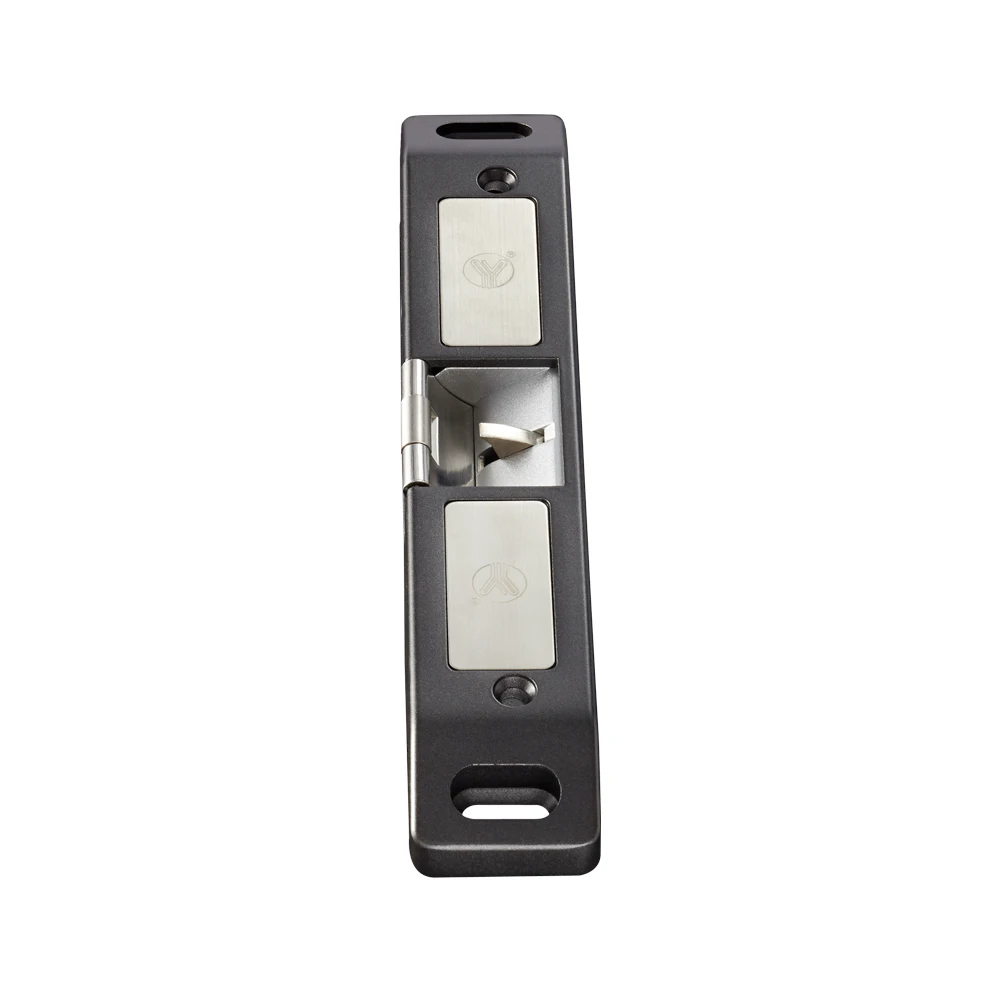

Electric Strike for Push Bar With Lock status Output YS 621 S
- Category: Lock Cylinder >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (60544170022):
Product Overview
Description
Product Description
Product Application

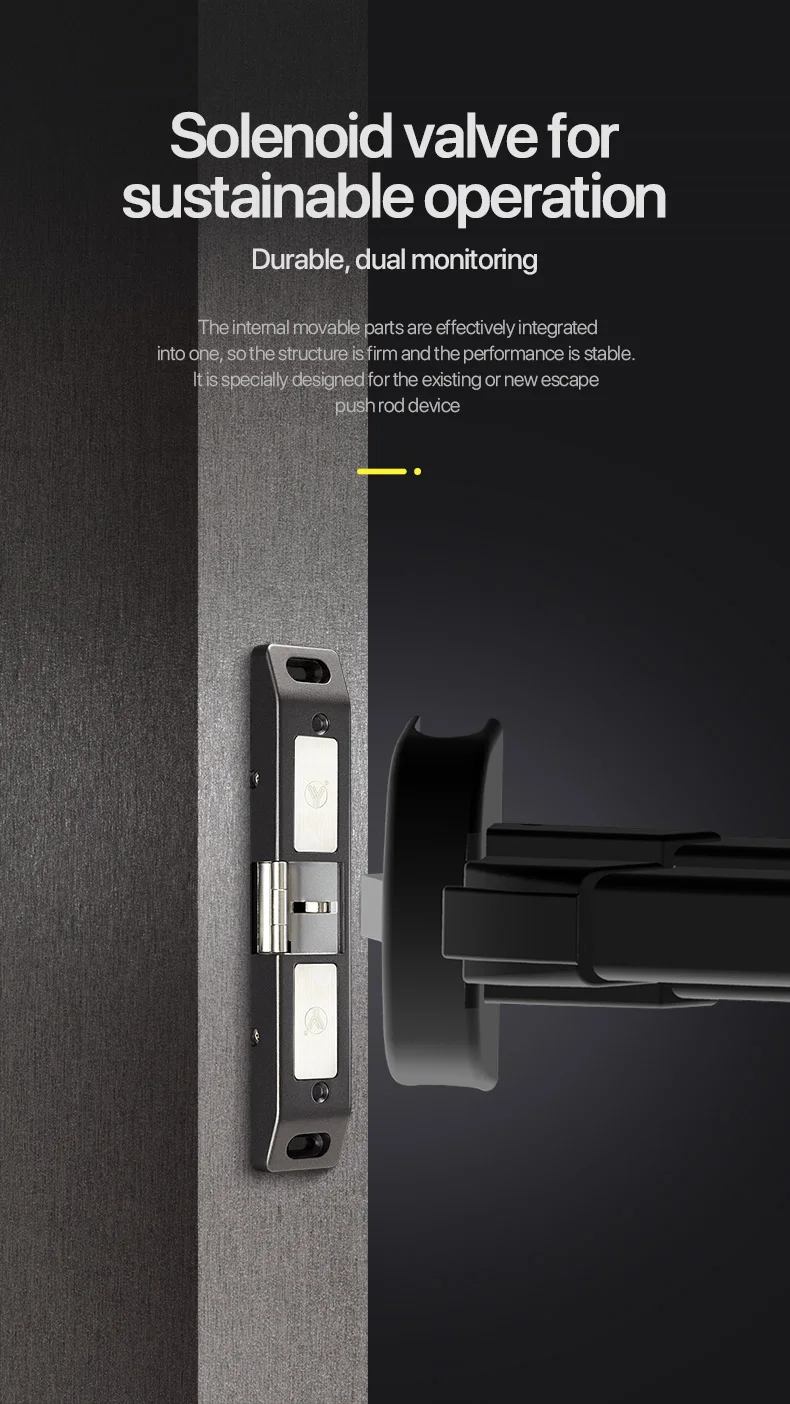

YS-621 is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.

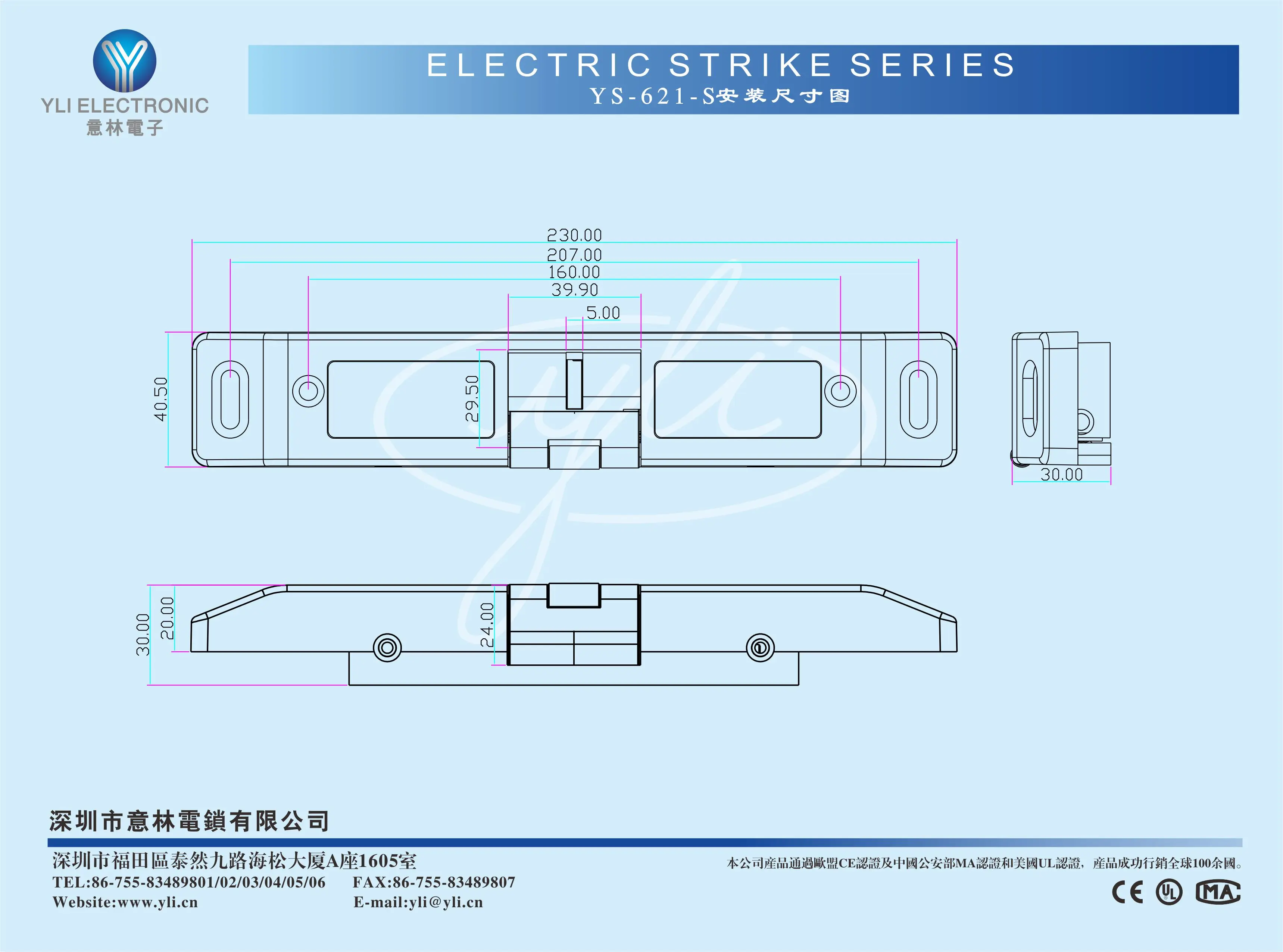

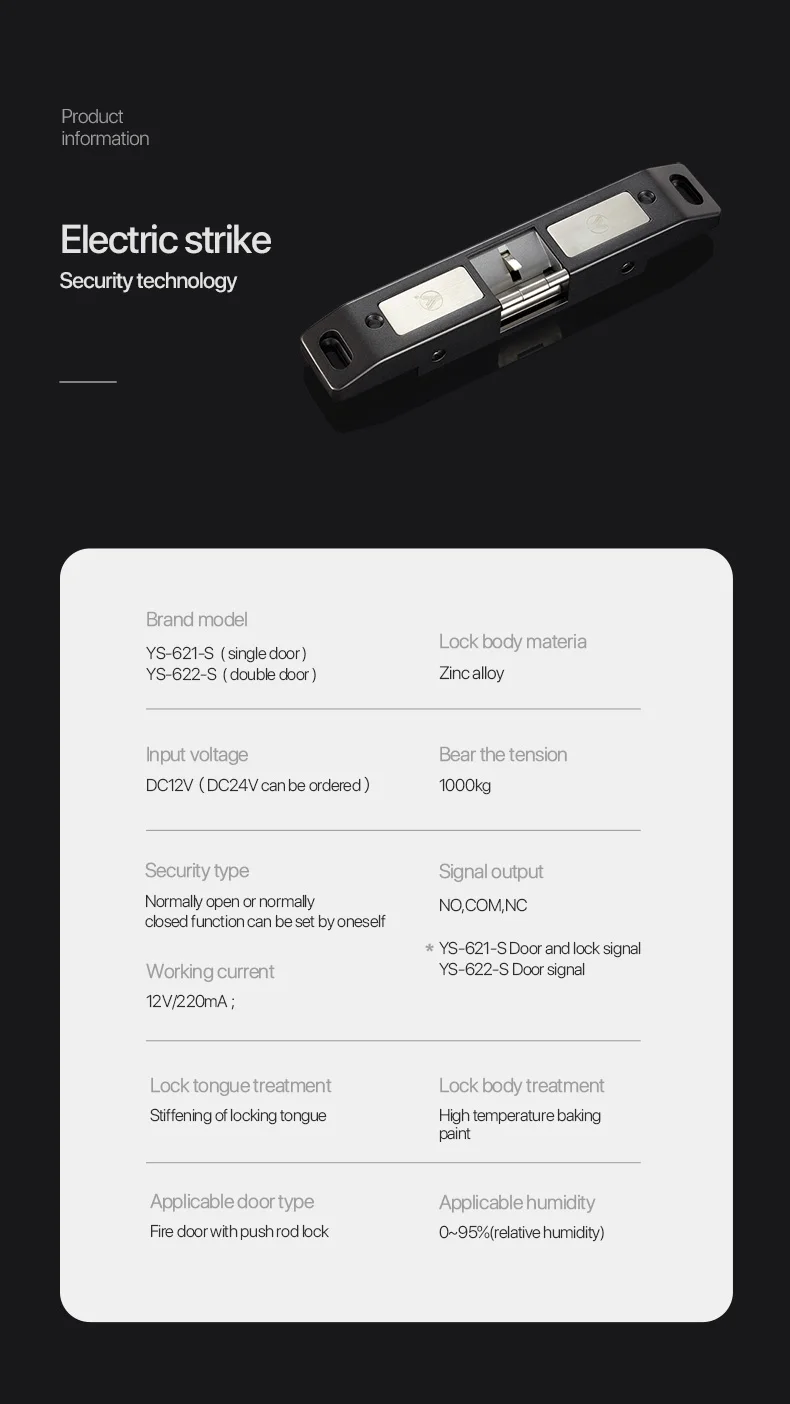

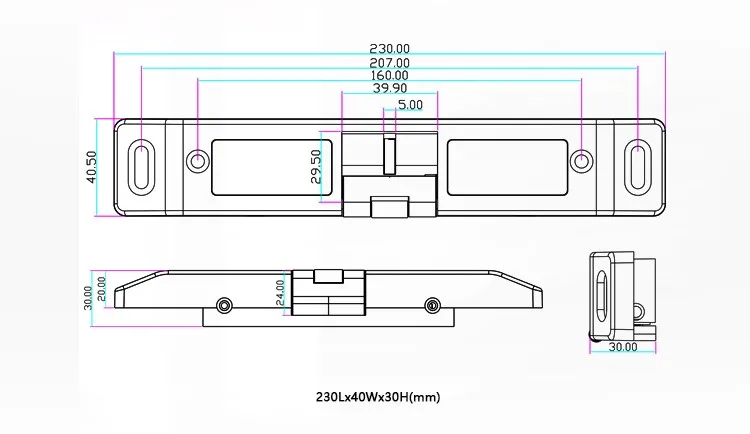

Lock Size | 230Lx40Wx30H(mm) | ||||

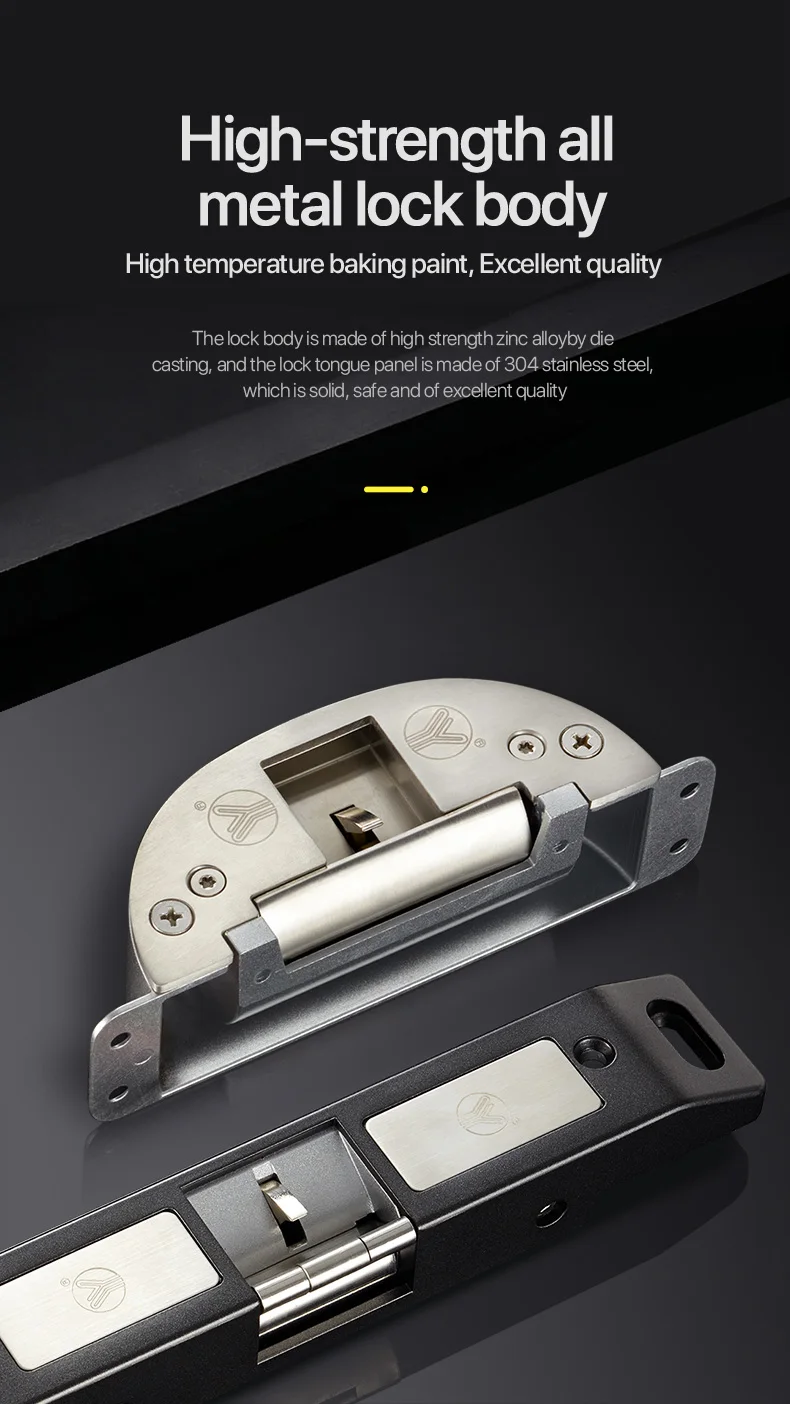

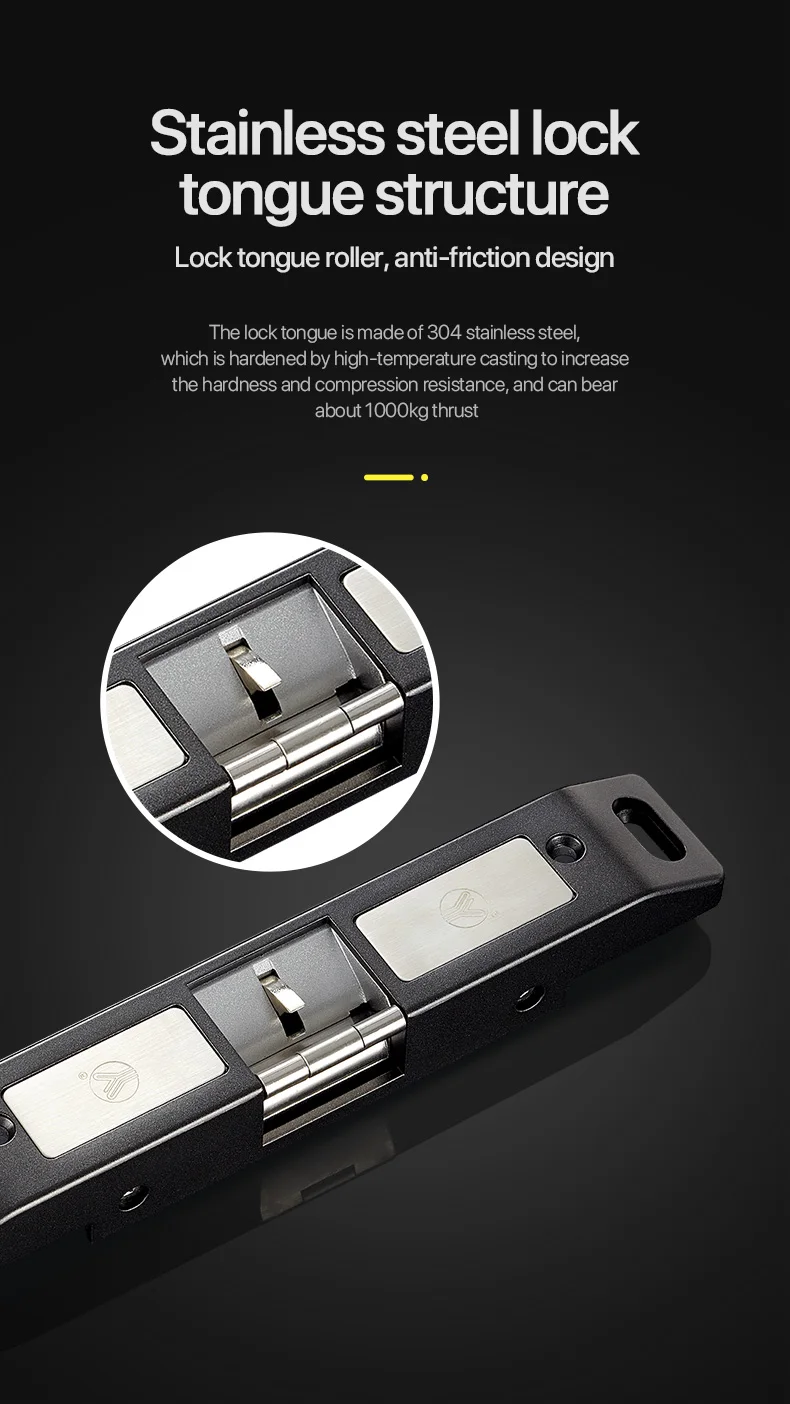

Lock tongue structure | 304 Stainless Steel | ||||
Holding Force | 1000kg | ||||
Voltage | DC12V or DC24V | ||||
Current | 12V/320mA;24V/160mA | ||||

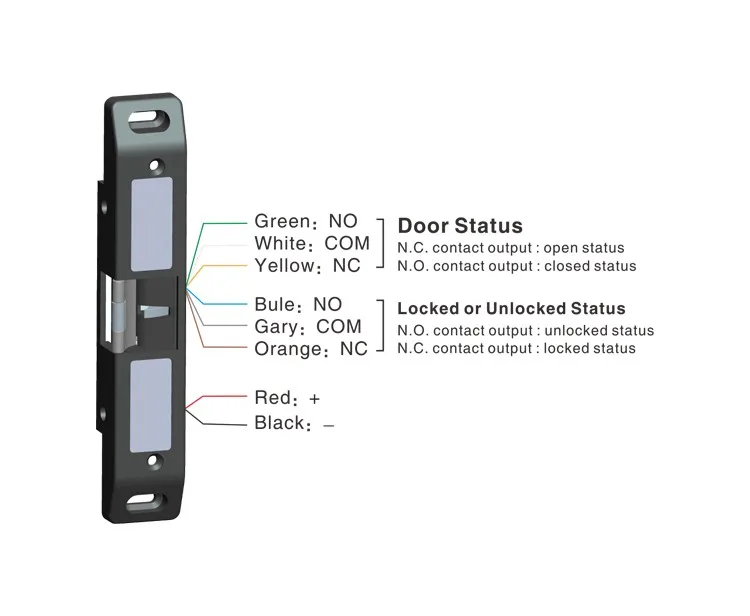

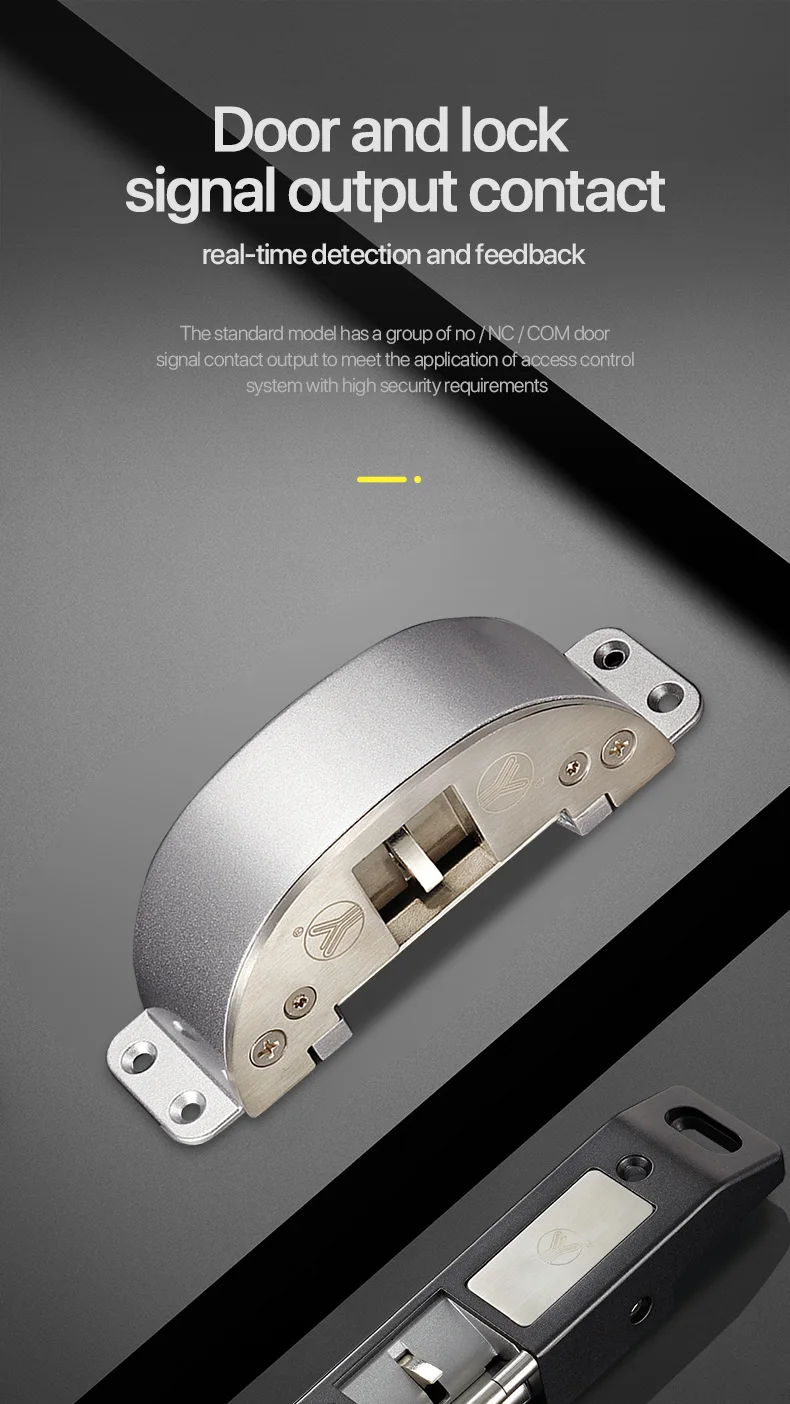

Signal Output | Lock Status Output NO/NC/COM | ||||
special design | applies to all brands of fire push rod lock | ||||
Suitable For | supporting rod lock fire door | ||||
Surface Temperature | Within +20℃ | ||||
Suitable Temperature | -10~+55℃(14-131F) | ||||
Operating Humidity | 0~90%(non-condensing) | ||||
Face plate Housing | High temperature paint | ||||
Lock tongue | Surface by coating nickel | ||||
The door open | 90 degrees | ||||
Weight | 0.75kg | ||||
