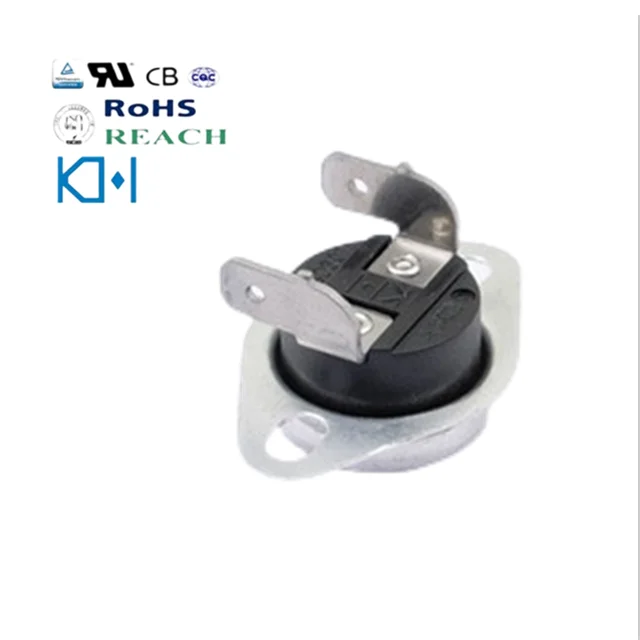

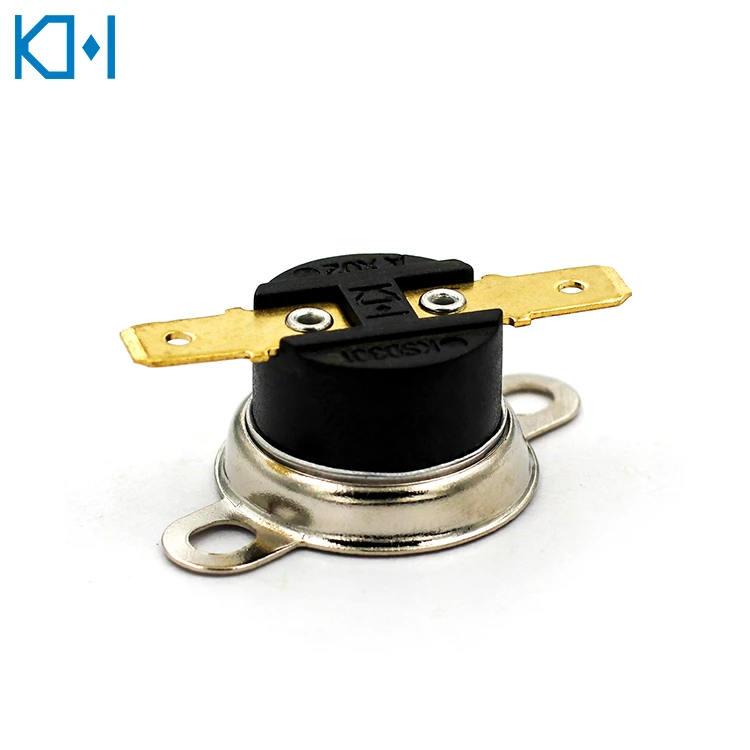

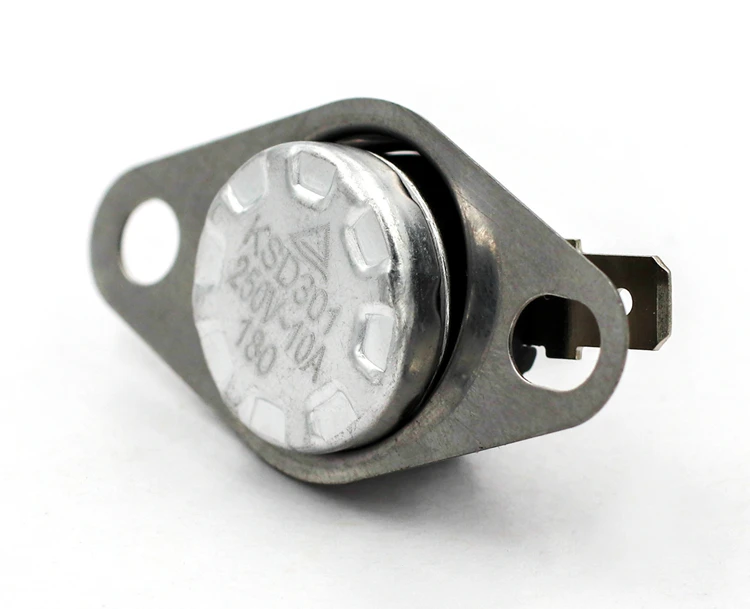

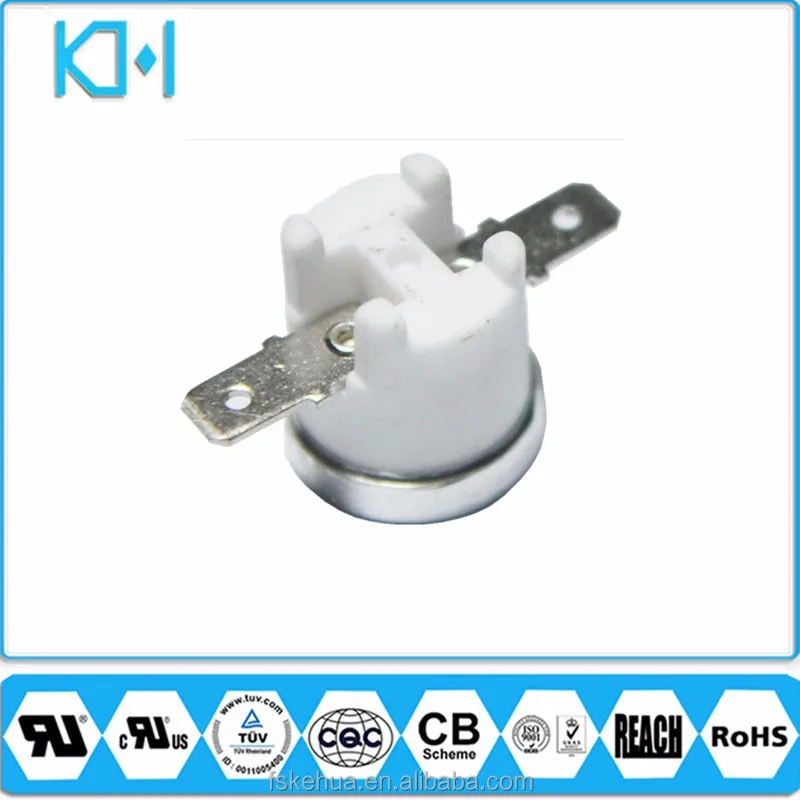

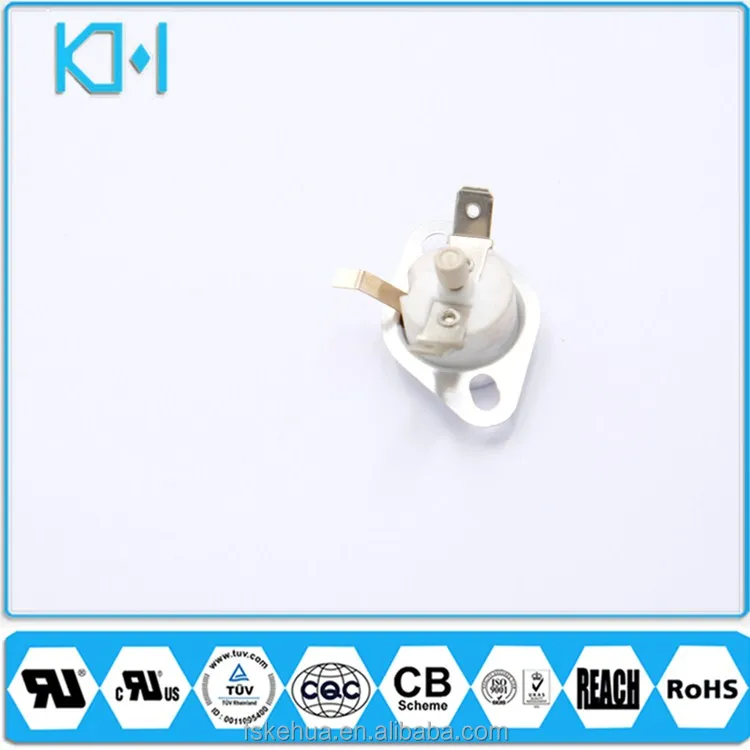

Thermostat Switch Coffee Maker Snap Action Thermostat KSD301 Thermal Cutoff Fuse

KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection. This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M

Our advantage

We are professional manufacture KSD 301 thermostat .
Our thermostat have the advantages of With stable performance, high precision, small size, light weight, high reliability, long lifetime , No arcing ,small radio interference .
And have passed UL .TUV.DVE.CB.ISO.CQC.SGS.ROHS.REACH ect safety certificate. I believe we can meet your market requirement .


Technical Parameters

1.Electrical parameters: 1)TUV.DVE.CQC AC250V 50 ~ 60Hz 5A / 10A / 16A (resistive load)
                                            2) UL AC125V 50Hz 5A 10A 16A (resistive load)
2.Body:Bakelite or ceramic
3 Action: Normally open or normally closed.
4.Reset Method: automatic reset and manual reset
5.Action temperatures range:45~300℃(Optional)
6.Recovery and action temperature difference: 5~200℃(Optional)
7.Temperature accuracy: ±3 ±5 ±10 degrees
8.Circuit resistance: ≤50mΩ
9.Insulation resistance:≥5mΩ (DC500V Normal State)
10.Dielectric Strength: AC50Hz 2500V /3S, no breakdown blinding (Normal State)
11.Life cycle:≥100000
12.Mounting bracket: Customized according to customer's requirements
13.Terminal:Customized according to customer's requirements
14.Terminal angle:Customized according to customer's requirements
15.Heat resistance: PF180℃.UP / PPS 220℃ EC 250℃ (24 hours)

SAFETY CERRIFICATE



THERMINAL

  *TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED  UNDER  YOUR  REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
