Poultry diesel air heater
- Category: >>>
- Supplier: Qingdao Ristar Cooling And Heating Equipment Co. Ltd. [Shandong China]Qingdao
Share on (60544386363):
Product Overview
Description

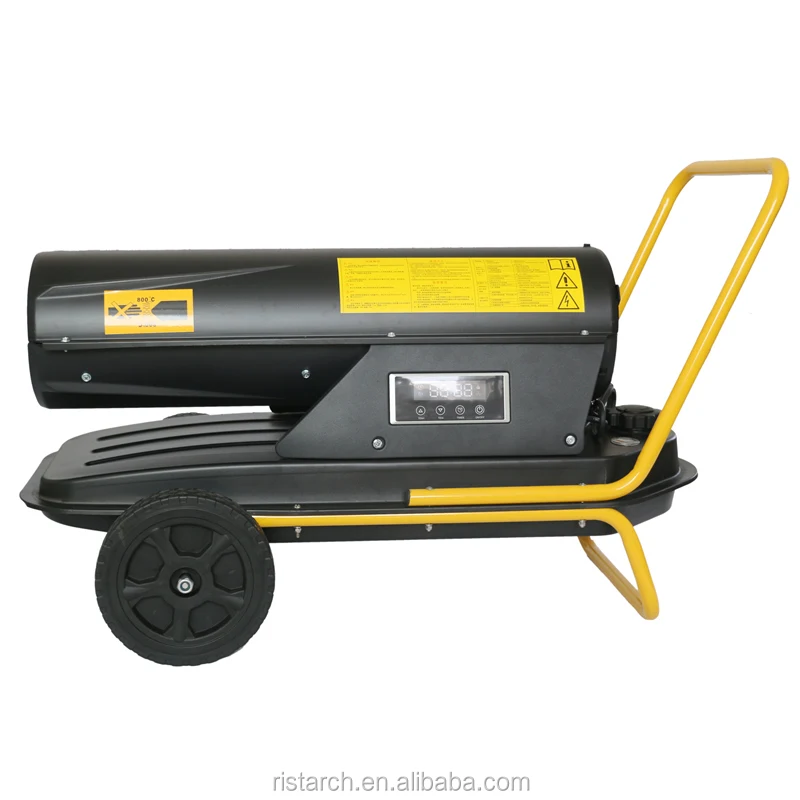

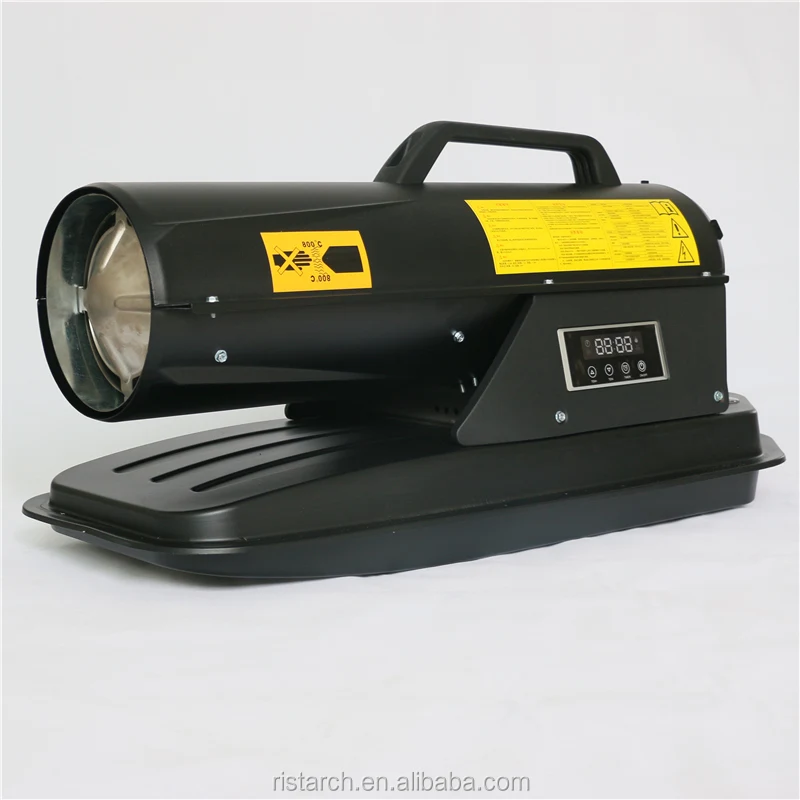

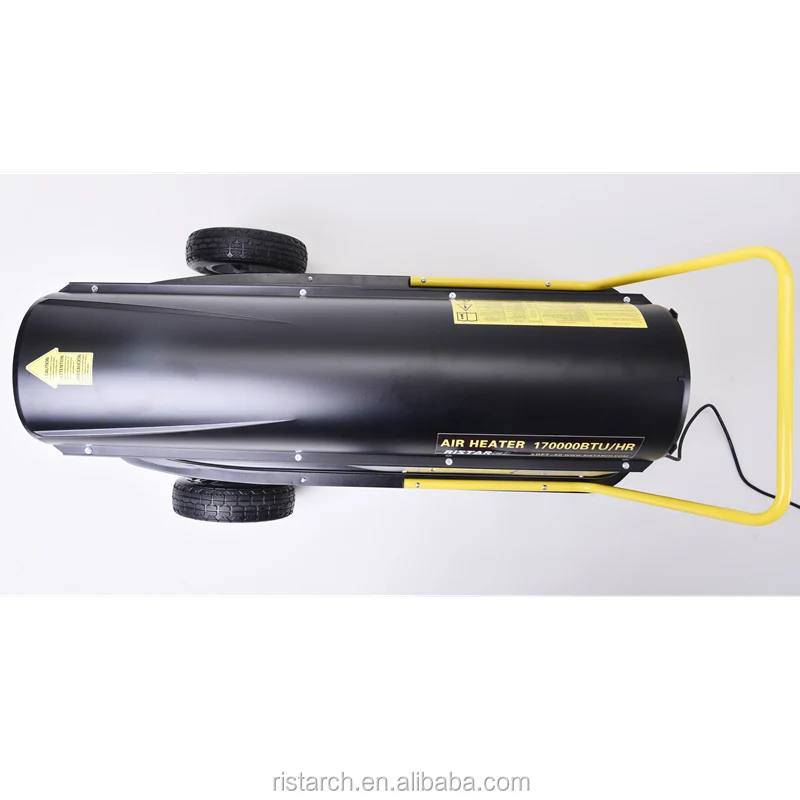

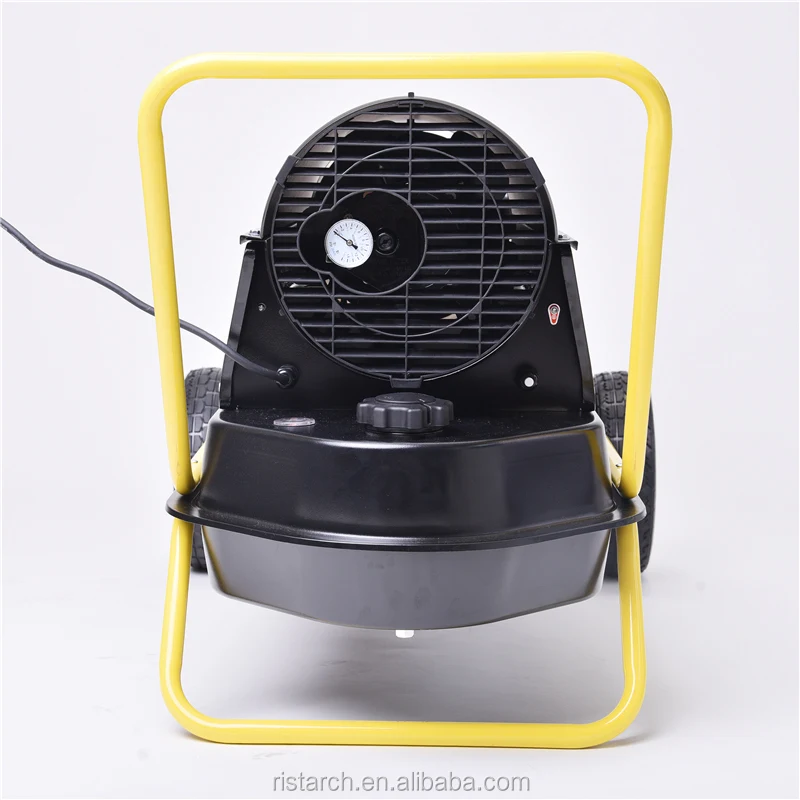

Poultry diesel air heater
Product Description
| Power | 20KW | 30KW | 50KW | 60KW |
| Model | XDFT-20 | XDFT-30 | XDFT-50 | XDFT-60 |
| Electric Supply | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ |
| Output | 17200Kcal/h | 25800Kcal/h | 43000Kcal/h | 60200Kcal/h |
| Output | 69000Btu/h | 105000Btu/h | 170600Btu/h | 238840Btu/h |
| Motor Power | 230W | 230W | 340W | 430W |
| Air Displacement | 595m3/h | 735m3/h | 1100m3/h | 1300m3/h |
| Heatted Area | 100-200m2 | 200-300m2 | 300-400m2 | 500-600m2 |
| Fuel Consumption | 1.7Kg/h | 2.5Kg/h | 4.0Kg/h | 5.8Kg/h |
| Fuel Tank Capacity | 19L | 38L | 56L | 69L |
| Products Size(mm) | 848*352*402 | 973*540*567 | 1149*610*597 | 1149*610*597 |
| Packing Size(mm) | 910*410*440 | 1036*453*453 | 1210*490*540 | 1210*490*540 |
| N.W. | 17.8Kg | 22.3Kg | 29Kg | 40Kg |
| G.W. | 19.9Kg | 24.5Kg | 32Kg | 44.5Kg |
| 20GP/40GP/40HQ | 158/329/384 | 122/254/296 | 81/168/196 | 81/168/196 |
1.Unique and tough design
2. Function on diesel oil or kerosene

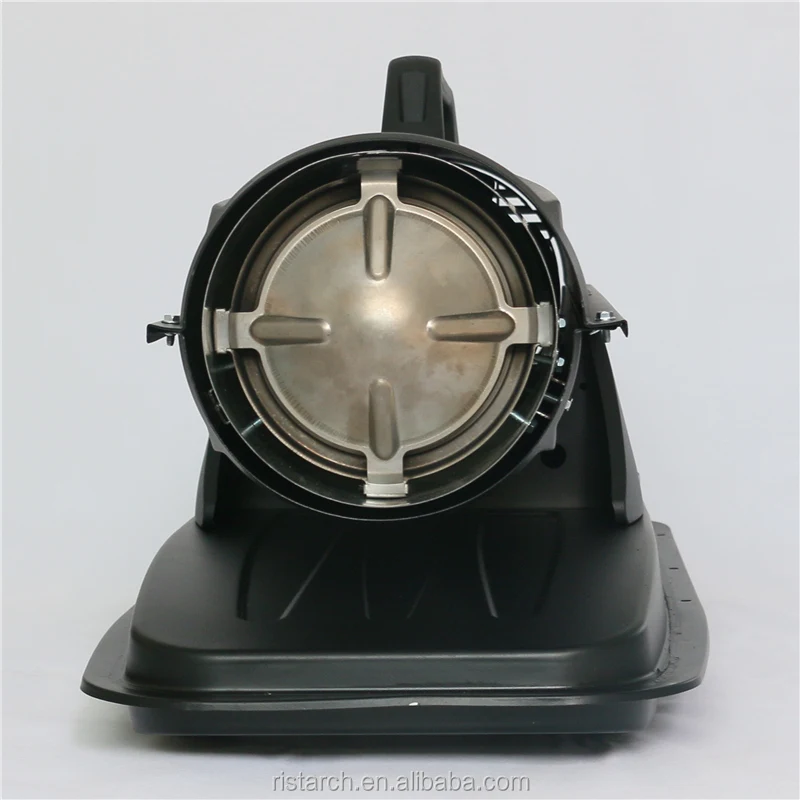

3. Stainless steel combustion chamber with fan cooling
4. Durable extemal powder coating
5. With flame sensor
6. If no oil , heater will cut off the power
7. Fixed Oil display
8.Cut-off protection,re-plugged in will not work automatically
9.Low pressure atomization,combustion completely
10. Easy maintenance
11. Built-in thermostat with digital display
12. Ideal for heating warehouses,factories and workshops etc.
Certificates: CE /LVD /EMC /RoHS
Detailed Images

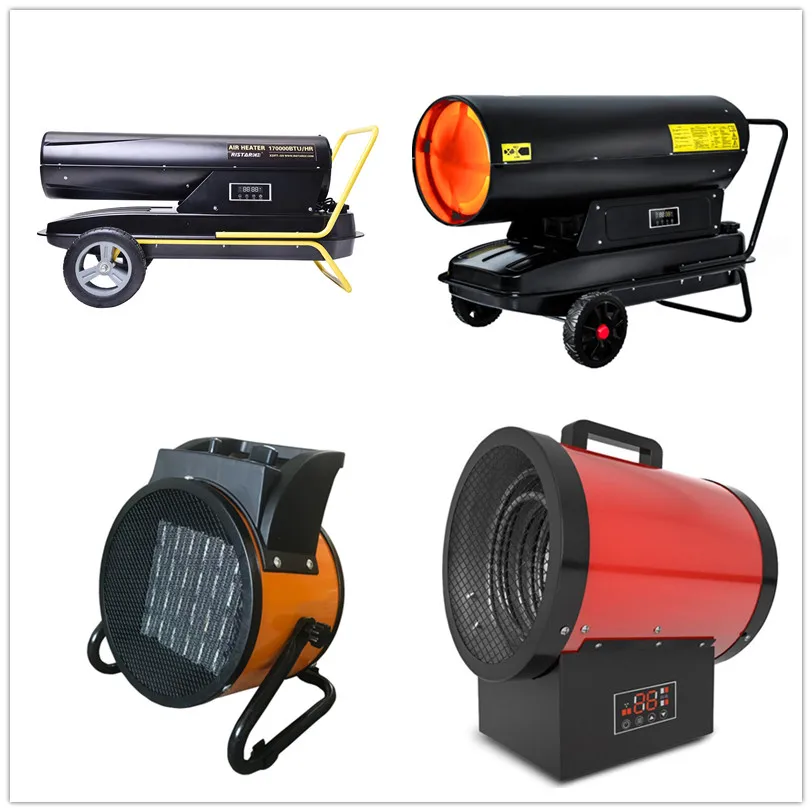

Others Products:
