Wear resistant steel ASTM A128 High manganese steel plate

Product Overview

Description

 ASTM A128 High manganese steel plates

Introduction



ASTM A128 / X120Mn12(Mn13)is the best choice for resist-high impact ,the material of big stress

in wear resistance.The high manganese steel have two biggest features: one is external impact

more bigger ,the  wear-resistance of appearance is more higher ; another is with the gradually

abrasion of densified laminated appearance, new densified laminated process is formed continuay



ASTM A128Mn13(X120Mn12)wroughtsteel plate have wonderful abrasion resistance of high

impact abrasion and big stress abrasion, when using it will not appear crash.It also has the excellence of easy for cutting ,welding ,curving and other mechanical properties for process.The traditional used high chrome forging only have the good wear-resistance of moving abrasion.

Mn13(X120Mn12 rolled plate is reduced the cost of useing for quick wear part of low equipment

and save the overhaul fee of equipment,so it improves the competition.



1.Characteristics of products

• High abrasive resistance


• Strong plasticity and impact toughness


• It is work hardening steel - the more impact and abrasion it gets the harder the surface becomes.


• Steel stays ductile underneath - only surface layer hardens.


• With continued impact steel can harden to 500HB above.


• When rolled - never brittle.


• Low friction properties.


• Non-magnetic.

2.Standard-GB, ASTM, JIS, DIN



-American standard- ASTM A128

-Europe standard- X120Mn12

-JIS Standard- SCMnH11

-China National Standard- GB Mn13

- DIN Standard- 1.3401

-AS Standard-K700 k700



3.Brand name- TISCO,BAOSTEEL



4. Chemical composition (%)

Brand	C	Si	Mn	P	S
ASTM A128 X120Mn12	0.90-1.20	0.30-0.80	11.00-14.00	≤0.035	≤0.030



5. Mechanical properties

Tensile Strength	Elongation	20°C Impact Resistance	Initial Hardness(HB)	Hardness after Hardened(HB)	180°old Bending Test
≥900MPa	≥40%	ak≥50(J)	190-250	≥300	Qualified





6.Specifications of Products in Stock



(6mm-20mm)×(1500mm-1800mm)×6000mm (above)

(3mm-5mm)×(900mm-1100mm)×(1800mm-2200mm)

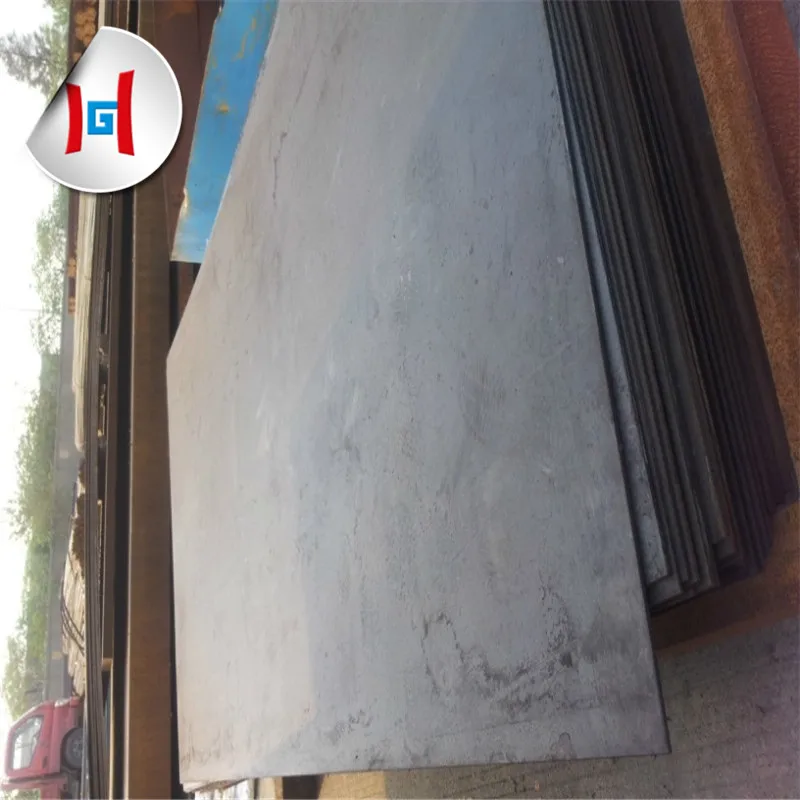

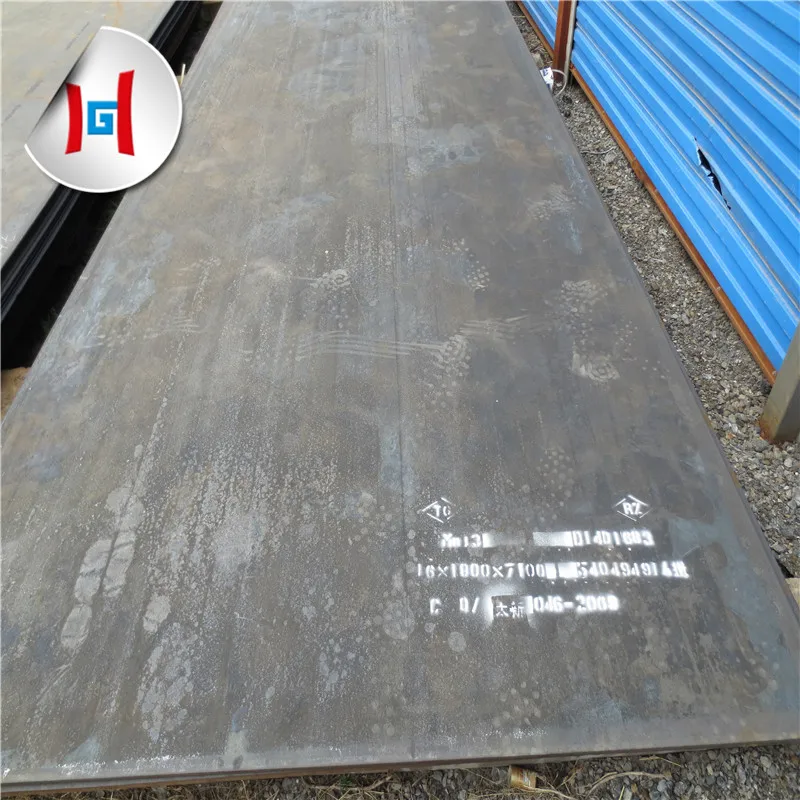

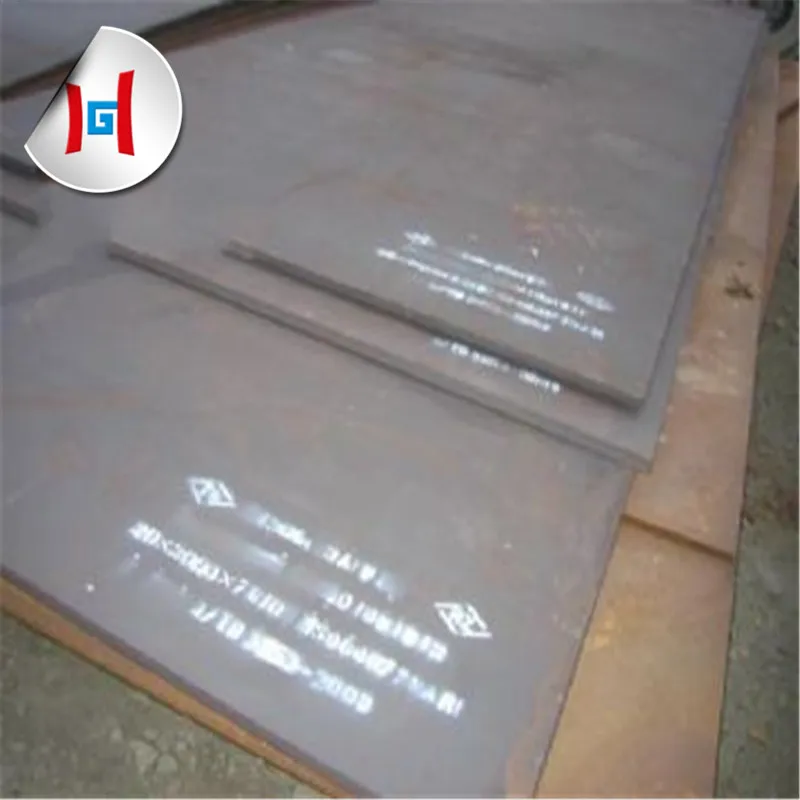

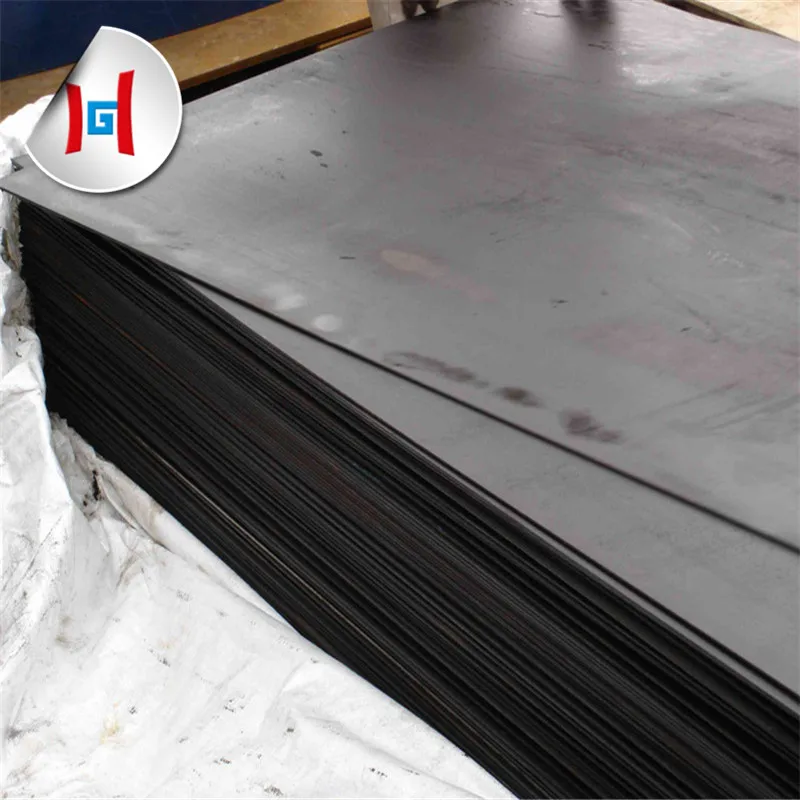

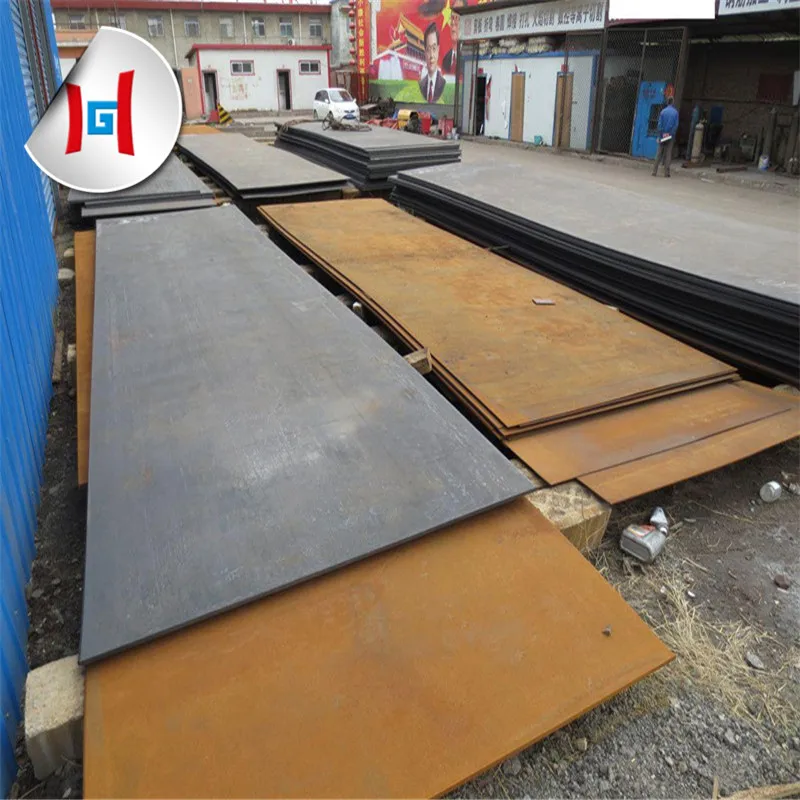

Plates show:















Application

Must pay attention to the high manganese steel must have a dramatic impact or pressure, larger surface can produce work hardening, which shows its high wear resistance, high manganese steel is wear-resisting otherwise not abrasion resistant. The application of high manganese steel The application of high manganese steel At present, foreign wear-resisting machinery plate, plate has been eliminated castings, high manganese wear resistant Mn13 steel rolling steel plate. High manganese wear resistant Mn13 steel rolling steel plate with its excellent wear-resisting performance, widely used in shot blasting machine, ball mill, crusher and other vulnerable to strong impact wear parts, has been in shipbuilding, automobile, machinery, electricity, cement, mining, coal, etc in foreign investment, joint venture is widely used in high-end users, has become a new generation of the inevitable development trend of wear resistant steel material.
