Машина для наполнения переливной жидкостью

Share on (60544602316):


Price:6 000,00 $

Quantity:


Product Overview

Description



Product Description

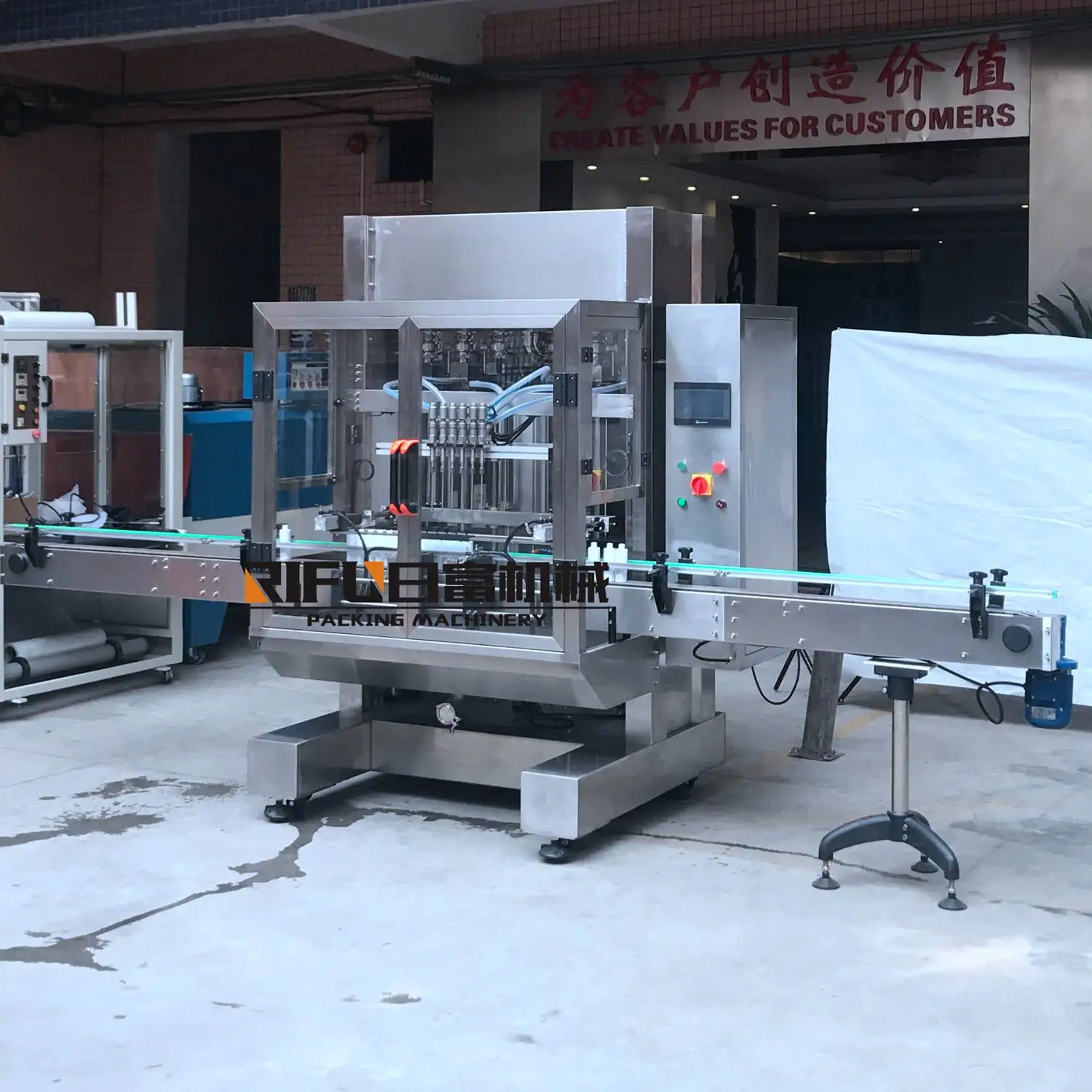

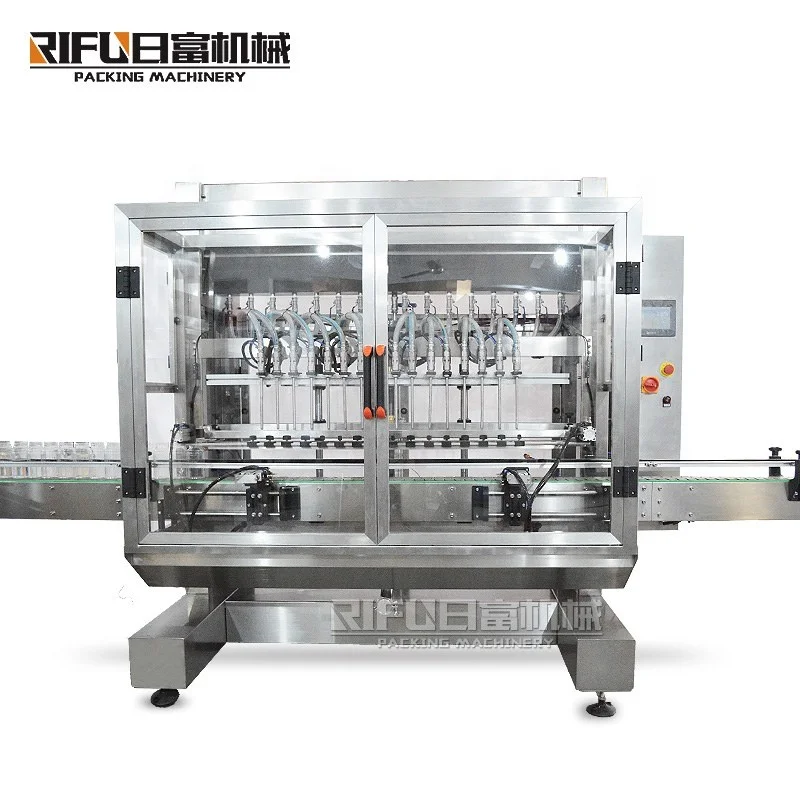

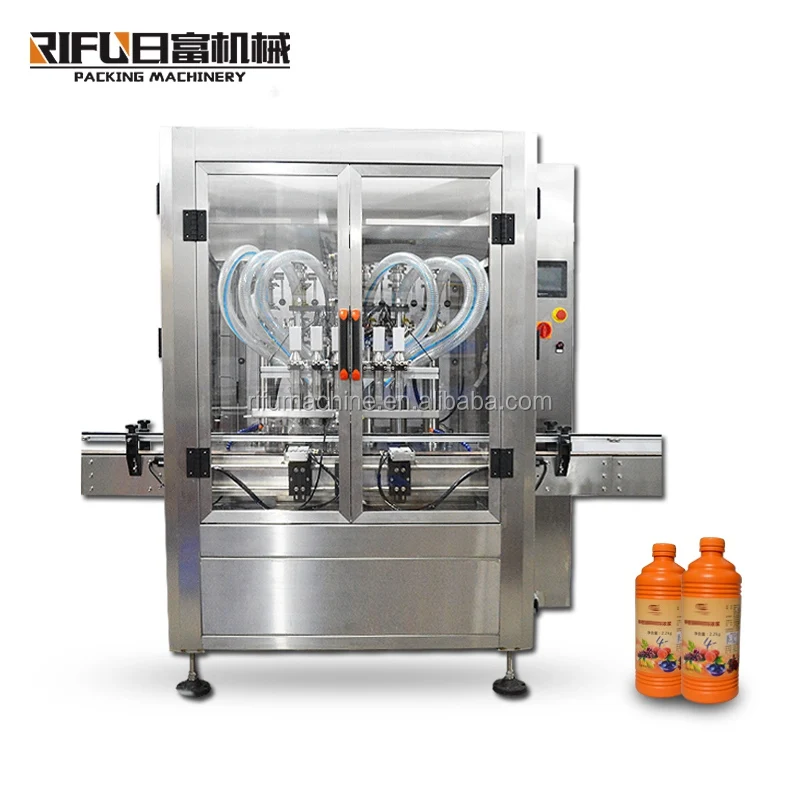

Overflow liquid filling machine

The machine adopts gravity filling way. It dedicated to non-viscous or low-viscous liquid filling. Filling measurement is accurate, no bubbles, no leakage. Suitable for filling containers of different specifications, can switch filling specifications in a few minutes, short filling cycle and high production capacity. No need to add spare parts to change filling volume, only need to adjust. Each filling head is equipped with bottle mouth station to ensure that filling is in  the accurate positon.
Note: filling range and speed can be based on user needs to design different filling heads.



Parameter


Model
RF-2A
RF-4A
RF-6A
Filling range
100-1000ML
200-2000ML
300-3000ML
Filling speed(BPH)
480-600
960-1200
1440-1800
Accuracy
±1%
Voltage/Power
1.5KW/220V
2.2KW/220V
2.5KW/220V
Air pressure
0.6-0.7KG/CM2
Hopper capacity
80L
120L
150L
Air consumption
1.2MPA
Weight
350KG
600KG
700KG
Dimension(mm)
2000*1300*2100
2000*1300*2100
2200*1400*2200
Bottle height range
80-180mm(Can be customized)
Bottle width range
60-100mm(Can be customized))

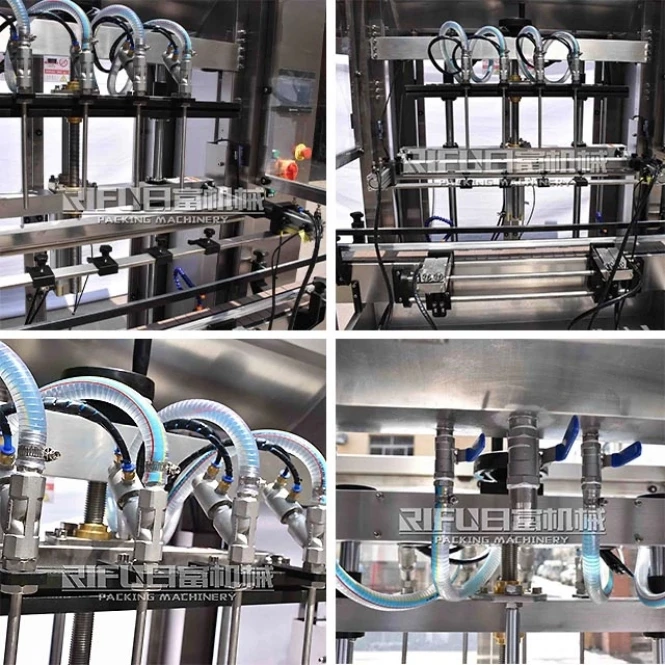

Detailed Images




Sample
