Small mini automatic die cutting and embossing machine
- Category: >>>
- Supplier: Zhejiang Guangya Machinery Co. Ltd.
Share on (60544639390):
Product Overview
Description
Product Description
The Small Flat Bed Die Cutting Machine is designed for die cutting, embossing, debossing, creasing process.
Change mold fast, paper delivery, pull lay, paper feeding, positioning by one press, all automatic positioning will be done, together with the pressure adjustment mechanism to complete the work of cutting.
By electric control, paper feeding control, paper collecting control.
The machine is equipped with the automatic lubrication system.
Specifications

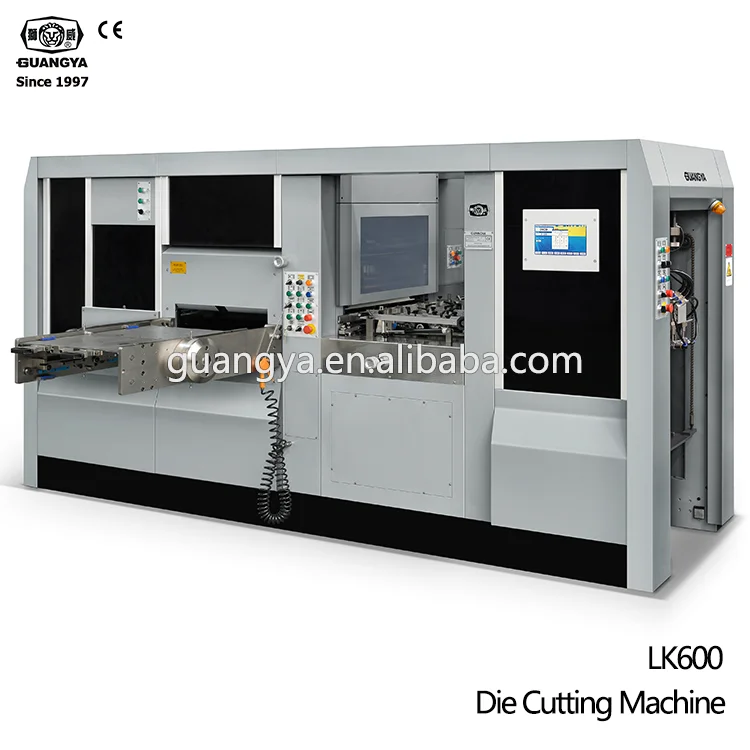

Model | LK600 |
Max. sheet size(mm) | 600x450 |
Min. sheet size(mm) | 300x210 |
Max. feeding pile height (mm) | 850 |
Max. delivering pile height (mm) | 630 |
Max. working pressure(T) | 150 |
Power rating(KW) | 8.5 |
Paper range | 120 -1000gsm |
Max. mechanical speed(s/h) | 5500 |
Max. working speed(s/h) | 6500 |
Main motor power(KW) | 5.5 |
Machine weight(kg) | 5600 |
Overall machine dimensions(mm) | 3500*1600*1900 |

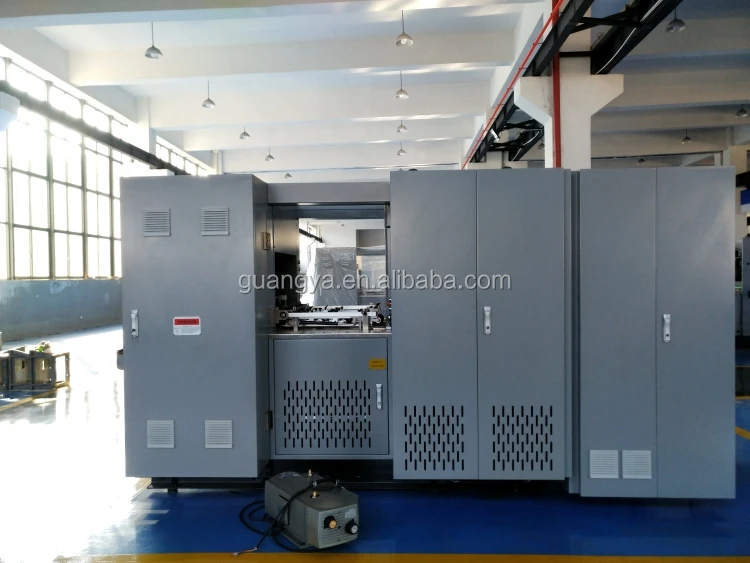

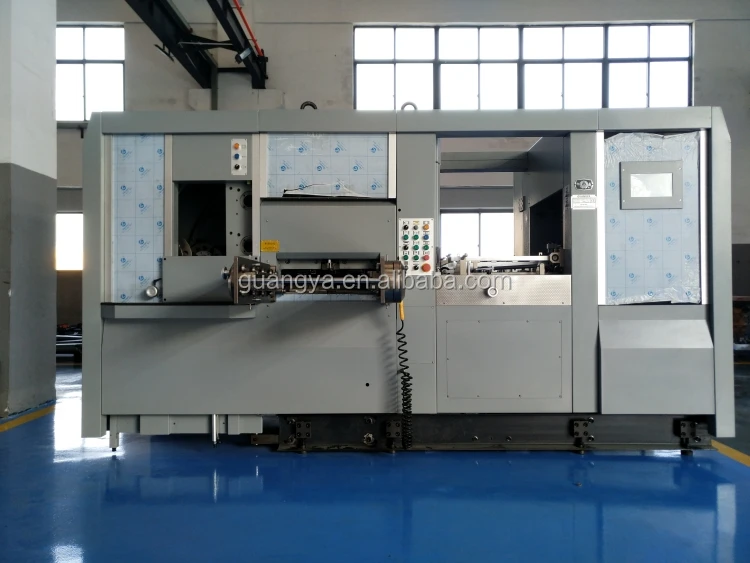

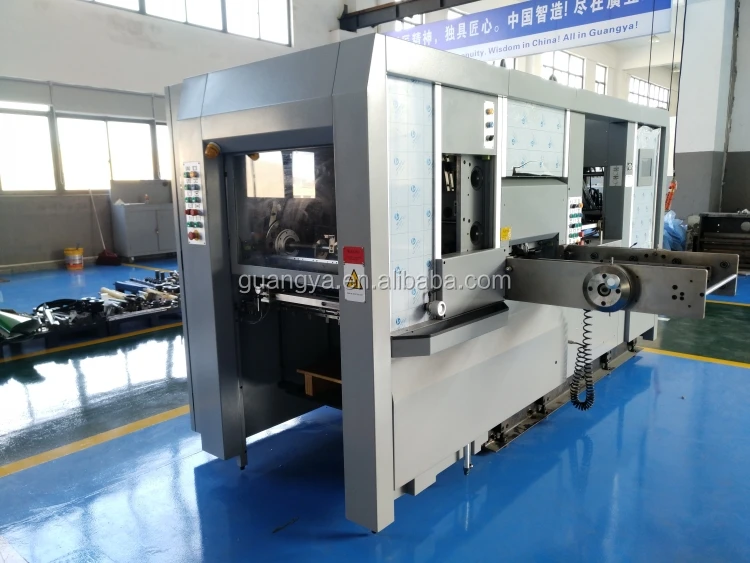

Mac under production
Die cut sample
Sample of die cutting & creasing,
Certifications
Related Products
Our Services
The Unique Human Care And Profession Passionate Sales Service System
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.
FAQ
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machine for over 22 years.
2. Where is your company located? How can I visit there?
Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
The nearest transportation center is Wenzhou airport or Ruian train station.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply: Our team will reply you soon.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
Company Information
Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).
At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.
Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in China.
Guangya hope to be your deal business partner to develop the prosperous future together.
