high productively high precision vertical auto piston ring grinding machine

Technical characters:
1. CNC system chooses Mitsubishi E60 withfriendly interactive interface and reliable performance.
2. The parts’ processingfor the upper and lower surfaces is simultaneous with high precision, and without assisted positioning ( such as disks )
3. The program about the double disc grinding and wheel dressing control makes itto get high precision grinding.
4. Wheel head feed adopts precise ball screwunit. Feeding scale value: 0.001 mm.
5. Wheel head spindle is driven byconverter, 150-950r/min.
6. The motor of the feeding carrier adoptsconverter control; the speed is 1-10rpm.
7. Filtered by magnetic and paper tapetwo steps, the coolant recycle after oil temperature controll er.
8. Adopt hinged carrier plate mechanism(Patent No:ZL200820052659.1), which is easy to open to make aconvenient change and dressing of the grinding wheel..
9. Themachine body adopts casting boxlike structure with good shock absorption andreliable rigidity and thermal stability; Wheel heads spindle are set byvertical configuration.

High quality phone glass grinding machine for iphone
Item	Unit	Spec.
Diameter of parts	mm	Φ12-Φ120
Thickness of parts	mm	1-40
Size of grinding wheel	mm	Φ585×Φ195×75
Power of wheelhead motor	kw	22Kw×2
Wheel head motor speed	rpm	150-950
Feeding carrier motor power	kw	1.5
Feeding carrier motor speed	rpm	1-10
Plainness nd parallelism	mm	≤0.003
Surface roughness	um	≤Ra0.32
Total Weight	kg	10000
Overall dimensions (L×W×H)	mm	2700×2620×2650

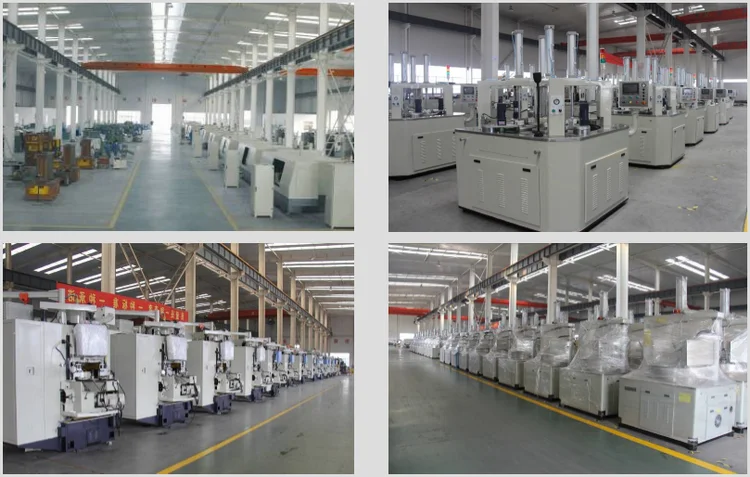

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .

Packaging & Shipping



Product Description

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .



Product Description

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .



Packaging & Shipping

 1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.

Company Information

The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers

• The workshop and office area covers 20K Sqmeters.
• With over 270 staffs, including over 50 R&D technical engineers.
• Main products output more than 1000 sets per year.

Customers

Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.

Foreigners Visiting

Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.



Certifications

Our R & D team  establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .

• has got 36 related patents
• A certificate of international standard products in 2005
• has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards

After-Sales Service

1.Guarantee period is one year. Within this period,  the replaced parts will be offered free if has quality problem.

2.We could arrange engineers to user’s site for installation and final-acceptance  according to customer’s requirements.

3.  We will offer free the  training for machine’s management ,operation , maintenance to user’s related people.
