HD Outdoor P3.91 Mobile Led Screen Advertising Rental Video Led Display Panel

Product Overview

Description



HD Outdoor P3.91 mobile led screen advertising rental video led display panel



Description



1.Super Light and Thin



8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.



2.High Refresh Rate

Refresh Rate 1920-3840HZ, offering impressive visual effect.



3.Noiseless

Free of fans and air conditions, excluding noise and reducing power consumption.



4.Seamless Splicing

High conformity of picture without gap and information missing, realizing a seamless splicing display.



Specification



Pixel Pitch	3.91mm
Pixel Density	65410dots/sqm
Color Configuration	1R1G1B
LED Package	SMD1921/SMD1820
Module Size	250mm x 250mm
Module Resolution	128dots x 128dots
Drive Mode	1/16Scan
Cabinet Material	Die casting Aluminum
Led Color	White
Standard Cabinet Size	500mm x 500mm
Cabinet Weight	8KG
Brightness	5000 cd/sqm, adjustable by software
Viewing Distance	4m-40m
Viewing Angle	H: 140°; V:140°
Refresh Rate	1920-3840HZ, adjustable by software
Frame Rate	120frame/s
Grey Scale	16.7M colors(Synchronized)
Color Temperature	R.G.B brightness 256 level adjustable
Power Input	AC110V/ 220V ±10,  50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	400W/sqm
Storage Temperature	-30~+70 degree
Working Temperature	-20~+50 degree
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof Level	IP65
Operating Humidity	10%~90% RH
Control Method	LINSN, NOVA, Colorlight
PC Display Resolution	1280x1024
Control PC	With DVI Graphic card
Operating System	Win 98, Win2000, XP, Win7, Win8,Win10
Video Signal Mode	RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate	CE, RoHS

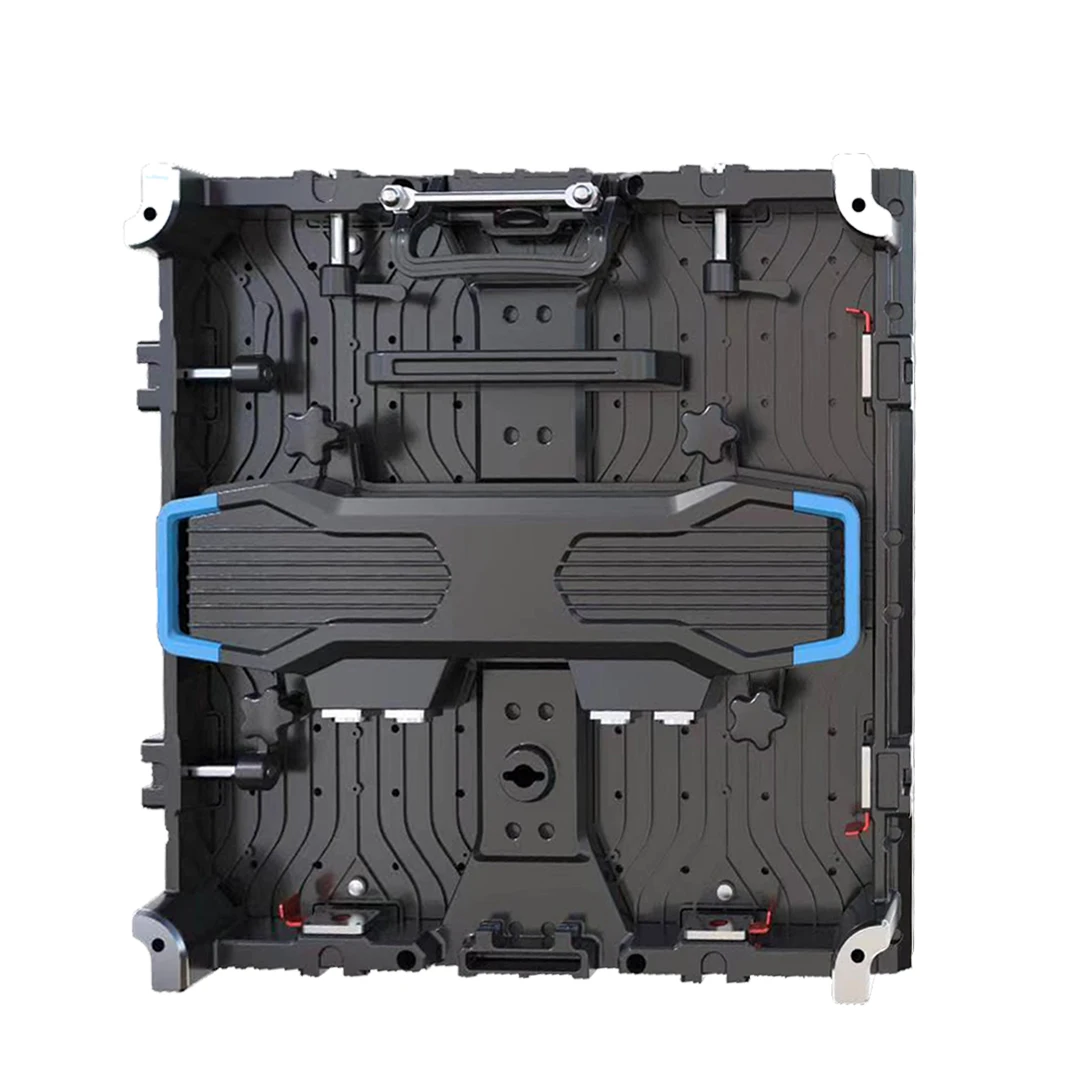

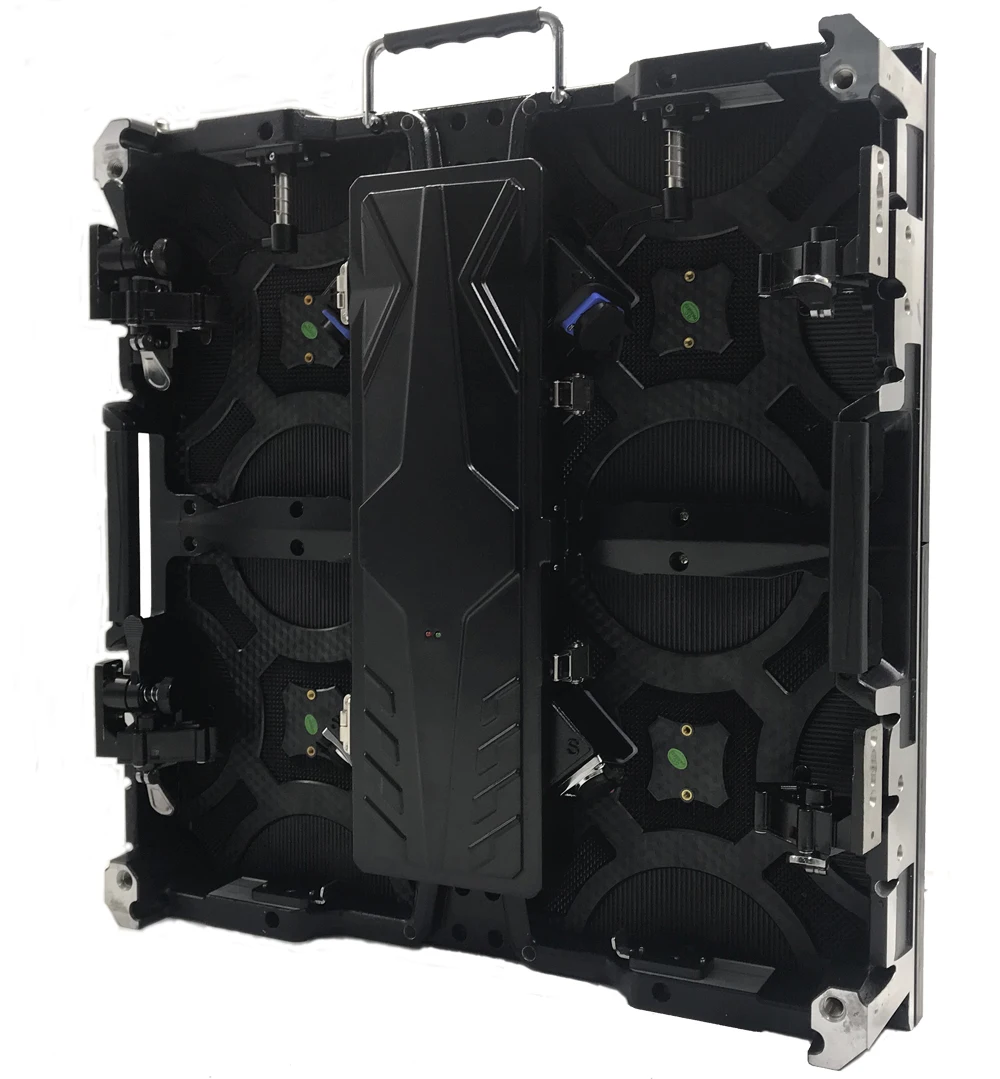

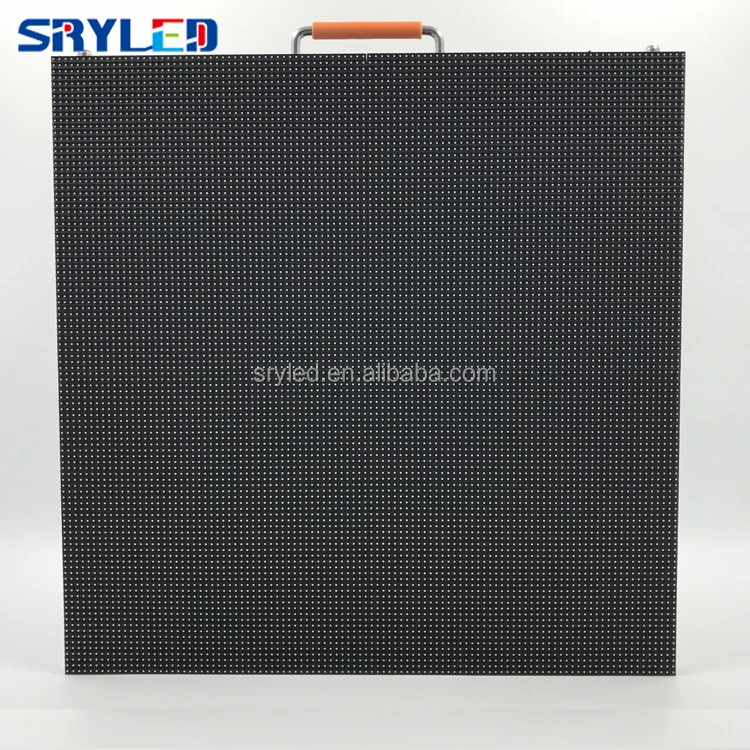

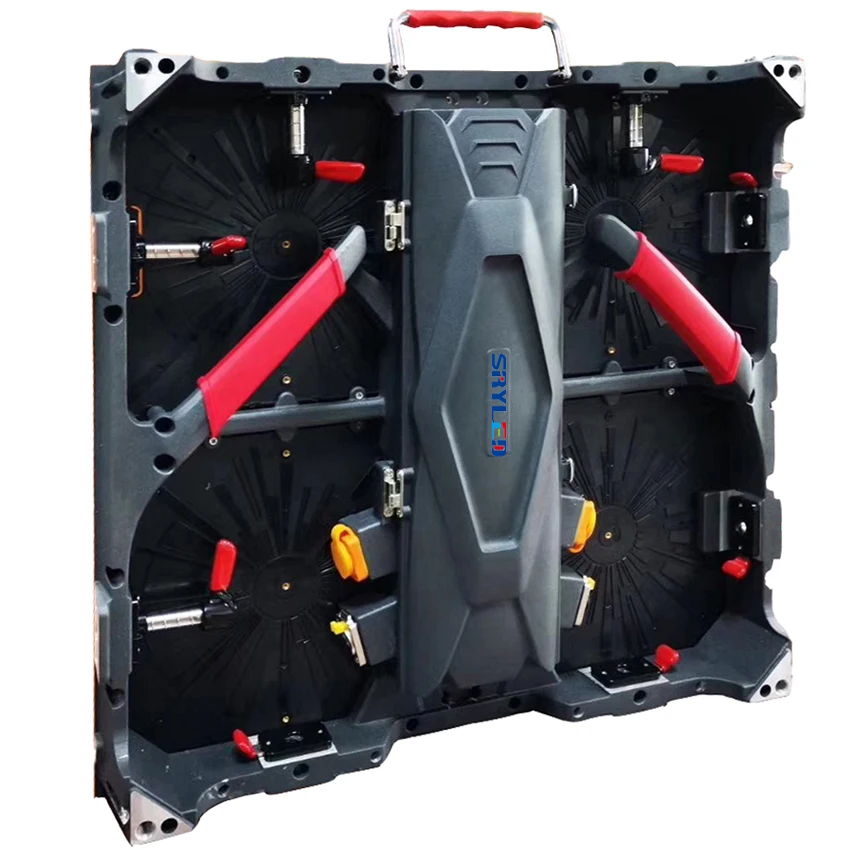

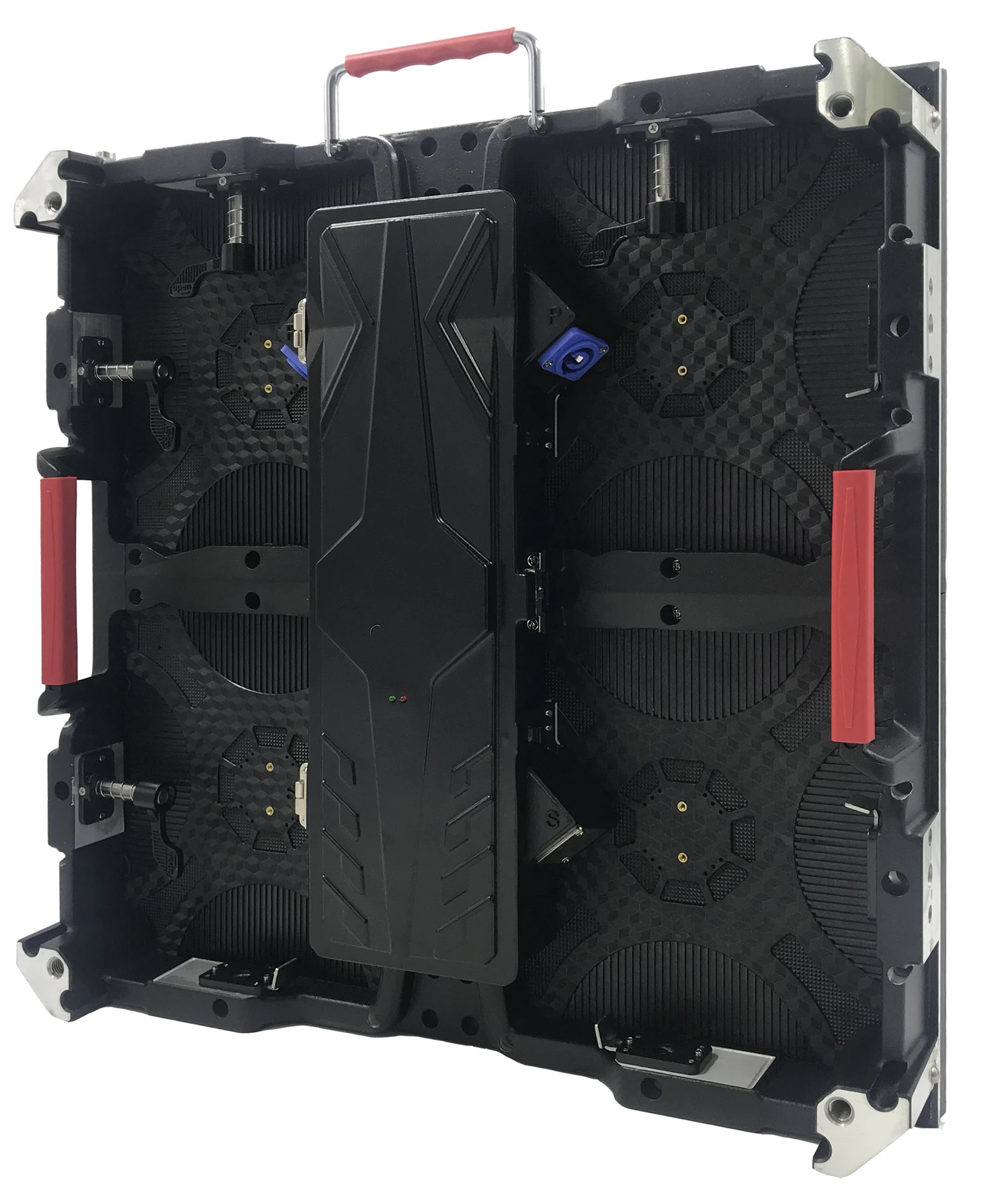

We have both 500x500mm and 500x1000mm led cabinets for your selection

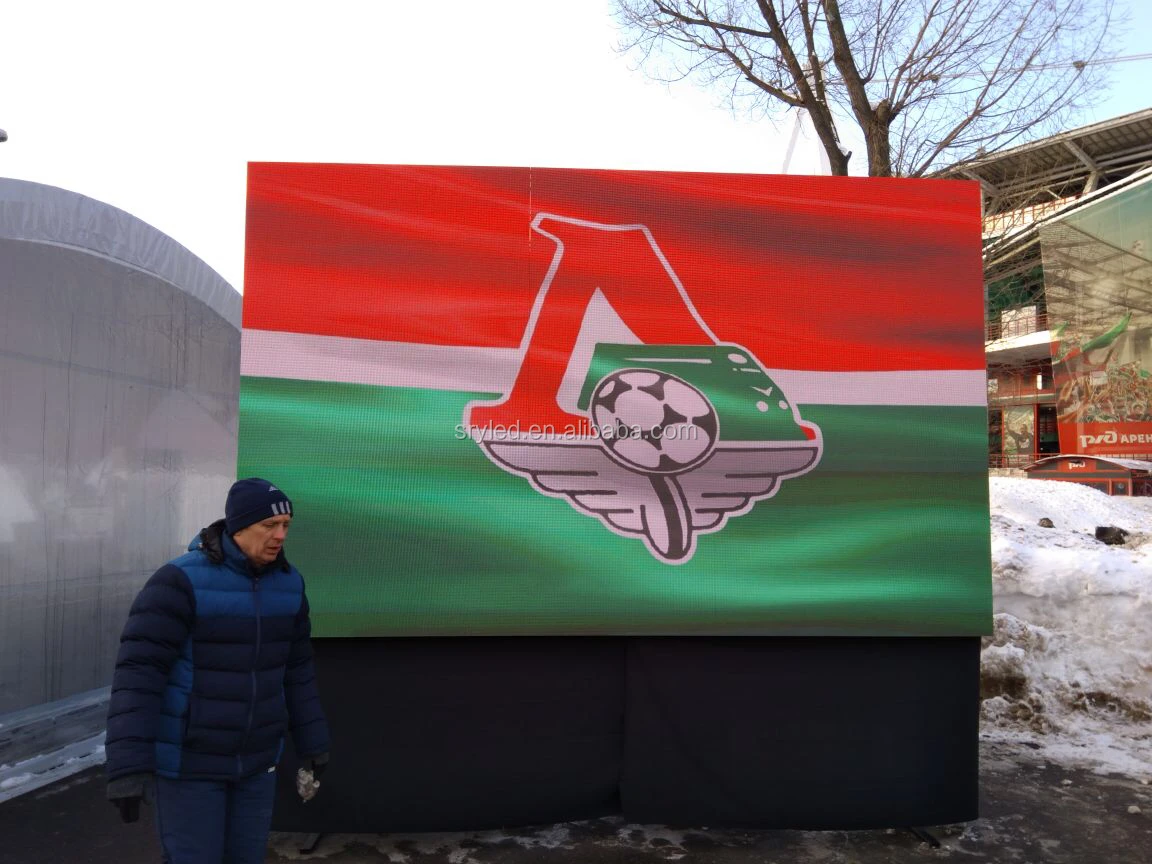

Our outdoor P3.91 project in Russia

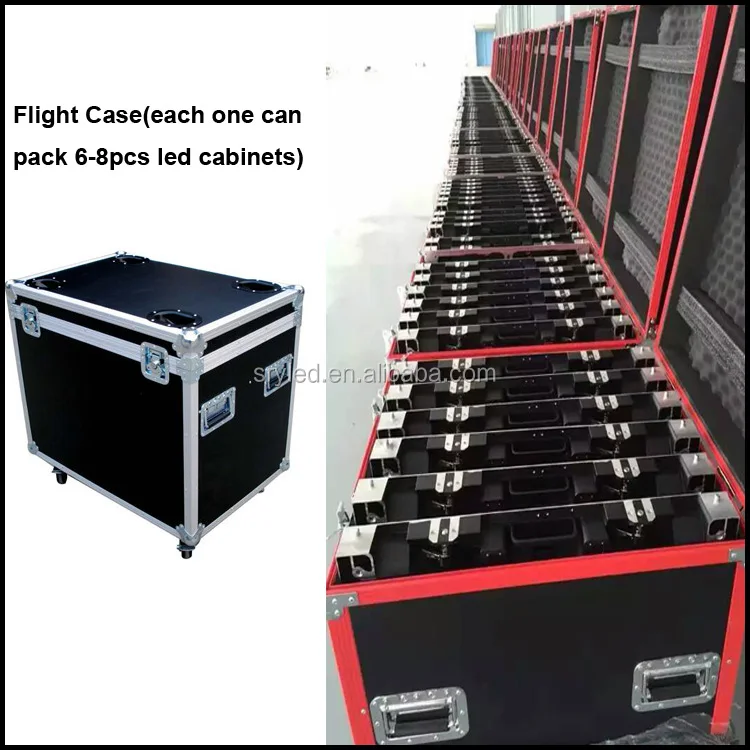

Packages

 Accessaries

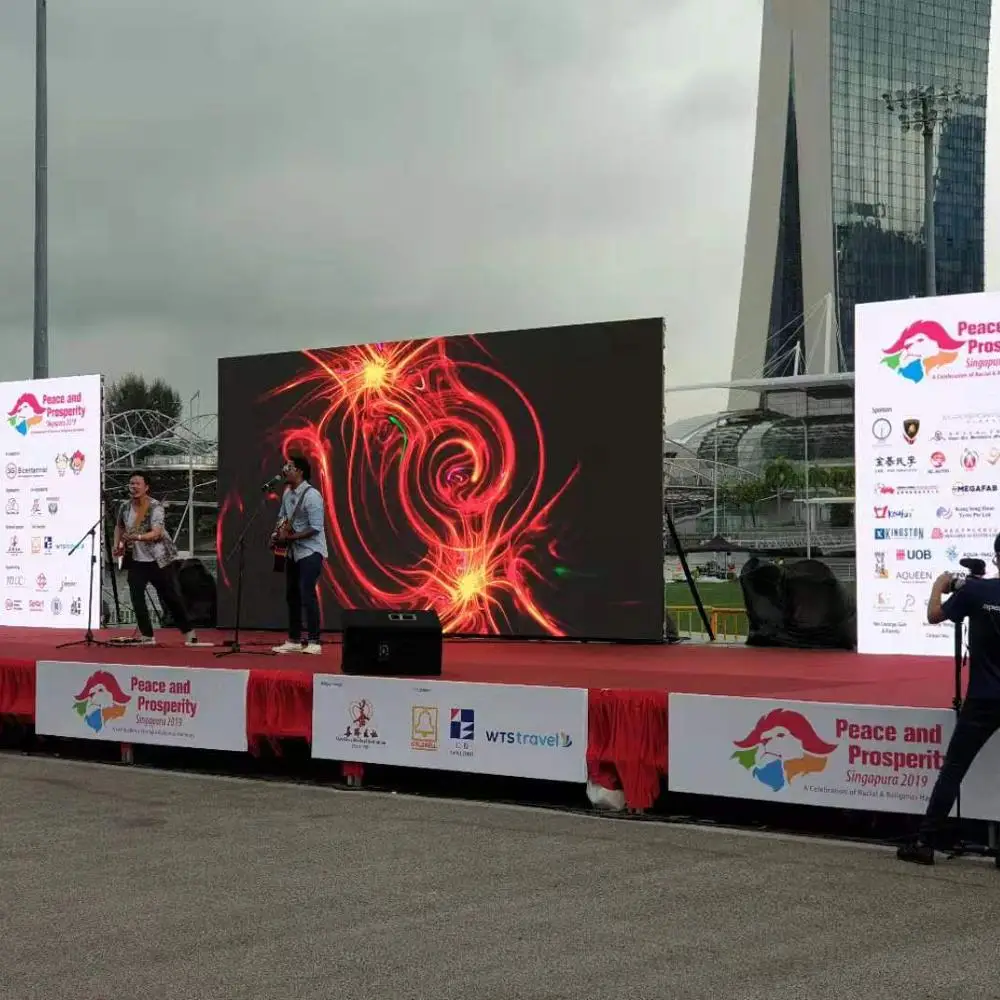

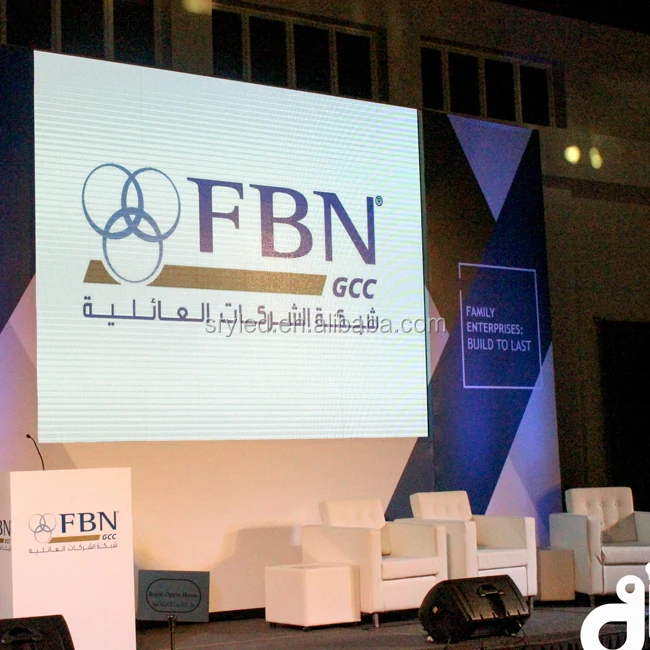

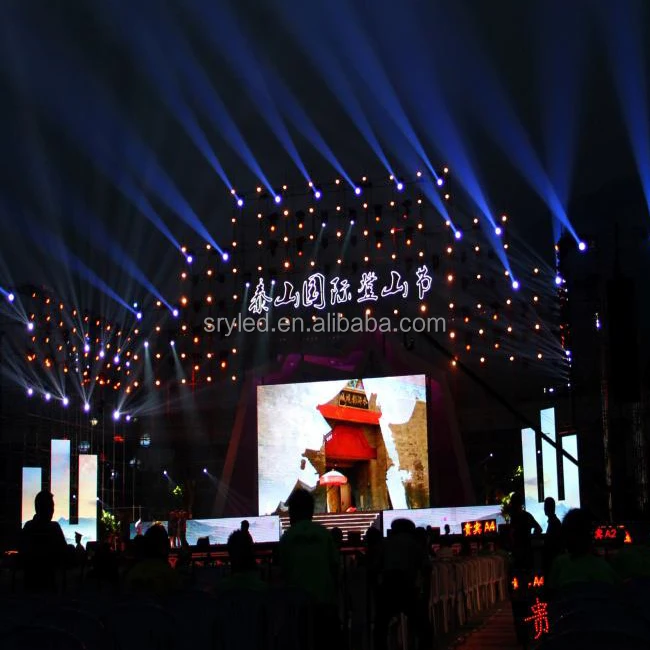

Applications

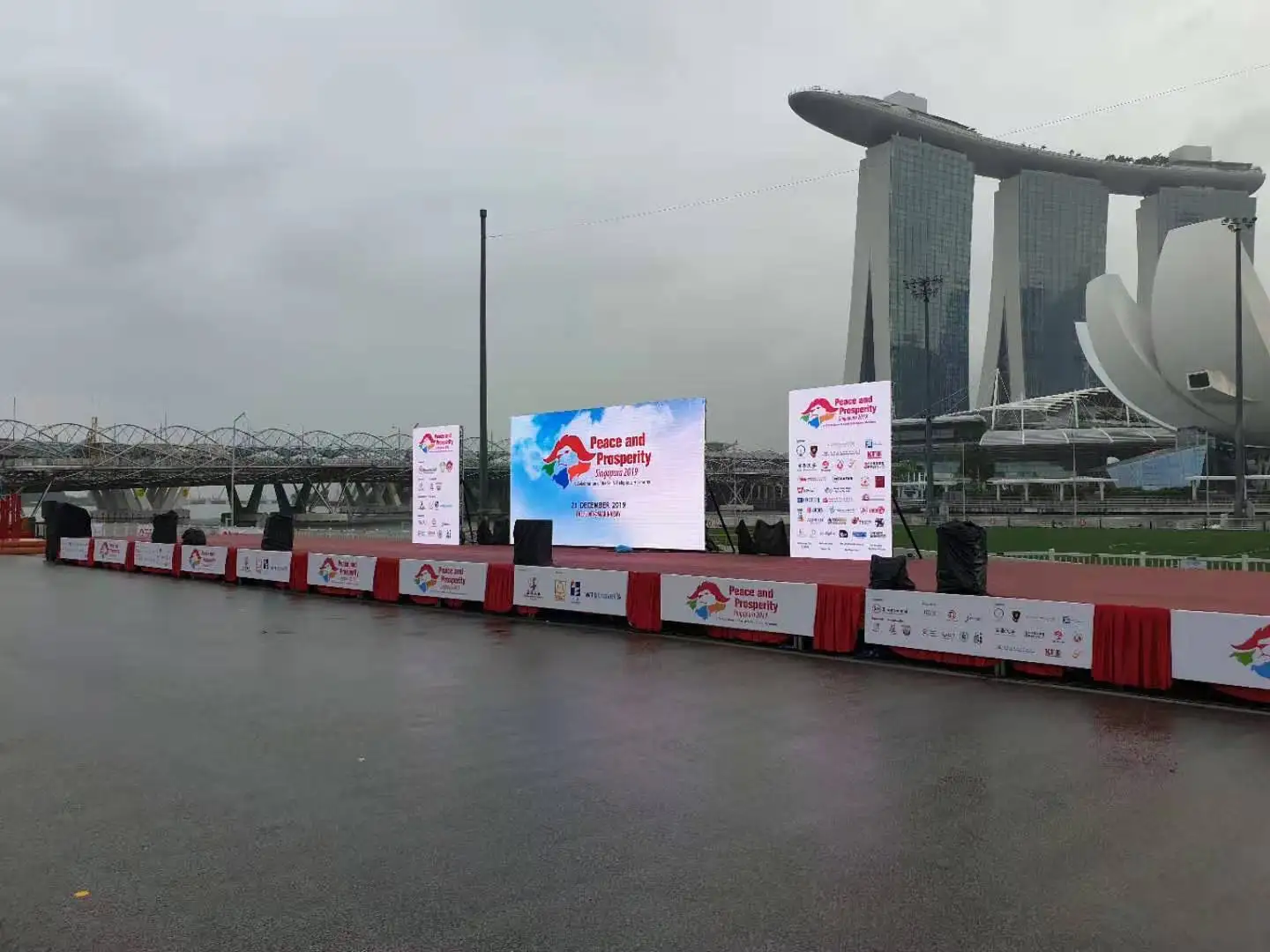

Stage background, advertising activity, press conference, news conference etc.



After-Sales Service

1, Guarantee

   (a) we guarantee that all of our LED displays and necessary components are well tested before shipment, and we will replace or repair the goods if any problem that belongs to us happens during 2 years.

   (b) we provide free life-time maintenance and only charge the raw material cost.

2, Technical Support

   (a) we provide free technical support, which includes operation training and maintenance training in the factory

   (b) we can send our engineers to your country after negotiation

3, Maintenance and Consultation

   (a) we provide full maintenance for a lifetime and only charge the raw material cost

   (b) we also provide lifetime consultation through Email, SMS, Phone call, etc.

4, Documents and Certificates

   (a) we provide all necessary user's manual, software, test report, CAD drawing, etc.

   (b) we can also provide all kinds of certificates, such as CE, RoHSetc.
