Hotsale UFH radiant underfloor heating wiring centre for hydronic heating system

Product Overview

Description

Specifications

1. Max zone"10"
2.Control Multi electric-thermal actuators
3.Connect central mixing water

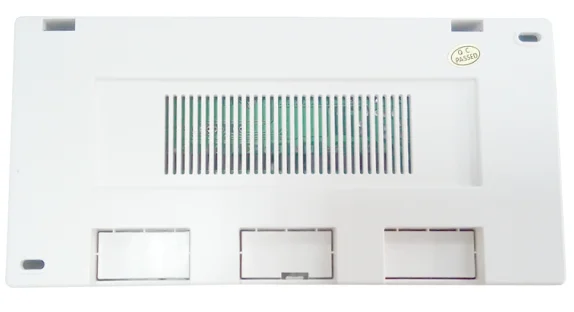

  Wiring control box ME210  details



The waterline heating system ME210 has been developed to provide a temperature , control system for room heating / cooling, integrating the switching of primary heating sources with the control of water temperature and mixing devices. This ensures the best possible comfort conditions and also reduces energy consumption.





Wired controller features:





 Central controller ME210







1.Each master controller can control a maximum of 10 rooms / zones.





2.The master contains outputs for the switching of thermal actuators, boilers,pumps, and mixing valves.

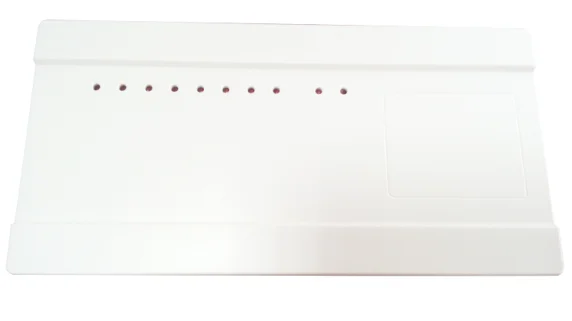

3.Indicator lights show the status of the outputs, 10 indicator lights.





Wired center controller specification:





Power source:  100-240VAC 50/60Hz



 Max. Relay contact : 250VAC 10A



 Operation temperature: -20°C ~ 60°C



 Storage temperature:-20°C ~ 70°C



Dimensions: 200mm*100mm*31mm



 Color:White

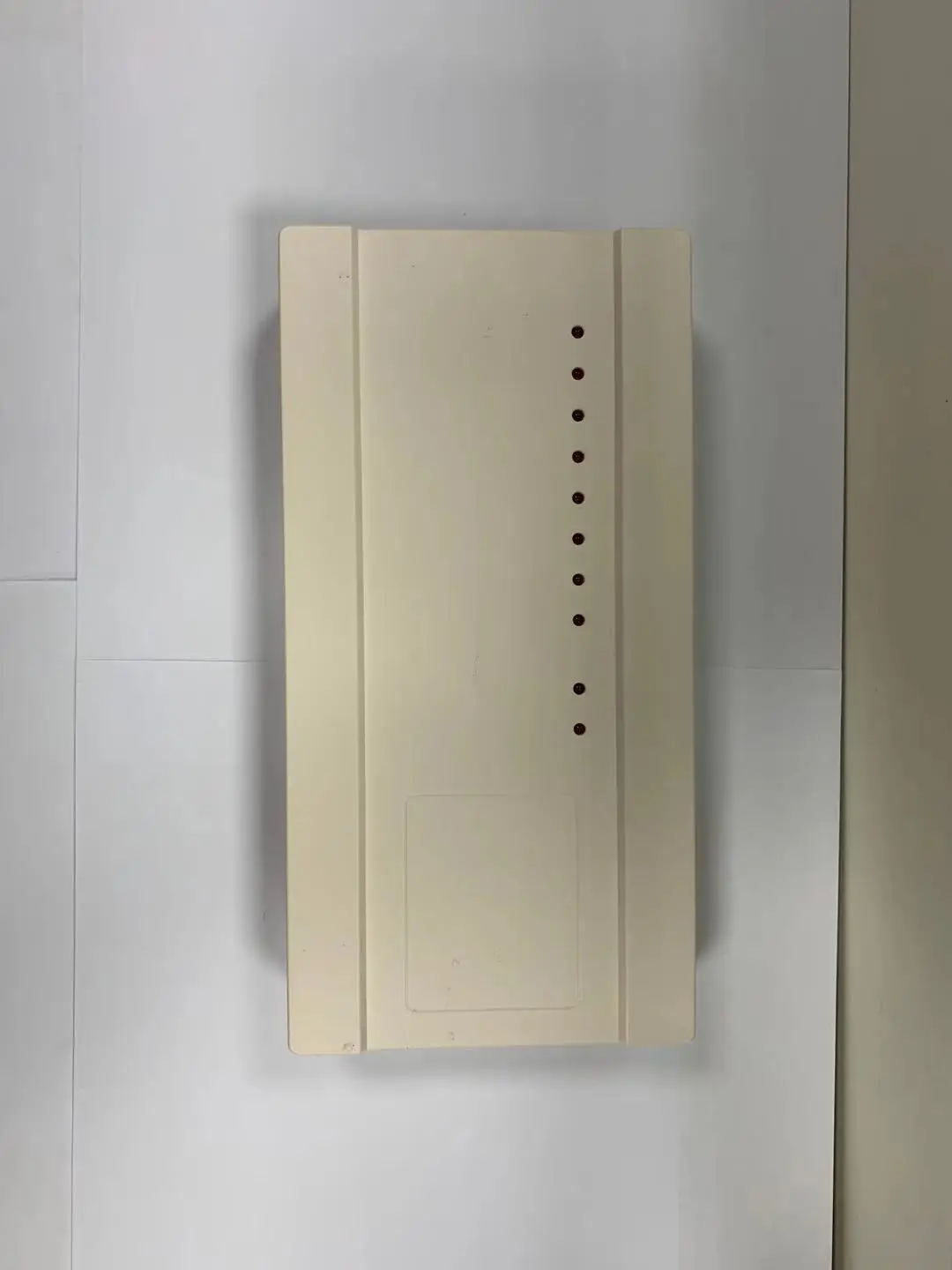

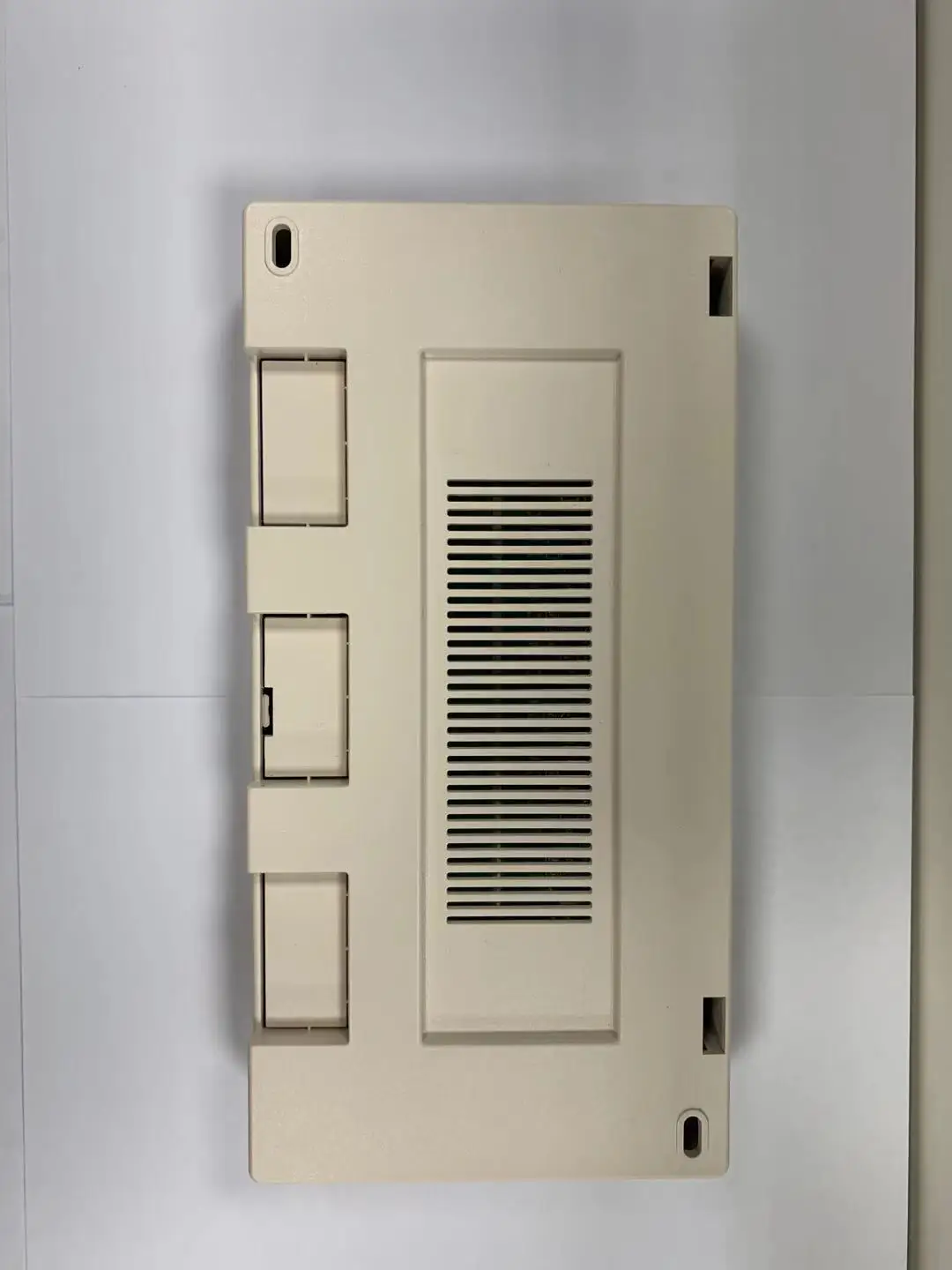

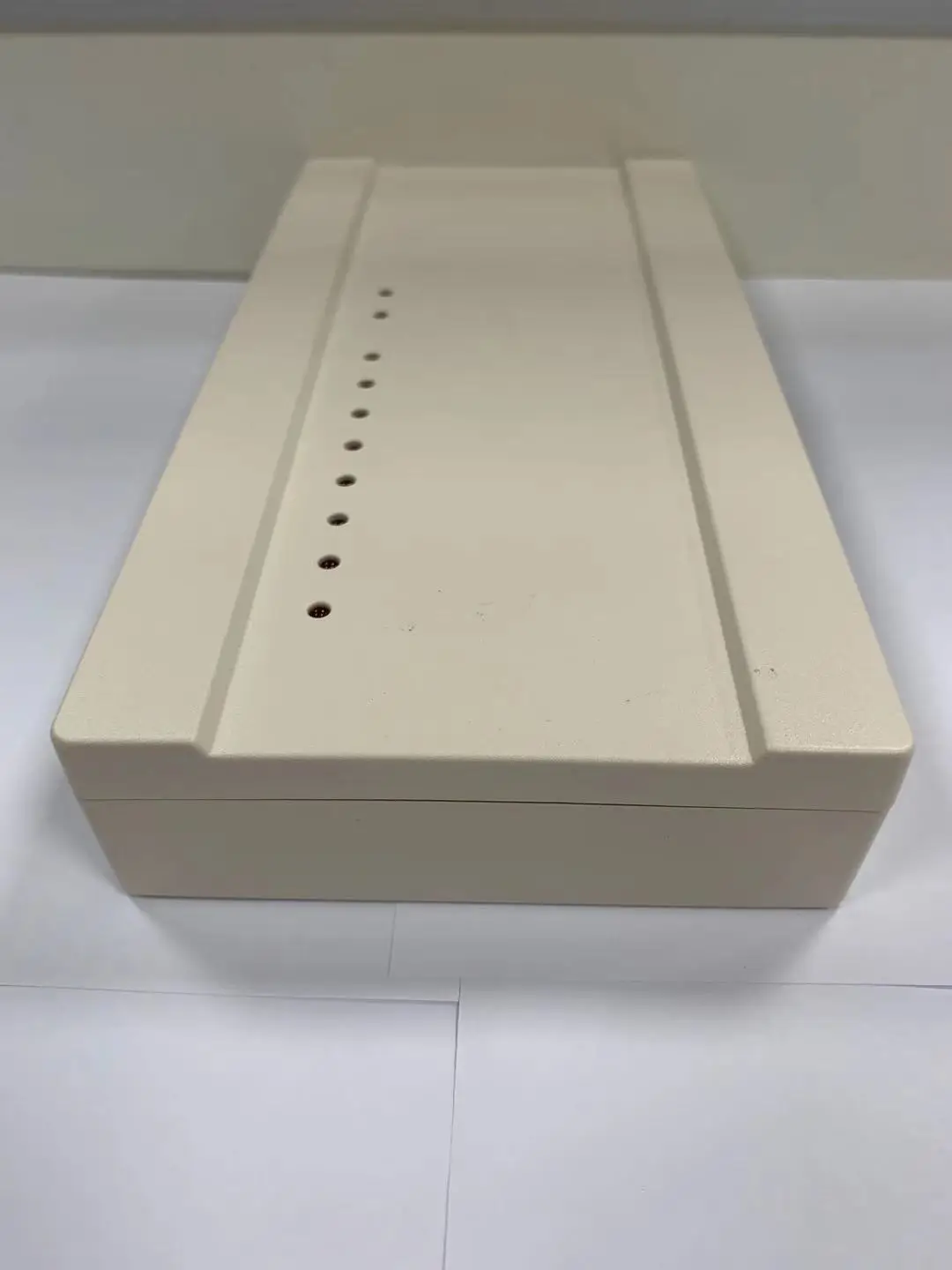

Product Display
