China Supplier High Frequency Induction Heating Equipment
- Category: >>>
- Supplier: Gongyi Jindi Metallurgical Equipment Co. Ltd.
Share on (60544987428):
Product Overview
Description
China Supplier High Frequency Induction Heating Equipment
Product Description

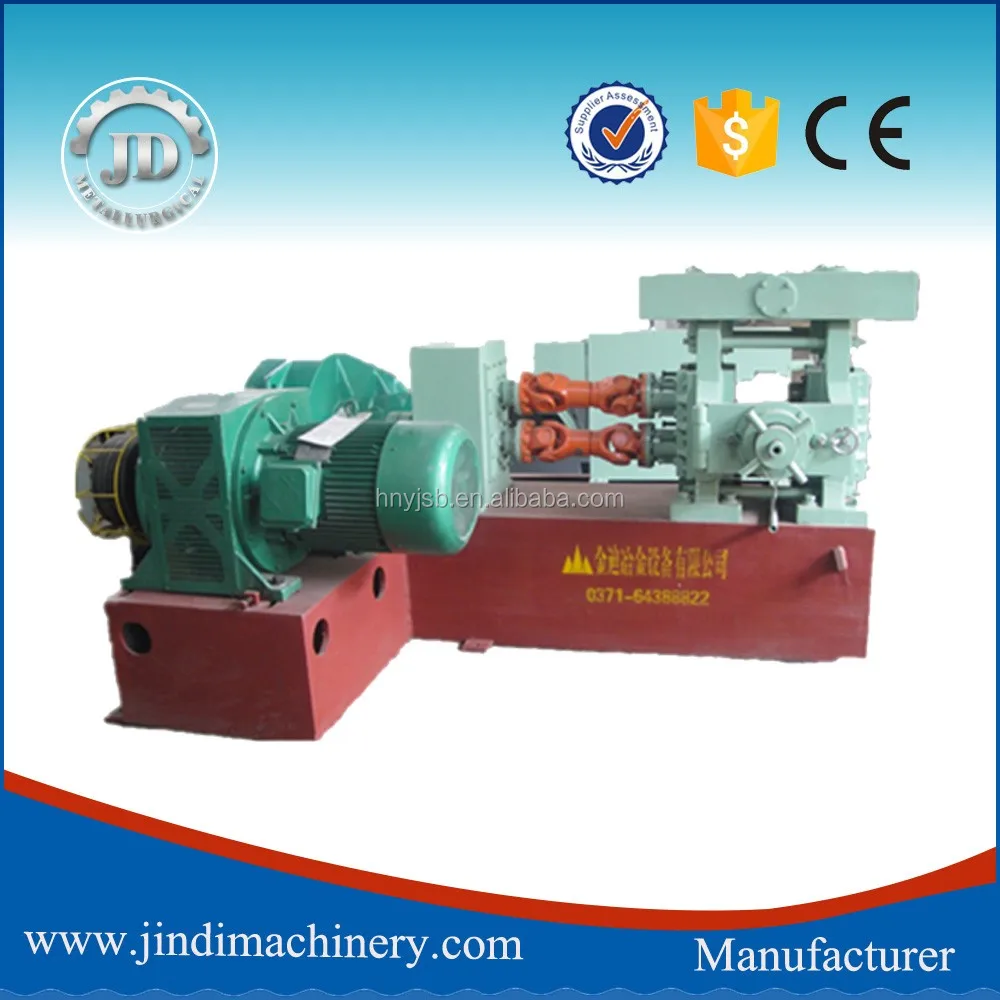

This cold rolling mill is the main part for 2 ribbed cold rolling automatic production line. It has large, medium and small types to meet different needs of customers. Through solid mid-frequency heating, tensile strength of rebar can be reached to 400Mpa, 500Mpa and 600Mpa.

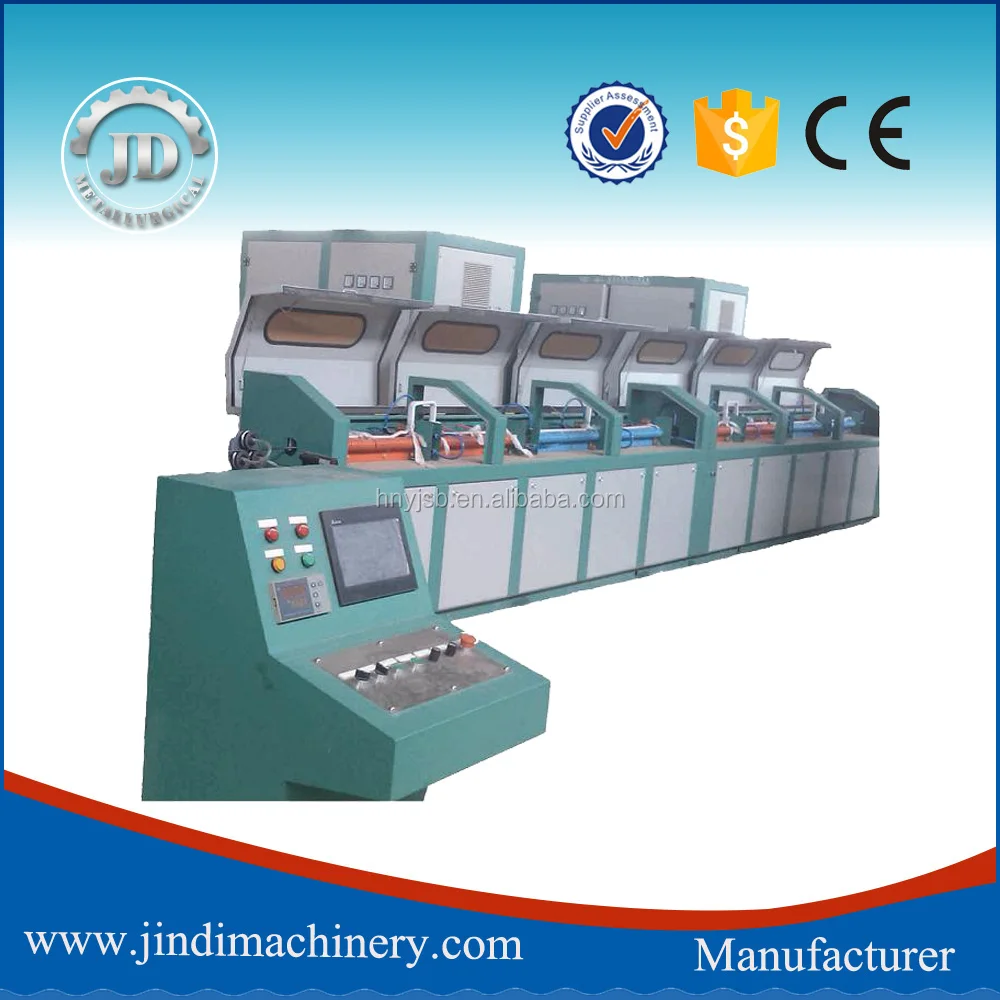

Mid-frequency heating equipment
High frequency induction heating equipment
Technical specification:
We can provide different model numbers according to your requirements, such as LLZ210, LLZ228, LLZ250, LLZ285 etc.
| Item | Small type LLZ210 | Medium type LLZ228 | Large type LLZ285 | Unit |
| Raw material | φ 6.5-10 | φ 6.5-12 | φ 10-16 | mm |
| Roller diameter | Φ210 | Φ228 | Φ285 | mm |
| Power | 55-75 | 75-110 | 130-160 | kw |
| Center distance between gears | 650 | 650 | 700 | mm |
| Rolling speed | 1.5-2 | 1.5-3 | 2-3 | m/s |
| Cutting length | 1.5-12 | 1.5-12 | 1.5-12 | m |
| Motor of flying shear | 5.5 | 7.5 | 15 | kw |
| Product specification | Φ5-8 | Φ5-10 | Φ8-14 | mm |
| Output | 20-35 | 25-50 | 60-80 | T/Shift |
Product Overviews

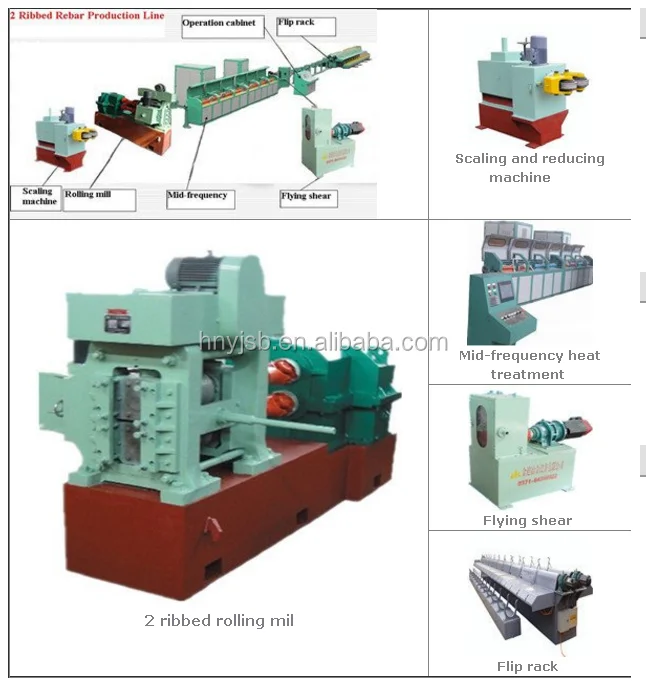

Production Flow

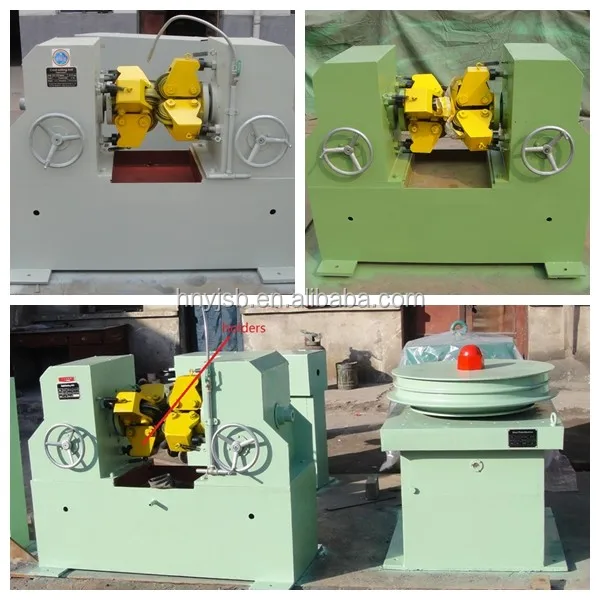

- Scaling and reducing machine
Function: the two machine is for reducing the rust on the wire rod, make wire rod more smoothly, the relieving machine will let wire rod more strength, anti-pulling
- Flying Shear
| Type | Power | Cutting Range | Speed | Cutting Length | output |
| Small | 5.5 kw | Φ5-10 | 2-3 m/s | 1-12 m | 10-30 T |
| Medium | 7.5 kw | Φ5-12 | 2-3 m/s | 1-12 m | 15-50 T |
| Large | 15 kw | Φ5-14 | 2-3 m/s | 1-12 m | 25-70 T |
- Rack Shelf Stack
Function: it is mainly for collecting rebar,
Automatic collecting way, save labor
Improve working effeciency
Production Line without Heat Treatment
Production Line with Heat Treatment

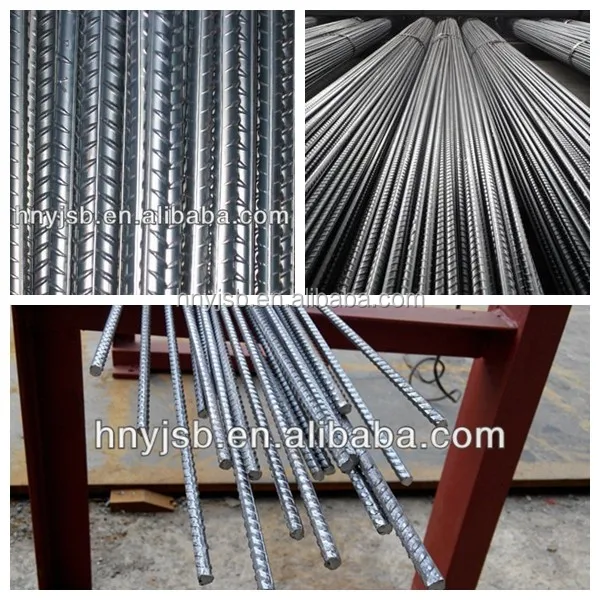

Finished Products
Rollers
high-quality hard alloys, has advantage of smooth transmission,wear-resistant and
durable.The life of rollers could process 3000ton steel, then maintain, and reuse it again
Related Products
Related Products
3 -ribbed cold rolling mill
| Technical Parameter of Production Line of Cold Rolled 3 Ribbed Steel Bar | |||
| Model | Main Motor(kw) | Deputy Motor(kw) | Shift Capacity T |
| LZ130 φ5-7 | 30 | 4.5 | 6-10 |
| LZ150 φ5-9 | 45 | 5.5 | 13-25 |
| LZ150 φ5-11 | 55-75 | 7.5 | 30-45 |
Company Information
Gongyi Jindi Metallurgical Equipment Co, Ltd was founded in 1978, it is a specialized factory in producing rolling mill equipment. As one of professional manufactures in China, we have more than 20 years of valuable experience in designing and producing. Moreover, we have the complete set of processing equipment on the basis of advanced manufacturing technology and the ability of R&D.
Our new type production line is to make the plain steel wire to 2 or 3 ribbed steel bar with or without heat treatment.The tensile strength, yield strength and elongation rate of steel bar are improved and can meet or exceed the level of the three steel.(HRB400). It is a new good and efficiency steel bar for construction and save 40% steel bar for construction. Cold Rolled Steel Bar Production Line is a wonderful equipment to produce this kind of bars. We could also design and make customized machine according to customer’s requirement.
Packaging & Shipping
Wooden box is available if you require.
Customers
Contact
Thanks for visiting our website, if you're interested in our products and company, pls feel free to contact us, and welcome to visit our factory if you have time, welcome your inquiry and will be at your service!
