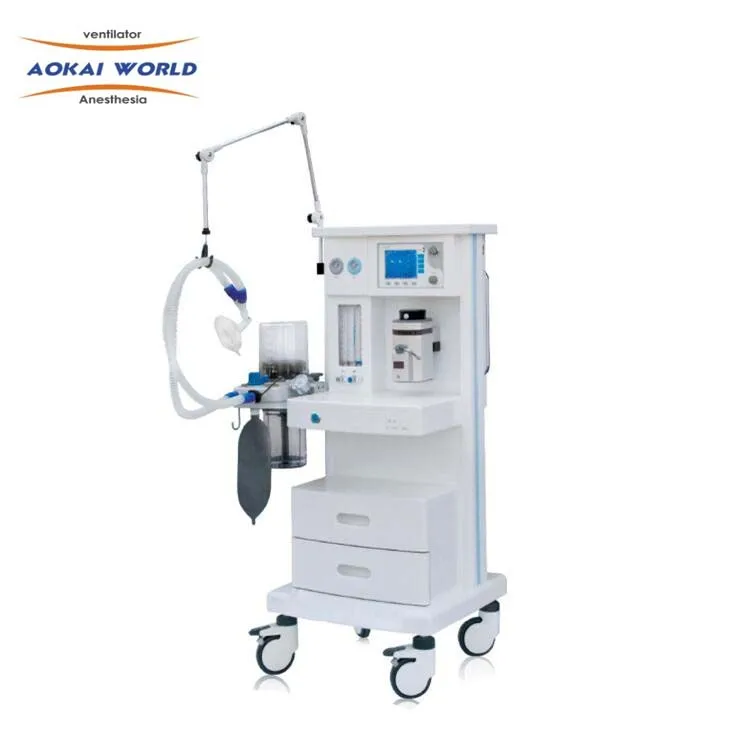

High Definition 10.4 TFT Color LCD Screen Display Anesthesia Machine with Ventilator for sale
Product Description
Technical parameters
Part of Anesthesia
Main body
High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of application
adult, child

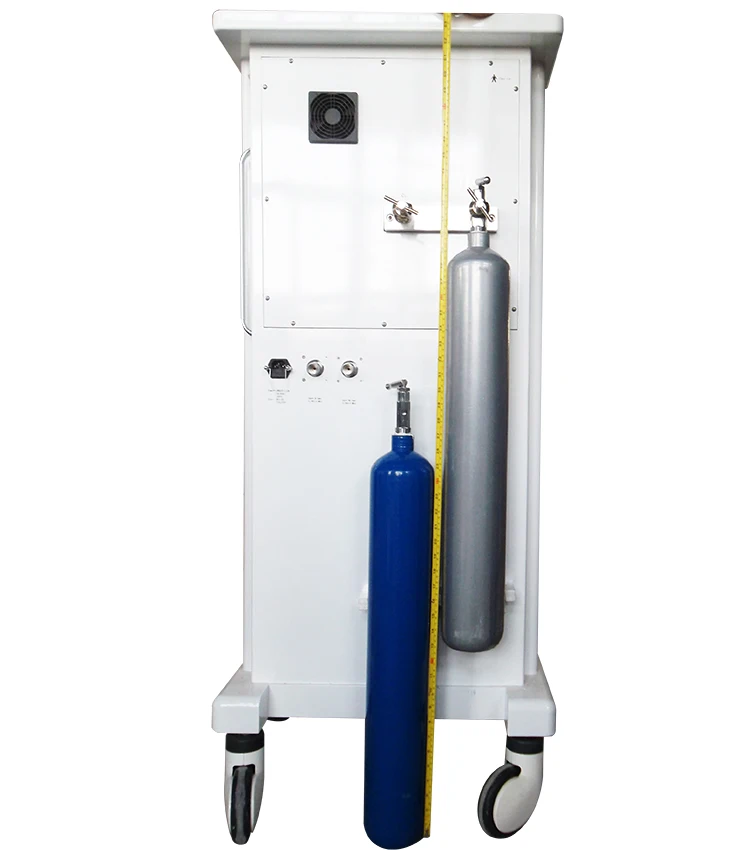

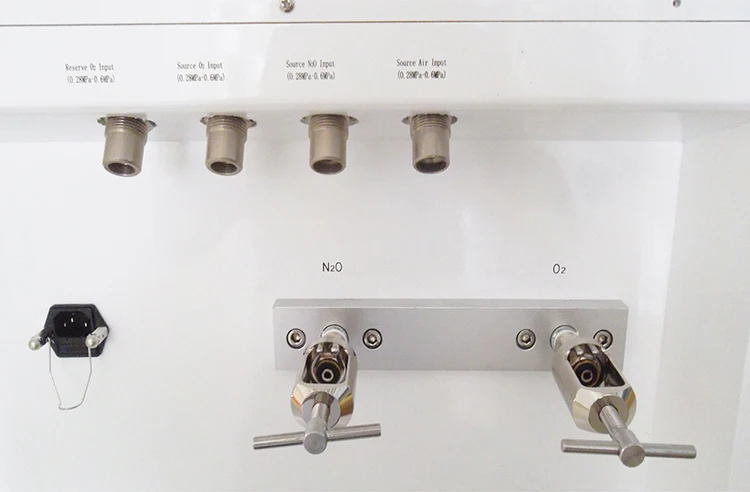

Gas source
O2: 0.28~0.6MPa
N2O: 0.28~0.6MPa
Flow meter
O2 : 0.05~1.0L/min
O2: 1.1~10L/min
O2 N2O linkage and N2O Stopper
When using nitrous oxide, oxygen concentration>25%;
When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.
Flow rate of rapid oxygen supply
25~75L/min
Low oxygen pressure alarm
There will be sound alarm when the oxygen pressure < 0.2MPa

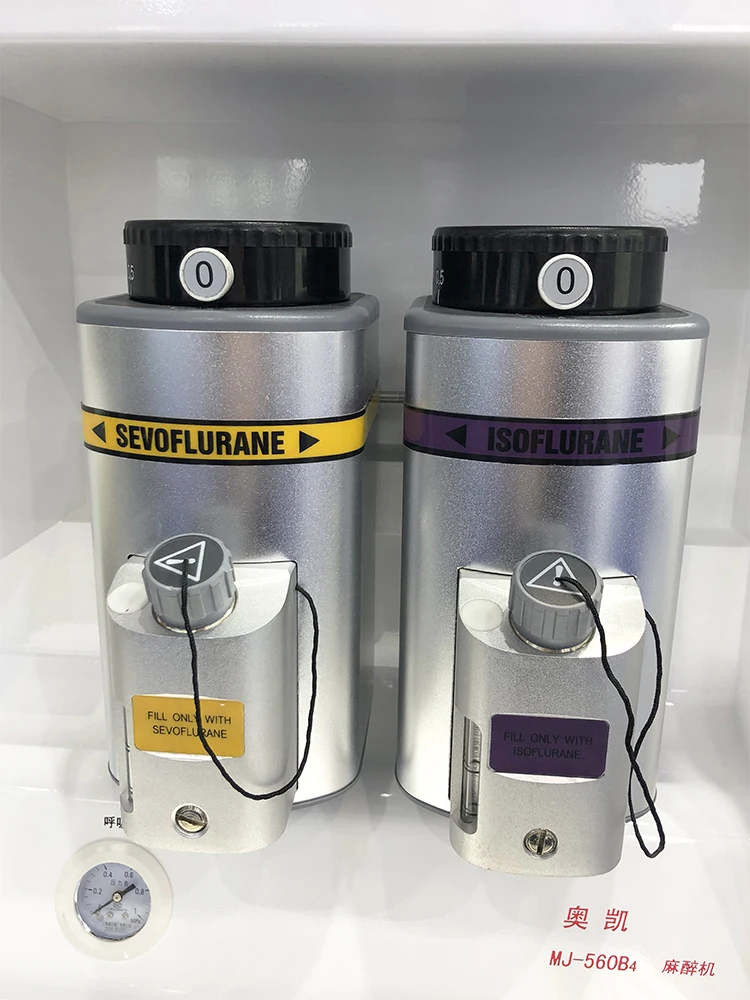

Vaporizer
It has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.
Respiratory circuit
working mode: all-close, semi-close, semi-open
APL≤12.5 kPa
Respiratory Bellows
bellows for adults, tidal volume range:0~1500 ml
bellows for children, tidal volume range:0~300 ml
anyone can be chosen for application as required by the customer
Display mode
High-definition 10.4” LCD screen display
Part of Ventilator
Ventilation mode
IPPV, SIPPV, SIMV, MANUAL
Ventilation functions
PEEP,SIGH, IRV
Ventilation parameters
Tidal volume
50~1500 ml
Rate
2~99 bpm
SIMV rate
2~20 bpm
I:E
2:1~1:8
Inspiratory trigger pressure
-10~20 cmH2O
PEEP
2~20 cmH2O
Pressure range
5~60 cmH2O
SIGH
1.5 times the inspiratory time (60-120 adjustable)
Parameters for ventilation monitoring
Expired tidal volume, Inhale tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous inspiratory rate, I/E, peak pressure of airway, average pressure, PEEP, inspiratory trigger pressure

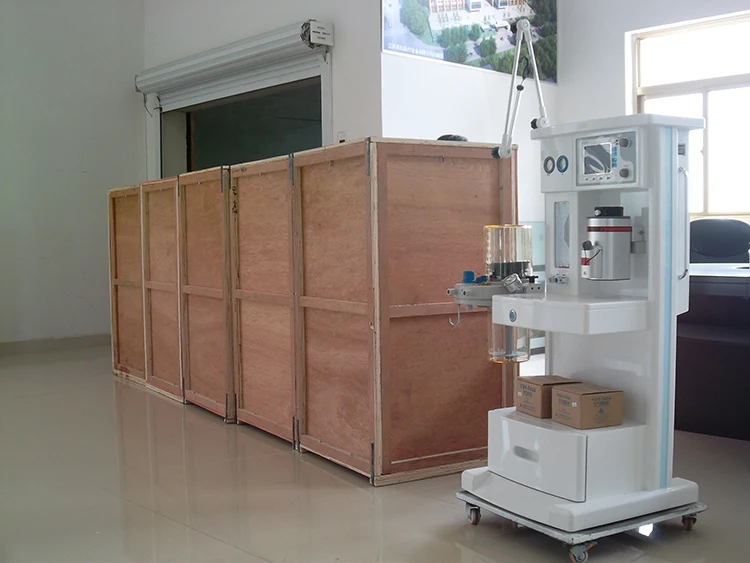

Packaging & Shipping
Company Information
Aokai medical equipment co.,ltd is specialized in the producing and marketing of anesthesia machine and ventilator,surgical light, operation table, hospital bed, medical pendant and ward furniture. After more than 20 years development, our company has become one of the largest manufacturers of medical equipment in China. In the future,we will continue to provide the best product and service to our new and existing customers for their support and love.
Our Factory
Exhibition
Our Services
The Service We Provide
1.Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We assist you on every direct purchasing,project and bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
2.Ontime delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed
•Shipping notice/ insurance to you as soon as your order is shipped.
3.After sales service:
•We respect your feed back after receive the goods.
•We provide 18 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We care your complain within 24hours.
Warranty
1.This equipment will be enjoyed 18 months warrantyaccording to the international standard .
2.Has a number of highty qualified engineers and exports to provide guarantee for the maintenance.
3.We will responsible for repairing it or replace the related accessories free of charge if any malfunction happened for the equipment's own quality problem from the date of purchase.
Note

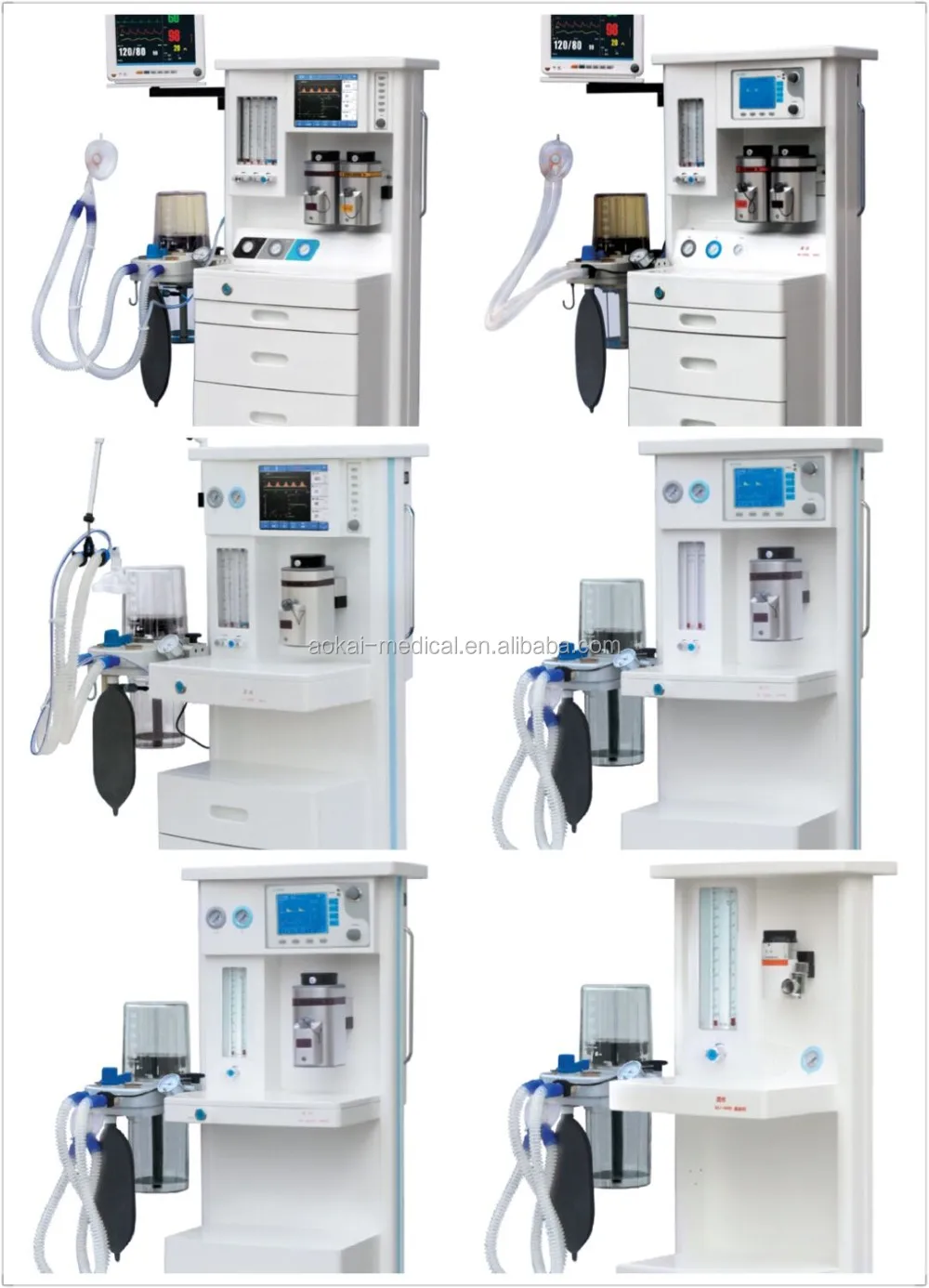

We haveanother 5 modelswith different configurations,Please contact us if you need further information for these models !
