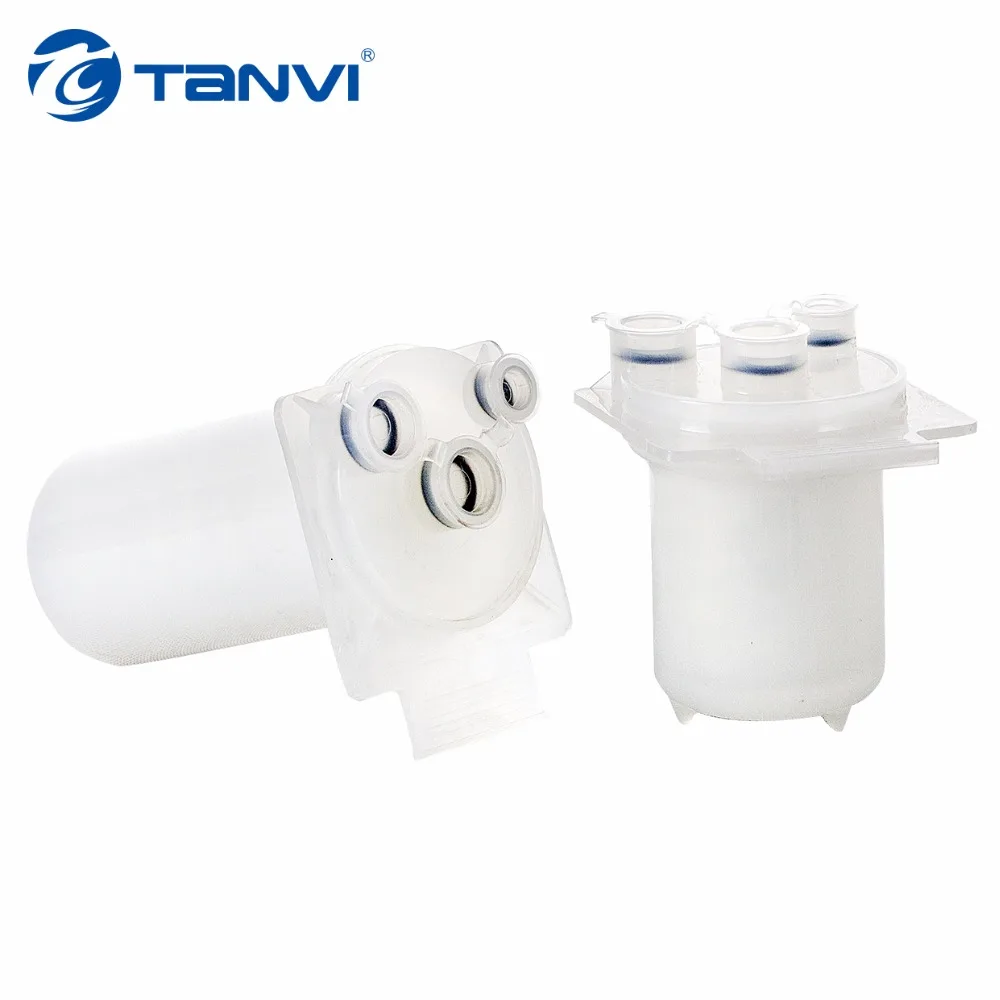

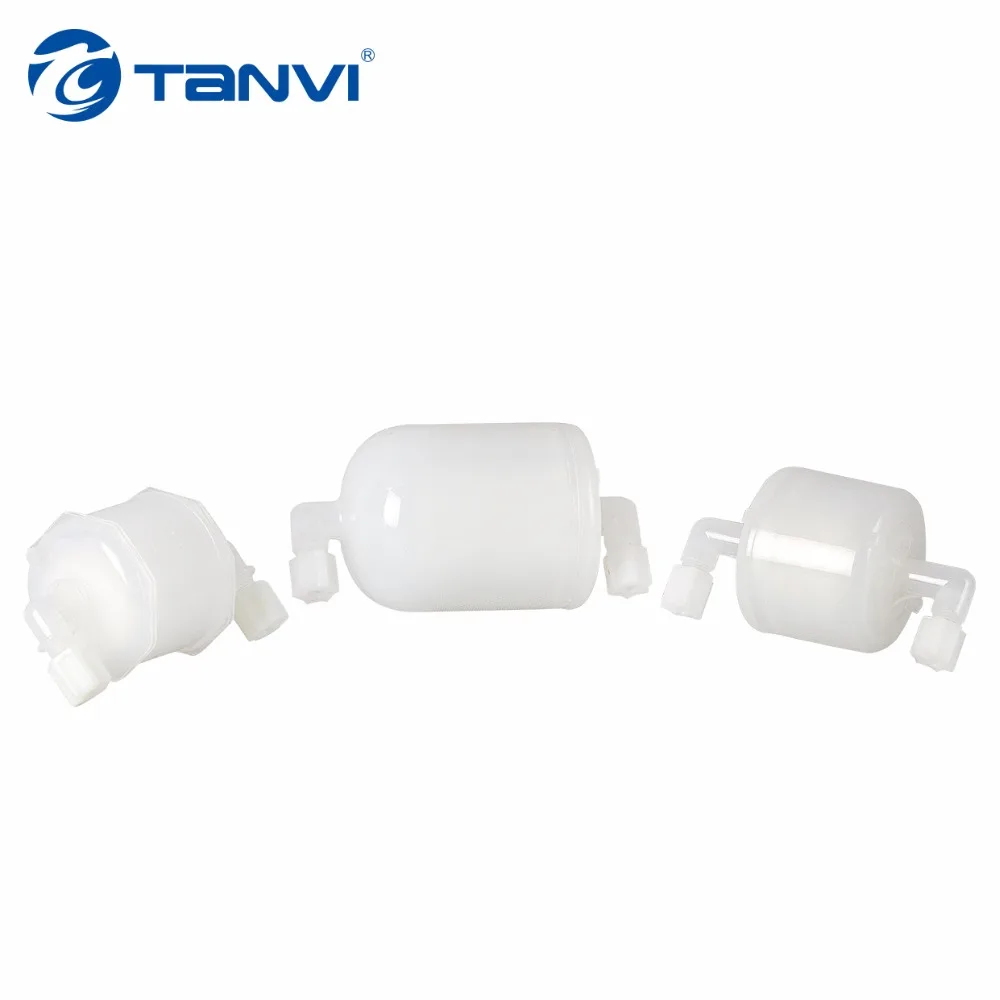

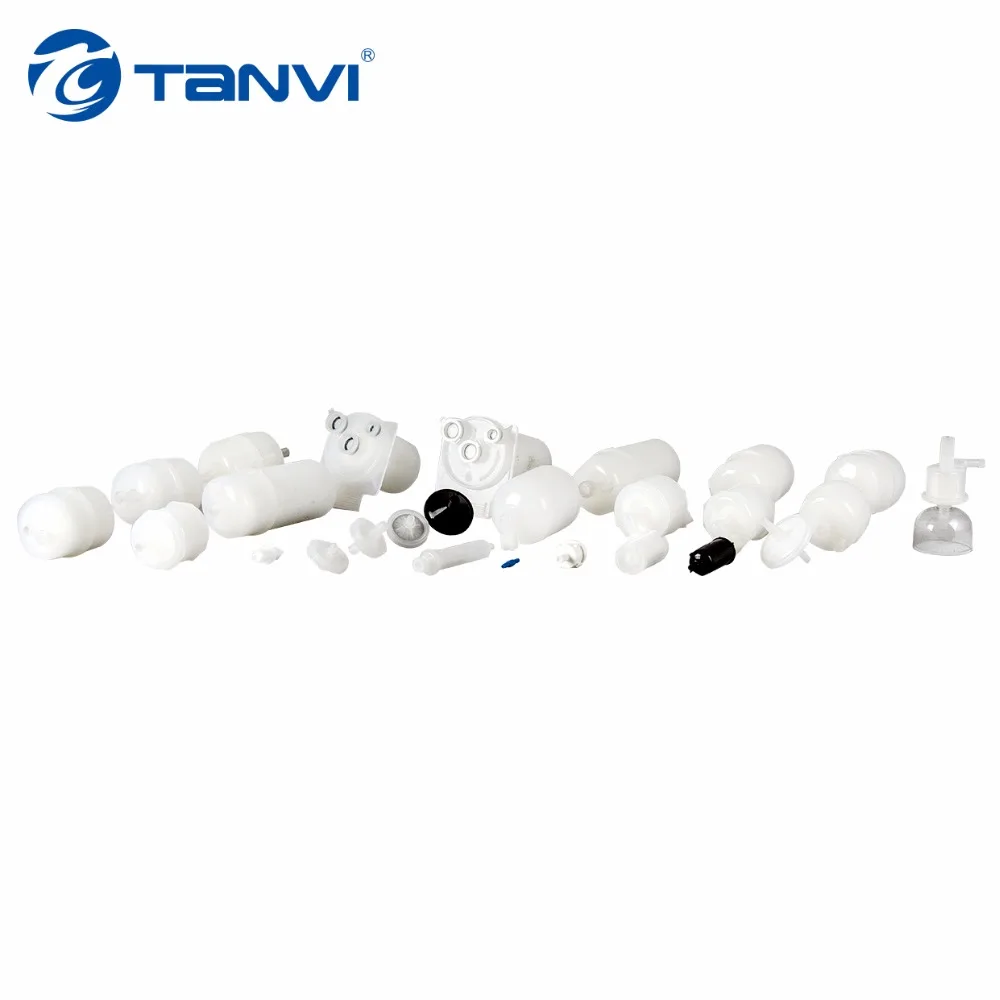

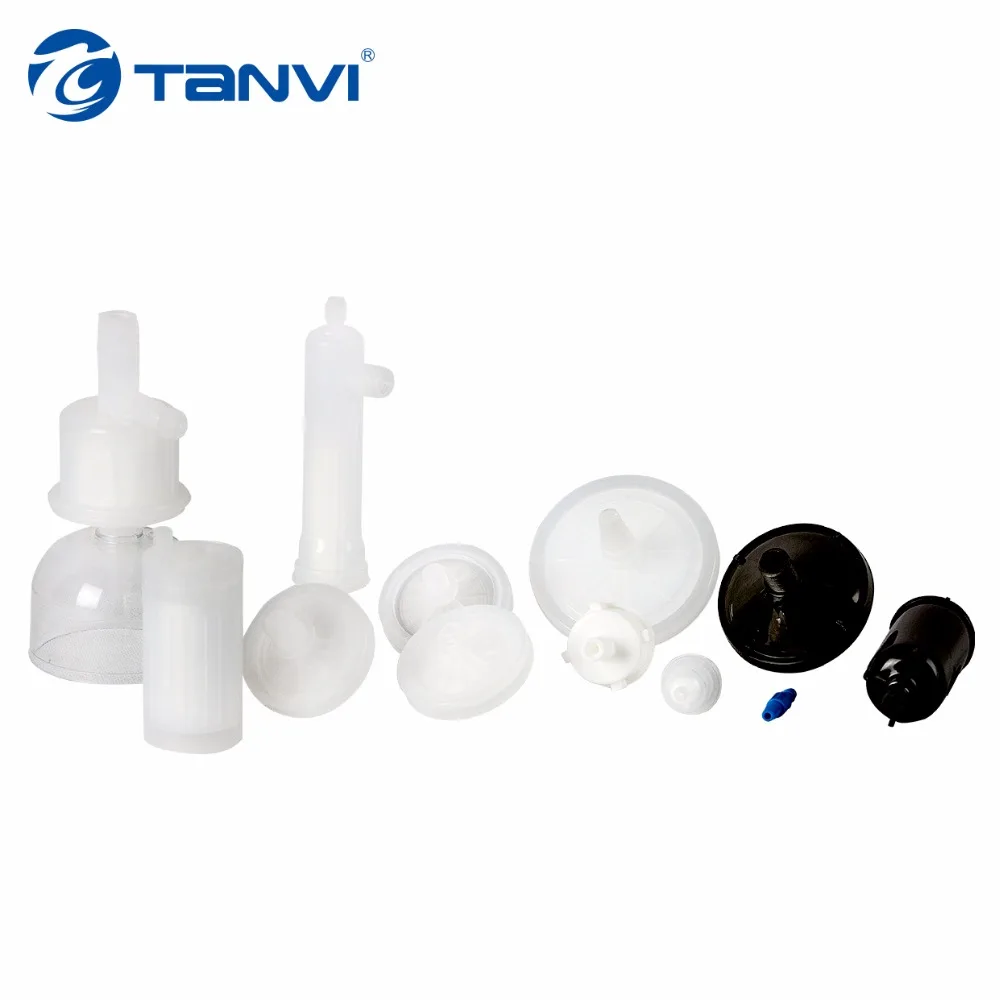

Top Selling Industrial High Efficiency Digital Printer Ink Filter
- Category: >>>
- Supplier: Hangzhou Tanvi Filtering Equipment Co. Ltd.
Share on (60545217963):
Product Overview
Description
 |  |  |
Application
1 Pre-filteration before reverse osmosis and ultrafiltration;
2 Sample solution and the solvent filtration;
3 Inks and dyes, developing solution filtration;
4 Water samples filtration;
5 Higher flow rates of large sample volumes filtration;
6Sterilization analysis in food industry;
7 Liquid, tissue culture medium and other liquid solution filtration;
8 Photoresist in LCD production filtration;
9 Vent gas filtration;
10 Dyes in CD-R, DVD-R production in optical storage industry filtration;
11 Chemical industry,laboratory and other solvents, liquid filtration
Product Description
Material of Construction | Filter membrane | PP,PES,PVDF,PTFE,N6,N66,CN-CA,GF |
Diversion layer | PP | |
Housing | PP | |
Inner support | PP | |
Dimension | Length | 2.5 ",5 ",10 " Other |
Filtration Ratings: | PP | 0.10, 0.20, 0.45, 1.0, 3.0, 5.0, 10.0μm |
PES | 0.10, 0.20, 0.45, 0.65μm | |
PTFE | 0.10, 0.20, 0.45, 1.0μm | |
PVDF | 0.20, 0.45, 1.0μm | |
Nylon | 0.10, 0.20, 0.45, 0.65μm,1.0μm | |
Effective Filtration Area: | 2.5 " | ≥0.12 sq . m .
|
5 " | ≥0.25 sq . m . | |
Operation condition | PH Value | 1~13 |
Normal working temperature | ≤60℃ | |
Max. Working temperature | 85℃, Differential pressure ≤0.10Mpa | |
Max. Differential pressure | 25℃,forward 0.42Mpa,reverse0.21MPa | |
Connections (Inlet/Outlet) | 1/8 "NPT | 3/8 "NPT HB |
1/4"NPT | 1/2"Swagelok | |
1/8 "Swagelok | 3/8 "Swagelok | |
1/4"Swagelok | 1/2"Swagelok | |
9/16 "Conical hose | 8-12.8Conical hose | |
1/4"-1/2" HB Conical hose | Φ50.5Quick Open Interface | |
Luer Lock | Others | |
Educt | Endotoxin | <0.25EU/ml |
Extractive | <0.03g/10"cartridge |
