1L 5L 10L 20L 30L 50L 80L 100L Two Layer Jacketed Glass Reactor 20 liter jacket heating glass reactor

Product Overview

Description

Description of Jacketed glass reactor

  Jacketed glass reactor is with double glass design, the inner layer placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. At a set constant temperature, the mixing reaction can be carried out in the sealed glass reactor according to requirements under atmospheric pressure or negative pressure conditions, and the reflux and distillation of the reaction solution can also be done. It is the ideal pilot and production equipment of modern fine chemicals, biological pharmacy and synthesis of new materials.





key features of jacketed glass reactor
1. Integrated stainless steel tube , mobile frame structure, reaction vessel cover with 5 necks for re-fluxing, liquid feeding, temperature measurement, etc.
2. G3.3 borosilicate glass, good chemical and physical properties
3. PTFE seal, to keep high-precision sealing under poor working state
4. Japan technology AC gear reducer motor, strong torsion, no noise
5. PTFE stirring paddle is suitable for stirring and mixing different kinds of materials
6. PTFE discharge valve can discharge materials thoroughly and quickly

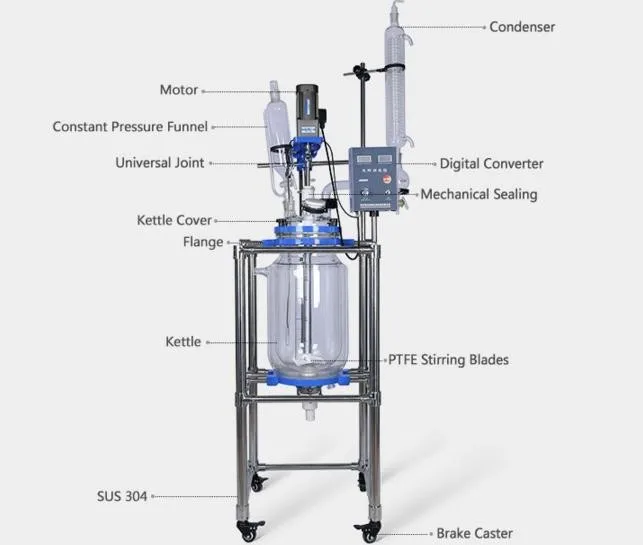

Structure of jacketed glass reactor

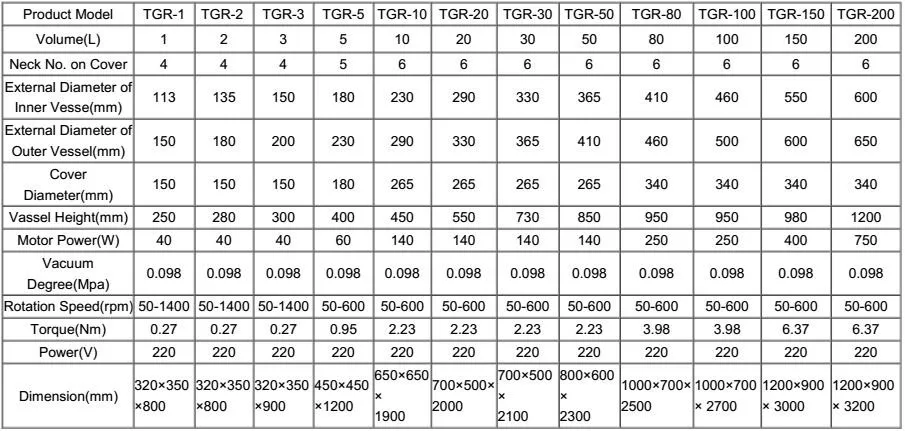

Technical parameters of jacketed glass reactor
