2 Bus Fireman Intercom System Fire Telephone Control Panel with Speaker

Product Overview

Description

2-Bus Fireman Intercom System Fire Telephone Control Panel with Speaker

Fire Telephone Panel



* 8/16 Zone conventional fire telephone center
* 2 Way voice communication
* Wall mounted type
* Operator can select single or grough call
* Operator ccan ring outstations and fixed handsets
* Operating Voltage: AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range: 0℃~+40℃
* Humidity Range: 40%~85%RH NO VIBRATION
* Frenquency range: 300-3400HZ(±3DB)
* Cross level: less than -60db
* Dimension:  Size: 385*330 *120mm



Fire Telephone Speaker



* Compatiable with fire telephone panel
* Operating Voltage:AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range:0℃~+40℃
* Humidity Range:40%~85%RH NO VIBRATION
* Dimension:: Size:9*5.5*3.5cm



Fire Telephone Mobile Hanset



* Mobile hanset compatible with fire telephone jacks
* Operating Voltage: AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range:0℃~+40℃
* Dimension:: Size: 75*45*20mm

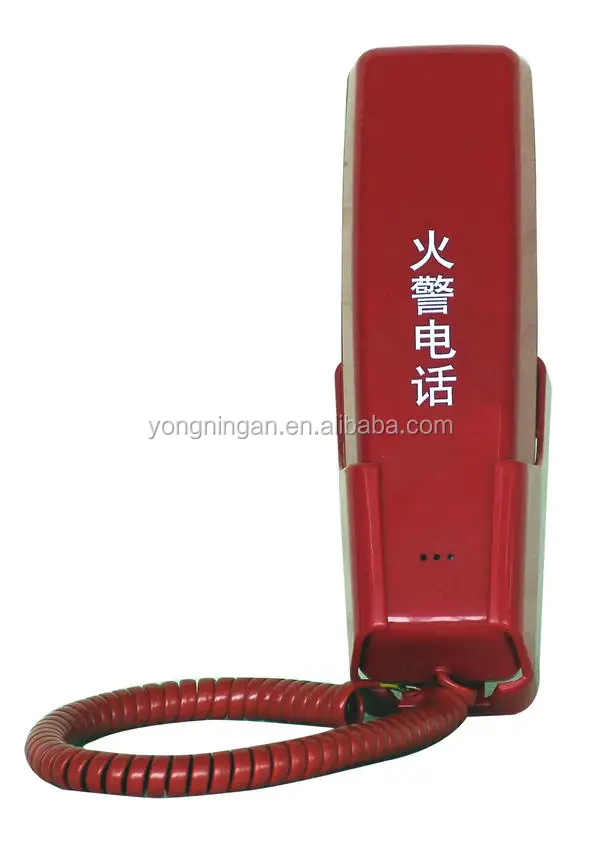

Fire Telephone Wall-mounted



* Frenquency Range: 300-3400Hz(±3dB);
* Crosstalk Level: ≤-60dB;
* Sending Allowance: ≤5dB;
* Dimension: 209mm * 60mm * 45mm;
* Gross Weight: 150g.
