laboratory full automatic 2Lmini spray dryer with two fluid atomizer price
- Category: >>>
- Supplier: TEFIC BIOTECH CO . LIMITED
Share on (60545404269):
Product Overview
Description

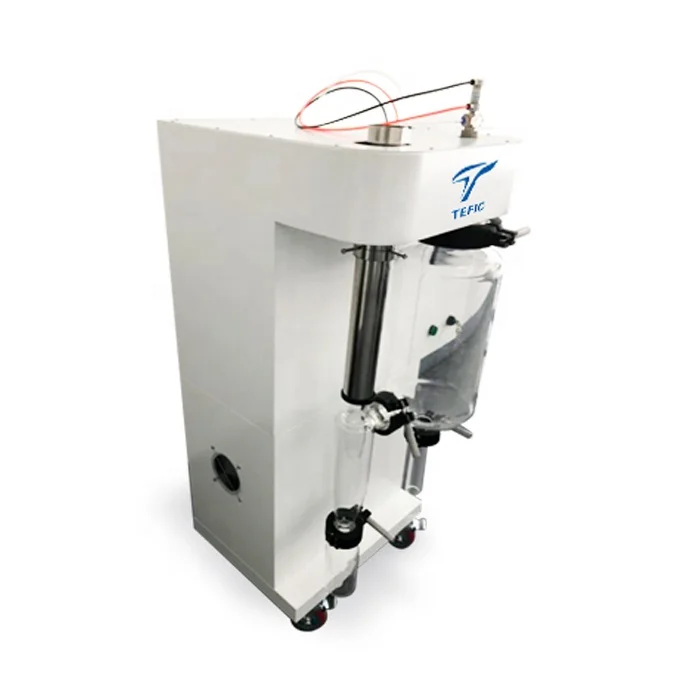

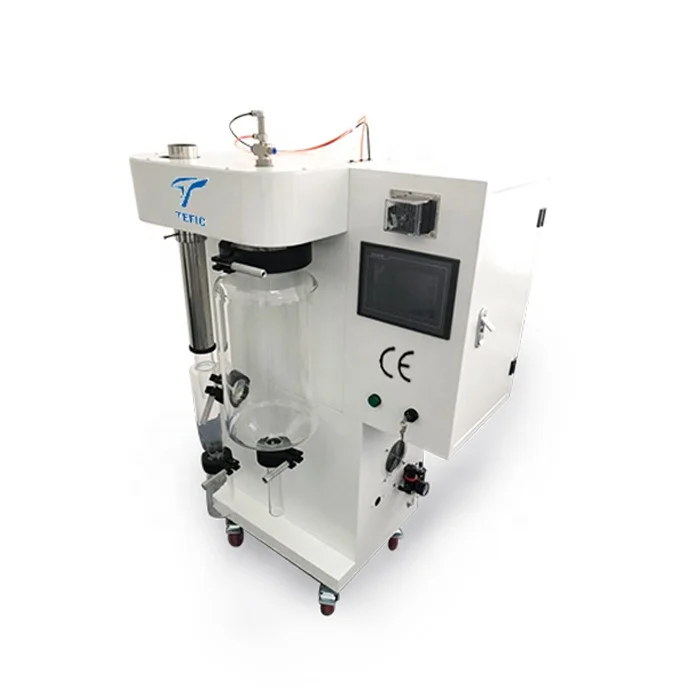

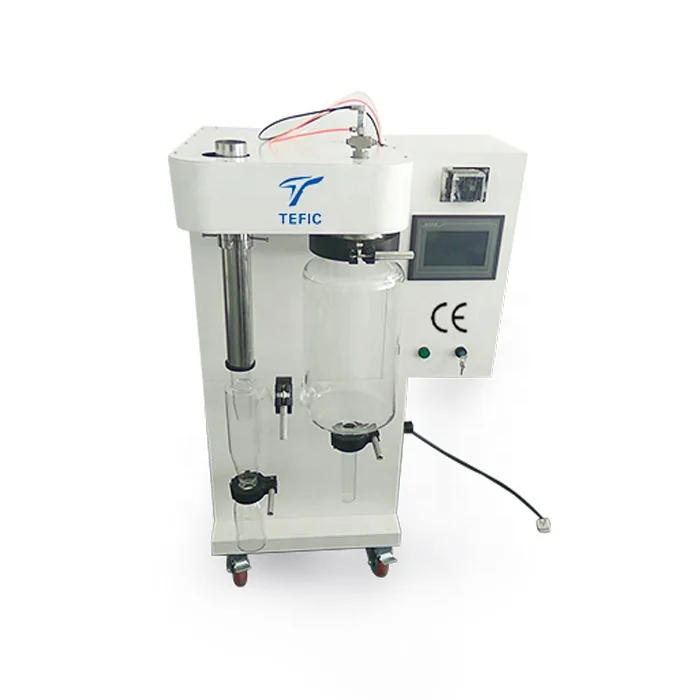

laboratory automatic 2Lmini spray dryer manufacturer
Technical parameters of laboratory automatic 2Lmini spray dryer
Model | TFS-2L |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 40°C -300°C |
Temperature range of outlet air | 40°C -140°C |
Precision of temperature | ± 1 °C |
Dryer time | 1.0-1.5 S |
Speed of squirt pump | 50-2000ml/h |

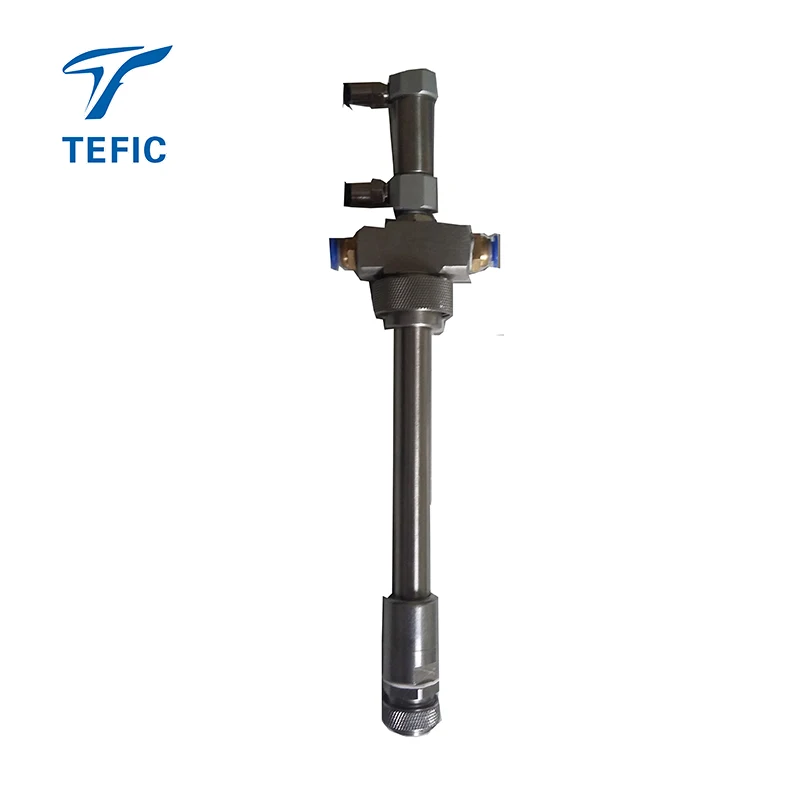

Spray system | Two- fluid nozzle (0.75/1.0/1.5/2.0/2.5mm) |
Spray direction | downwards co-current |
Heater power | 3KW 220V |
Total power | 10KW 380V |
Heat source | Electric |
Air compressor | Built-in oil-free air compressor |
Dried powder restoring rate | ≥95% |
Net weight | 140kg |
Overall dimension | 940*850*1500mm |
TEFIC spray drying machine passed CE certification, quality is guaranteed

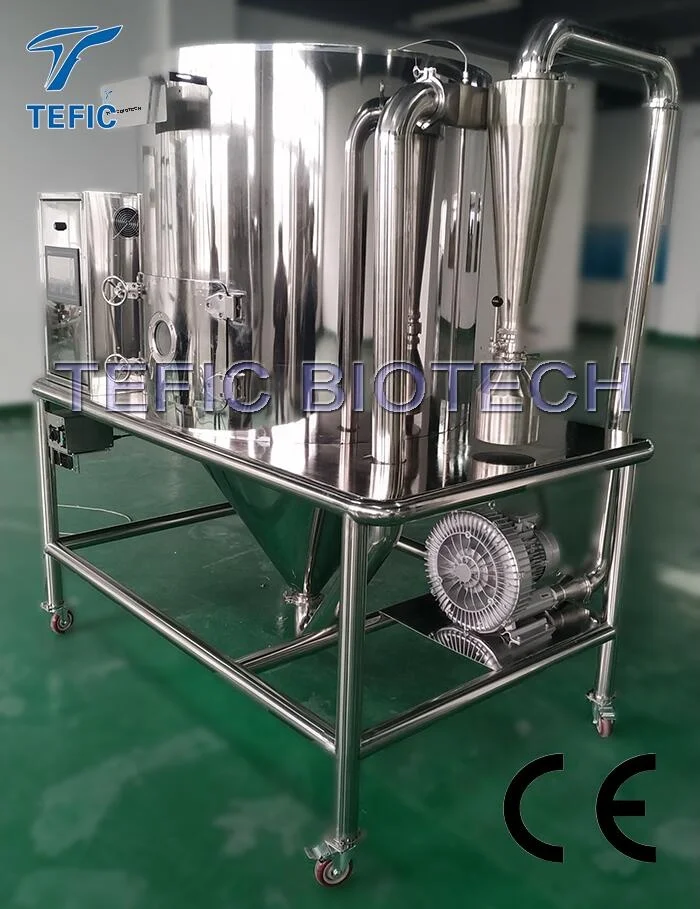

TEFIC spray dryer workshop
TEFIC spray dryer packing
Introduction of 2L Labratory Spray Dryer:
Laboratory table top spray dryer is the latest type of Tefic which adopts advanced international technology and spare parts.
Tefic Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Technical parameters of 2L Labratory Spray Dryer:
2L Labratory Spray Dryer Features:
a. Easy operation
b. LCD touch screen
c. Min.50ml Max. 2000ml/h
About Us:
Our customer
FAQ
1 Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2 Q: Can I ask for special designs about your furnace?
A: Yes.
3 Q: What about the spary dryer delivery time?
A: Normally 3 days after receiving your payment or based on order Qty and production schedule.
4 Q: What about the guarantee period?
A: 12 months.
5 Q: What about the Minimum Order Quantity?
A: The MOQ is 1 Pcs
6.Q: How to Contact Us?
A: Give us your raw material,your master (general plot) plan,your capacity,your budget,and your other requirement.
