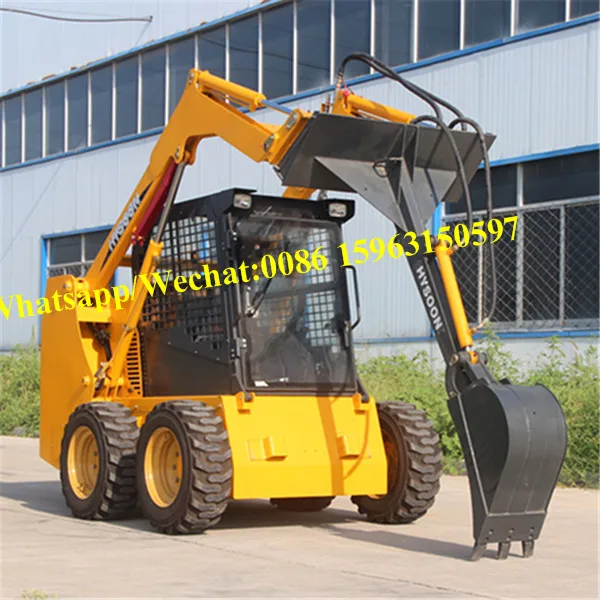

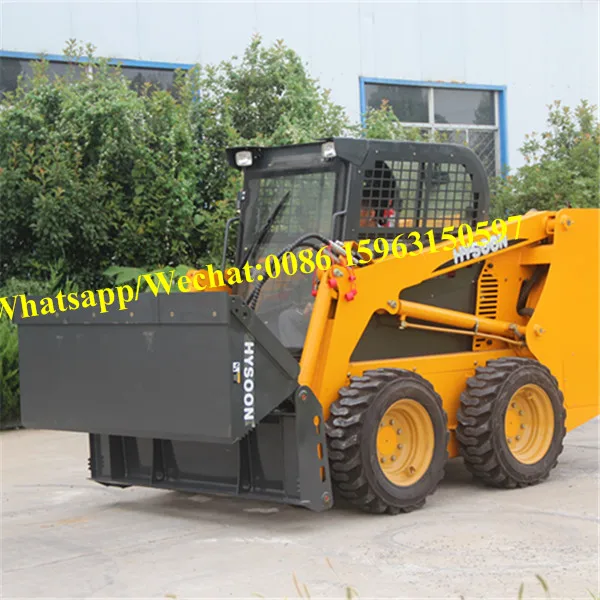

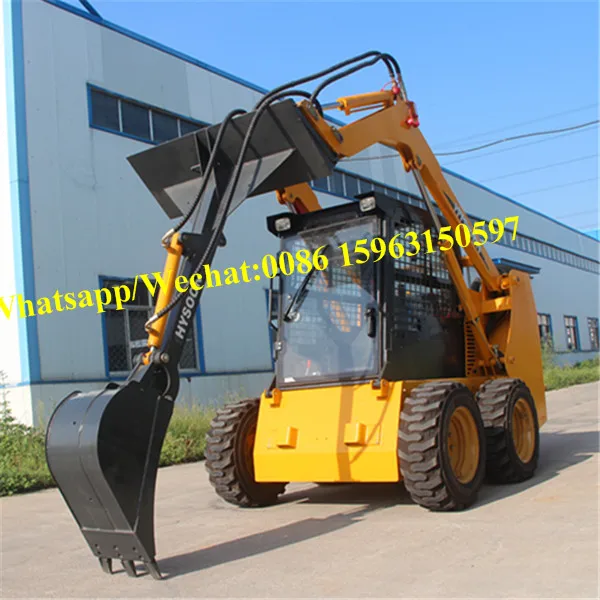

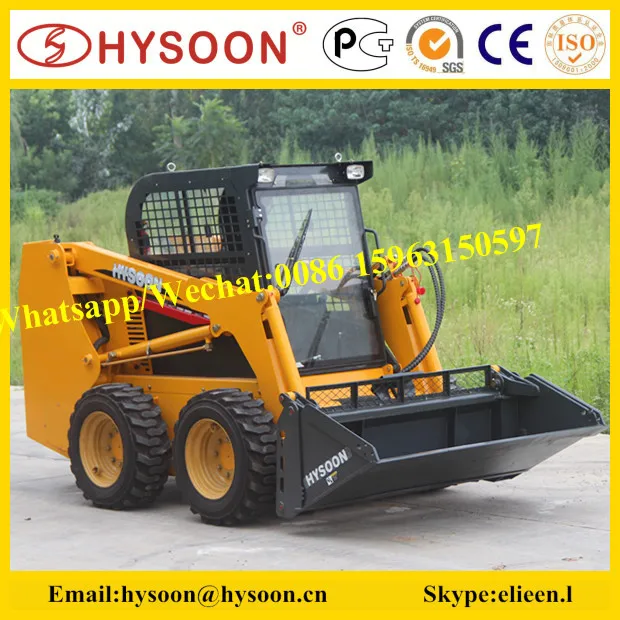

Utility HY700 wheel skid steer loader with 4 in 1 bucket

Product Overview

Description

  Utility HY700 wheel skid steer loader with 4 in 1 bucket

60HP Xinchai diesel engine,

Sauer piston pump,

700kg load capacity,

with universal plate,

CE GOST Certificate,





60HP diesel engine supply enough power for any working condition,There is import engine for your choice to installed on the Utility HY700 wheel skid steer loader with 4 in 1 bucket,and also with the world famous Sauer piston pump

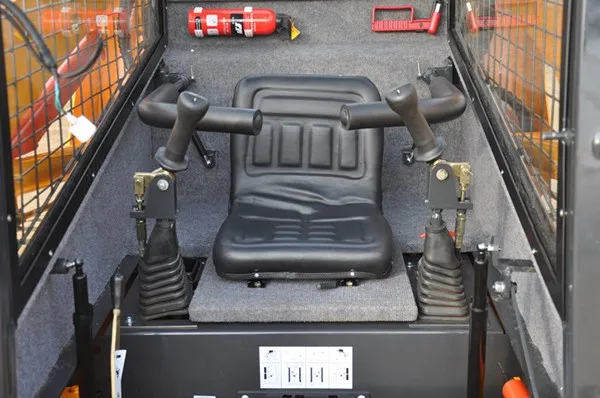

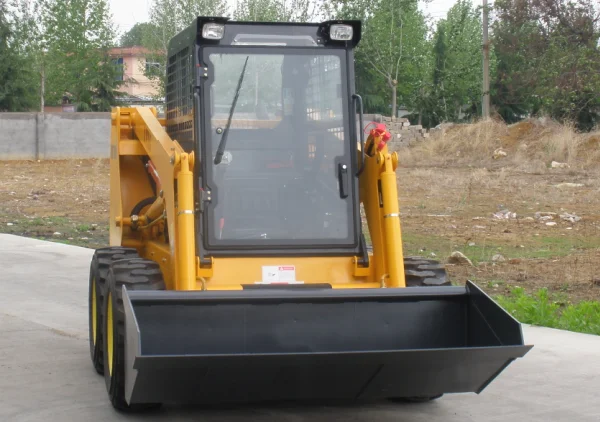

Pressurized Cab


In your line of work, you have to dive right in – where the dirt, dust, mud and debris are at their worst. Utility HY700 wheel skid steer loader with 4 in 1 bucket with enclosed cabs have a best-in-class pressurized interior space that minimizes dust, keeping you clean and comfortable. The one-piece seal and unique, curved door pocket ensure the best-possible protection. Keep warm air in the cab during frigid conditions, and ensure that cool air keeps you comfortable on hot days.



Improved Front&Rear Visibility

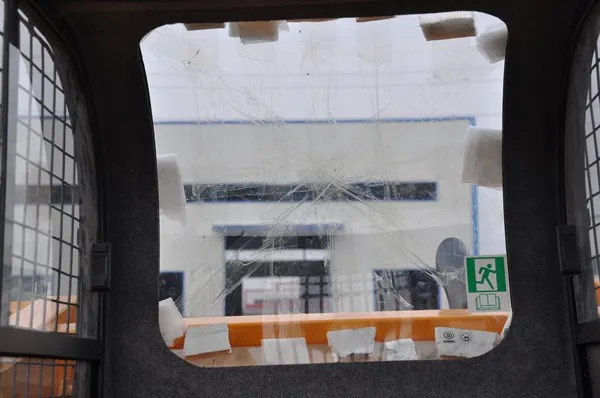

Sit inside the Utility HY700 wheel skid steer loader with 4 in 1 bucket,you can comfortably see your work from the seat through a single, curved pane of glass,and also the large rear window and angle of the back of the loader provide a great view behind the tailgate.

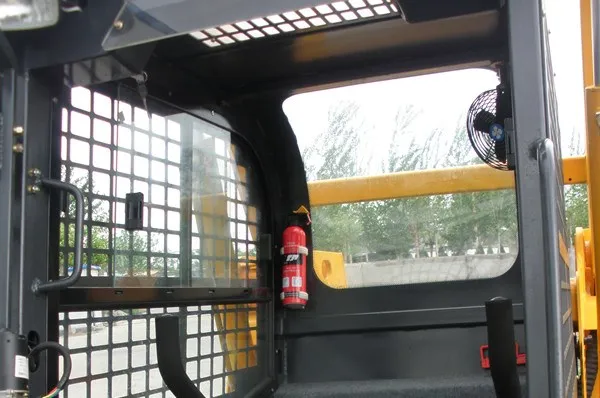

Easy-Pull, Easy-Secure Side Window,Simply pull the window knob to slide the side window

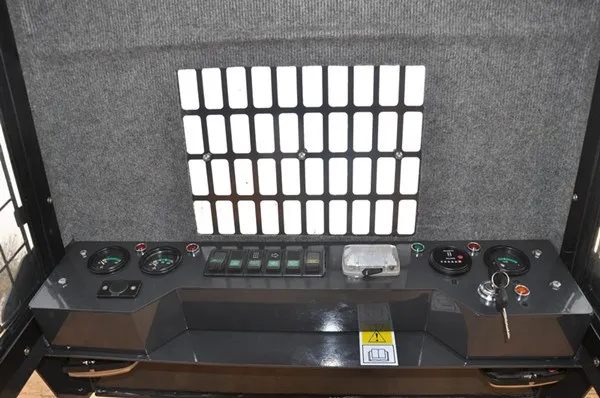

Instrument Pannel,

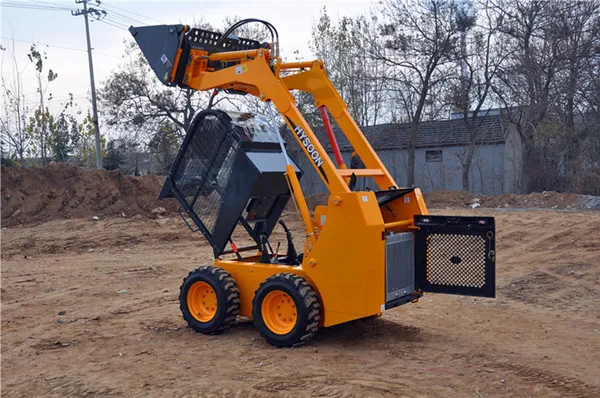

Totally opened Cab for easy maintenance,

The Utility HY700 wheel skid steer loader with 4 in 1 bucket cab can be opened totally with wide turning angle which can save time and improve efficiency in daily maintenance.

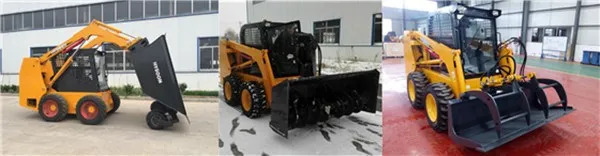

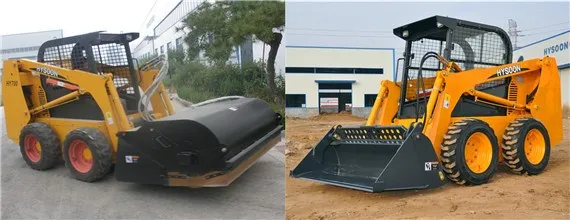

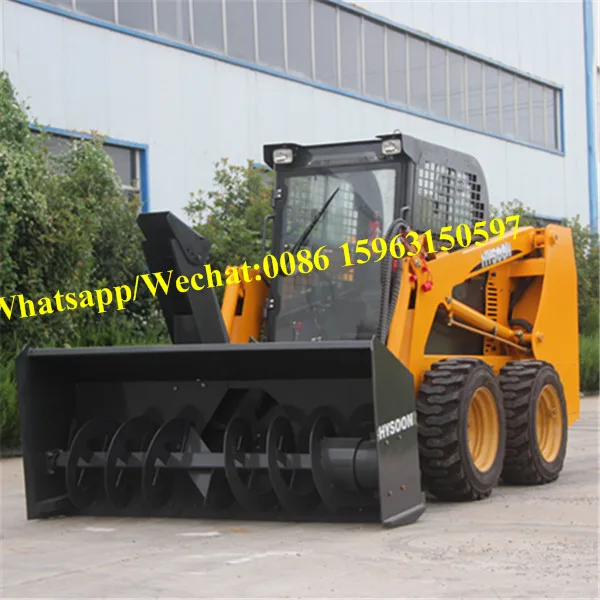

Multifunction Utility HY700 wheel skid steer loader with 4 in 1 bucket

With more than 20 attachments to choose from, the S70 is a multi-attachment carrier that's ready to take on just about any job.







 Utility HY700 wheel skid steer loader with 4 in 1 bucket Spec

Product	Utility HY700 wheel skid steer loader with 4 in 1 bucket
Load capacity	700kg
Weight	2860kg
Engine	Diesel Engine
Rated Speed	2500r/min
Type of Engine	Four Cylinder,Water-cooling,four stoke
Rated Power	45KW (60HP)
Fuel Consumption rate on standard	<=240g/Kw.h
Fuel consumption rate on max torque	<=238g/Kw.h
Noise	<=117Db (A)
Generator Power	500W
Voltage	12V
Storage battery	105AH
Speed	0-10Km/h
Drive mode	Hydrostatic four-wheel drive
Tire	10-16.5
Hydraulic pump flow for running	110L/min
Hydraulic pump flow for working	65L/min
System pressure	15Mpa
Fuel tank capacity	90L
Hydraulic oil tank capacity	65L
Motor	Big torque hydraulic motor
Piston double pump	Sauer hydraulic pump

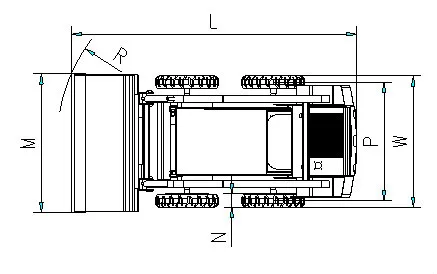

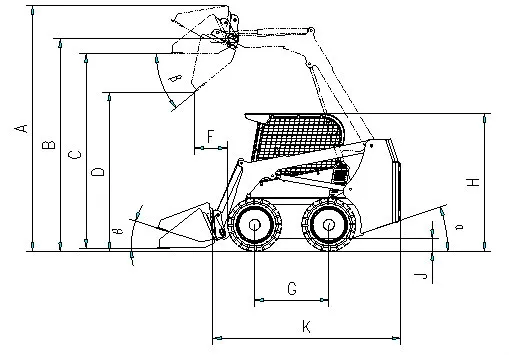

Item	Data
max working height (A)	3490mm
max pin height (B)	3028mm
max height (C)	2814mm
max dumping height (D)	2266mm
max dumping distance (F)	437mm
wheelbese (G)	1044mm
total height (H)	1979mm
Ground Clearance (J)	196mm
Overall length without bucket (K)	2621mm
Total Lenght (L)	3400mm
Bucket Width (M)	1720mm
Total Width (W)	1665mm
Tread width to center line (P)	1425mm
Tire's thickness (N)	240mm
Departure angle	19degree
Bucket dumper angle	41degree
Retracting angle	18degree
Turning Radius (R)	2056mm







 No packing,loaded into the container directly and fasten well

2sets per 20'container

4sets per 40'container for the Utility HY700 wheel skid steer loader with 4 in 1 bucket

















Sample order available

Customize available

24hours online service

12month warranty



















Why us?

1. We are the first -class professional  manufacturer of mini skid steer loader with accessories , skid steer loaders with accessories  in China.
2. we have stong technical power ,  Professional desin team,15 Technical patents. Accept your customization.
3. High Quality & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But our offer products have  the highest quality.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .



Our Warranty?

1. supply  parts for free if damage  within  1 year warranty time .

2. Engineers are available to service machinery overseas
3.Provide technical support for life.

Do we have Distributors?

Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.

Can we accept OEM?

Yes, we can





We also manufacture the mini skid steer loader,mini wheel loader,mini dumper, attachment,see as below
