Desktop 250m 8 poe 2 utp uplink 10 port ethernet switch with 100w 120w power AC 100 240V
- Category: >>>
- Supplier: Shenzhen Cc Tech Co. Ltd.
Share on (60545708469):
Product Overview
Description
Product Description
Desktop 8 poe 2 utp uplink 10 port ethernet switch with 100w 120w power AC 100-240V
S1100-8F-2F is 2018 new version high quality cost-effective 10 port ethernet switch with 8 poe and 2 uplink port.It provides 10 10/100mbps auto-sensing rj45 port,8 of which comply with IEEE802.3af/at poe.There are 2 UTP uplink port support not only camera/wifi ap/ip phone,but also CCTV NVR/Internet access.
Each poe port output max 30w,total poe power 100w or 120w,AC 100-240v 50/60Hz
It's widely used to power POE IPC camera, POE WIFI AP, and POE IP PHONE, and easy for network transmission.
Features
1,8FE POE+2FE RJ45.
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
3,Comply to POE IEEE 802.3af/at standard, all ports by standard testing before sending.
4,Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
5,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
6,Auto MDI/MDIX.
7,Upstream port lightning protection.
8,POE port MAX 30W,Total MAX power 100/120w,AC 100-240V 50/60Hz
9,Store-and-forward.
10,All ports support wire speed store-and-forward, jumbo frame transmission.
11,Unmanaged,no need configuration
12,LED indicators monitor working status,supporting simple trouble shooting
13,Desktop metal housing case
14,Vlan switch built,support 3 modes:Normal/Fixed vlan/250m long poe
Hardware Specifications | ||||||
Network Connector | 10-port RJ45 for 10/100BASE-TX, auto MDI/MDIX | |||||
PoE Port | 8-port with 802.3af/at PoE injector function (Port 1 to Port 8) | |||||
System: Power (Green) Per PoE port: PoE (Yellow, Port 1 to Port 8) LNK/ACT (Green, Port 1 to Port 10) | ||||||
Switch Architecture | Store and Forward switch architecture | |||||
MAC Address Table | 2K | |||||
Switch Throughput | 2Gbps | |||||
RAM | 2.5M | |||||
Flow Control | Back pressure for half-duplex; IEEE 802.3x pause frame for full-duplex | |||||
Power supply | 100/120w AC 100-240V 50/60Hz | |||||
Power Consumption | 100/120w | |||||
Dimensions (W x D x H) | 210mm*85mm*30mm | |||||
Weight | 1.3kg | |||||
Power over Ethernet | ||||||
PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE | |||||
PoE Power Supply Type | End-span | |||||
Power Pin Assignment | 1/2 (+), 3/6(-) | |||||
PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) | |||||
PoE Power Budget | 100/120 watts | |||||
Number of PDs, 15.4 watts | 8 | |||||
Number of PDs, 30watts | 4 | |||||
Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤250m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) | |||||
Standard Conformance | ||||||
EMI Safety | FCC Class A, CE | |||||
IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at Ethernet Fast Ethernet Flow Control Power over Ethernet Power over Ethernet Plus | ||||||
Environment | ||||||
Operating Temperature | -15 ~ 65 degrees ℃ | |||||
Storage Temperature | -30 ~ 80 degrees ℃ | |||||
Operating Humidity | 5 ~ 95%, relative humidity, non-condensing | |||||
Storage Humidity | 5 ~ 95%, relative humidity, non-condensing | |||||

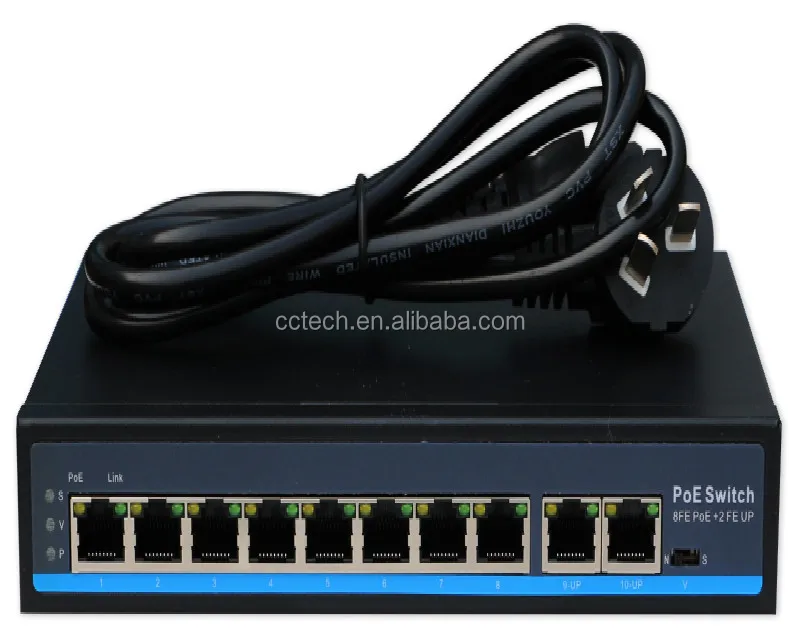

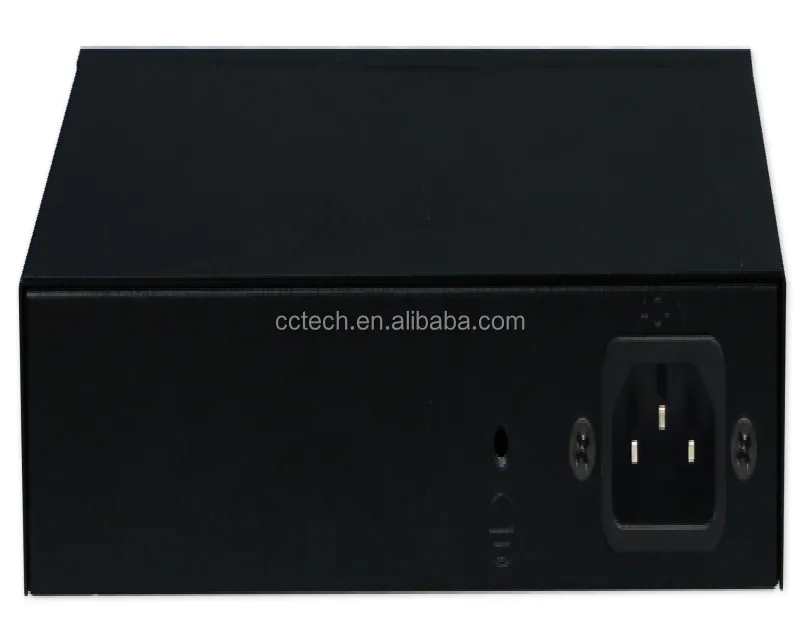

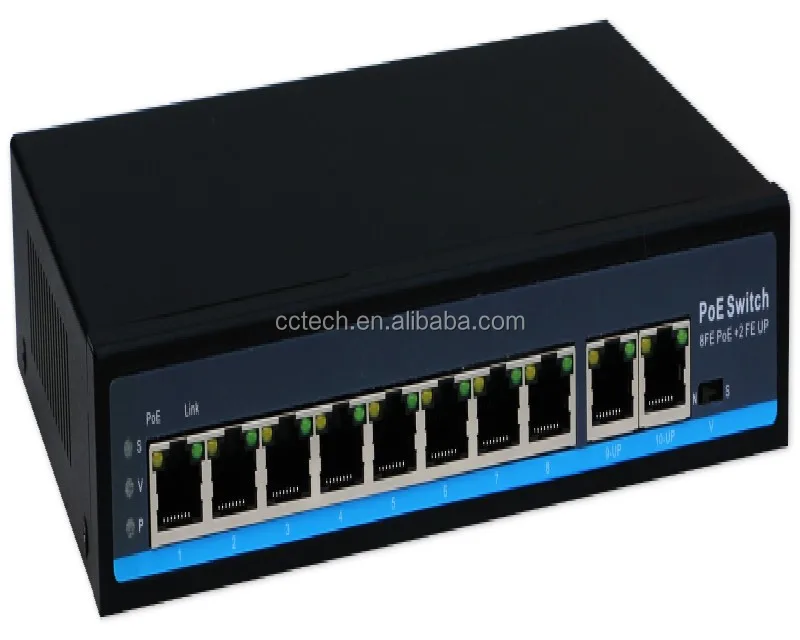

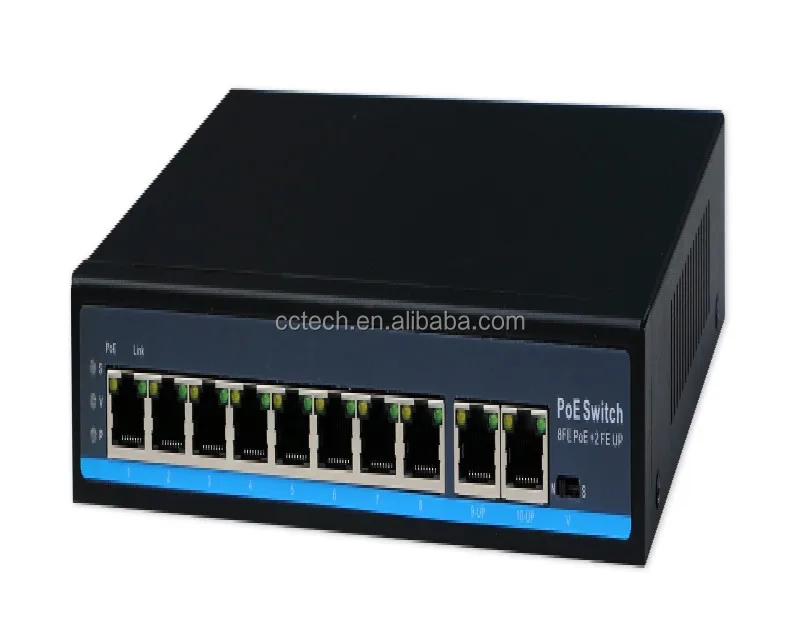

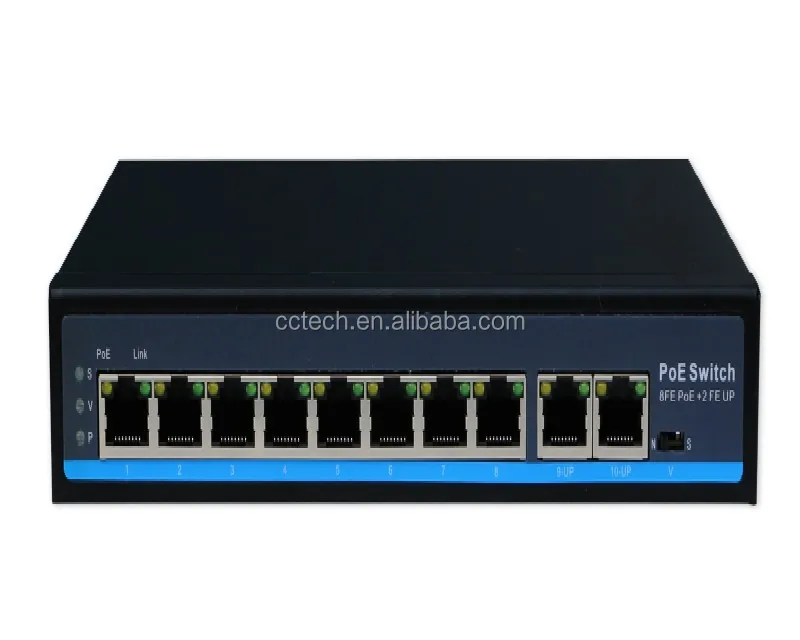

Detailed Images
Packing & Delivery
Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
24pcs/ctn,kraft paper box or OEM package.
FAQ
How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome here.
Is there MOQ limited?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
How long warranty period?
All products offered by CCTECH provides 1 year warranty.
Our Company
Shenzhen CC Tech Co.,Ltd.is located in Shenzhen China.devoted to providing high quality network equipment network equippment hardwares like Ethernet switch/POE switch/media converter/Fiber switchSplitter/Injector,WIFI access point/router/bridge/CPE, etc.
Our Service
•All products have been double checked and packed in good condition before dispatching.
•All products have 1 year warranty.
•Provide OEM/ODM service
