Product Overview

Description

A. Product description

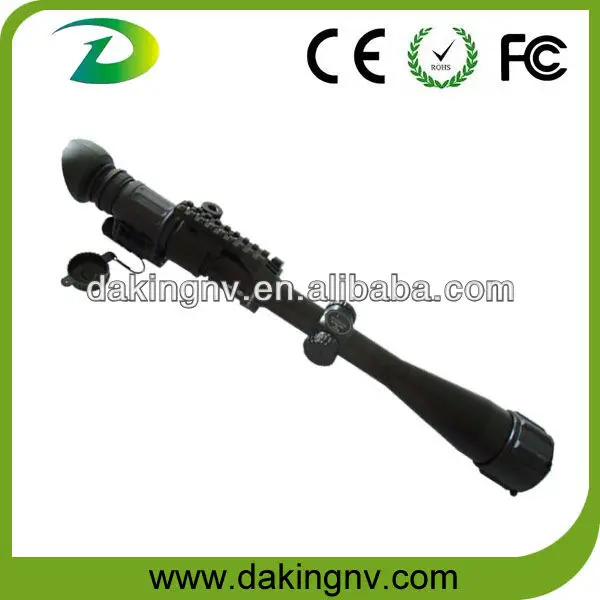

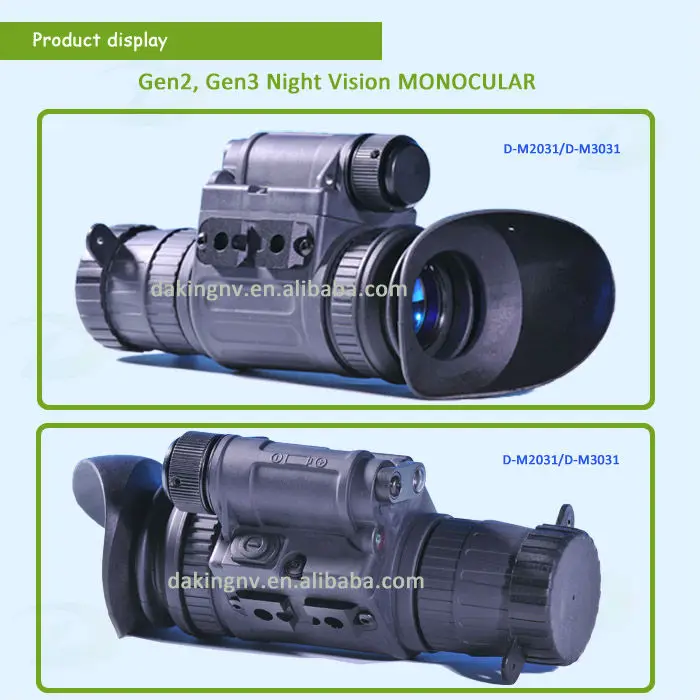

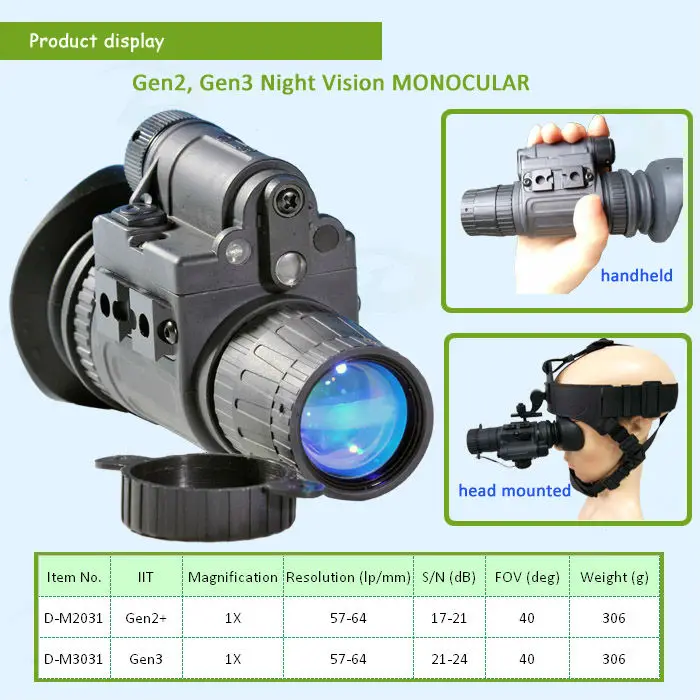

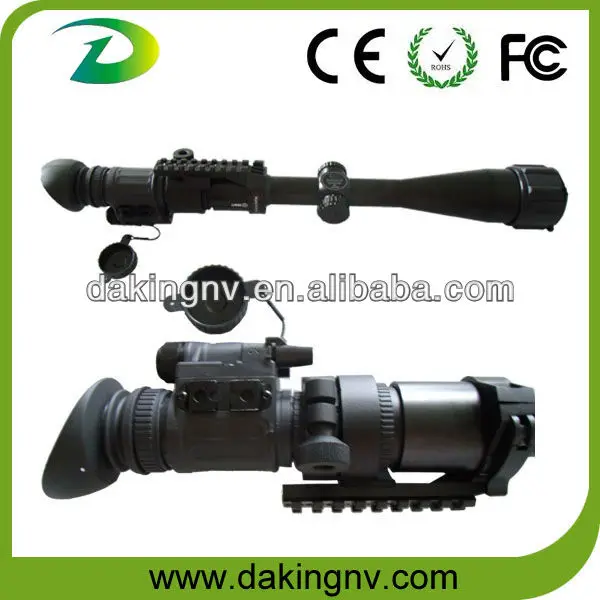

D-M2031 and D-M3031 are most popular mil-spec and versatile 2+ gen night vision monocular on the market. It's capabale for mounting behind of day scope for hunting in low light conditions. They can be used handheld, head mounted or helmet mounted for hands-free, or attached to a camera or camcorder for nighttime photography and law enforcement to document. This system enables walking, driving, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. With automatic protective system controls, the night vision monocular will shut off automatically if the illumination level surpasses 40lux for the following 10seconds. And automatic brightness adjustment system always keeps IIT brightness level constant.



B. Kit includes



1. Night Vision Monocular

2. Flip-up head mount

3. Protective carrying bag

4. Instruction manual

5. Lens cleaning cloth

6. Warranty card

7. Desiccant

C. Specifications



Model	D-M2031	D-M3031
IIT	Gen2+	Gen3
Magnification	1X	1X
Resolution (lp/mm)	45-64	57-64
Photocathode type	S25	GaAs
S/N (dB)	12-21	21-24
Luminous sensitivity (μA/lm)	450-600	1500-1800
MTTF (hrs)	10,000	10,000
FOV (deg)	40	40
Detection distance (m)	220-280	250-320
Diopter (deg)	5 /-5	5/-5
Lens system	F1.2, 25.8mm	F1.2, 25.8mm
Range of focus (m)	0.25--∞	0.25--∞
Dimensions (mm)	121 x 68 x 50	121 x 68 x 50
Weight (g)	295/324(with battery)	295/324(with battery)
Power supply (v)	2.0-4.2V	2.0-4.2V
Battery type (v)	CR123A (1)	CR123A (1)
Battery life (hrs)	80(w/o IR)  40(w IR)	80(w/o IR)       40(w IR)
Operating temperature(°C)	60/-50	60/-50
Relative humility	98%	98%
Environmental rating	IP66	IP66



D. Features



1. IP67 weatherproof

2. Low battery indication

3. Bright source protection

4. Mil-spec multi-coated optic

5. Automatic brightness control

6. Fully adjustable head mount

7. Embedded spring in battery’s cap

8. Automatic shut off when flipped up

9. No power consumption when in standby



E. Mechanical parts code and name



F. Warranty



We offer a two-year warranty from the date of purchase.





G. Precautions



1. Do not disassemble the unit.

2. It’s better to use night vision monocular under +5°C to +40°C. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature,to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.

3. Keep the night vision monocular in soft carrying bag, ventilated and dry place with temperature which does not exceed +15°C. Keep away from heating device and avoid direct sunlight and high humidity which does not exceed 70%.

4. Night vision monocular should be used in nighttime and can’t be aim at strong light. If you have to test it during daytime, the front lens cap should never be removed. You can observe the target through the hole in the protection cap.

5. Use good quality lithium battery or alkaline cell, as bad quality batteries will effect the performance of the NVD and easily damage the device.

6. Try to avoid the rain and mist, and avoid dropping, shaking and collision.

7.  Use clean soft cloth and dampened in alcohol,if necessary.

8.  A useful tip is to remove the battery when the night vision will be not in use for over 3 days to prevent battery leakage and damaging the device.



NOTE: It is normal that the device can not be turned on when the ambient light exceeds 40 Lux. This device has protection system, which cuts off the image intensifier when ambient light level exceeds the limit of 40 Lux during a 10 seconds period.

Failture to follow the above precautions may cause the unit damage and will void the manufacturer’s warranty.
