portable glass edge grinding and polishing machine

Product Overview

Description

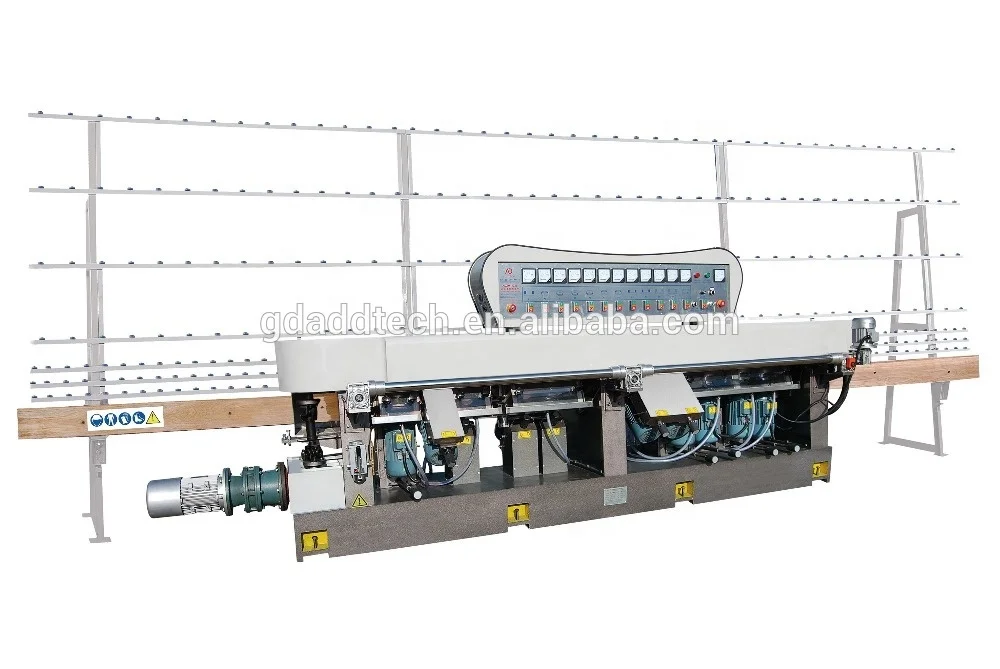

11 Motors Edge Polishing Machine

I. INTRODUCTION:

• Suitable for grinding straight edge of different size and thickness flat glass.
  The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.


• Working speed and working load can be adjusted smoothly by continuously Variable mechanism transmission.


• Adjust front rail to match different glass thickness.


• The machine is equipped with automatic clamping system and voltage stabilizing system.


• With easy operation, high precision and efficiency, this machine becomes one of indispensable  equipment for glass procession.





 II. TECHNICAL SPECIFICATIONS:

voltage	Power	Min size	Feeding speed
380v/50Hz	24kw	80x80mm	0.5-5m/min
Glass thickness	Weight of machine	Size(LxWxH)
3-25mm	3200kg	6800x1000x2500mm







  1).GRINDING WHEEL CONFIGURATION:

#s	Wheels	Spec.	Grit
#1	Diamond	Ø100x12	80
#2	Resin	Ø150x12	240
#3	10S40	Ø150x60
#4	10S60	Ø150x70	Import
#5	Resin	Ø130x12	240
#6	10S40	Ø130x60
#7	Resin	Ø130x12	240
#8	10S40	Ø130x60
#9	Felt wheel	Ø150x20	Use with cerium dioxide
#10		Ø150x20
#11		Ø150x20





III.MACHINE DETAILS:

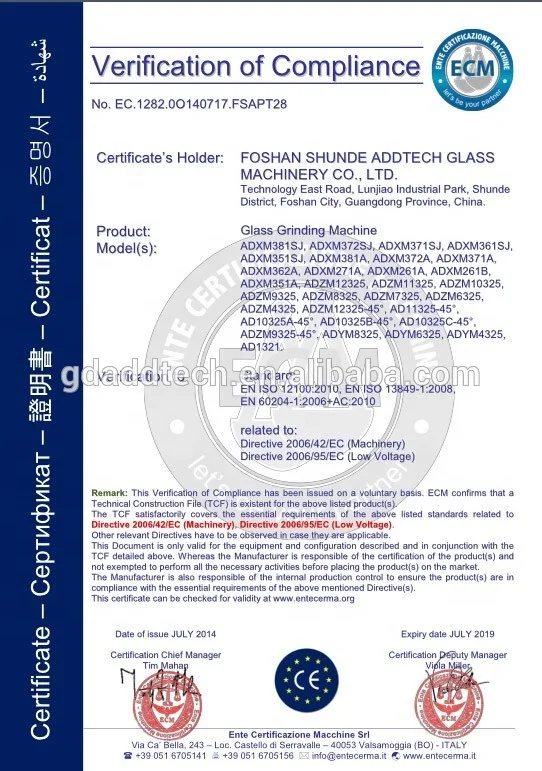

 1. CE machine & CE certification

  PLC control system and digital displayer available;



2. Heavy duty foundation & beams: cast steel,annealing treatment;



3. Electric device: SIEMENS, Schneider or Delixi electrical optional;



4. ABB, XINDONGYA, SNY motor optional.

380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional;



5. Thicken chain transmission system, can loading 600kg big size thick glass;

  Beveling machine equipt synchronous belt PU chain transmission system



6.  Various high quality import grinding wheels.

Suit for grind mirror, mosica,  spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,.

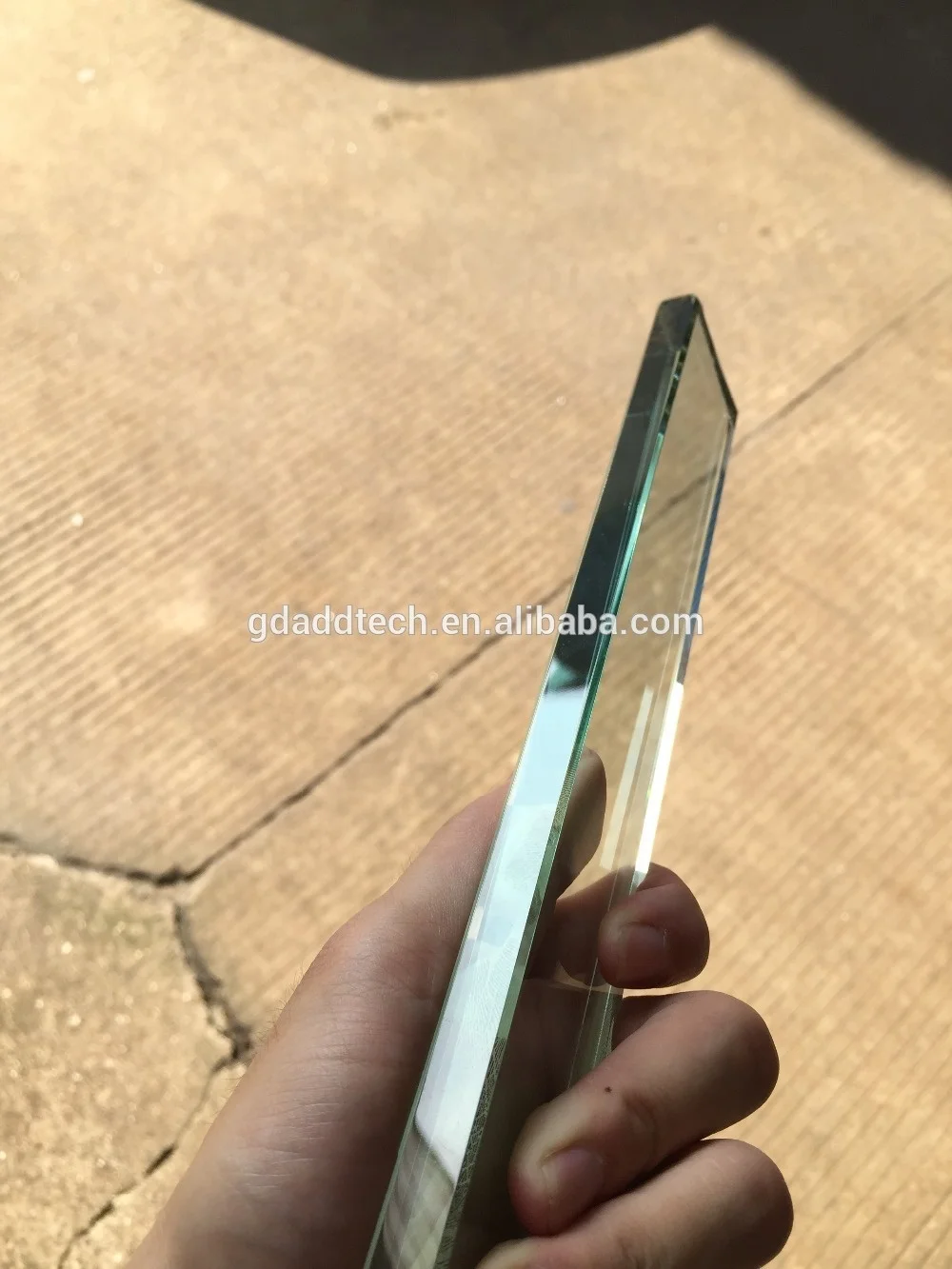

IIII.Effect Picture





IIIII.Work shop





 IIIII.OUR SERVICES

Engineers available to service machinery oversea;

Oversea third-party support available;

OEM/ODM available.







IIIIII.PACKING & SHIPPING





IIIIIIII.ADDTECH BEST SELLAR











IIIIIIII.COMPANY INFORMATION .

ADDTECH GLASS MACHINERY CO., LTD. Was established in 2007.
We are a professional manufacture which handling the deep-processed equipments of glass.
The  main products include: Glass Straight Line Edging Machine, Beveling Machine, Round Machine,
Glass Washing Machine, Irregular Glass Grinding Machine, Glass Drilling Machine etc..

We are supplying the high quality products plus with best service.
The automatic oil lubrication of pulling plate is our particular innovation, it is great helpful to improve
stability and maintainability.

We are looking forward to be a valuable and strategic partner of you company, to help you thirve in the
deep processed of glass industry.









Any question you can free contact me !!
