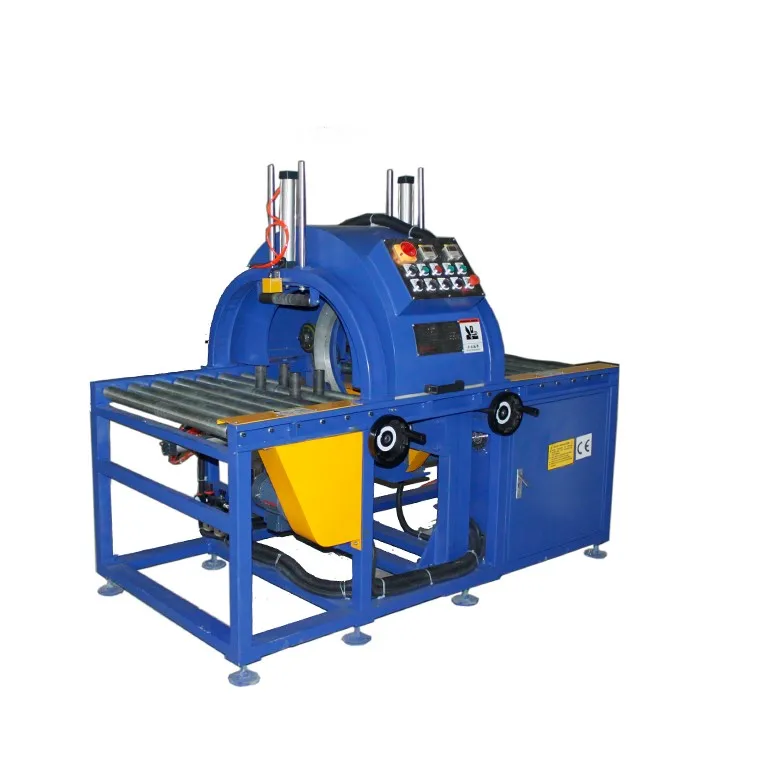

door orbital packaging machinery with PE film

Product Application

This is panel packing machine and orbital stretch wrapper with automatic material cutting and sealing station specialized for packing horizontal objects such as panel, sheets, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.

Operation

a)\tPlace the products onto the in-feeding conveyor.
b)\tMoving the product to wrapping position automatically while sensors detect it

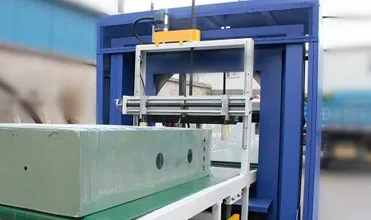

c)\tPress down device presses the package automatically.
d)\tProducts stop automatically while it at the sealing position.
e)\tFeeding and cutting packing material automatically.
f)\tProducts go through the wrapper for automatic sealing and wrapping.
g)\tPlace the reinforcing wraps to the tail end of the product.
h)\tUnloading the packed package.
i)\tEnd for circle

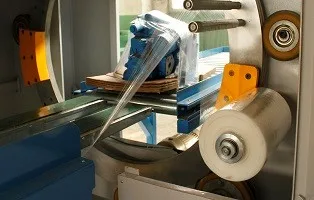

Wrapping Station

1) Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping and long life
2) Four-ring & double-PU wheel devices make working more safe stable & energetic.
3) The higher level main board with stronger structure and frame for wrapping.

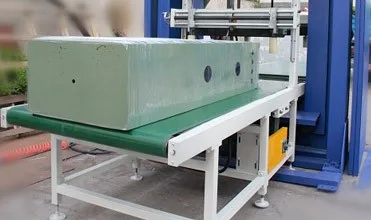

Conveyor

1) Structure of the conveyor will protect the surface of the product.
2) Automatic infeed conveyor system and outfeed conveyor system.
3) Conveyors driven by motor with gear box.

4) Diferent type conveyors available via package

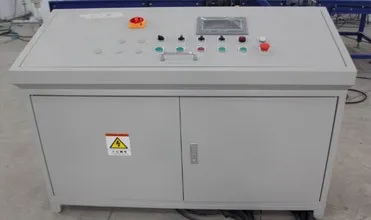

Control System

1) PLC and program makes machine able to do automatic wrapping according packing goal.
2) Interface HMI operation.
3) Photocell sensor is adopted for setting packing position and it is adjustable.

4) \tWrapping position stop automatically and adjustable on touch screen.

Automatic material cutter

1) Automatic material feeding and cutting device.
2) Automatic material clamping for next wrapping.
3) Sensor and PLC program control.
4) The operation parameter is adjustable in HMI.
5)This device makes machine automatically and unmanned operation.
