Powered by Cummins KTA50 G3 generator diesel 1250 kva diesel generator 1000 kw with factory price
- Category: >>>
- Supplier: Taizhou Sutech Power Machinery Co. Ltd.
Share on (60545923623):
Product Overview
Description
Powered by Cummins KTA50-G3, generator diesel 1250 kva diesel generator 1000 kw with factory price
Related Products
Open Type Silent Type Mobile Type
Container Type Synchronizing Type Portable Type
Generator diesel 1250 kva with price (Optional engine brands, alternator brands and Control panel)
Rated power | Engine | Alternator | Control panel |
20kw~1300kw | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen | |
8kw~1600kw | |||
68kw~504kw | |||
20kw~500kw | |||
220kw-2400kw | |||
280kw-800kw | |||
600kw-1800kw | |||
50kw-650kw | |||
2kw~2500kw |
FAQ
Q:What's our power capacity range of diesel generators?
Answer: We can offer the range from 1kva~3000kva.
Q:What's your delivery time?
Answer: 7 work days after we get the down payment.
Q:What's your payment?
Answer: T/T, L/C, and 30% T/T as the deposit, the balance payment should be paid before shipping and Alibaba trade assurance acceptable.
Q:What's your warranty?
Answer: One year warranty or 1000 hours which comes first.
Q:What's your MOQ?
Answer: 1 set.
Q:What’s the frequency of diesel generators?
Answer: 50/60HZ
Q:What’s the voltage of your diesel generator?
Answer: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage…
Product Description
Powered by Cummins KTA50-G3, generator diesel 1250 kva diesel generator 1000 kw with factory price
Engine Model | KTA50-G3 |
Engine manufacturer | CUMMINS |
Number of Cylinders | 16 cylinders |
Cylinders arrangement | Vertical in V |
Cycle | 4 stroke |
Aspiration | Naturally |
Bore×Stroke | 159mm x159mm |
Displacement | 50.3L |
Compression ratio | 16.5:1 |
Prime Power/Speed | 1250 KVA/1500rpm |
Standby Power/Speed | 1389 KVA/1500rpm |
Speed Governor | electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 177L |
Fuel Consumption at 100% Load | 201g/kw.h |
Starter Motor | DC24V |
Alternator | DC24V |
Powered by Cummins KTA50-G3, generator diesel 1250 kva diesel generator 1000 kw with factory price
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 1250 KVA |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Generator diesel 1250 kva with price (Control panel)
Brand | Deepsea/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts
Engine | Fuel System | Cooling system | Exhaust system |
Coolant Heater Lube oil heater Electronic governor Engine oil temperature | External Tank Water Separator | 50-60 Radiator, Remote radiator Cooling tower | Heavy Duty air filter Silencer Enclosures |
Alternator | Control System | Others | Voltage Connections |
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling | Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet | Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts | 480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/127V 208/120V |
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
Product Overviews
with cummins engine KTA50-G3 1250 kva diesel generator price
with cummins 1250 kva diesel generator
with cummins 1250 kva generator price

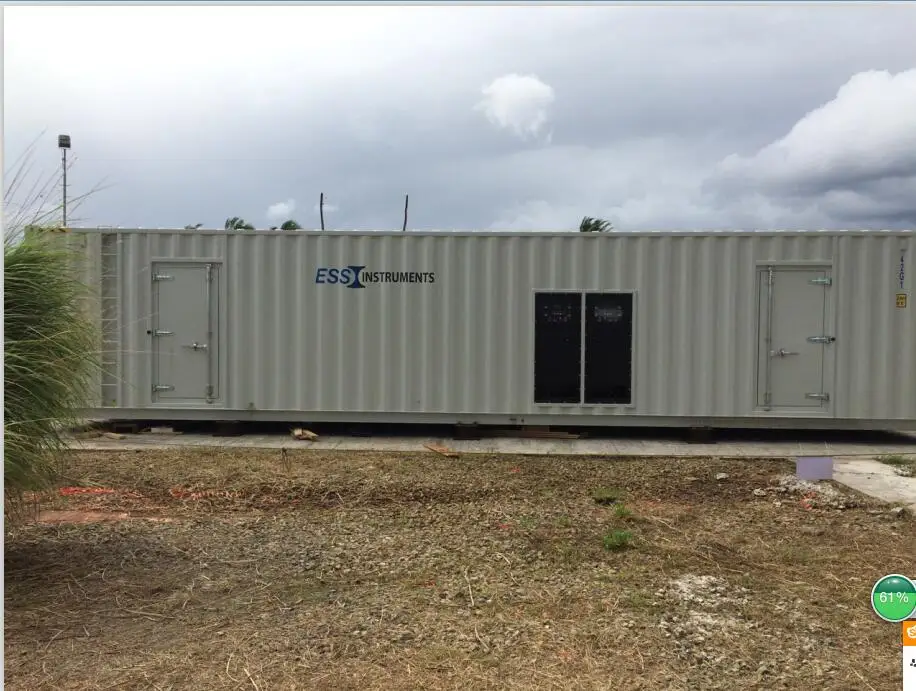

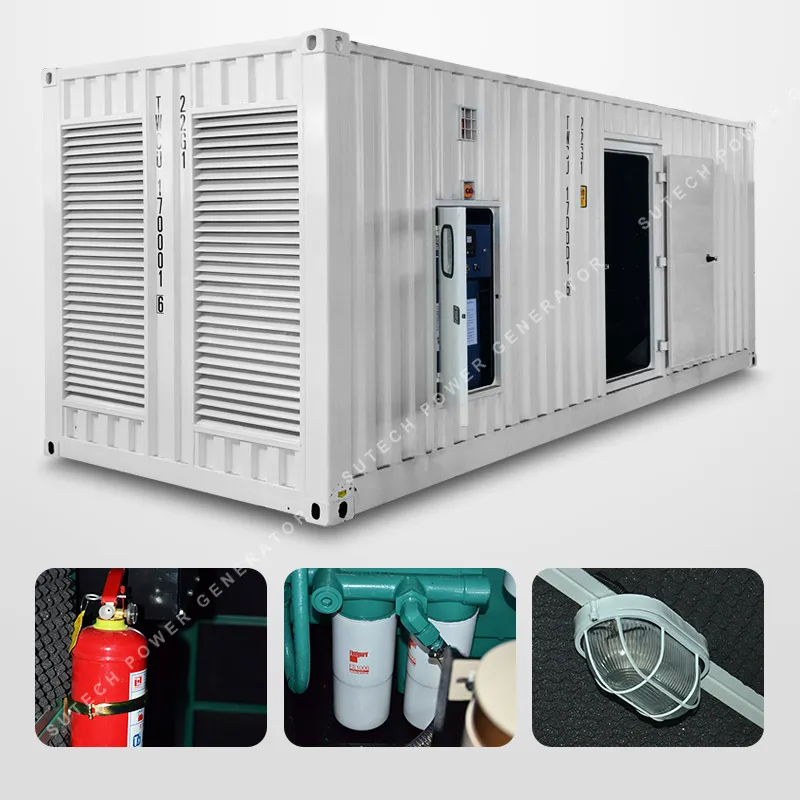

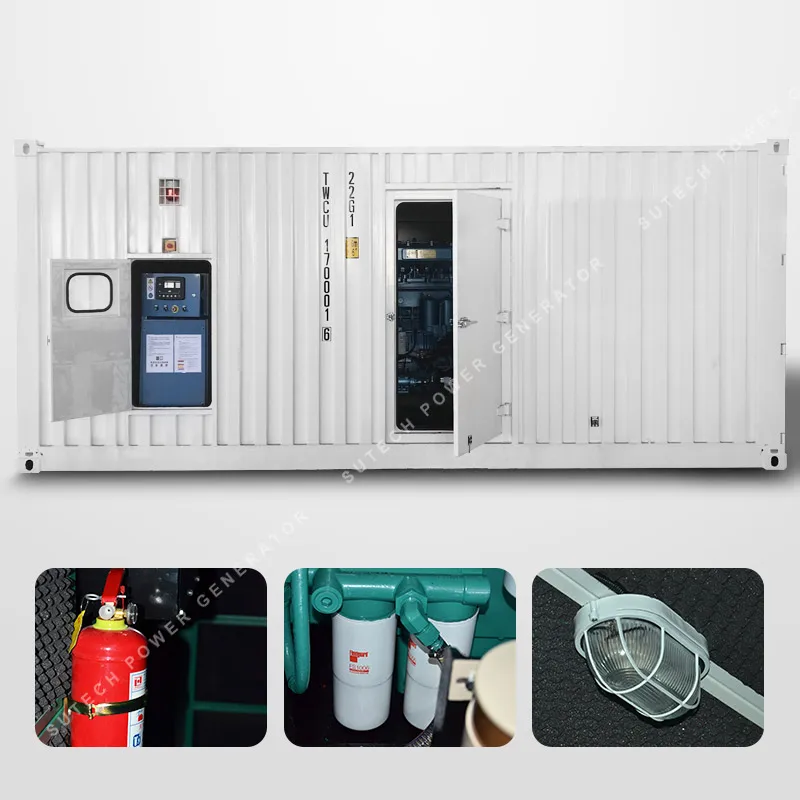

1250 kva containerized diesel generator

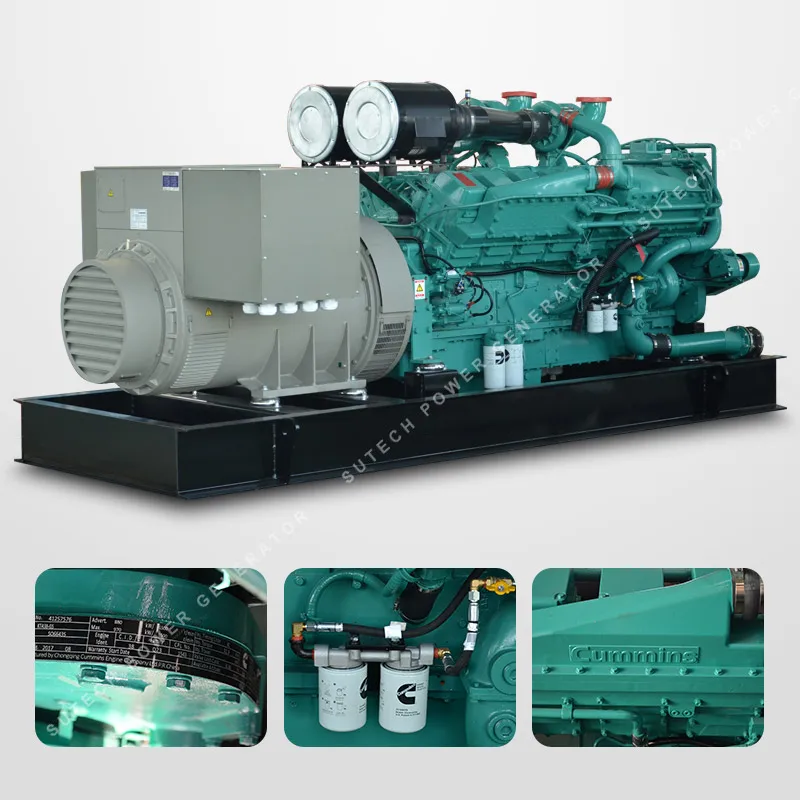

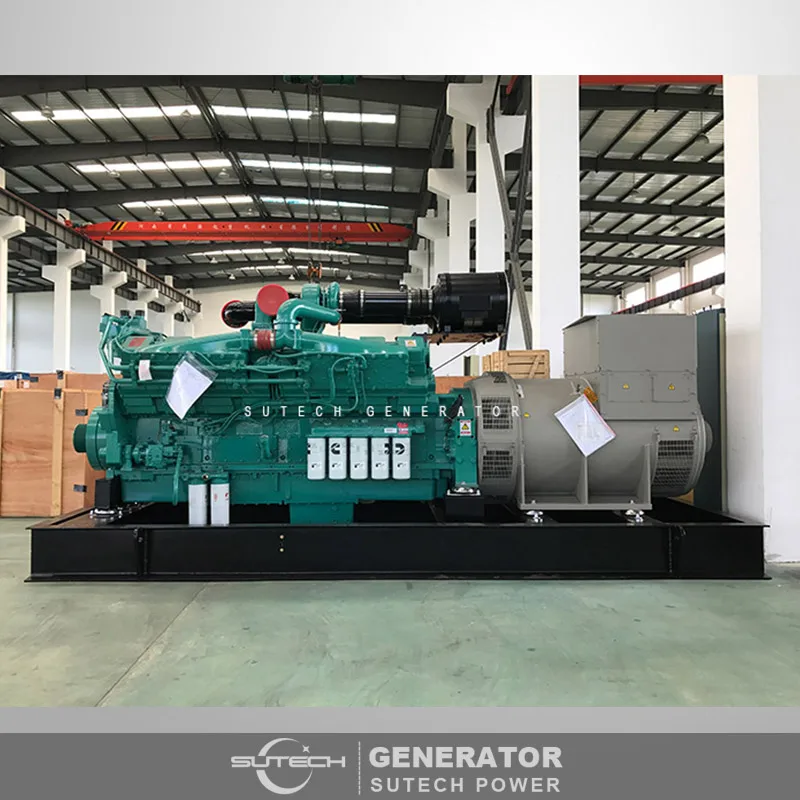

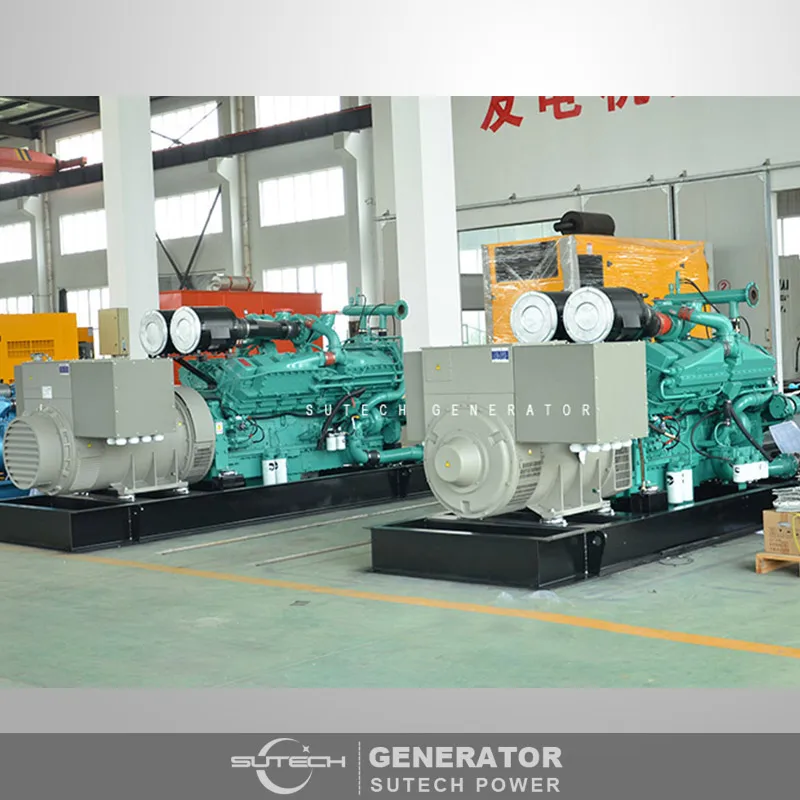

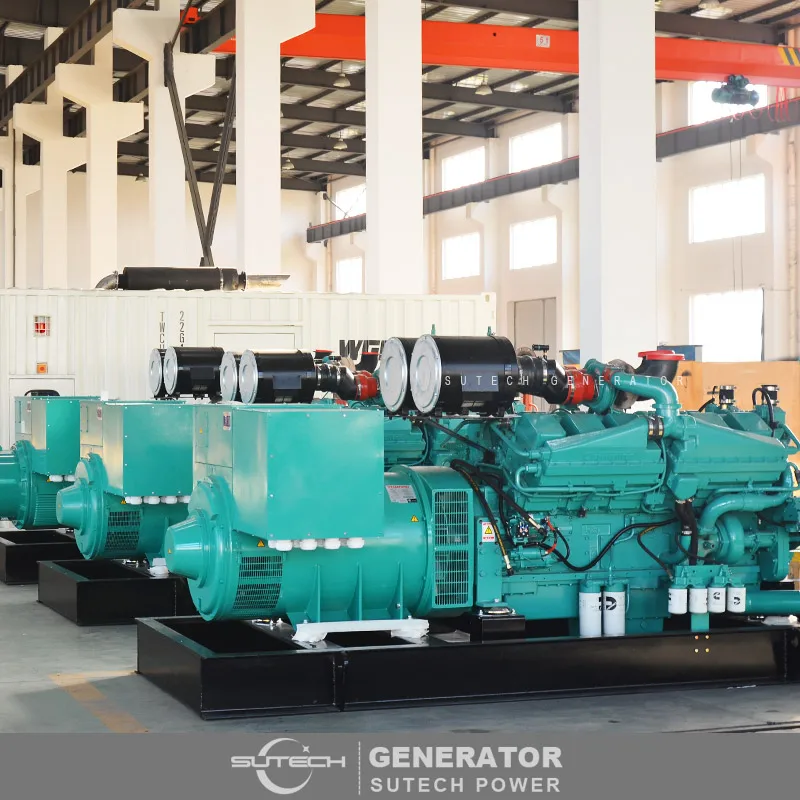

Detailed Images
Application
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
Company Information
Taizhou Sutech power Machinery Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 1kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA, TWGII alternators. Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
