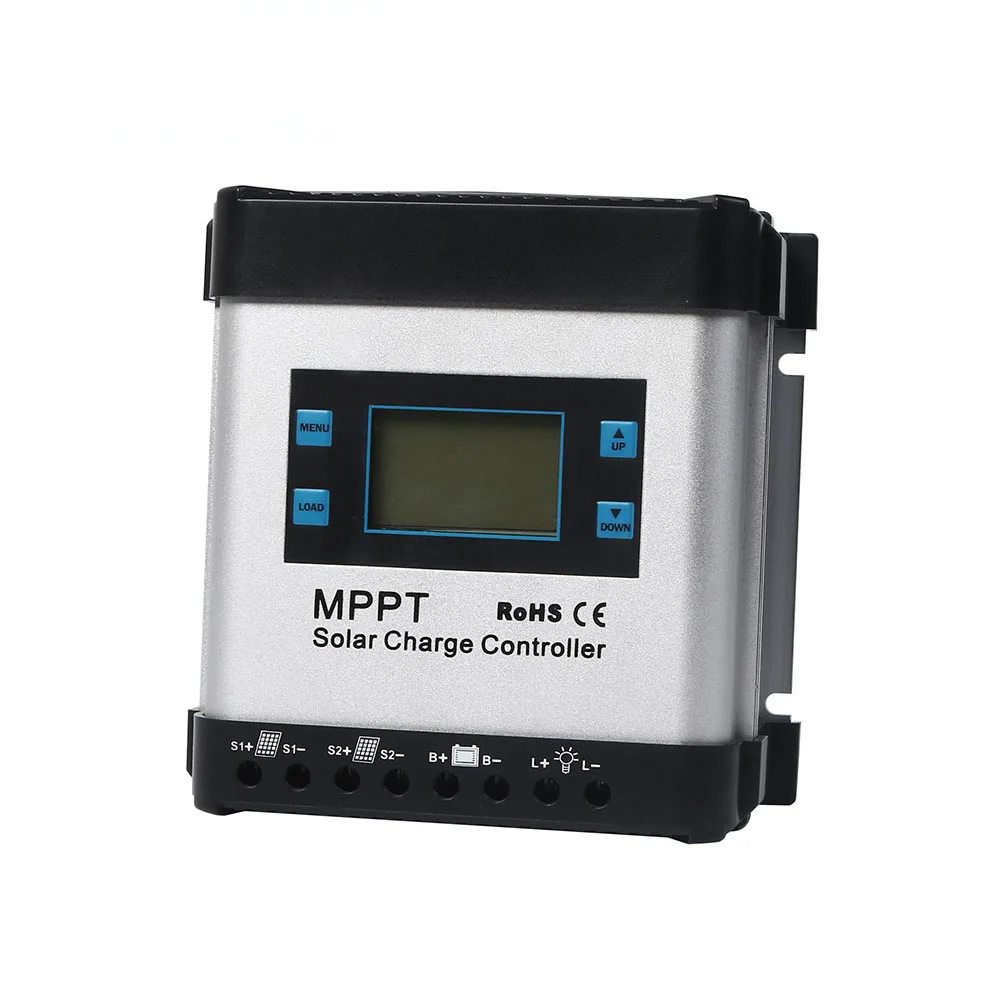

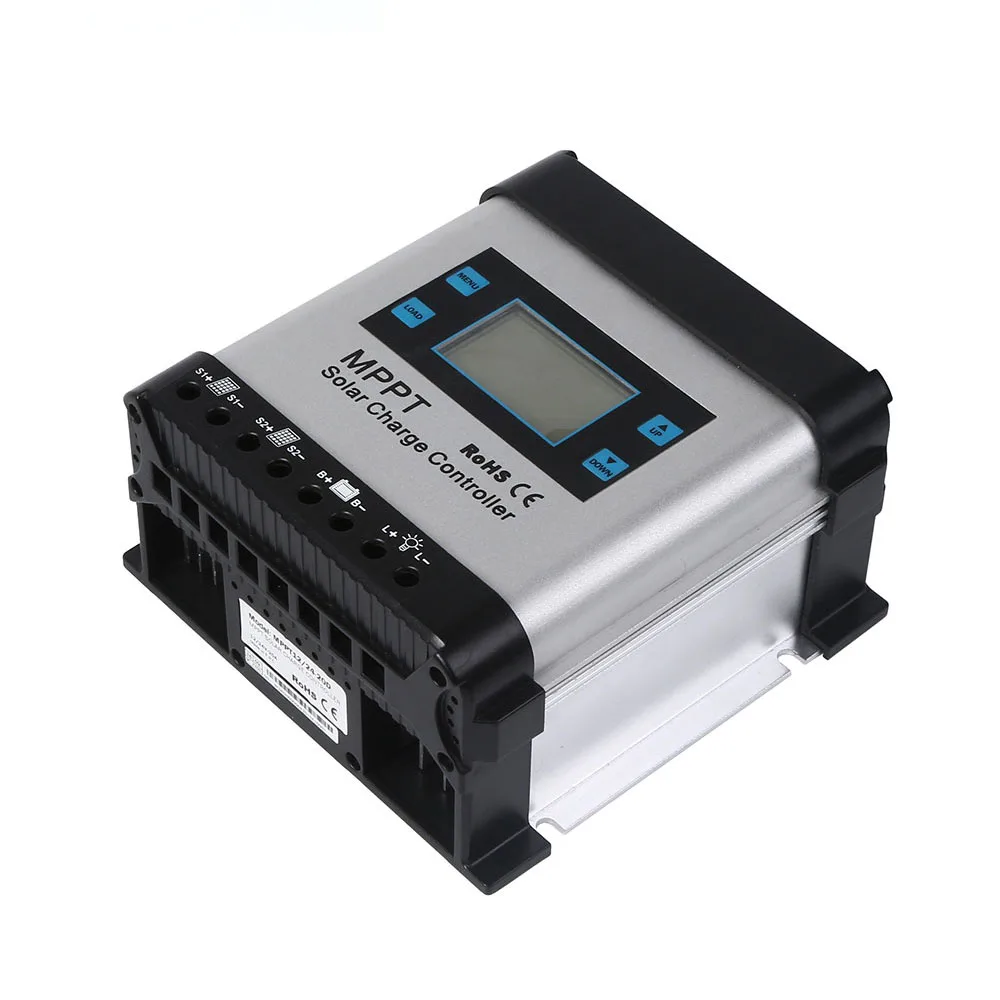

Auto Detect Solar Charge Controller
- Category: Solar Charger Controllers >>>
- Supplier: Zhejiang Carspa New Energy Co. Ltd.
Share on (60545942393):
Product Overview
Description
20A Solar System Controller Application 12V/24V/48V Auto Detect Solar Controller-MPPT12/24-20D
Product Description
| Model | MPPT12/24-10D | MPPT12/24-20D | MPPT12/24-30D |
| Working voltage of the battery | 12/24V | ||
| Module voltage | 12V:22-60V24V:30-90V | ||
| Battery type | 12V 24V rechargeable lead-acid battery | ||
| Max.module/charge current | 10A | 20A | 30A |
| Own consumption,active | 15mA | ||
| Own consumption,standby | <1mA | ||
| Own consumption with load | 130mA | ||
| Constant voltage charge | 14.6V default (14-15V settable);29.2V default(28-30V settable) | ||
| Low disconnect voltage | 11V default(10.4-11.4A settable);22V default(20.8-22.8V settable) | ||
| Low reconnect voltage | 12.8V default(12.2-13.2V settable);25.6V default(24.4-26.4V settable) | ||

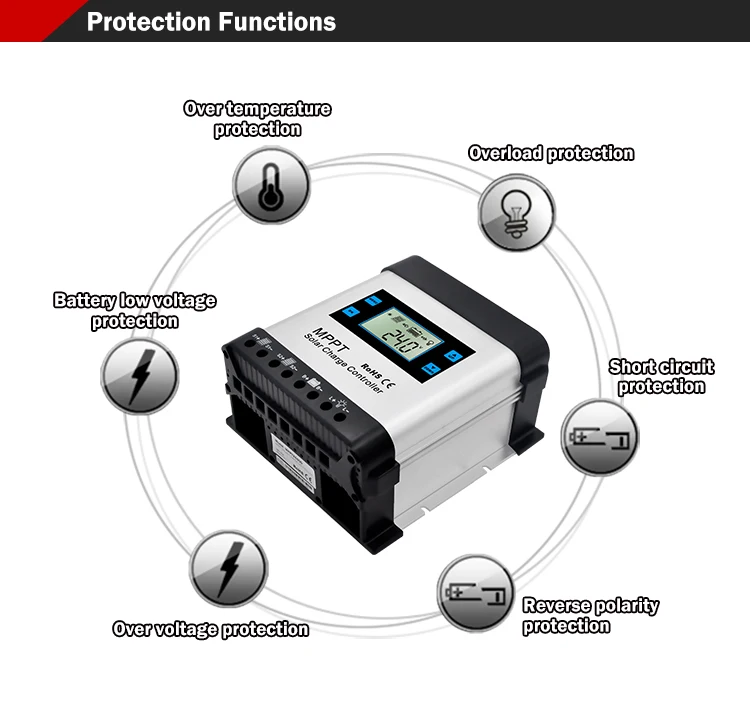

| Protection type | IP20 | ||
| RS232 communication interface | Optional | ||

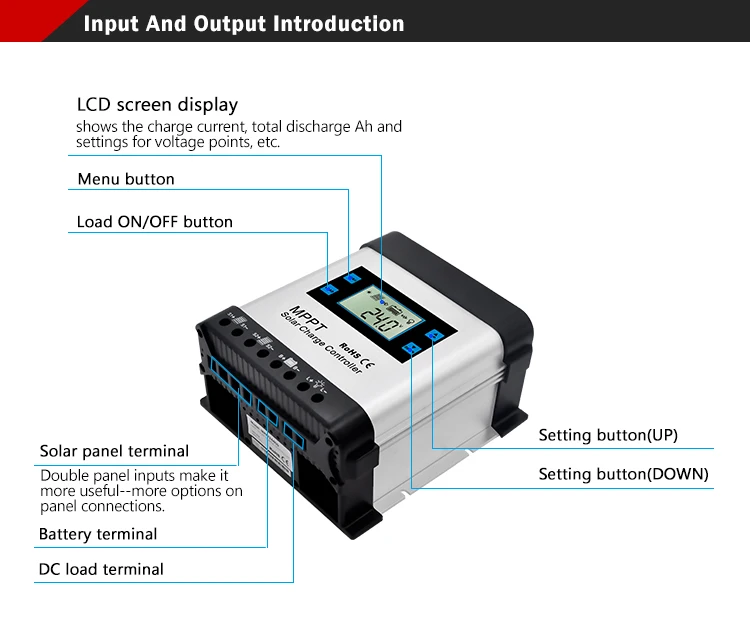

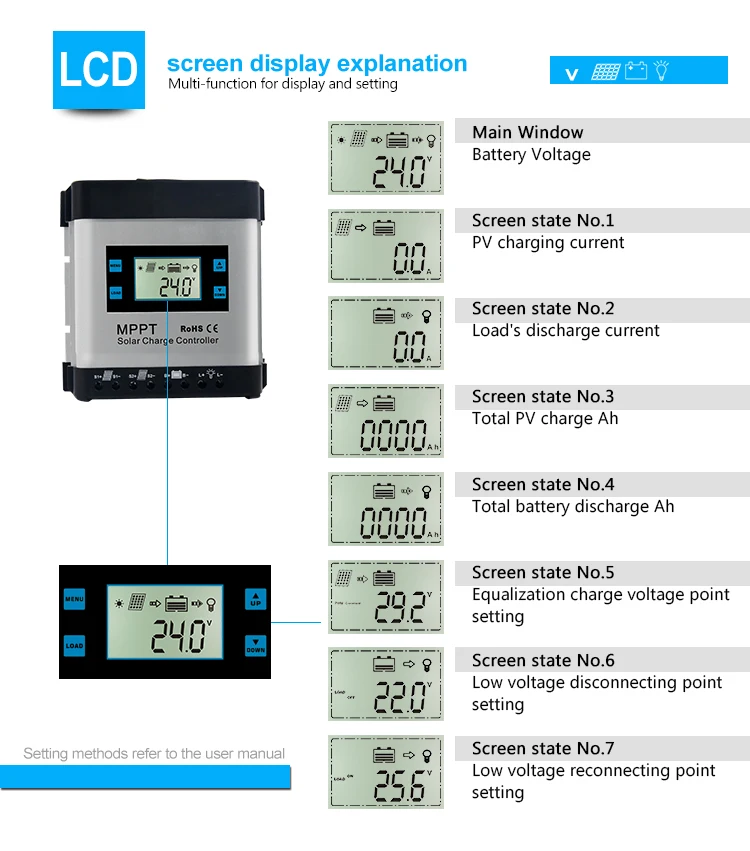

| LCD screen display | Battery voltage,PV charge current,load discharge current,total PV charge Ah,total PV discharge Ah,the setting of constant voltage charging,the setting of low voltage disconnect,the setting of low voltage reconnect | ||
| Model | MPPT2440D | MPPT2450D | MPPT2460D | MPPT2480D |
| Working voltage of the battery | 24V | |||
Company Information
Exhibition
FAQ
FAQ
Q1: Can I get one for sample?
A1:Yes, we accept sample order or trial order for testing first.
Q2: What's the price and MOQ?
A2:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
Q3: What's you delivery time?
A3:It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order
Q4: How about your payment and shipment?
A4:Payment: We accept T/T, Western Union,Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc. express;for batch order, by sea or by air( through our forward)
Q5:How about your warranty?
A5:we provide1.5 and 2 years warranty for different products and whole life technical support.
Q6.Do you have you own factory?
A6:Yes,we are professional manufacturer mainly in power inverter for about 12 years.Our factory is located in Yueqing,Zhejiang,China.
