1).Rotation of swing arm is flexible, and operation and materials selection is convenient.
2). High quality seamless steel tubes are adopted and processed into pillars, which are supported by top and bottom holes, to guarantee the flexible rotation and good reliability of upper beating board.
3). The switch is operated by both hands to guarantee the safety of operators.
4). The whole machine use self-lubricating system to reduce wear and extend the service life of the machine.
Machine Parameter
Cutting Force
16ton
Cutting Area
900*410mm
Arm Width
350*450mm
Maximum Stroke
70mm
Motor Power
0.75kw
Tension Distance
120mm
N.W(approx.)
450kg
G.W(approx.)
480kg
Application

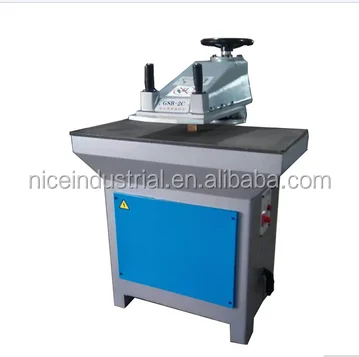

This cutting machine is used for cutting nonmetal materials such as fabric sample,facial mask,cloth,textile crafts,foam,sponge,EVA,rubber,plastic and so on.
Packing
Machines well packed with protective film and loaded in plywood case or export container;
Our Services
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
3.We want agent from all over the world,we welcome agent come to our plant for business negotiation.We give agent competitive price and guarantee the quality,it’s good that you can do after sale service in your area for customer convenience.
