12 zones J thermocouples temperature controller for water bottle injection mould

Product Overview

Description

 Hot Runner Mold



Specification:



Ambient temperature :	32°F to 131°F(0°C to 55°C)
Relative humidity :	10%-95%
Delivery temperature:	-40°F to 158°F(-40°C to 70°C)
Power supply	AC185V-245V,50/60HZ
T/C type:	J/K
Temperature Unit:	°C/°F
Temperature control scope:	45°C to 550°C
Temperature test precision	+3%
Repeat temperature measure precision :	+0.1%
Repeat temperature measure precision :	+0.5%
T/C cooling compensation:	Dynamic tracking
Noise restrain:	common mode rejection ratio>100DB,
Sample frequency	10HZ(100mS)
One point load:	15A
F1,F2,F3,F4:	250V-15A(special fuse)



Function Details:



 With FUZZY PIDD control technology, when not set PID parameters, it can auto induct to any heating models and greatly improve the work capacity

1. To prevent the influence of ambient temperature during measurement, Using inner and outer ring to dynamic tracking the ambient temperature. Cold compensation with thermostat of outer ring, Dynamical removing the ambient influence to measuring circuit by precision voltage of inner ring. make the control measure more precision
2. Controller can easy detect to T/C reversed or T/C Open, and will be operate according to error information and control mode when detected the problems.
3. Heater current monitor
4. Soft start function
5. Temperature Deviation Alarms
6. Manual output mode
7. Non-touch transfer
8. Overall error indicator, easy to find error reason
9. Output module rating 15A per Point
10. Simple intuitive and humanize operating interface
11. Plug module design for easy maintenance;
12. External radiator for high efficient dissipate heater.

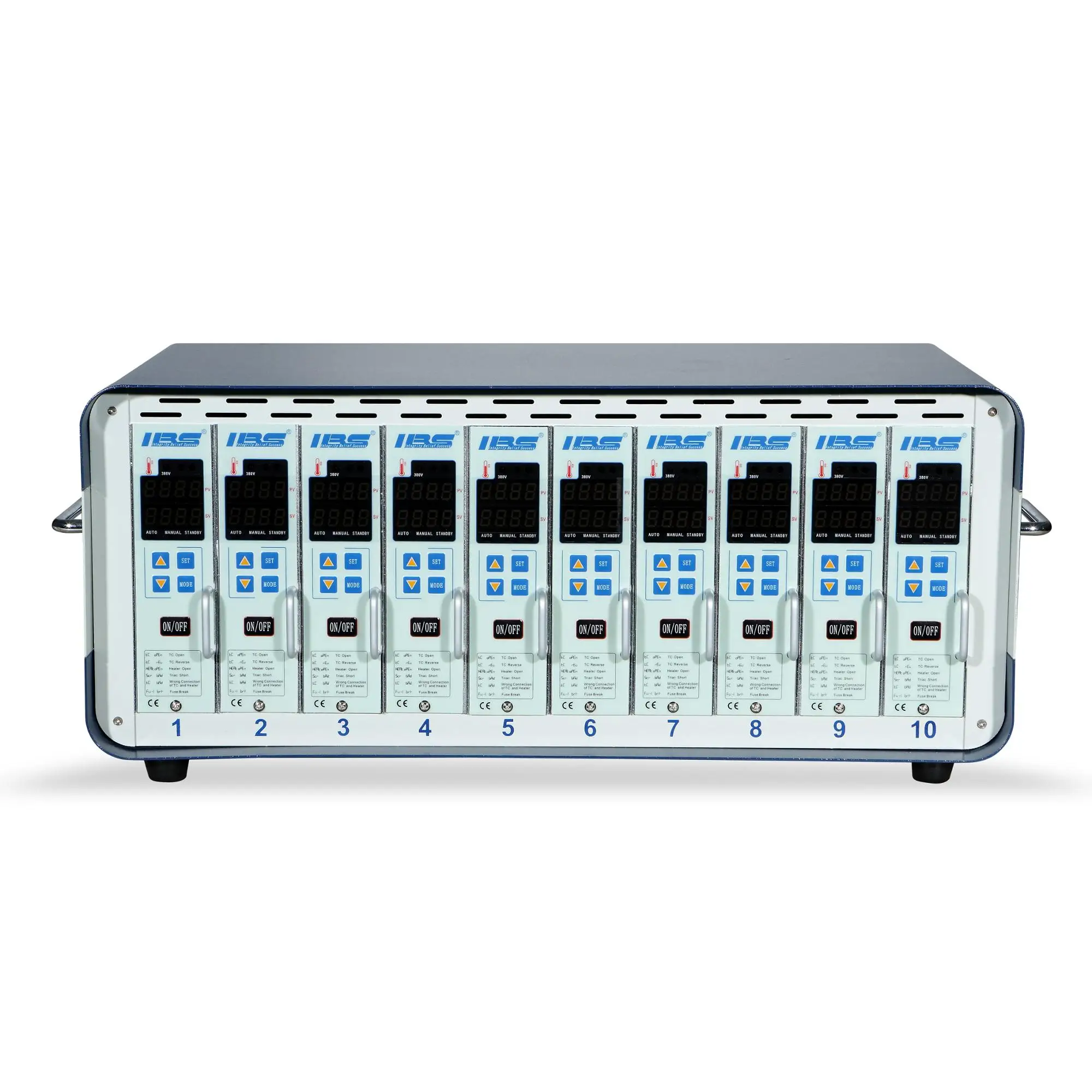

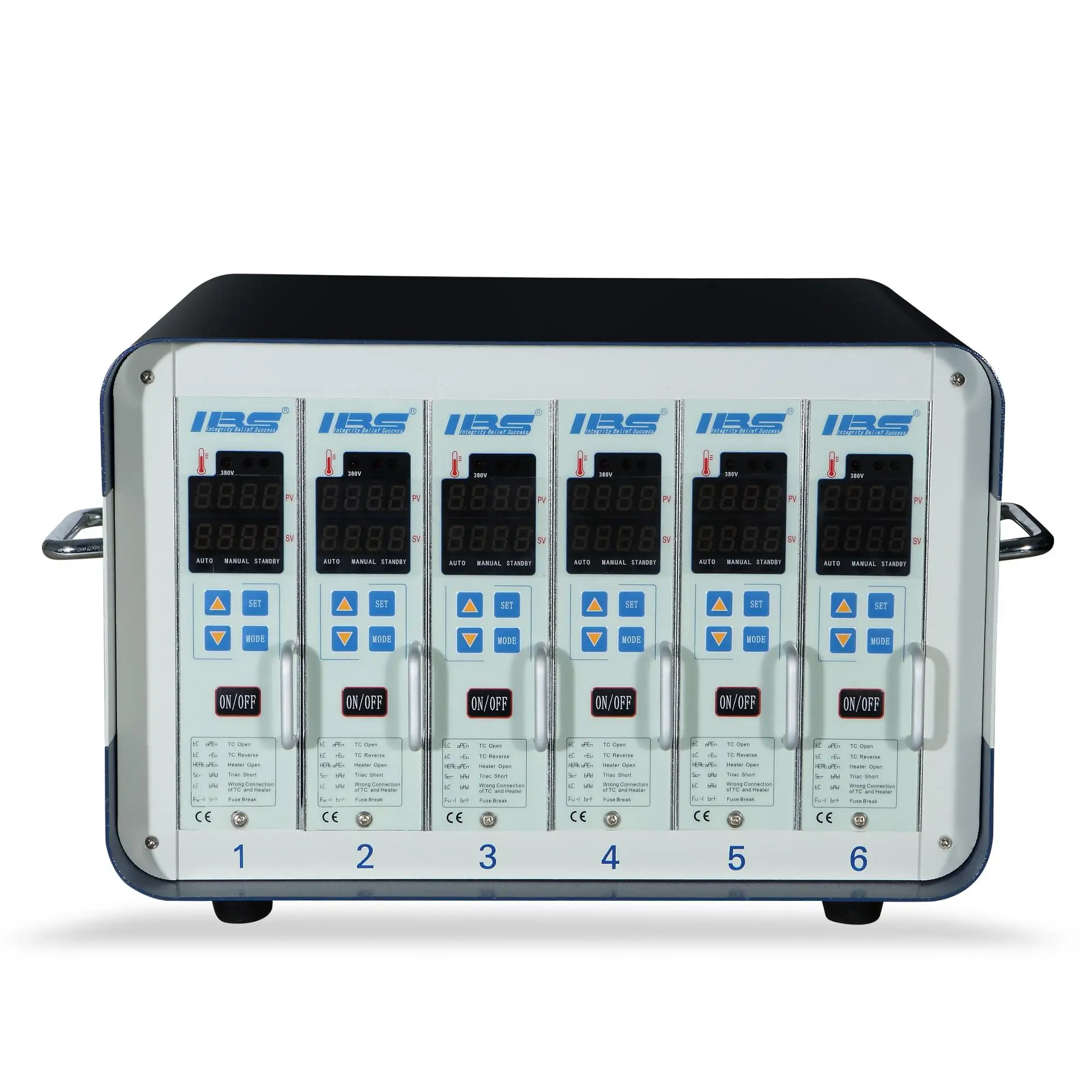

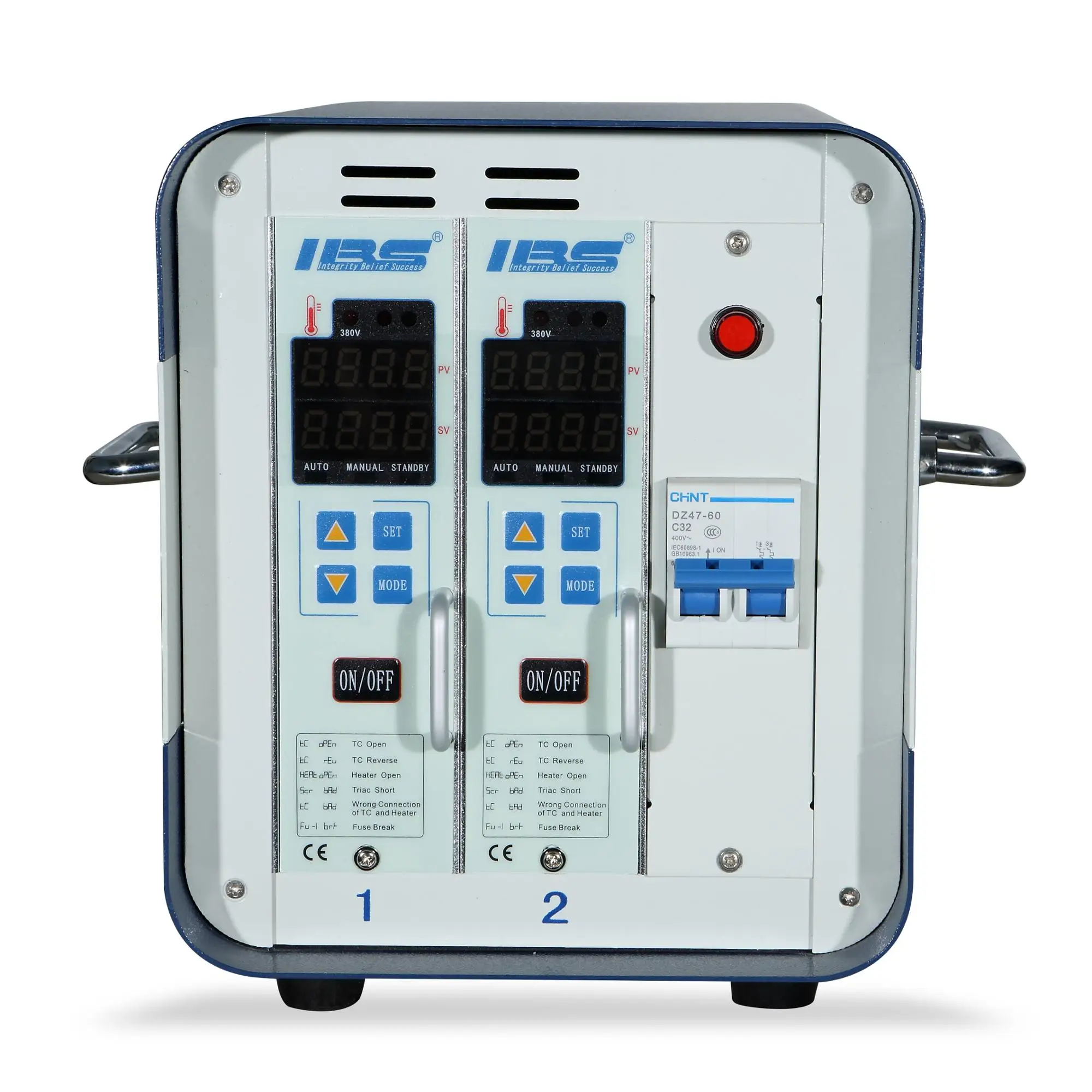

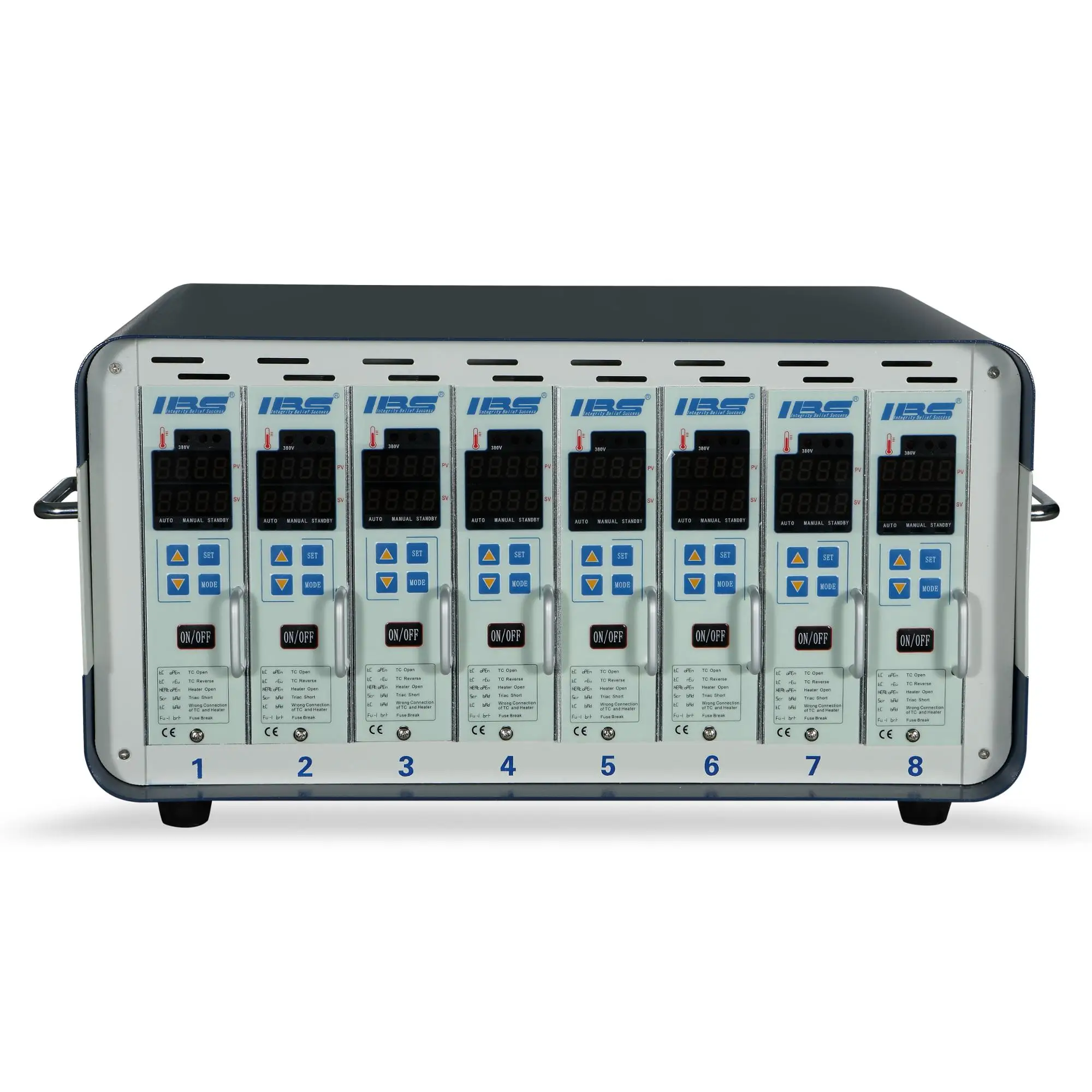

Picture:

 IBS DXC-ETC Hot runner controllers accessories:





Packing Details:







Dimensions and Weight of box:



Controller Model	Support Zones	Only Controller box demensions	Packaging dimensions	Gross Weight/KG
DXC-ETC-2P-15A	2 zones	177*315*240	320*450*350MM	14
DXC-ETC-4P-15A	3-4 zones	278*315*240	320*450*350MM	18
DXC-ETC-6P-15A	5-6 zones	378*315*240	430*400*400MM	24
DXC-ETC-8P-15A	7-8 zones	480*315*240	520*400*400MM	28
DXC-ETC-12P-15A	10-12 zones	682*315*240	750*380*450MM	37
