Security baggage scanner,X Ray baggage Security Inspection Machine TEC 5030A with Automatic conveyor belt

Product Overview

Description

Security baggage scanner,X Ray baggage Security Inspection Machine TEC-5030C with Automatic conveyor belt









Production Description:

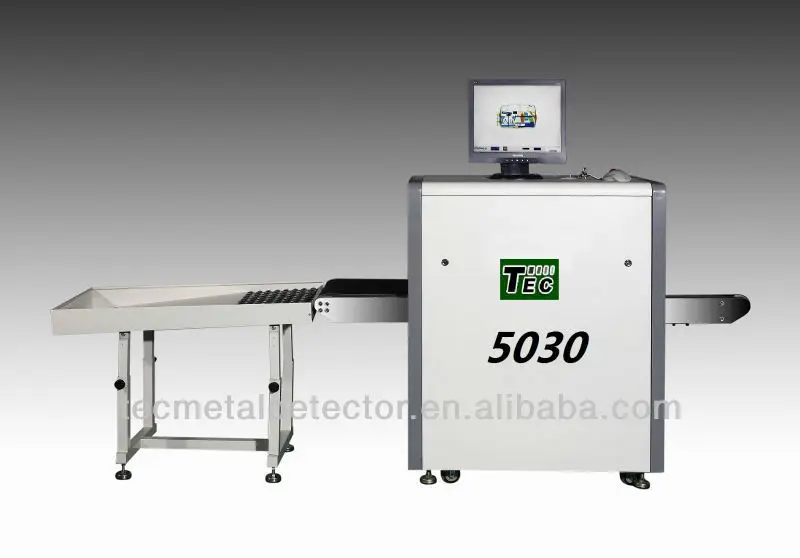

TEC-5030C x-ray machine

5030C type of X-ray examination system uses X-ray scanning imaging technology to scan items. According to the images, the inspector determine whether entrainment of banned items. 50cm(wide)×30(high)channel size meet the demand for small goods inspection. Folding belt can save space of carry and storage.

5030C type owns the effect of perfect clarity imaging. With the help of many images processing function, it can easily and quickly help the inspectors to distinguish the different objects. In the process of scanning imaging, the system to provide automatic image storage and according to work by inspectors need to splice storage in two ways. If you need to one image to check, inspection person can playback past images at any time.

5030C model based on WINDOWS operating system, interface design is simple to be easily mastered without special training. It is the ideal solutions of small object check.



8 unique characteristics:

Sound light alarm: the sound and alarm lamp signal meeting the conditions



Network port: can be connected LANS, multiple terminal and check the baggage



Safer rays: X-ray emission automatic control, avoid mistakenly launch



Humanization image monitoring: the display is 360°folding and rotary, operator according to

oneself need adjust display’s position to reduce fatigue



Concise mouse operation control: without the keyboard and workbench, directly controlled by

mouse, saving space



A key shutdown control: only rotating the key is needed to shut down the equipment securely, more convenient and concise



Eagle Eye: can easily see the current amplification area



Fault diagnosis: automatic judgment of malfunction, and giving prompt information,

facilitate maintenance







Basic parameter index

Thoroughfare                         500 (wide) ×300(high) mm

Conveyor belt speed              0.22 m/s

Conveyor belt load                 120kg

Dose inspection                     <1.5µGy

Distinguish                             diameter 0.101mm metal cable

Penetrate                               34mm thick steel plate

Film                                         ISO1600film safety

Leak dose                               <0.05µGy/h



Operating environment:

Working temperature/humidity          0°C~45°C/20%~95% (no condensation)

Storage temperature/humidity          -20°C~60°C/20%~95% (no condensation)

Working voltage                                220VAC (±10%)  50±3Hz

Power loss                                        1.0KW (maximum)

Noise levels                                       <65dB
