Wood Biomass Pellet Making Line/Alfalfa Pellet Press Machine
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (60546421279):
Product Overview
Description
Wood Biomass Pellet Making Line/Alfalfa Pellet Press Machine
Company Information
Jiangsu YONGLI Machinery Co.,Ltd. was founded in 2003. We are an excellent provider and operator for feed,biomass, fertilizer and Silo equipments. With the principle of High Quality, Competitive Price, Technical Innovation, Excellent Service, we constantly develop domestic market and abroad market, until now, we have finished hundreds feed, biomass, fertilizer and silo projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc, and gain great reputation from our clients. YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.
Our equipments have exported to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Japan, Sri Lanka, Dubai, Australia, New Zealand and so on. With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.
Product Description
\u0081Application of biomass pellets
Biomass pellets are widely applied in industries like industrial boilers, home fireplace and biomass power generation and so on. Biomass pellet has gradually replaced industrialfuels like electricity, oil, gas and coal, and so on.
Raw materials of biomass pellets fuel
Wood, logs,tree bark, straw, wheat straw,rice husk, cotton stalk, coconut juice slag, sunflower, olive pulp, paper, elephant grass, bamboo shavings,bagasse, palmshell, peanut shell, corn cob, soybean pole, weeds, branches, leaves, EFB, olive nut etc.
How To Make Biomass Pellets?

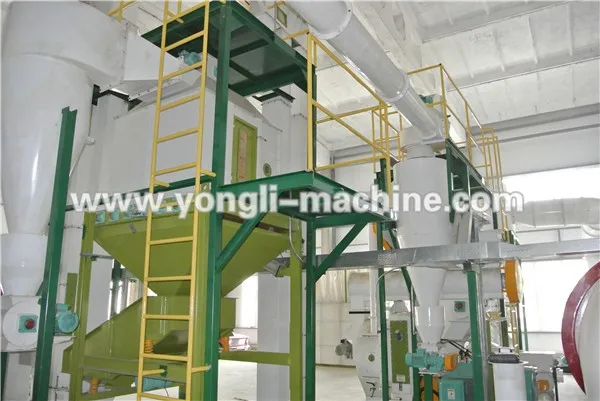

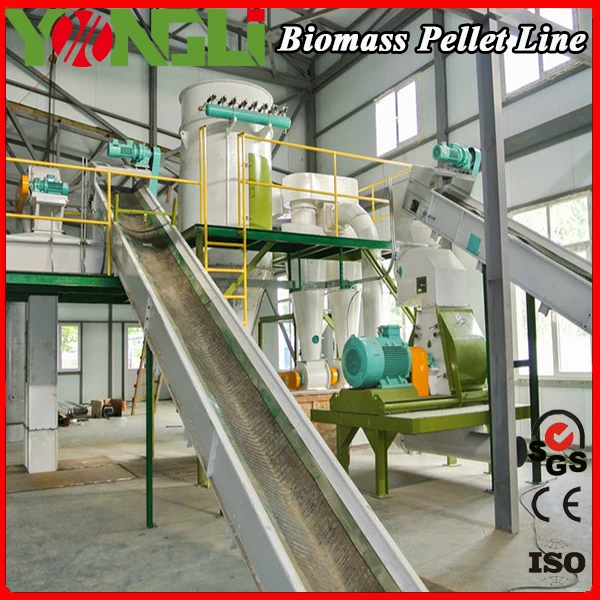

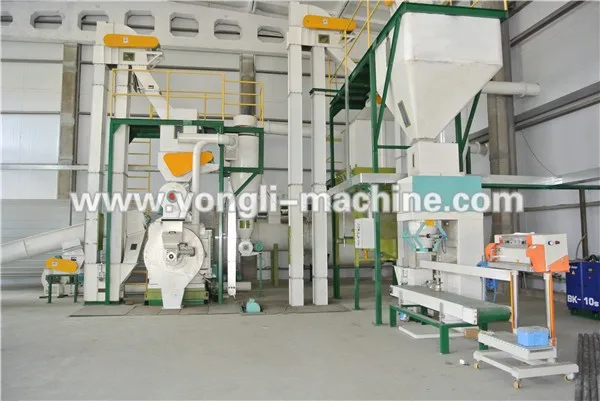

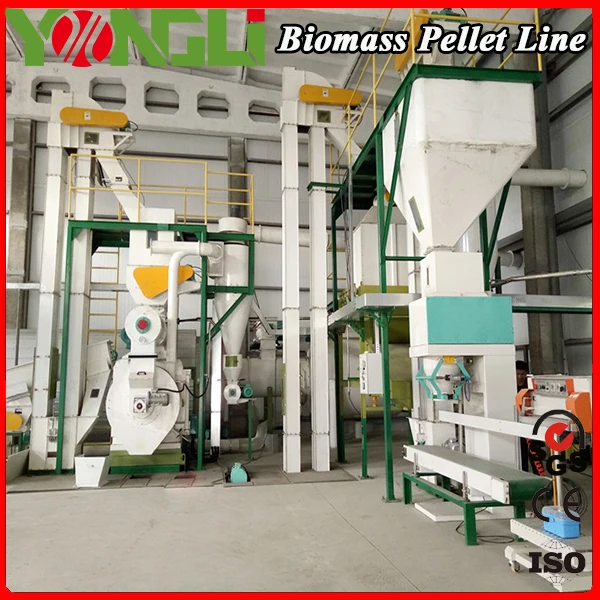

YONGLI supply complete project for biomass pellet production line. The main machine of biomass production line is: Pellet machine, Debarker, Wood chipper, Hammer mill, Drum dryer, Packing machine, Belt conveyors and Electrical control system etc.
YONGLI Pellet Mill Technical Parameters:
Model | Capacity (t/h) | Power (kw) | Inner diameter of die | Pellet size (mm) | Dimension (mm) | Net weight (T) |
YPM250 | 0.1-0.2 | 18.5 | 250 | Ø6,Ø8,Ø10 | 1300*1330*850 | 0.73 |
YPM320 | 0.3-0.5 | 37 | 320 | Ø6,Ø8,Ø10 | 2100*1100*1140 | 1.2 |
YPM350 | 0.5-0.8 | 55 | 350 | Ø6,Ø8,Ø10 | 2500*1100*1150 | 1.65 |
YPM420 | 0.9-1.2 | 90 | 420 | Ø6,Ø8,Ø10 | 3000*1200*1470 | 2.8 |
YPM520 | 1.3-1.8/1.8-2.5 | 132/160 | 520 | Ø6,Ø8,Ø10 | 3200*1300*1420 | 4 |
YPM600X | 2.5-3 | 185 | 600 | Ø6,Ø8,Ø10 | 3000*1750*1810 | 4.5 |
YPM660 | 3-4 | 200 | 660 | Ø6,Ø8,Ø10 | 3570*1800*1850 | 7.5 |
YPM800 | 4-6 | 315 | 800 | Ø6,Ø8,Ø10 | 4300*1900*2040 | 11 |

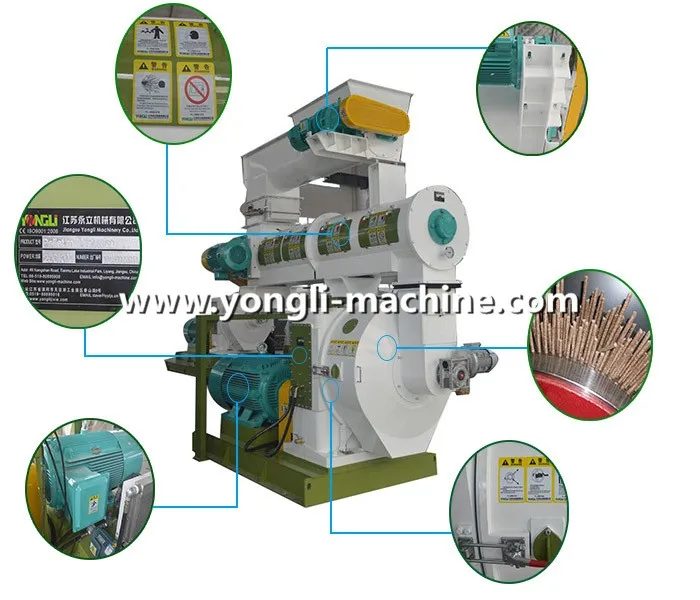

YONGLI Wood Pellet Press Machine:
For a complete wood pellet production line∗

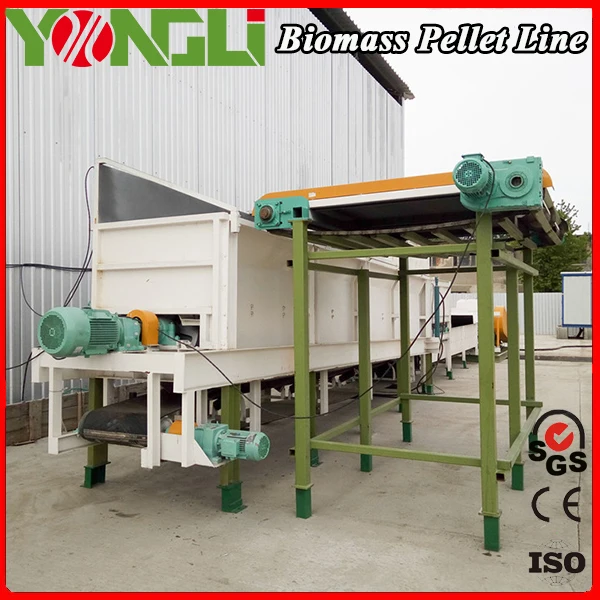

1.Debarking Process
Yongli Debarker is applicable to peel log wood with diameter 10 to 600mm. The peeled rate is more than 95 percent.

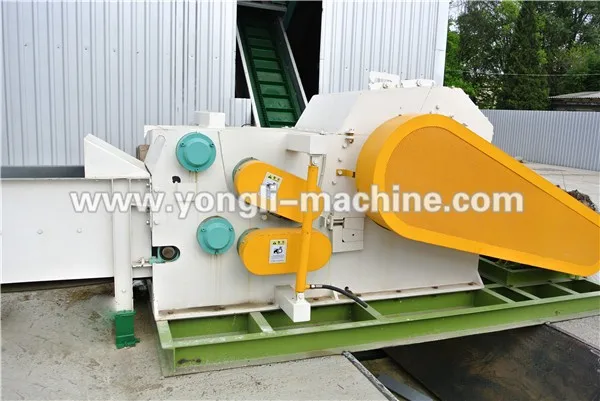

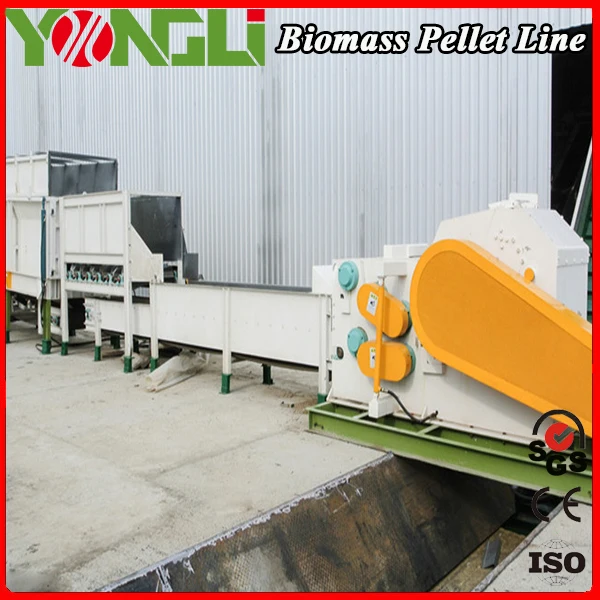

2.Chipping Process
Since the raw materials are wood logs, branches, board etc, we have to use wood chipper to produce it into smaller pieces.

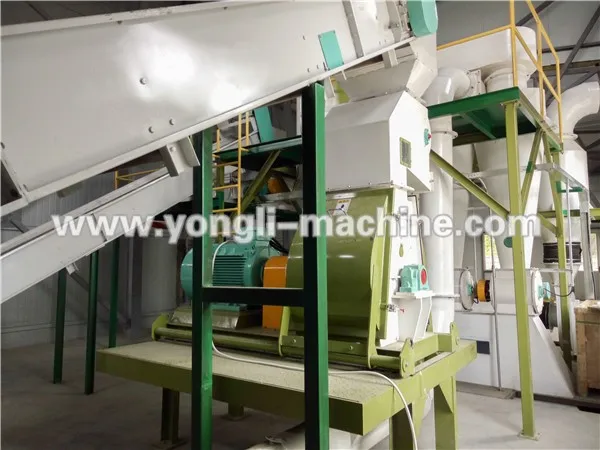

3.Grinding Process
Our hammer mill is used to further crush the small pieces into particles of less than 1-3mm.

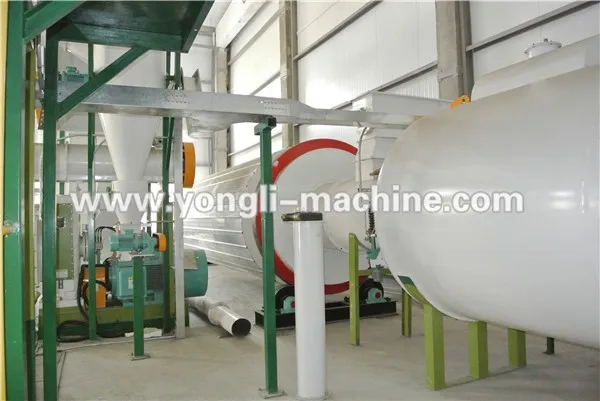

4.Drying Process
We have to use drum dryer to dry the sawdust. The sawdust moisture before drying is normally: 30-60%, after drying is normally:13-15%.

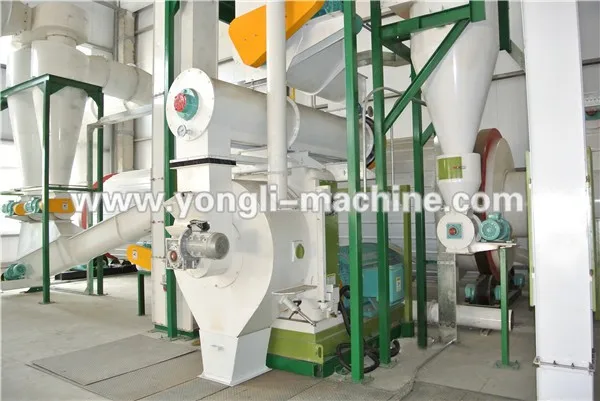

5.Pelleting Process
We use pellet machine to make pellets into 6mm, 8mm, 10mm, 12mm etc, which can be produced based on client’s request.
6.Cooling Process
After pellet mill, the temperature of pellets is between 60-80 degrees. For storage purpose, a cooler must be used to reduce their surface temperature and moisture content.
7.Packing Process
Packing process is to protect of the pellets becoming getting damp, and it is useful for transport and market sales.
Our Services
1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.
YONGLI Customers
Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details! You are also always welcome!
Packaging & Shipping
YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port. The details for of shipment pictures for YONGLI machine as below:
CE Certification
YONGLI passed CE certification for all of the exported machine:
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
