Wholesale China factory 24v 2500w wind and solar power inverter popular products in usa

Product Overview

Description

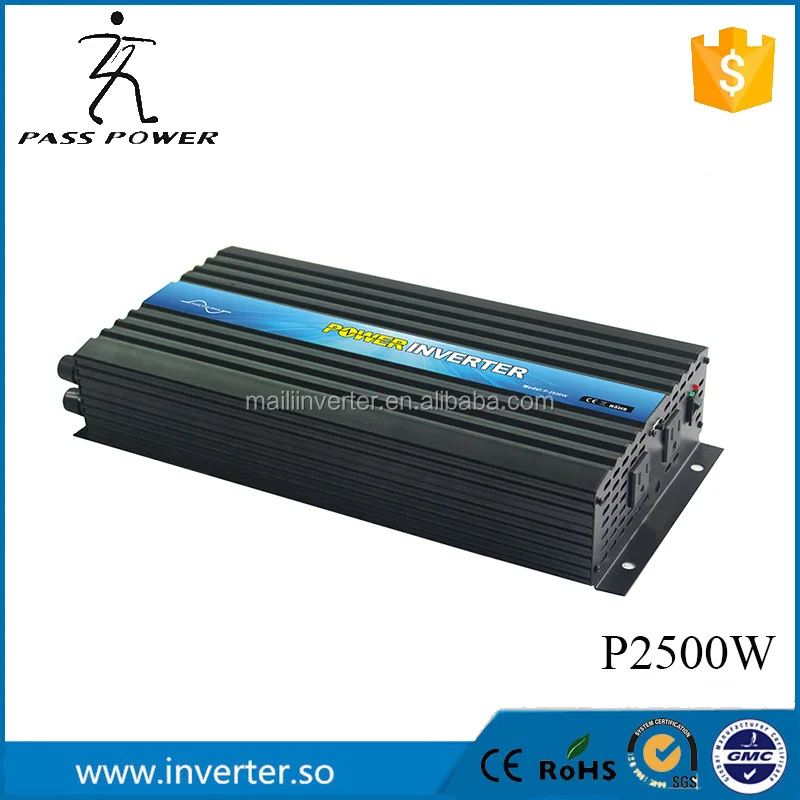

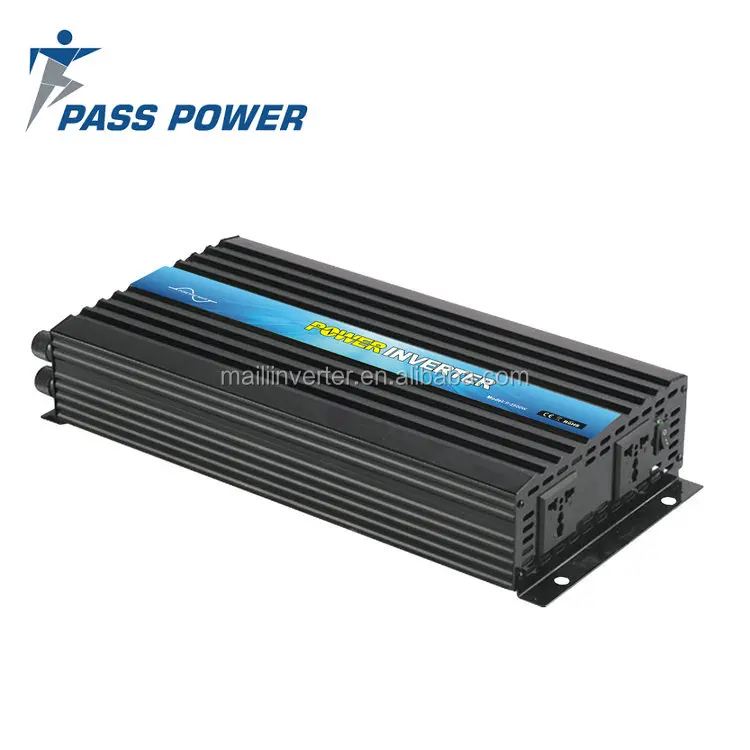

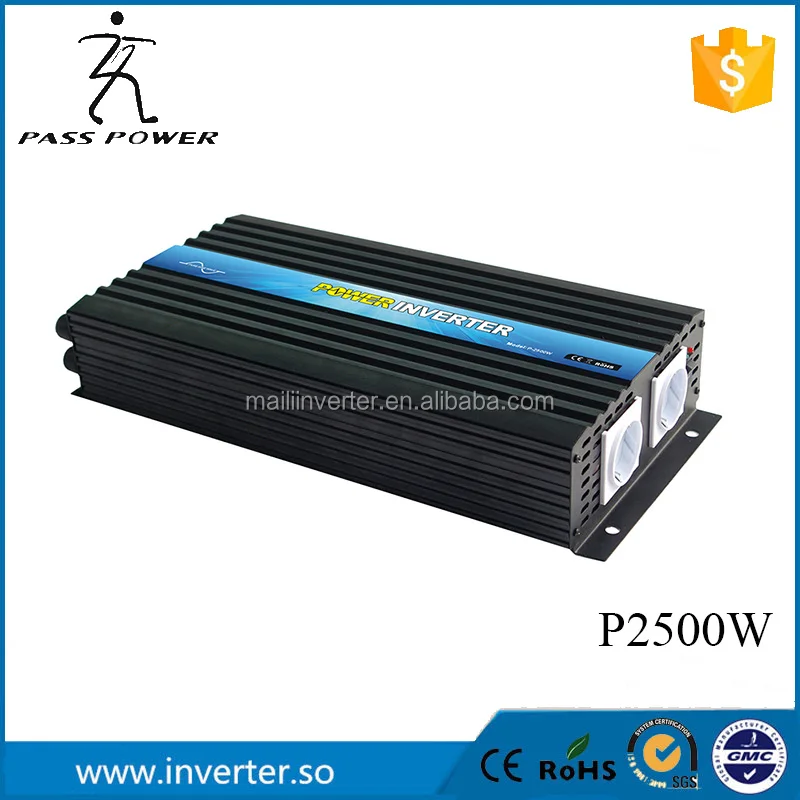

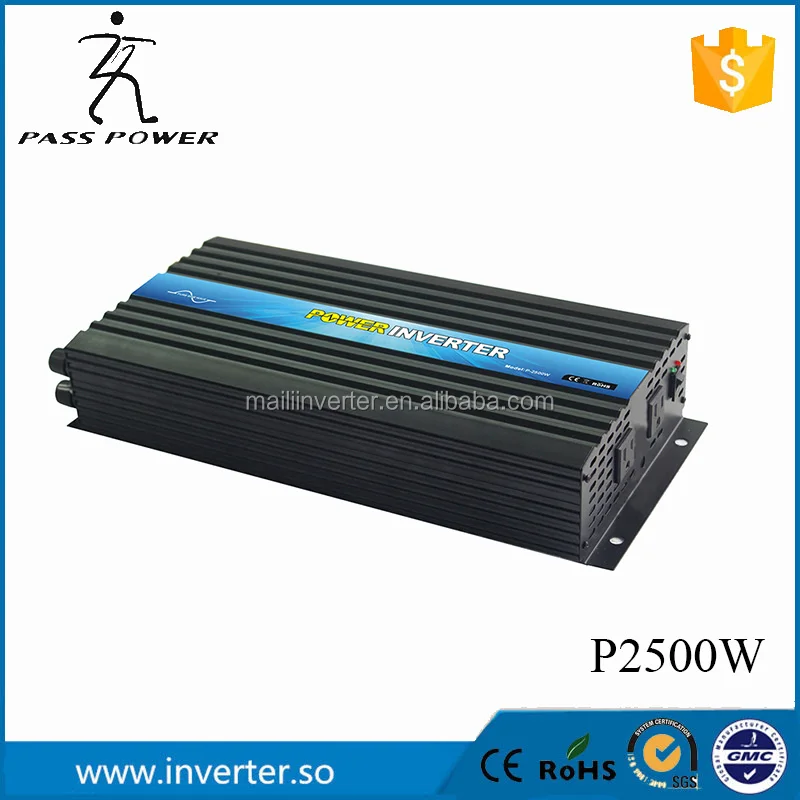

Dc 12v/24v 2500w pure sine wave power inverter



 Features for 2500w pure sine wave power inverter

1. High conversion efficiency,fast start

2. Pure sine wave output

3. Soft start function

4. Strong load adaptability and stability

5. Provide over current and short circuit protection,to avoid electrical appliances

6. Temperature control cooling fan,safe and effective

7. Built-in fuse,safe and reliable

8. One year warranty provided

9. DC 36V,DC 72V,DC 96V,DC 110V/AC 120V,AC 200V can be customized

10. The plug can be customized various countries



 Technical data for 2500w pure sine wave power inverter



Model	P2500-12-110	P2500-24-110	P2500-48-110	P2500-12-220	P2500-24-220	P2500-48-220
Rated Power	2500W	2500W	2500W	2500W	2500W	2500W
Peak power	5000W(wihin 5 millisecond)
DC input voltage	12V	24V	48V	12V	24V	48V
AC output voltage	110VAC±10%			220VAC±5%
No-load current	<1.8A(DC13V)	<1.1A(DC26V)	<0.9A(DC52V)	<1.8A(DC13V)	<1.1A(DC26V)	<0.9A(DC52V)
AC Output frequency	50HZ±1%/60HZ±1%
AC Output wavaform	Pure sine wave
Waveform distortion	THD<3%(Linear load)
Full load efficiency	>86%(DC13V)	>88%(DC26V)	>90%(DC52V)	>86%(DC13V)	>88%(DC26V)	>90%(DC52V)
DC input voltage range	10.6V~15.5V	21.6V~30V	43.2V~63V	10.6V~15.5V	21.6V~30V	43.2V~63V
Low voltage alarm	10.5±0.3V	21±0.6V	41.8±1.2V	10.5±0.3V	21±0.6V	41.8±1.2V
Low voltage shutout	9.5±0.2V	19±0.3V	38±0.4V	9.5±0.2V	19±0.3V	38±0.4V
Over voltage protection	16±0.5V	31±1V	65±2V	16±0.5V	31±1V	65±2V
Low volatge recovery	11.8±0.3V	23.6±0.4V	47.2±0.8V	11.8±0.3V	23.6±0.4V	47.2±0.8V
Over voltage recovery	15.7±0.3V	31.8±0.4V	63±1V	15.7±0.3V	31.8±0.4V	63±1V
Over-load protection	110%~114%
Protective function	Low voltage:LED red light turn on,buzzer warning, automatic recovery
	Over voltage:LED red light turn on ,automatic recovery
	Over-load: LED red light on,machine locked, need to be rebooted
	Over temperature:LED red light turn on,buzzer warning, automatic recovery
	Short circuit(within 2 seconds):automatic recovery
	Input reverse connection :Fuse burn-out
Work temperature	–10℃- +50℃
Storage  temperature	–30℃- +70℃
Humidity	20%~90%RH without condensation
work altitude	less than 1200m
Size	448*199*78mm
Net weight	5.67±0.05kg	5.55±0.03kg	5.47±0.03kg	5.67±0.05kg	5.55±0.03kg	5.47±0.03kg
Package size	520*260*165mm(1pcs);    520*260*305mm(2pcs)
Gross weight	7.2±0.05kg/pc	6.9±0.05kg/pc	6.8±0.05kg/pc	7.2±0.05kg/pc	6.9±0.05kg/pc	6.8±0.05kg/pc
	14.15±0.1kg/2pcs	13.6±0.05kg/2pcs	13.4±0.05kg/2pcs	14.1±0.1kg/2pcs	13.6±0.05kg/2pcs	13.4±0.05kg/2pcs



 Packing & Delivery

1) packing way: by standard carton box,with bubbles outside and foams inside for protection.

    packing size: 520*260*165mm/pc;520*260*305mm/2pcs

    packing weight: 7.2/1pc; 14.15kg/2pcs





2) delivery time: delivery goods with 7-28 days after received the deposit for bulk order,sample order: 2-3 days



 Shipping Way

1) by international express to your door house,such as SF,DHL,UPS,Fedex,TNT and EMS.

2) by air transpotation,to your local airport

3) by sea transpotation,to your local seaport (FOB/CNF/CIF)

4) if you have your own shipping agent,is also welcomed





 Pass Power Products Range



Product Series: 5 series & over 300 kinds of products

Low frequency inverter: 1000w-6000w

High frequency inverter:

Pure sine wave : 300w-8000w

Modified sine wave: 300w-6000w

Intelligent battery charger: 8A-15A-20A-25A-50A

Common battery charger: 5A-60A







1. Samples

Samples are Available for Testing and Market Test.



2. Warranty of  Pass power Products

Pass Power provides one year warranty



3. Guides and After-service Consultancy

Pass Power Team will offer these guides below.

  A. Need an Accessory?             B. Products Repair?

  C. Power Problems to Solve?    D. Power Protection Solutions, etc.?



4. OEM Service



 Certificates:





Exhibitions:

1. How to choose suitable inverter ?

If your load is resistive loads, such as: bulbs, you can choose  a  modified  wave inverter.  But if it is  inductive

loads and capacitive loads, we recommend using pure sine wave power inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so  on.  Modified wave  can be started  with some inductive loads, but effect for load using life, because  capacitive  loads  and inductive  loads  need  high quality power.



2. How to choose the power of the inverter?

Different types of load demand for power are different. You can view the load  power values  to  determine  the

size of the power inverter.

Notice: resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 2-6 times power.



3. Why use a short cables when inverters connecting to the batteries?

We usually believe that cables connecting battery  terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside.

If you want to lengthen the distance between battery and inverter, please contact us and we will  calculate  the recommended cable size and length. Due to long distances using a cable connection,  there will be a  reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.



4. Maybe you will say WHY price of other suppliers is cheaper than ours?

Quality is our culture.Our inverter's components are very high quality.We adopt high&new technology, use American, Japanese origial packing material, European standard.we use material 100% pure copper transformer , NOT Copper-clad aluminun.

Continuous power of our inverter are FULL power. inverter of other suppliers are not enough, even though only half of power marked.
