Product Overview

Description

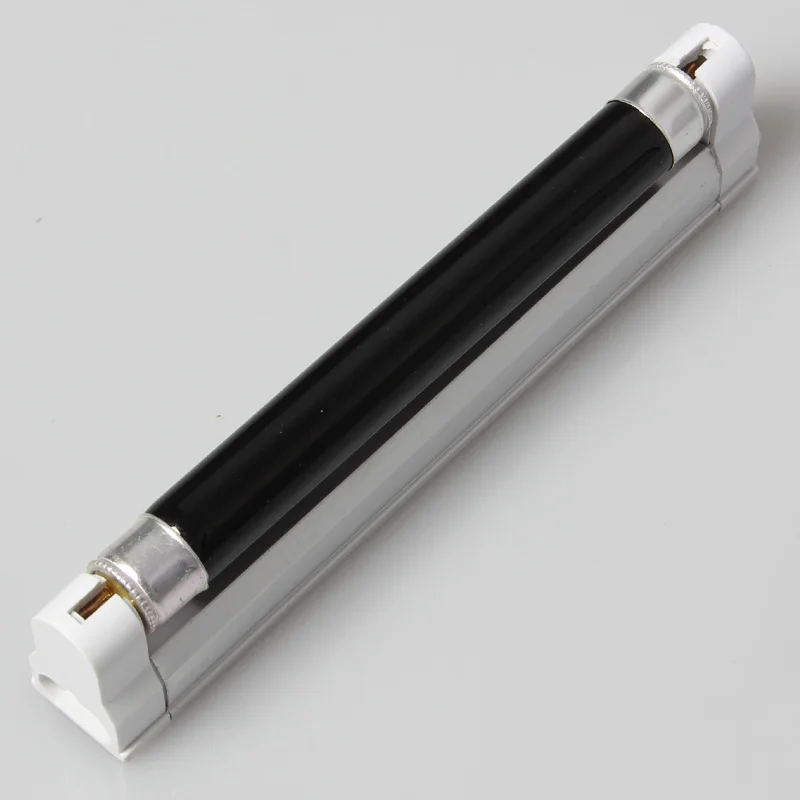

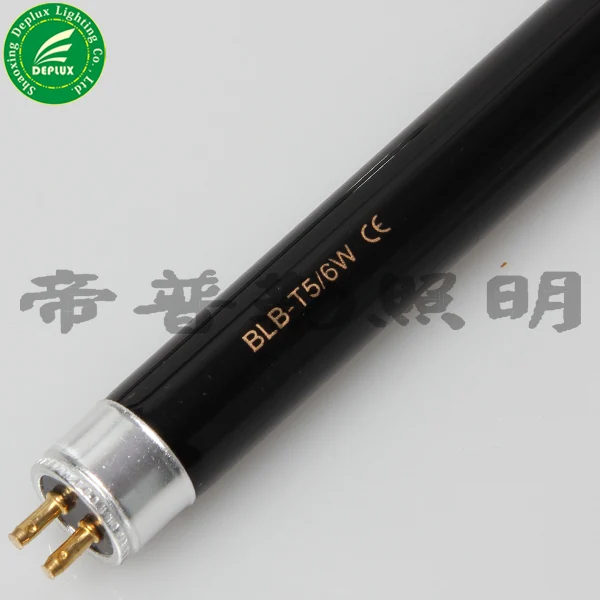

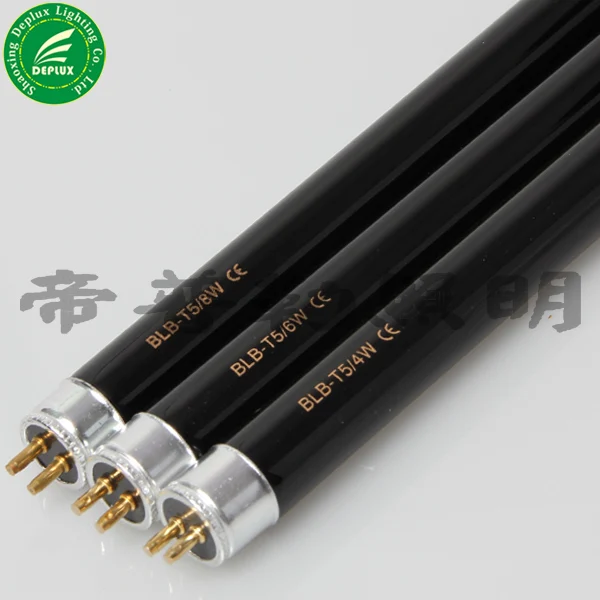

Money detector UV 8W G5 F8T5 BLB Lamp

Compact fluorescent lamp with all kinds of blacklight blue lamp, we can provide full ranges of blacklight blue like T5 T8 PL PLS PLL etc..

UVA Wavelength at 352nm/365nm//368nm/370nm

UVB narrow Wavelength at 306nm/311nm

Features:

1-Made of good quality glass materials and special powder with high light transmission

2-Speical technical treatment makes the UV strength of the tube meet high standards

3-The tube transmits 365nm UV ray and renders the illuminated object strong fluorescent effect.

Also other PL, PLC type available.

Applications:

UV curing
Fluorescence Illumination
Fluorescence Analysis
Laboratory/Research
Photochemistry
Chromatography
Phototherapy
Dermatology
Non-Destructive Testing
Inspection
Detection
Insect Luring
Fluorescence Display
Special effects in Theatrical Presentation



BLACKLIGHT BLUE FLUORESCENT TUBES

Watts	A(mm)	B(mm)max	B(mm)min	C(mm)	Dia(mm)	Pcs/Ctn	Meas.(cm)	G.W.(kgs)	N.W.(kgs)
4W	135.9	143.0	140.6	150.1	16	500	48X18X40.5	11	8
6W	212.1	219.2	216.8	226.3	16	500	48X25X40.5	15	11
8W	288.3	295.2	293.0	302.5	16	500	48X33X40.5	20	14

Watts(W)	A(mm)	B(mm)max	B(mm)min	C(mm)	Dia.(mm)	Pct/Ctn	Meas.(cm)	G.W.(kgs)	N.W.(kgs)
10W	331.3	338.4	335.8	345.5	26	200	57.5X36.5X30	14	12
15W	437.4	444.5	442.1	451.6	26	100	47X30.5X31	8.5	7.3
18W	589.8	596.9	594.5	604.0	26	100	62.5X30.5X31	12.5	10
30W	894.6	901.7	899.3	908.8	26	25	92.5X16X16.5	4.5	3.7
36W	1199.4	1206.5	1204.1	1213.6	26	25	123X16X16.5	5.6	4.6
58W	1500.0	1507.1	1504.7	1514.2	26	25	153X16X16.5	7	5.5
