Boiler Parts
$6.50-7.00
heat control system hvac m30*1.5 thread remote controller
- Category: >>>
- Supplier: Wenzhou Bentai TRV Co. Ltd.
Share on (60547004876):
Product Overview
Description
Product parameters

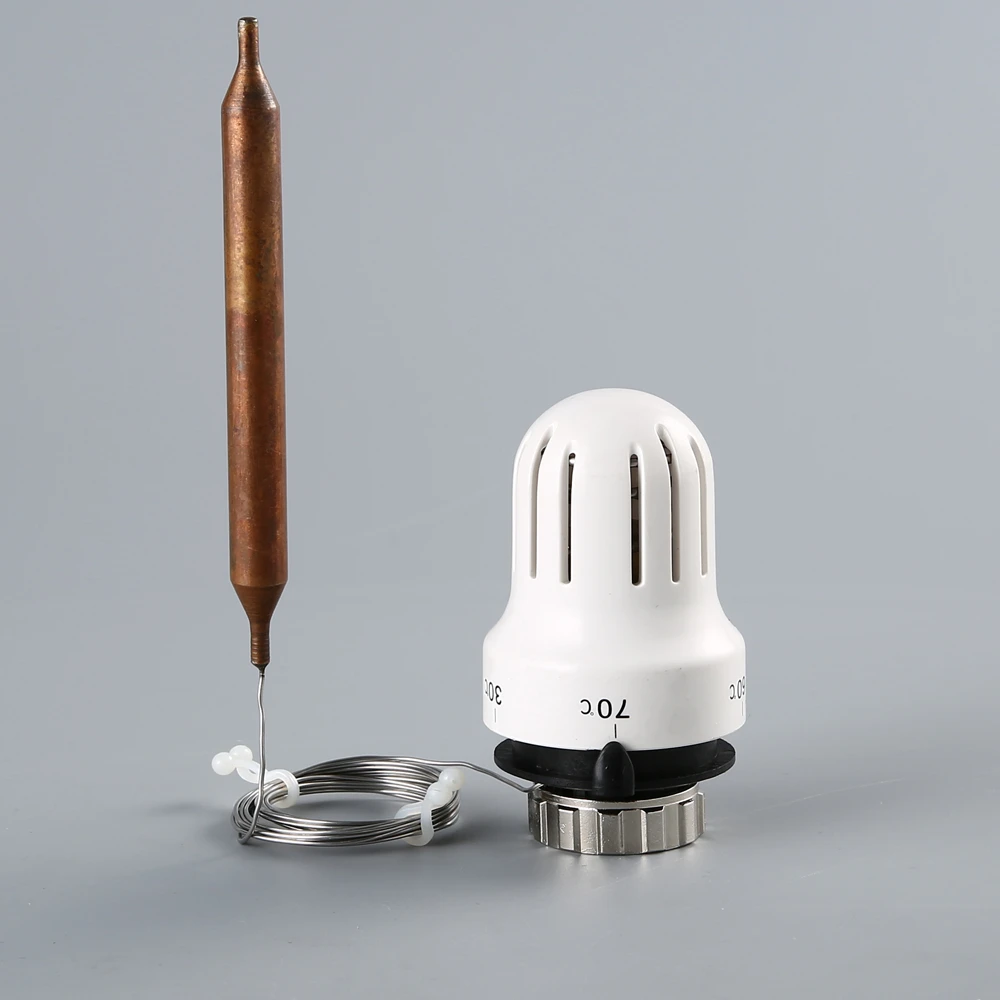

External temperature sensor thermostatic head
1.Temperature rang: 30 ℃ ~ 70 ℃ / Specific reference to the actual type
2.Capillary length: 2000mm
3.Maximum admissible static pressure：1.0 Mpa
4.Maximum admissible differential pressure: 0.1 Mpa
5.Connection size:M30*1.5
6.Liquid sensor: φ11,120mm.
Note:The closing dimension and the capillary length could according to the customer' s requirement.

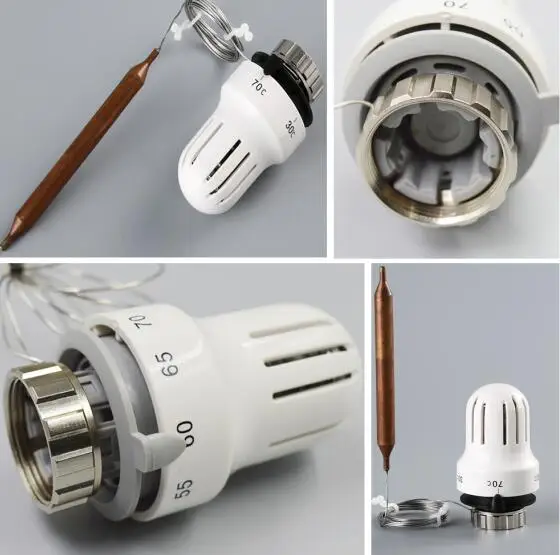

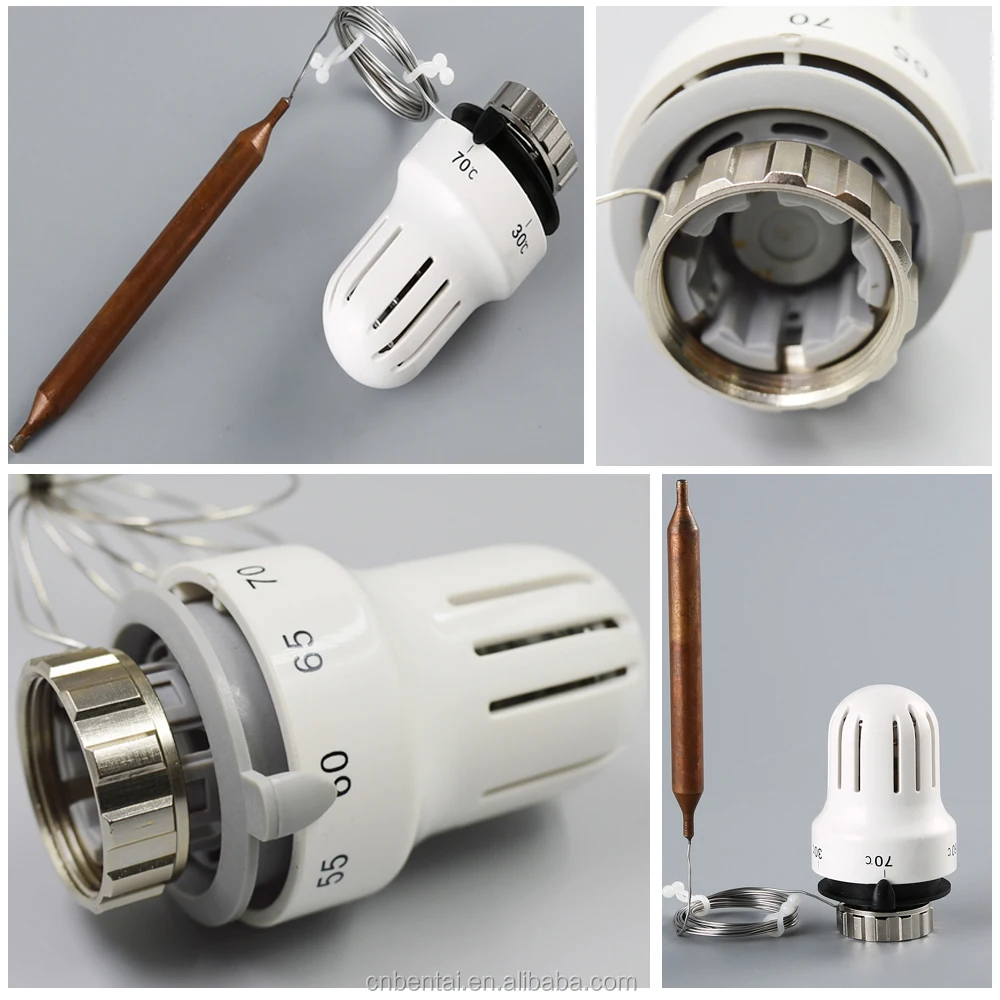

Detailed Images
Packing
The thermostatic head
Inner box size(1 PCS)：55*55*94mm
Outside carton size(100 PCS）:390*290*290mm
The electric actuator
Inner box size(1 PCS)：100*75*45mm
Outside carton size(100 PCS）:420*395*250mm
External temperature sensor thermostatic head
Inner box size(1 PCS)：152*78*57mm
Outside carton size(50 PCS）:410*320*305mm
The valves
Inner box size(1 PCS)：100*75*45mm
Outside carton size(50 PCS）:390*240*215mm
The main products
The thermostatic radiator valve
Adjust the temperature and set the temperature mainstream based on the requirements of room temperature.To ensure the temperature constant,also avoid the pipeline water imbalance and the upper and lower room temperature uneven problem.
At the same time, through the constant temperature control, economic operation and other functions can not only improve the indoor thermal environment comfort, but also to achieve energy
Electric actuator
The electric actuator is mainly used in the heating system to control the opening and closing of the pipeline.Specifically applied to the electric drive part of the manifold,branch valve, small valves,dynamic balance valve
Work without noise, nut connection，is simple and fast installation and easy to disassemble.
External temperature sensor thermostatic head
Compared with the built-in sensor thermostat head,the temperature control range is more extensive,but the disadvantage is that the control accuracy is not as good as the built-in thermostat head.
Valves
The inlet and outlet valves can adjust the number and the speed of the flow of the radiator. If you want to lower the temperature, turn down the inlet valve,the hot water flow less in the unit time，the temperature will reduced.
Certification
Our factory
The CNC workshop
The filling room
Test bench
Injection workshop
RFQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample within 3 days after payment, mass production time is determined by the order quantity and the factory order quantity.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5--7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know the requirements and parameters
Secondly We quote to you.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
