900MHz Long Range Multiple Tags Reading Network UHF RFID Reader With R2000 Chip
- Category: >>>
- Supplier: Shenzhen Ruifan Electronics Co. Ltd.
Share on (60547065208):
Product Overview
Description
Products Description
900MHz Long Range Multiple Tags Reading Network UHF RFID Reader With R2000 Chip
Our UHF Reader Features
Multi tags reading--Using Impinj R2000 chip
Long range--Up to 8m or longer depends on your tag
Free DEMO & SDK for testing and developing (C#, C++, VC, JAVA)
Free sample tag for testing
Easy operating
Introduction
The RF-9080 RFID Reader is a new and innovative antenna built-in integrated RFID Reader which is complied with IS018000 & EPC CLASS 1 GEN2 RFID card and tags. It solves many problems associated with remote and moving objects reading and identifying successfully. The reader is using Impinj R2000 chip which can read tags in high speed.
Product Paramenters
Protocol | ISO18000-6C (EPC CLASS1 GEN2) |
Working Frequency | 902~928 MHz(can custom European standard) |
Chip | Impinj R2000 |
Transmit Power | 0dbm~30dbm(Adjustable by software) |
Software & SDK | DEMO and C#, VC, Java SDK |
Anti-thunder | 6000V |
Frequency modulation | Hopping or fixed frequency |
Antenna | 8dBi circular polarization |
Output | WG 26/34 ; RS232 ; RS485; Customized --TCP/IP RJ45; WIFI |
Storage Temperature | -40 ~ +100°C |
Working Temperature | -20 ~ +80°C |
Case material | ABS |
Dimension | 220mm×220mm×50mm |
Power supply | Adapter (into +12V DC) |
Read Distance | Up to 8M (according to tag),can adjust by software |
Read Prompt | LED, Buzzer |
Details Images

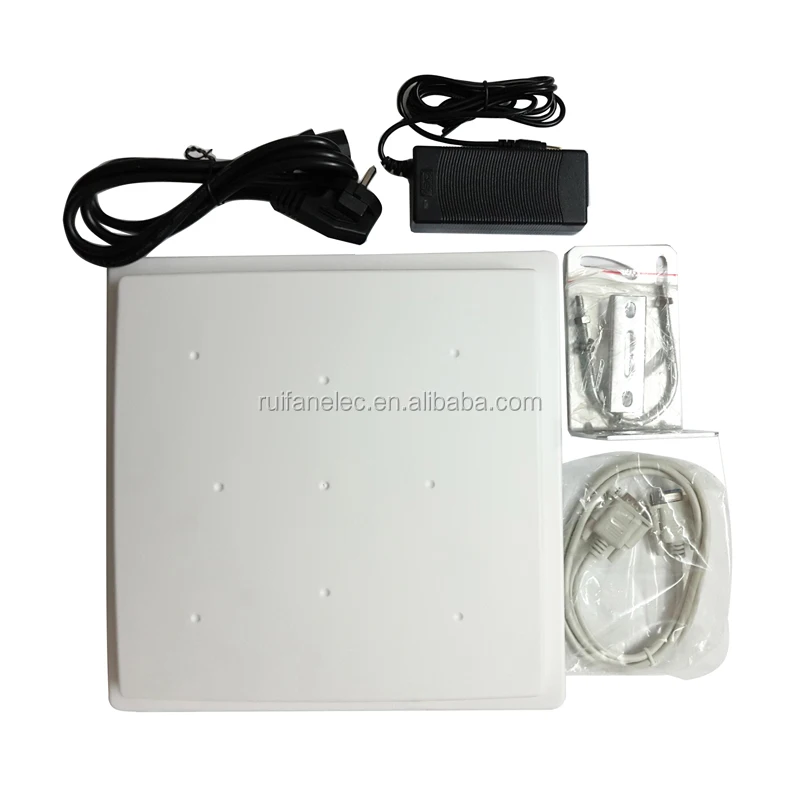

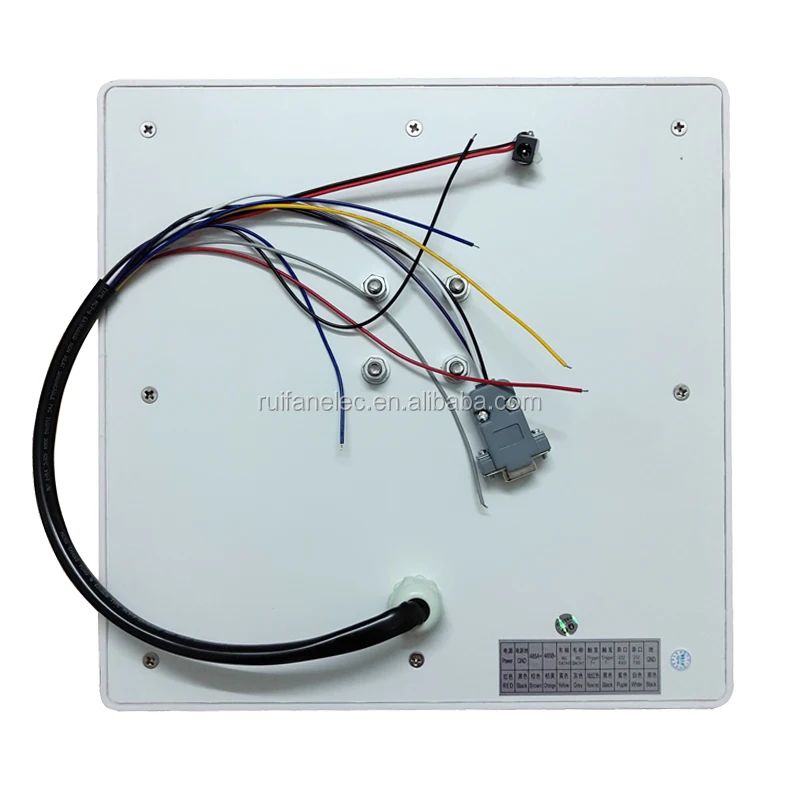

R2000 8Meters Range UHF RFID Reader Model

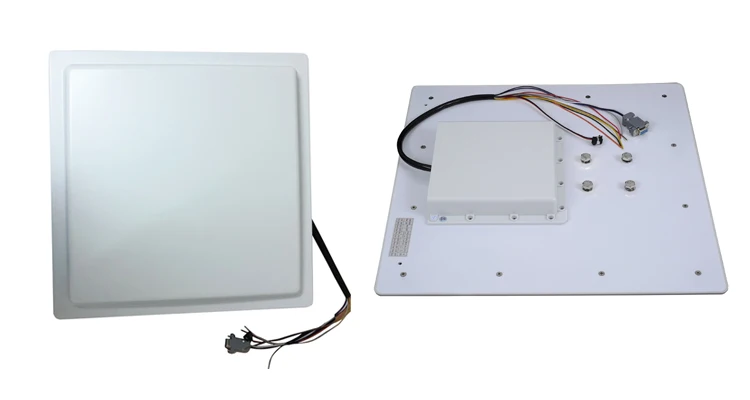

R2000 30Meters Range UHF RFID Reader Model

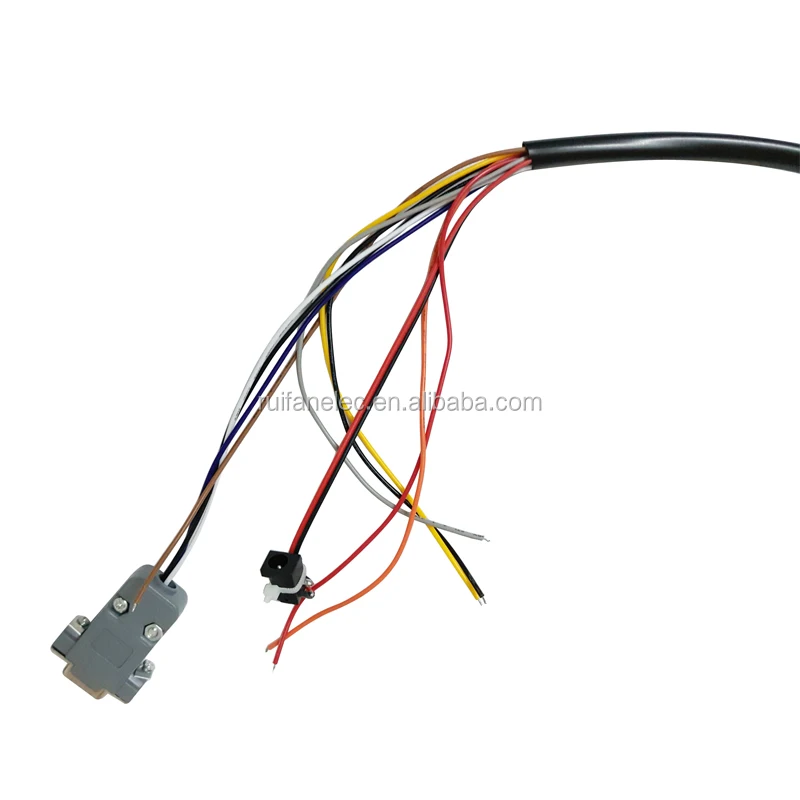

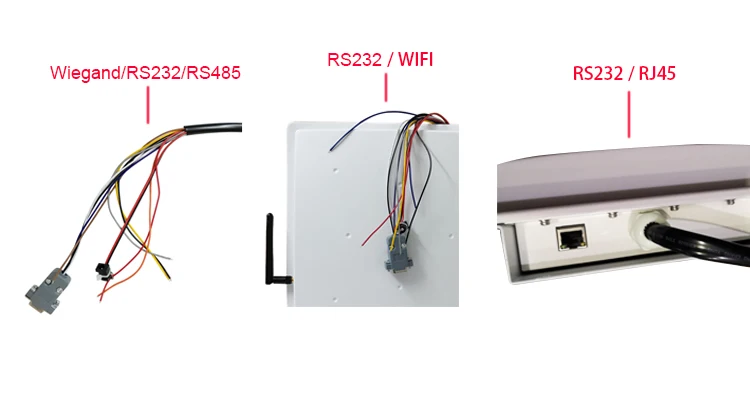

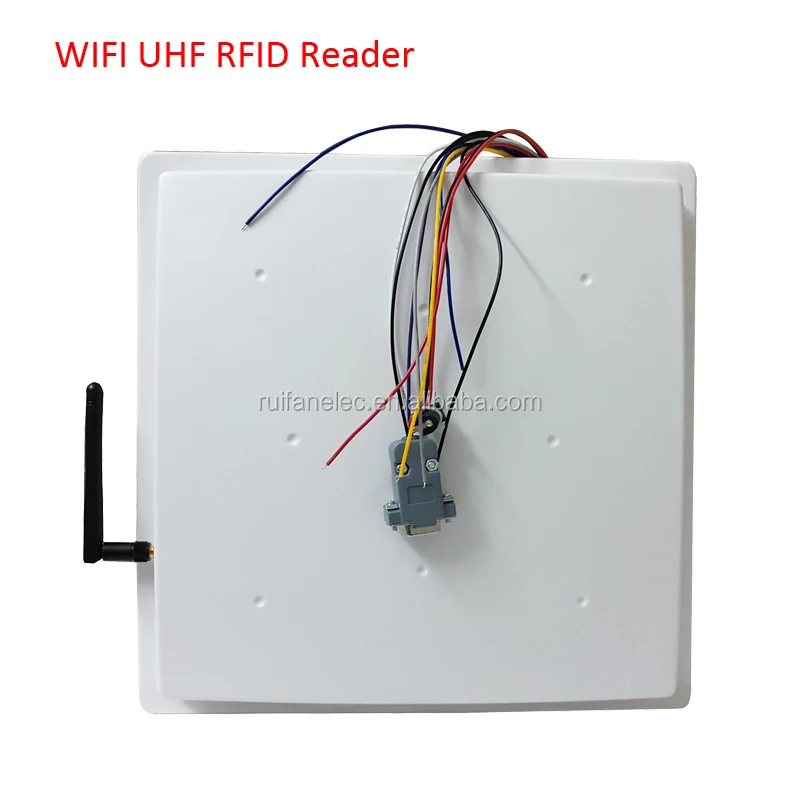

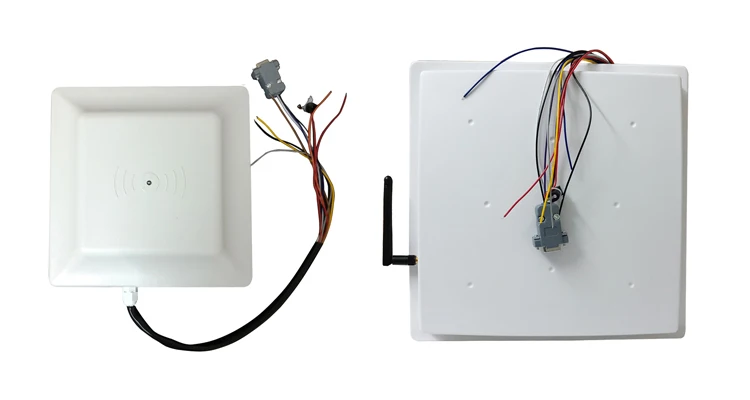

Output Options Available

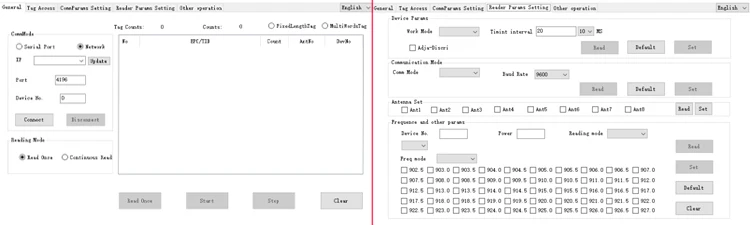

Free DEMO and SDK for Testing and Developing
Product packaging

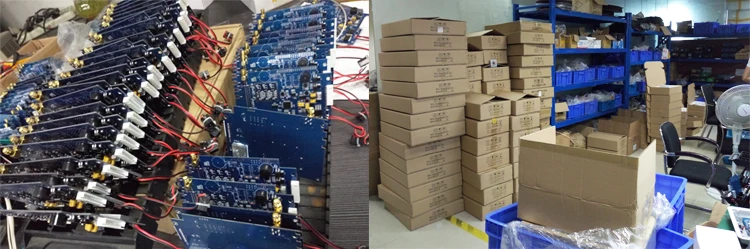

Ready To Ship --Fast Lead Time

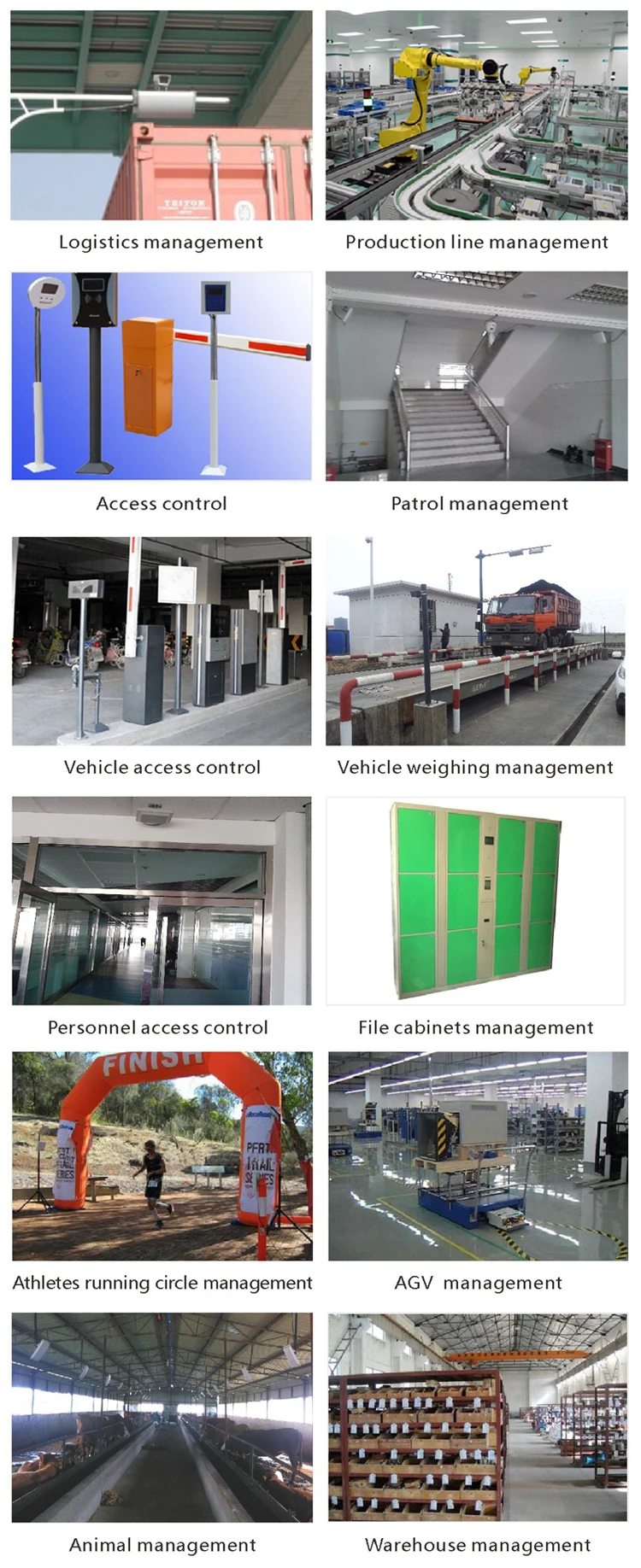

Application
