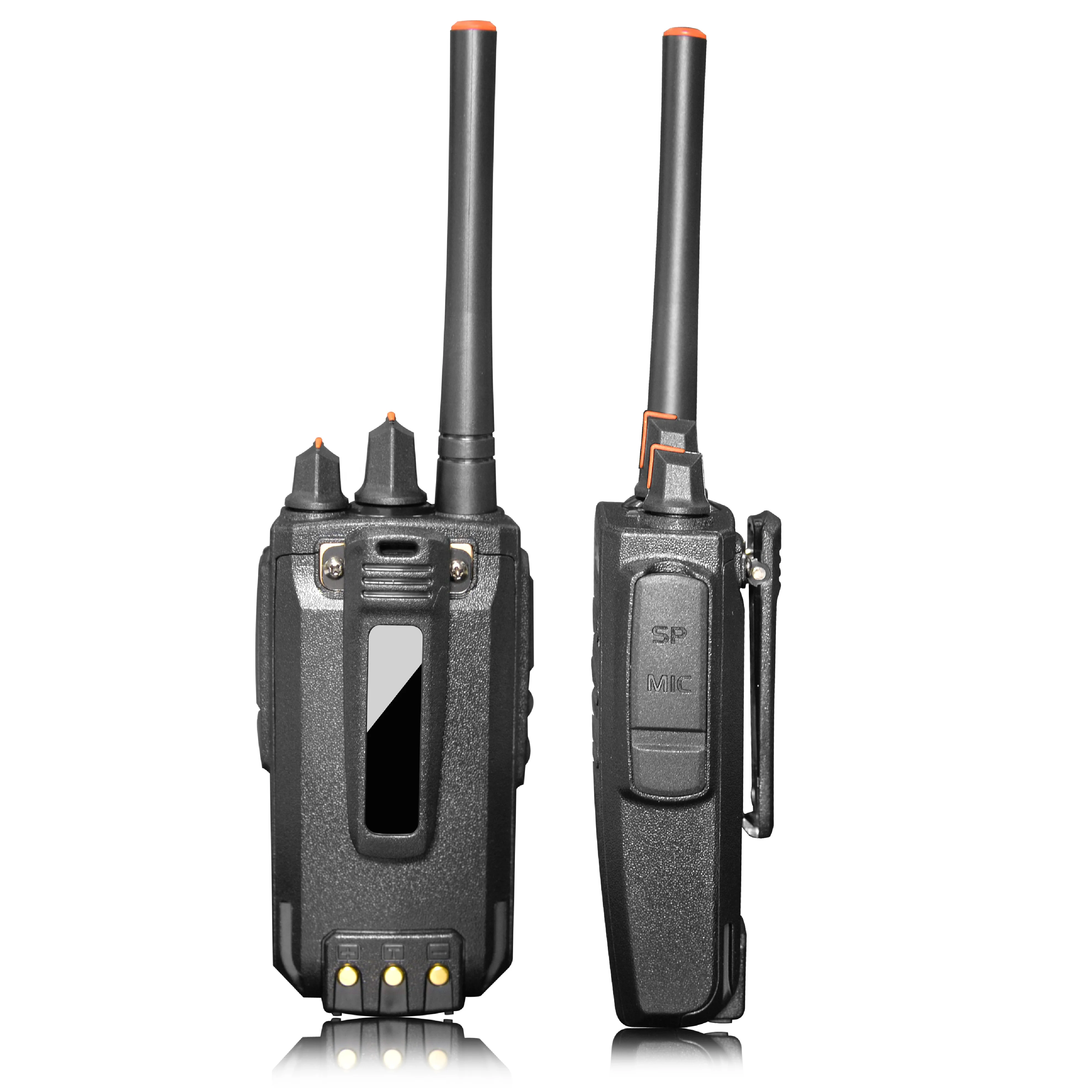

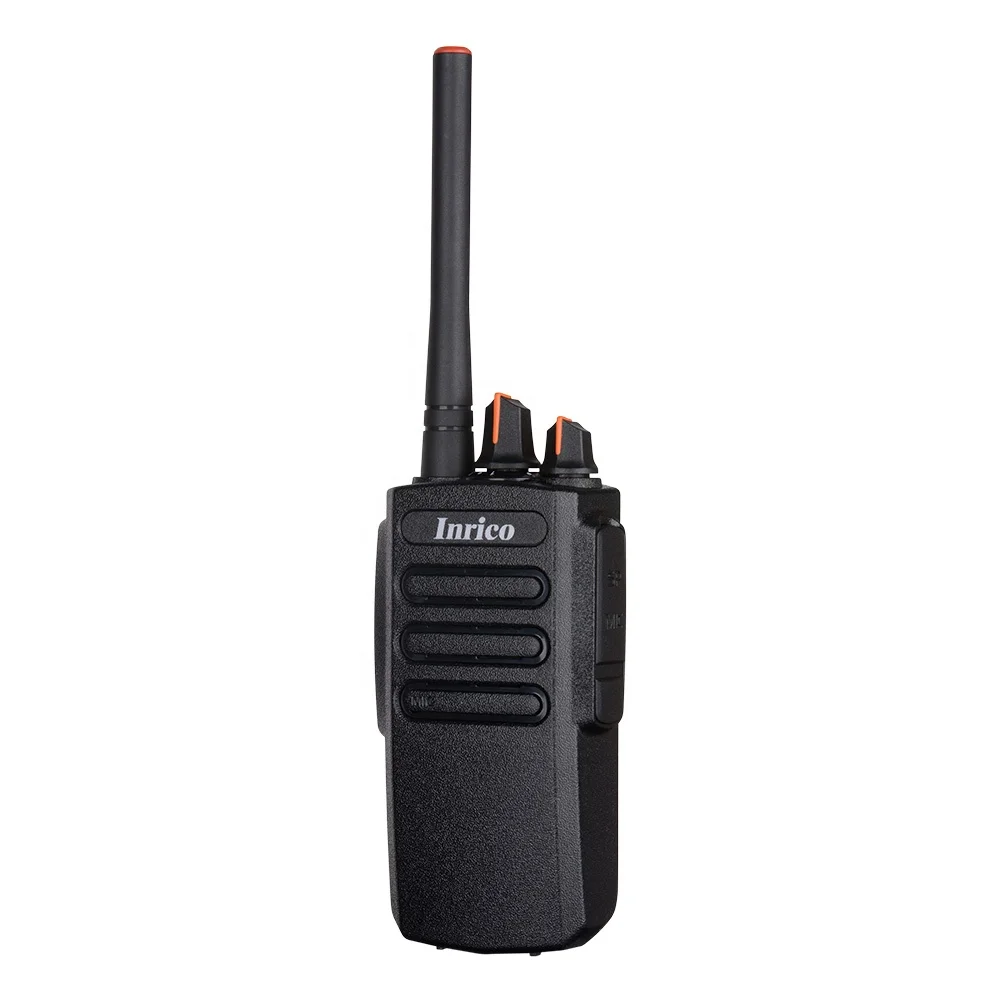

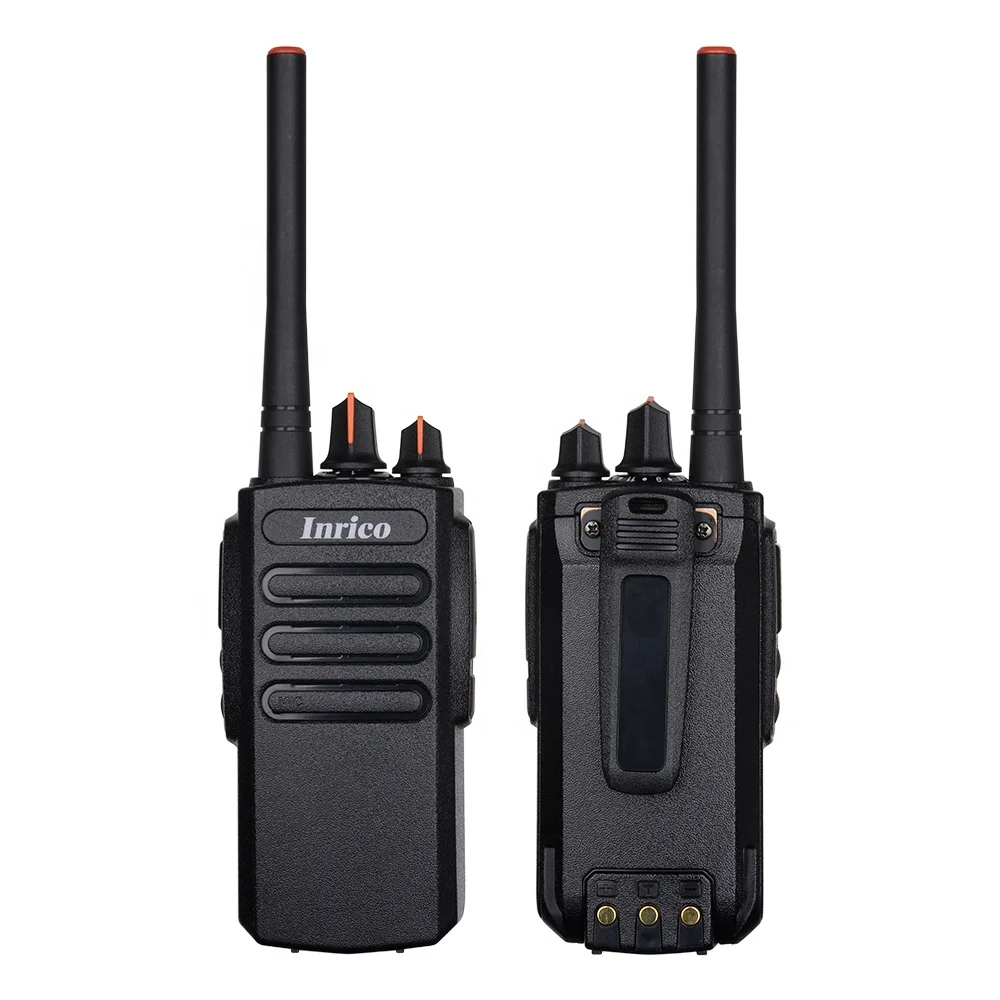

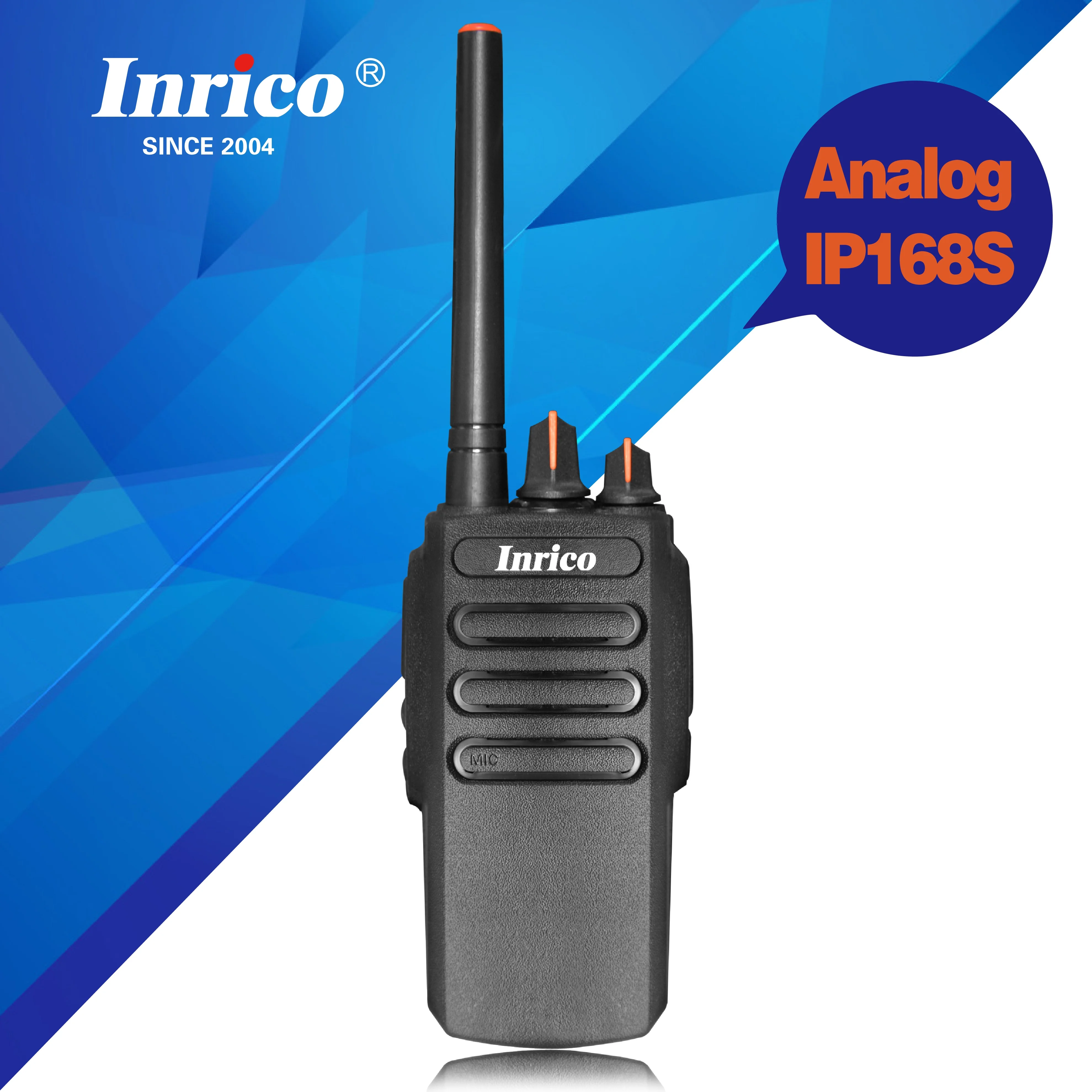

Inrico IP168S hf radio transceiver two way radio walkie talkie
- Category: >>>
- Supplier: Inrico Technologies Co. Ltd.
Share on (60547106868):
Product Overview
Description
Related Products
Technical Specifications
Specifications | ||
Model | IP168S | |
UHF/VHF | VHF(136-174MHz）/UHF(400-470MHz) | |
Channel Capacity | 16 | |
Power Output | 5W | |
Channel Spacing | 25KHz/12.5KHz | |
Antenna Impedance | 50Ω | |
Earphone Jack | 2.5mm+3.5mm | |
Speaker | 16Ω 1W | |
Battery | 1500mAh | |
Power supply | 7.4V DC±15% | |
Transmitter(Standard:EIA-RS 316B) | ||
Carrier Power Output | 5W | |
Modulation Type | FM | |
Modulation Sensitivity | <15mV | |
Audio Distortion | ＜5% | |
Frequency Deviation | ≤5KHz | |
Modulation Characteristics | ±3dB | |
Spurious Emission | ≥60dB | |
Adjacent channel TX power | ≥65dB | |
Receiver(Standard:EIA-RS 316B) | ||
Sensitivity | ≤0.25 μV(12dB S/N) | |
Squelch sensitivity | ≤0.10 μV | |
Audio Output | 1W (16Ω) | |
Audio Response | +3 to -8.5 | |
Receiving Bandwidth | ±7kHZ / ±3.5kHZ | |
Adjacent channel selectivity | ≥84dB | |
Standby Current | 60mA (Unsave);15mA (Save) | |
Spurious response suppression | ≥60dB | |
Intermodulation Immunity | ≥65dB | |
Physical | ||
Dimension (H*W*D) | 224x61.7x41mm（Without Antenna and Belt clip） | |
Weight | ≈230g | |
Working Temperature | -20°C ~ 55°C | |
Storage Temperature | -20°C ~ 70°C | |
Certifications | ||
Protection Level | IP54 | |
Products Features

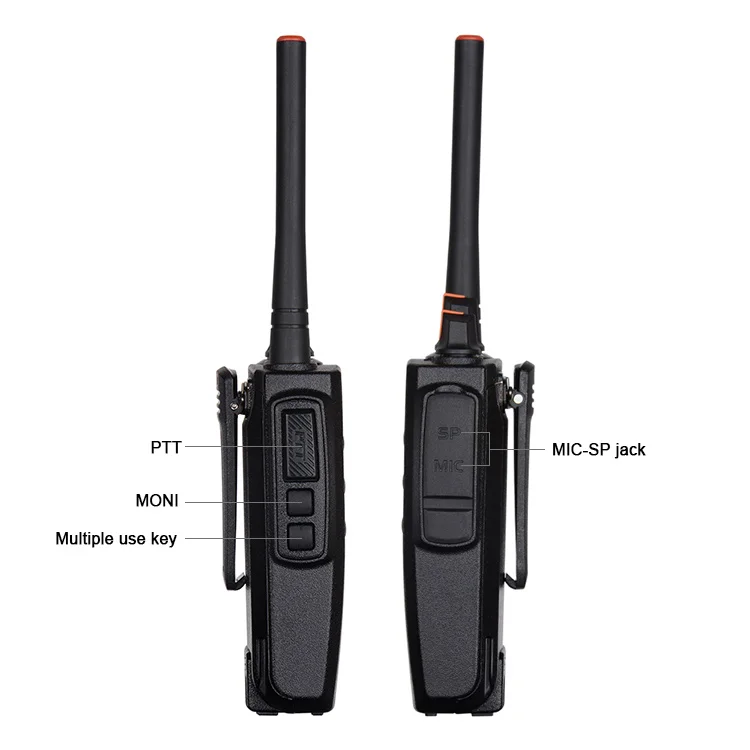

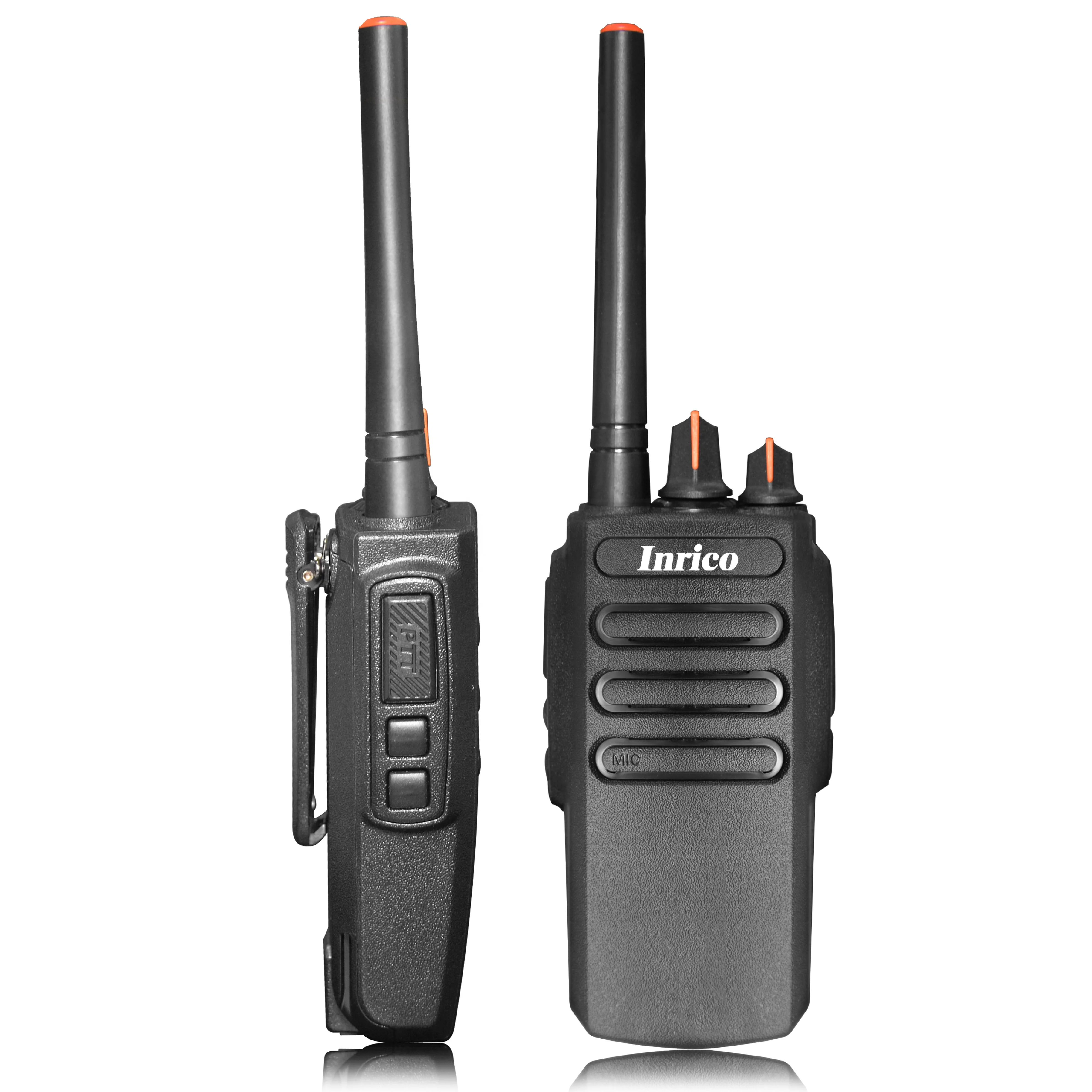

Interface & Button
Rich ports and button can give better user’s experience, meanwhile the button function supports customized.
Sixteen Signal Knobs
There are 16 signal channels which can support rapid intercom and improve work efficiency.
Clear Voice
IP168S is equipped with a Ø40mm big size speaker to ensure loud and clear voice calls.

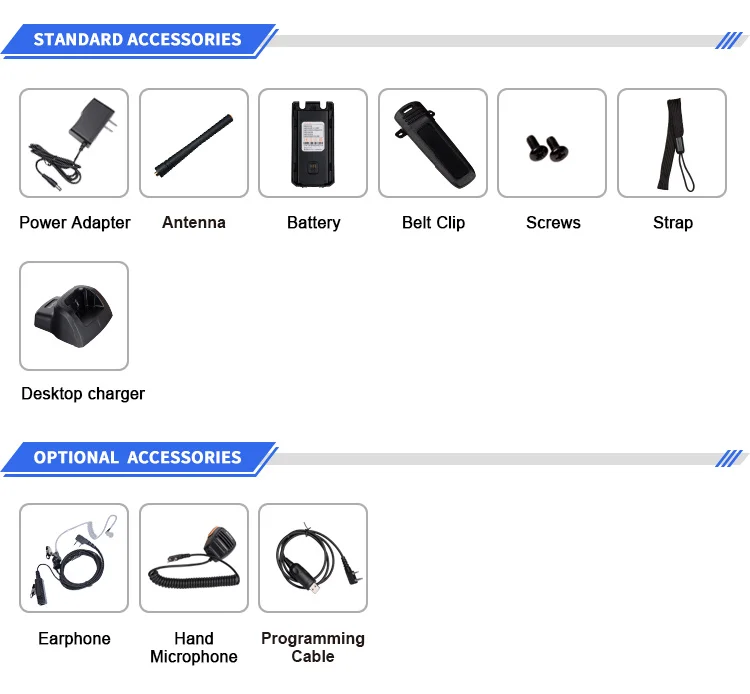

Product Accessories
Shipping
Company Profile
Certifications
FAQ
（1）About the MOQ of Two way radios?
Normal order:MOQ for Inrico brand is 100 units.
Normal order:MOQ for Inrico brand is 100 units.
Sample order: MOQ is 2 units.
（2）How to place a order?
1.Offer needing details (models, quantity, product customized demands, shipment) to us.
2.We will make PI and send it to you.
3.Checking the PI and confirm it, then you pay the payment;
4.We will arrange the production quickly once payment received.
5.Taking photos for mass production, production finish then deliver the goods soon.
6.Send the tracking number to you and track the goods until you receive goods.
（3）Can I have my own logo on the products?(OEM)
Yes, you can put your logo on the products with a required order quantity.Please just send us the information of your Logo.
（4）Can you design one specially?(ODM)
Yes, send us details and a sketch or a picture of your requirements and we will quote you our best price.
（5）Your products meet CE/ROHS requirements?
Yes, Our products have been ex ported all over the world like America, Europe, Middle East and so on.We get CE, FCC,, RoHS, approval for our products.
（2）How to place a order?
1.Offer needing details (models, quantity, product customized demands, shipment) to us.
2.We will make PI and send it to you.
3.Checking the PI and confirm it, then you pay the payment;
4.We will arrange the production quickly once payment received.
5.Taking photos for mass production, production finish then deliver the goods soon.
6.Send the tracking number to you and track the goods until you receive goods.
（3）Can I have my own logo on the products?(OEM)
Yes, you can put your logo on the products with a required order quantity.Please just send us the information of your Logo.
（4）Can you design one specially?(ODM)
Yes, send us details and a sketch or a picture of your requirements and we will quote you our best price.
（5）Your products meet CE/ROHS requirements?
Yes, Our products have been ex ported all over the world like America, Europe, Middle East and so on.We get CE, FCC,, RoHS, approval for our products.
（6）How long is the warranty?
1.One year warranty for machines,charger and other accessories.
2.Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3.If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
2.Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3.If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
（7）Why Choose Us?
1.Quick response, 24 hours customer service.
2.Excellent pre-sale and after-sale service.
1.Quick response, 24 hours customer service.
2.Excellent pre-sale and after-sale service.
（8）How about our Market?
Our products are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany,
France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc.And Russia.
Our products are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany,
France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc.And Russia.
