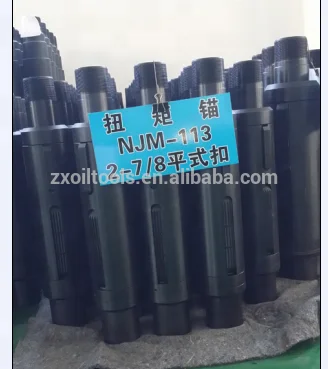

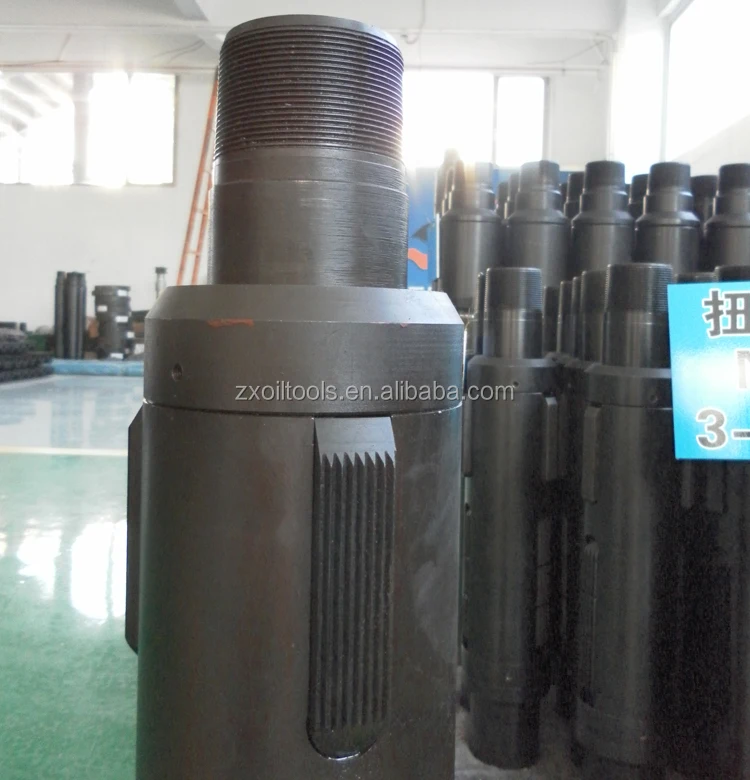

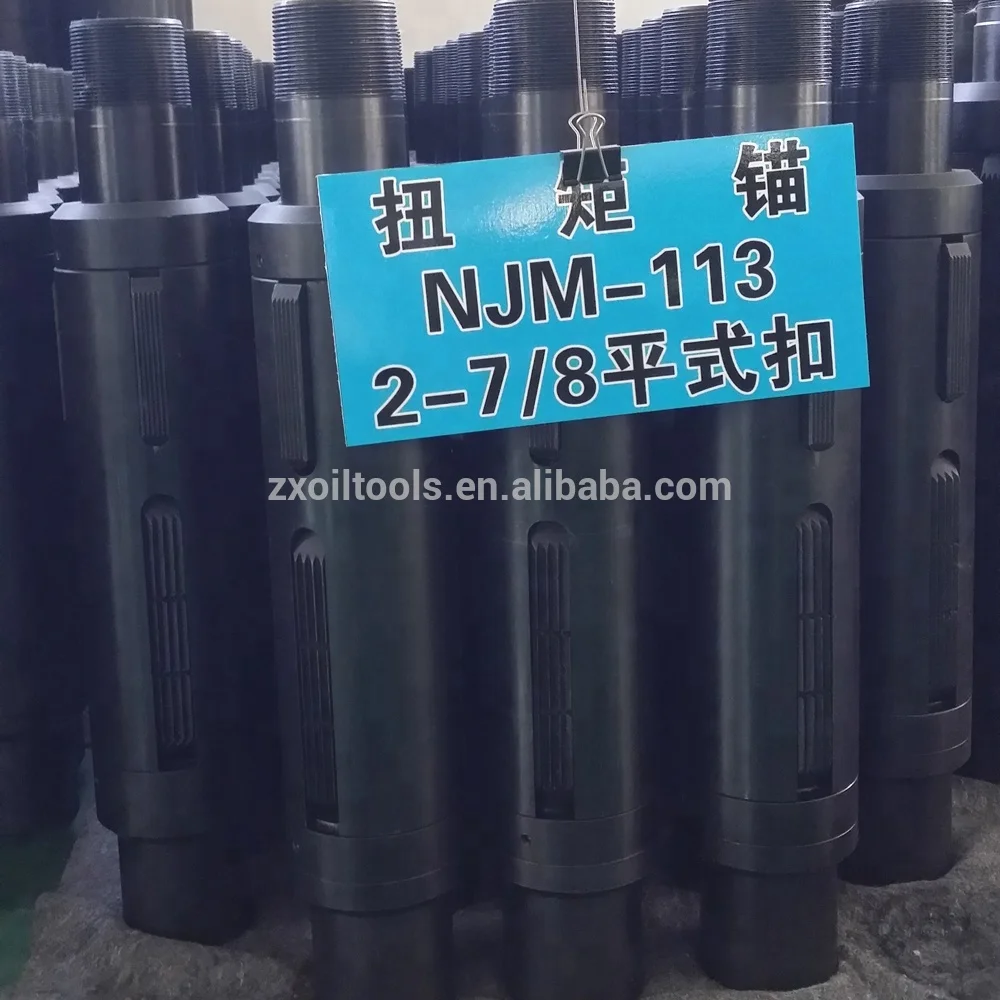

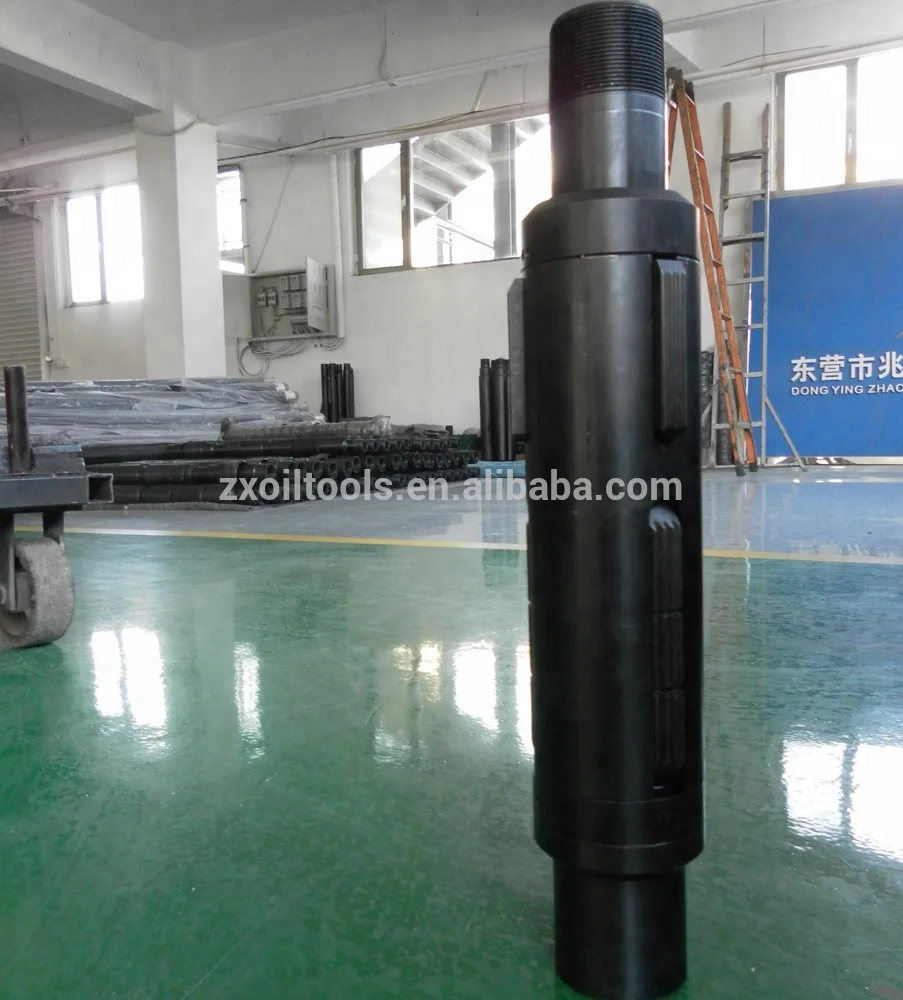

The torque anchor uses separate slip and drag blocks to eliminate premature slip wear during installation.
The drag blocks centralize the tool and provide the frictional interference to deploy the slips when torque is applied.
The torque anchor centralizes the equipment in the casing and allows for better production through the slotted tag bar.
It consists of body, slips, centralizer and spring strips. It can prevent tubing tripping during PCP working.
It can be widely used because of adventures, such as simple structure,
flexible rotation,safe and reliable anchoring and so on.
Code
Case setup dia.[mm]
Connection[inch]
5-1/2
119…139
2 – 7/8 EU
7
152…172
2 – 7/8 EU or 3 – 1/2 EU
9-5/8 I
215…235
3 – 1/2 EU
9-5/8 II
220…240
3 – 1/2 EU

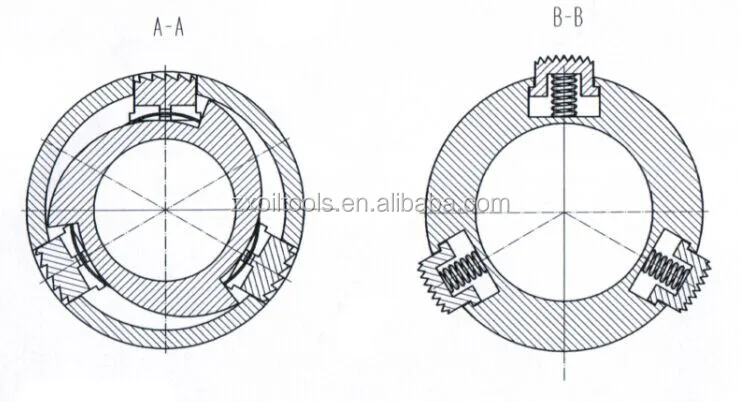

Working principle
Packaging & Shipping
Our Services
Related Products

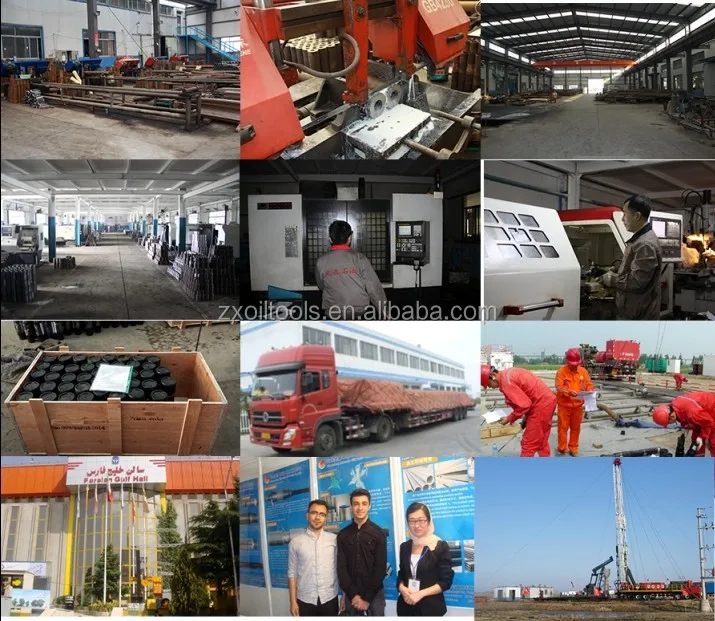

Company Information
