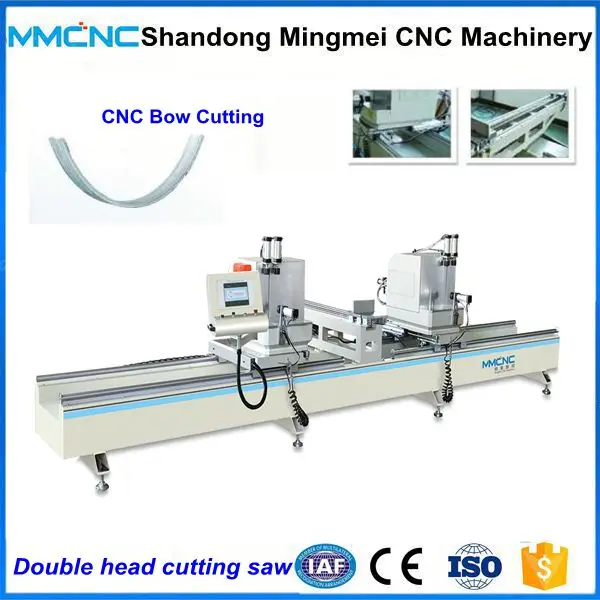

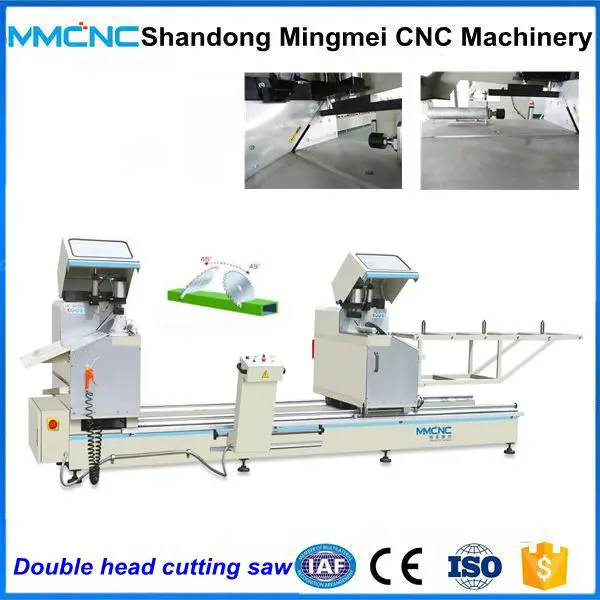

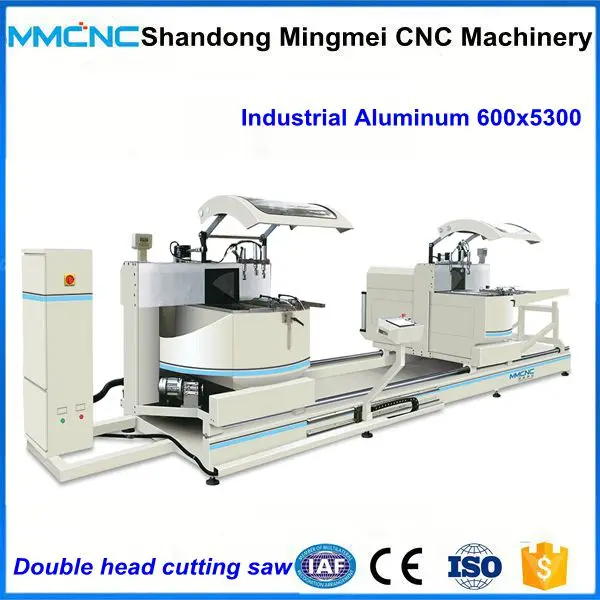

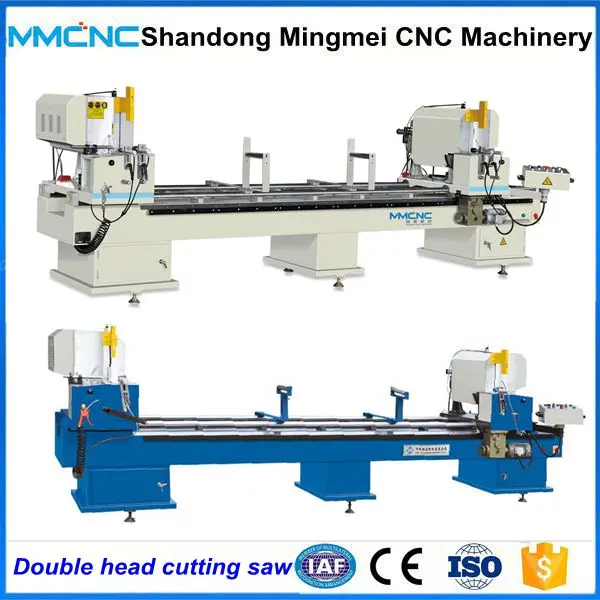

Double Head 45 degree 90 degree aluminum profiles miter saw angle cutting machine
- Category: >>>
- Supplier: Shandong Mingmei Cnc Machinery Co. Ltd.
Share on (60547211340):
Product Overview
Description

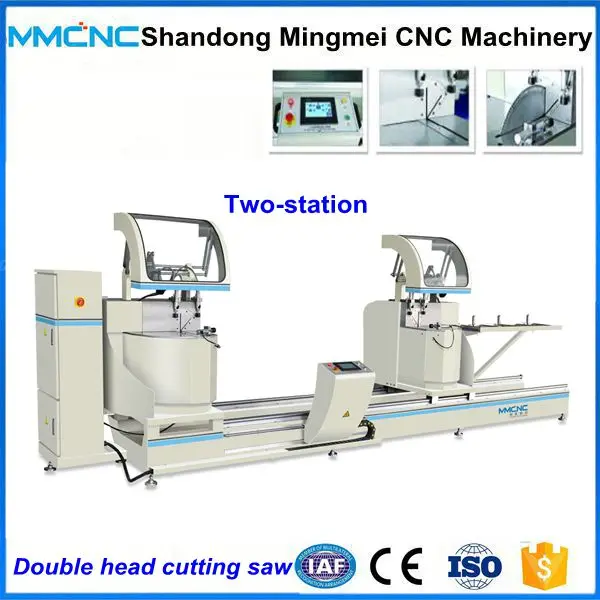

Double Head 45 degree 90 degree aluminum profiles miter saw angle cutting machine
Product Description
Shandong Mingmei Aluminium Profile Double Head Cutting Saw is designed for cutting any of aluminum curtain wall and window-door profile.Cutting angle is 90~ 67.5 °~45 °
MINGMEI focus on the quality of Window-door Machine and details to creating the value to customers.
1.Let us show you the details images of machine as follow:
M20 Digital Display

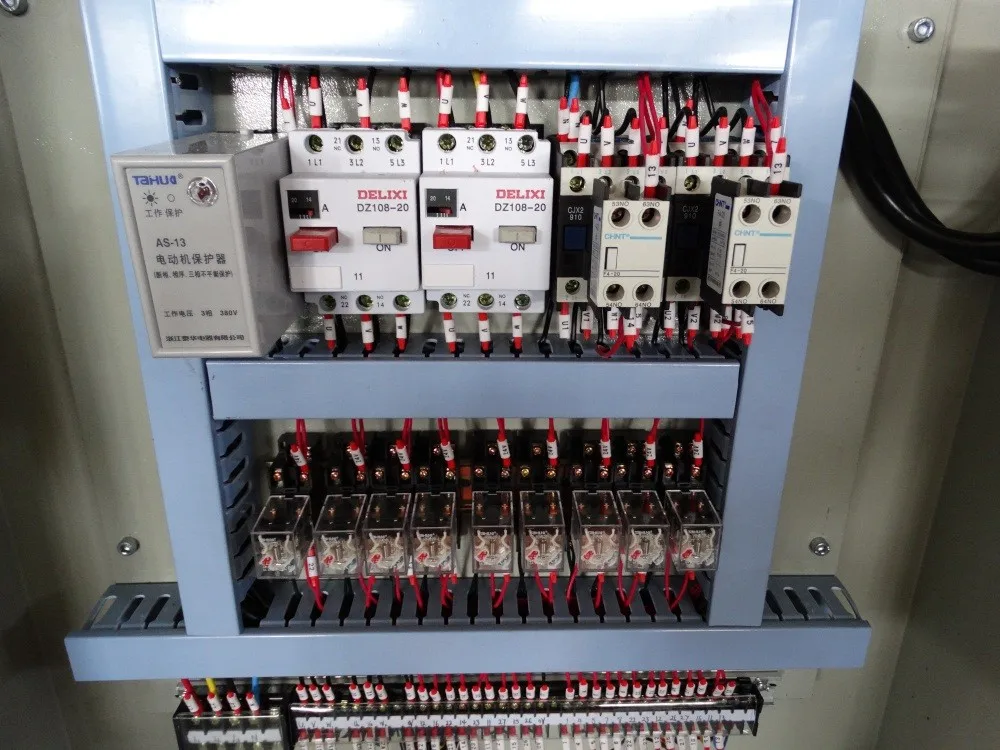

Control Box

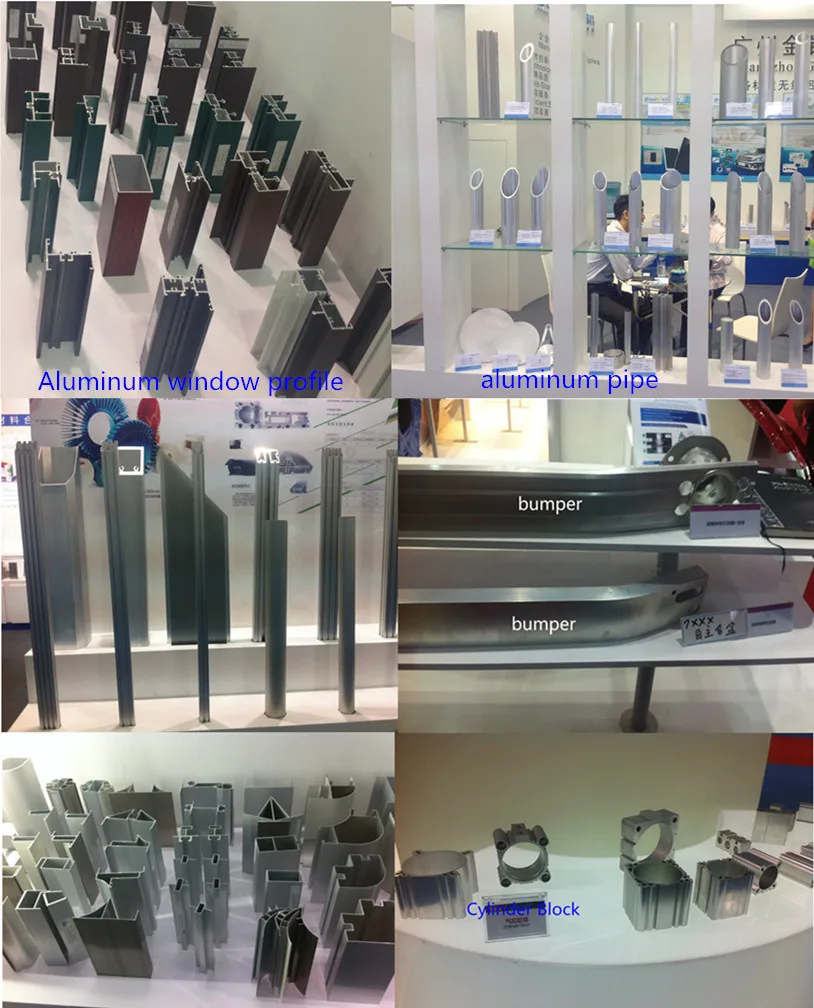

2.Application of Digital Double-head Precision CNC Cutting Saw

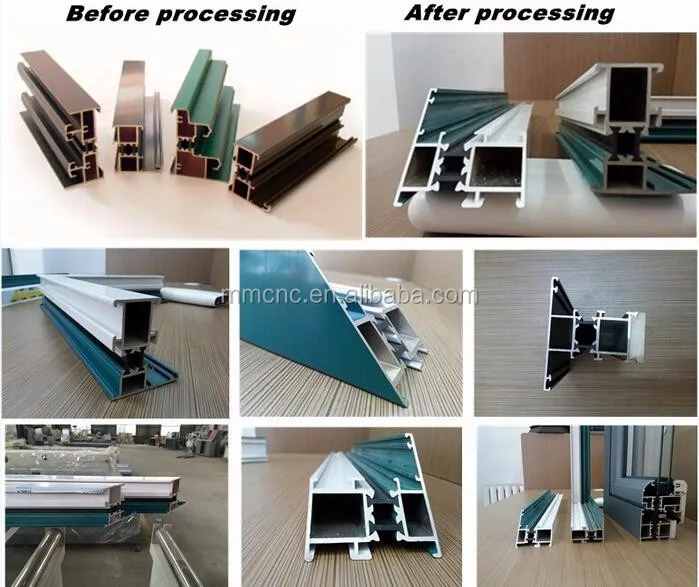

1. Aluminum section profile and PVC Profile for window and door
2. Automobile Parts: Bumper , luggage carrier ...
3. Electrical components: Cylinder Block , Aluminum Motor hull.
4. Solar Power Material : aluminum frame
5. Staircase handrail and railings
6. Aluminum radiator profile
7. Aluminum pipe

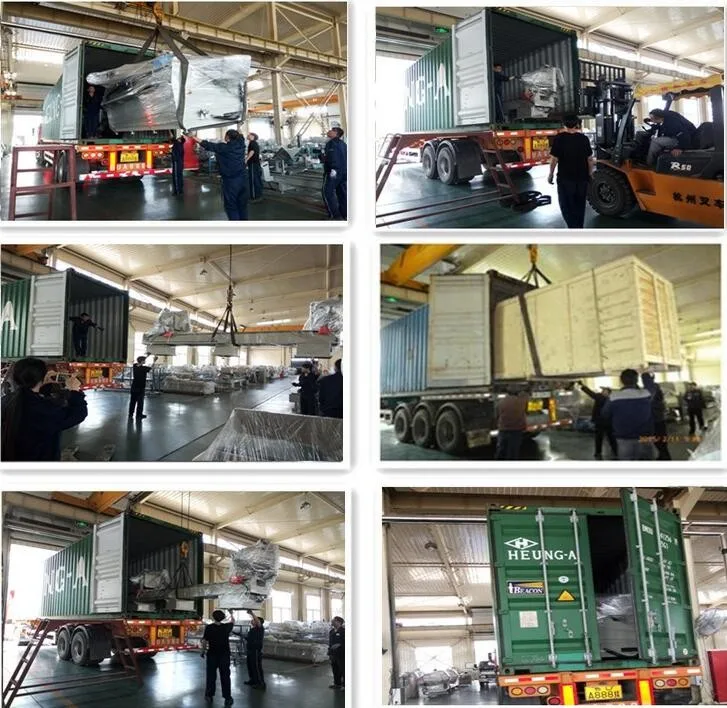

3. Machine Packaging &Shipping

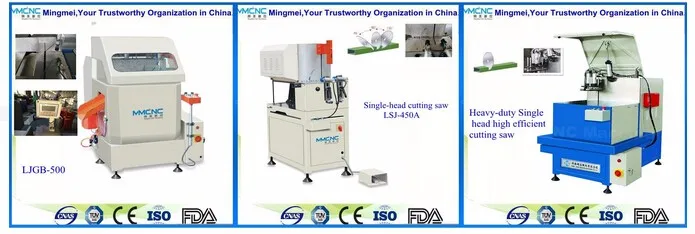

Also you can choose single head cutting saw aluminum window machine
Please add my Mob/whatsapp/wechat 008613789813719 for more details.Thanks.
Specification
Features of Dual head precision cutting saw CNC:
♣ For cutting Aluminum curtain wall and window-door profile.
♣ Imported carbides blade is of accurate processing and high endurance
♣ Saw blade rotates smoothly due to high accurate main spindle
♣ Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
♣ The feeding system adopts the imported linear guide pair,with high accuracy and stability
♣ Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.
♣ Auto-opening shield maked the operation safety.
♣ Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.
♣ This machine uses the numerical control technology,profiles pf different of different specifications can be completed automatically under the expected size.
| SPECIFICATIONS | |||
Remark | The specification just for your reference, we can bulid machine as your specific requirements | ||
Model | LJZ2X-500*4200 | LJZ2S-500*4200 | LJZ2B-500*4200 |
| Input power | 2x2.2Kw | 5.9Kw | 2x2.2Kw |
| Air-pressure | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa |
| Motor rotary speed | 2800r/min | 2800r/min | 2800r/min |
| Saw Blade specification | Φ500x Φ30 | Φ500x Φ30 | Φ500x Φ30 |
| Cutting angle | 90~ 67.5 °~45 ° | 90~ 67.5 °~45 ° | 90~ 67.5 °~45 ° |
| Cutting length | 400-4200mm | 400-4200mm | 400-4200mm |
Cutting width x height | 135x200mm | 135x200mm | 135x200mm |
Overall dimension | 5700*1650*1950mm | 5700*1650*1950mm | 5700*1650*1950mm |
Weight | about 1480kg | about 1643kg | about 1435kg |
| Customization | Customized machine Available , this specification just for you reference.Inform us your requirements! | ||
