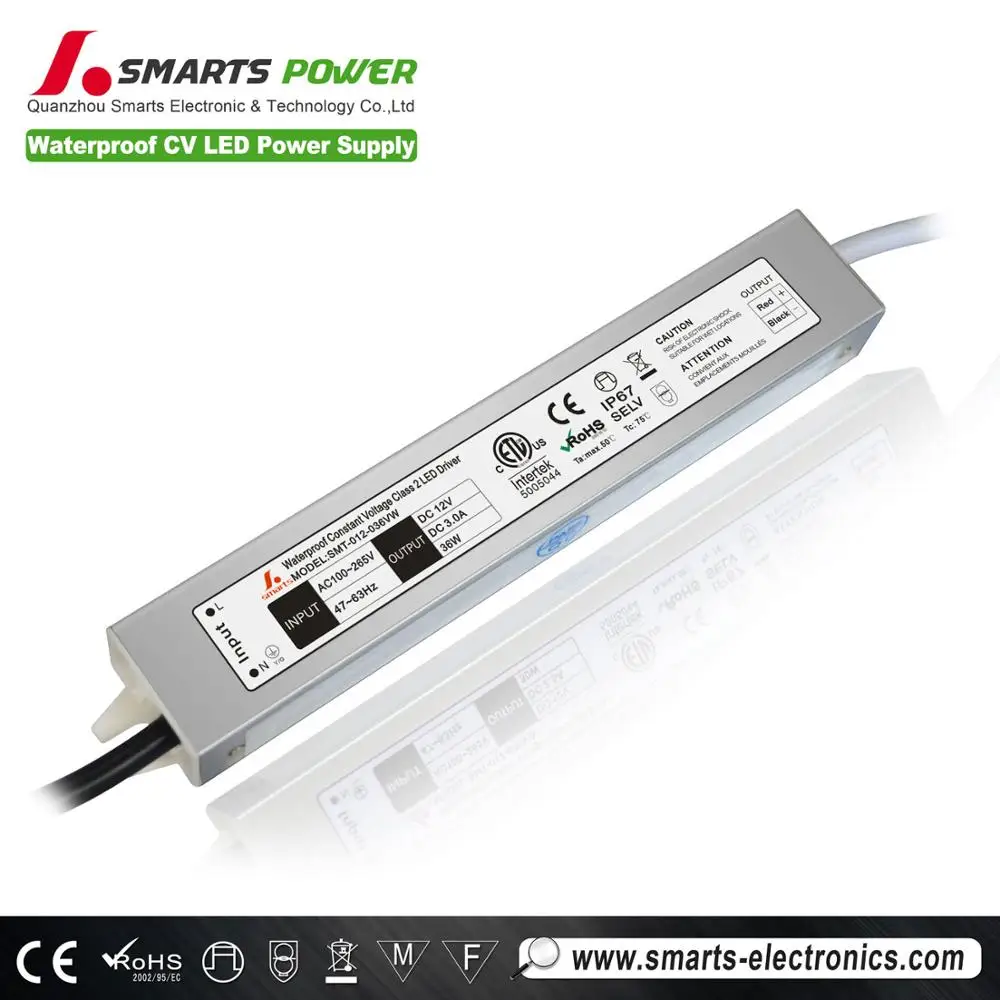

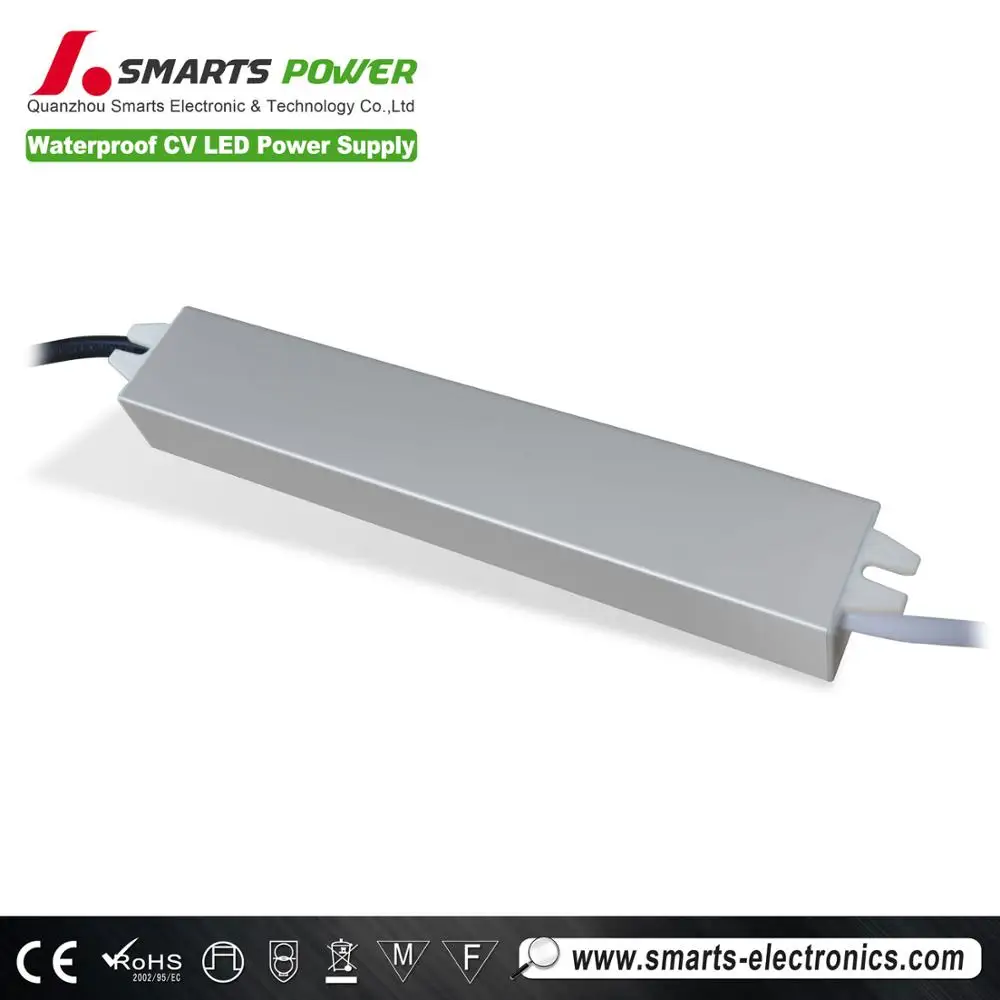

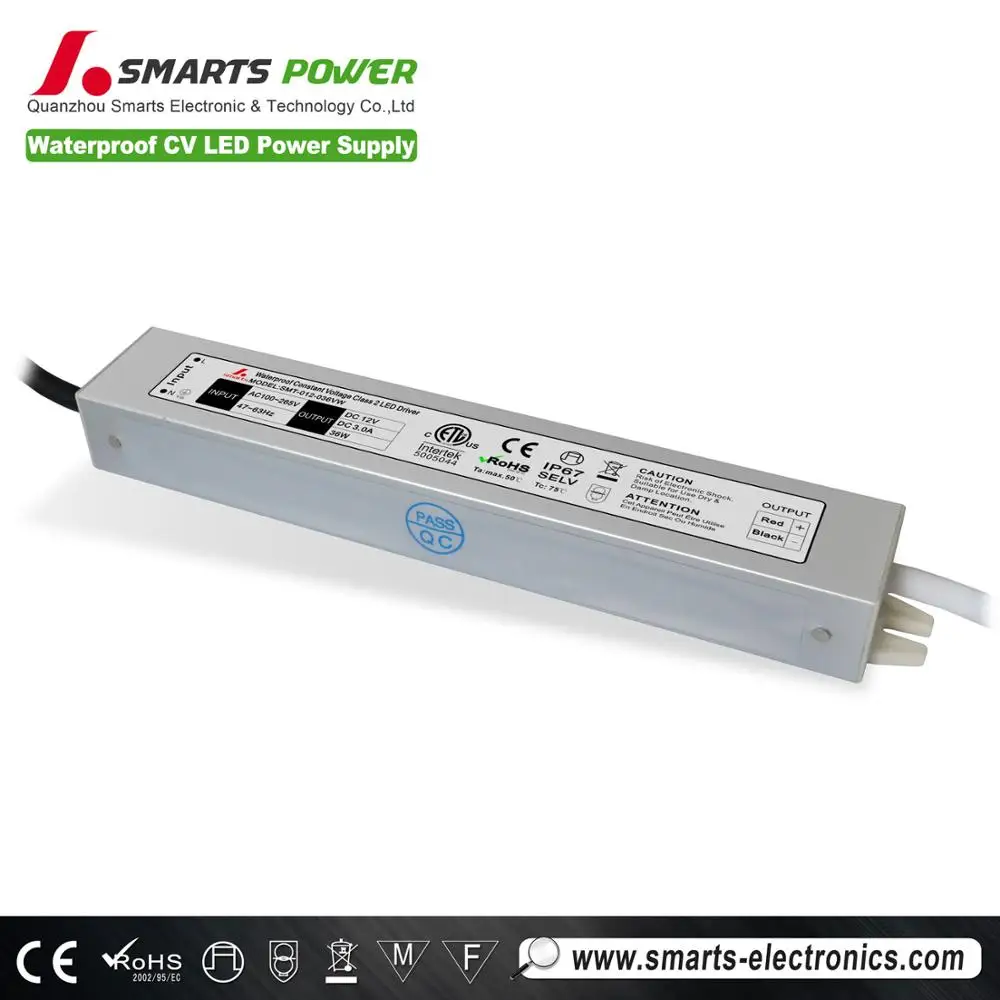

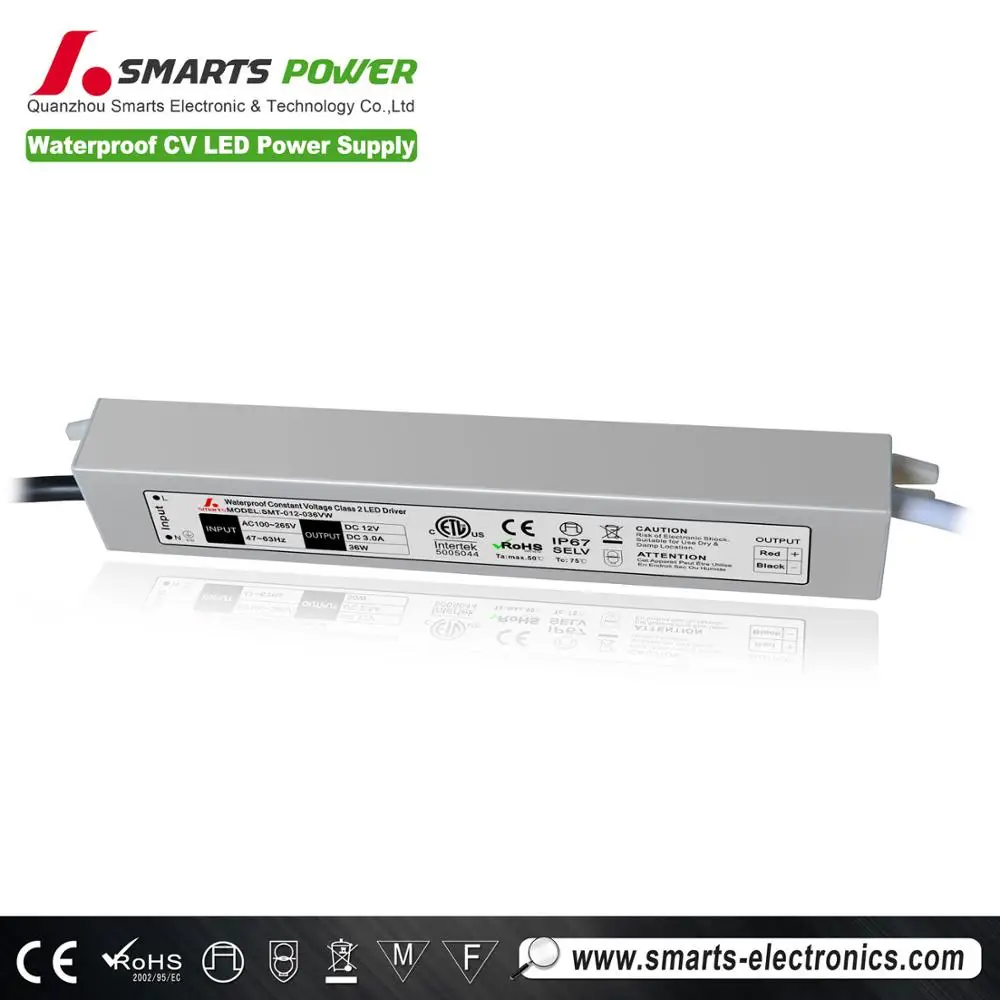

12v 3a 36w constant voltage waterproof LED driver power supply for LED display
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60547293597):
Product Overview
Description
12v 3a 36w constant voltage waterproof LED driver power supply for LED display
Product Description
| Label |
 |
| Description |
1. Input voltage.:100~265vAC 2. Efficiency>82% 3. Warranty: 2 years 4. CE, ROHS approval 5. product size: 217*29*21mm 6. Net weight::205g/pcs 7. Case material:aluminum 8. Waterproof rate: IP67 9. CE, ROHS approval |
| SPECIFICAION | |||
| MODEL | SMT-024-036VW | SMT-036-036VW | |
| OUTPUT | DC VOLTAGE | 24V | 36V |
| RATED CURRENT | 1.5Amp | 1.0Amp | |
| CURRENT RANGE | 0~1.5A | 0~1.0A | |
| RATED POWER | 36W | 36W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | |
| CURRENT TOLERANCE | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 81ms/110,220VAC | 82ms/110,220VAC | |
| HOLD UP TIME(Typ.) | 60ms/110-220VAC | 60ms/110-220VAC | |
| INPUT | VOLTAGE RANGE | 100~265VAC | |
| FREQUENCY RANGE | 50~60Hz | ||
| EFFICIENCY(Typ.) | >84% | >83% | |
| AC CURRENT(Typ.) | 2.0A/110,220VAC | 1.5A/110,220VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | ROHS/CE Mark(EMC,LVD),IP67 | |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||
Note
- All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
- Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
- Tolerance:includes set up tolerance,line regulation and load regulation.
