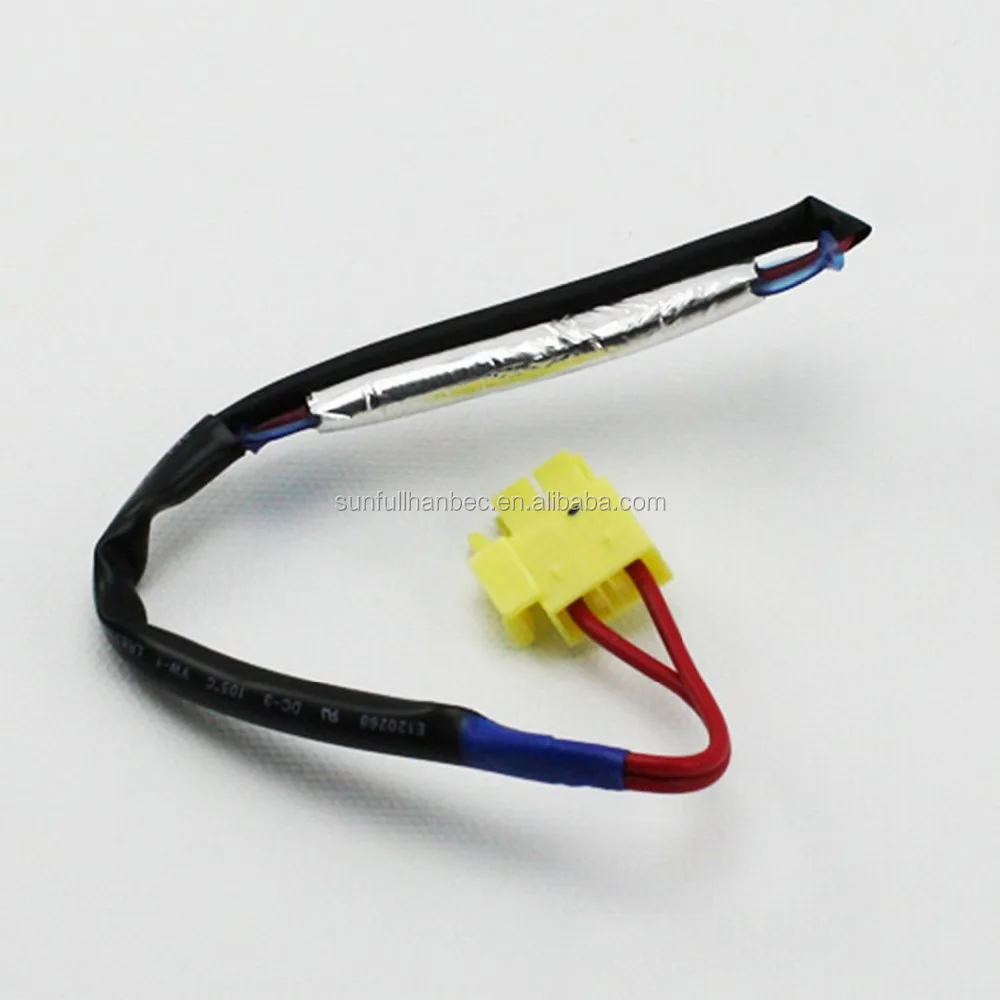

Samsung DA47 00301D Thermo Fuse Assy 120V/250V,15A/10A
- Category: >>>
- Supplier: Weihai Sunfull Hanbecthistem Intelligent Thermo Control Co. Ltd.
Share on (60547321377):
Product Overview
Description
Samsung DA47-00301D Thermo Fuse-Assy 120V/250V,15A/10A
- Brand New OEM! Samsung Part
- Geniune Replacement Part
- 360 Day Warranty
- Please message us for model number lookup parts are model specific
Features
• Low profile
• Narrow differential
• Electrically insulated case
• Various terminal and lead wires options
• Very economical applications
Applications
• Automotive seat heaters
• Water heaters
• Electric heaters
• Anti freeze sensors
• Blanket heaters
• Medical applications
• Electrical appliance
• Ice makers
• Defrost heaters
• Refrigerated
• Display cases
Product Name | Samsung DA47-00301D Thermo Fuse-Assy 120V/250V,15A/10A |
Use | Temperature control/Overheat protection |
Reset type | Automatic |
Base material | Resist heat resin base |
Electrical Ratings | 15A / 125VAC, 7.5A / 250VAC |
Max. Operating Temperature | 150 C |
Min. Operating Temperature | -20 C |
Tolerance | +/-5 C for open action(Optional +/-3 C or less) |
Protection class | IP00 |
Contact material | Double Solid Silver |
Dielectric Strength | AC 1500V for 1 minute or AC 1800V for 1 second |
InsulationResistance | More than 100MW at DC 500V by Mega Ohm tester |
Resistance Between Terminals |
Less than 100mW |
Diameter of bimetal disc | 12.8mm(1/2″) |
Approvals | UL/ TUV/VDE/CQC |
Terminal type | Customized |
Cover/Bracket | Customized |
We strictly control our production and maintain quality assurance process as specified in ISO9001 and ISO14001 certificate. All of products are UL, VDE, TUV, CQC certified.
We adopt Six Sigma to eliminate every possible defect that may occur during design and manufacturing process. Our products are inspected at more than 80 point during the entire manufacturing process.
We inspect our completed products 100% to enhance the reliability of our products.
Except the above measures to keep our products with high quality we also do some specific things to make sure our products meet rigid quality standards.
1. All products are 100% quality tested before leaving our factory.
2. All manufacturing facilities are kept remarkably clean. We feel it is prudent to eliminate as many potential quality problems as possible.
3. All thermostats are tested on application special circuits to assure accuracy in the end product.
4.We utilize silver contacts that help reduce internal resistance for critical applications.
The R&D team works closely with our customers to understand their needs and help to create solutions.
The goal of the R&D team is to develop new products to help our customers to meet their market demands, and help them comply with new regulatory requirements, especially in the appliance, HVAC, and automotive markets.
The R&D team provide customer support in a variety of ways during the development proves including prototypes for preliminary evaluation.
FAQ
Automatic Reset: A thermostat that automatically resets to its pre-trip contact configuration at a factory preset temperature.
Bimetal: Two metals with different rates of expansion molecularly bonded together to form a blade or disc for a thermostat.
Differential: (also known as Hysterisis) Refers to the difference between the opening and closing temperatures of a thermostat.
Maximum Temperature: (TM or Tm) In reference to a thermal cutoff, the maximum temperature to which the device can be subjected for a period of ten minutes without resuming conductivity once it has opened.
Minimum Differential: (also known as deadband) The minimum number of degrees between the actual open and actual close temperatures.
Normally Closed: Contacts open on temperature rise.
Normally Open: Contacts close on temperature rise.
S.P.D.T. (Single Pole/Double Throw): A three terminal switch possessing both Normally Open and a Normally Closed contact configuration.
S.P.S.T. (Single Pole/Single Throw): A switch with a single set of terminals and a single set of contacts.
Snap Action Thermostat: A thermostat with a Bimetal element that snaps to close the contacts when the activation condition is experienced. This construction permits the clean break of loads.
Thermal Cutoff: A thermal cutoff is an electrical safety device that interrupts electric current when heated to a specific temperature.
Tolerance: The allowable range above and below a nominal temperature.
Samsung DA47-00301D Thermo Fuse-Assy 120V/250V,15A/10A
