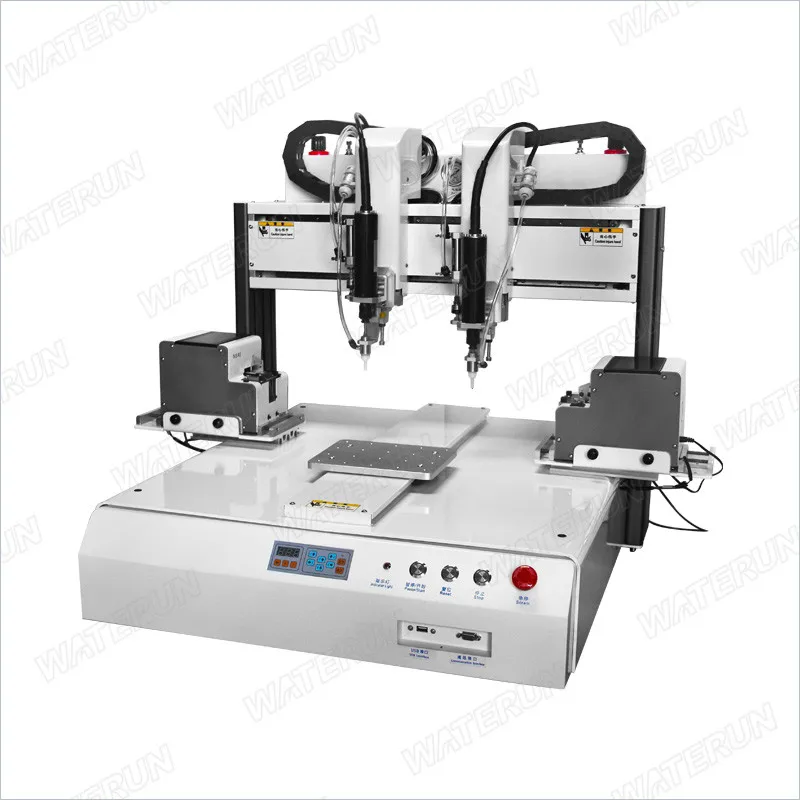

double X axis automatic screw locking robot machine
- Category: >>>
- Supplier: Shen Zhen Waterun Technology Co. Ltd.
Share on (60547382263):
Product Overview
Description
Product Shows
Products Description
Screw Fastening Robot

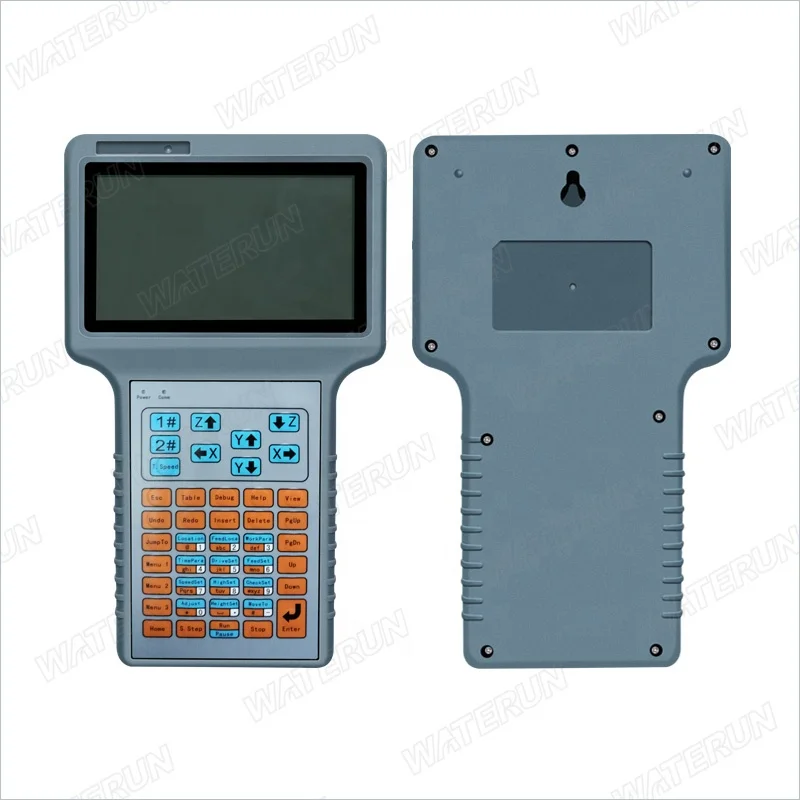

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
Features:
1.The stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy and repeat precision.
2.Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
3.It guarantees the high precision of screw fastening which cannot be achieved by the traditional manual screw fastening. Besides, it improves the production efficiency and reduces the labor cost.
4.Suitable for most of the screws, especially the stainless steel screws.
5.It is easy to learn the operation. One operator can operate several machines at the same time.

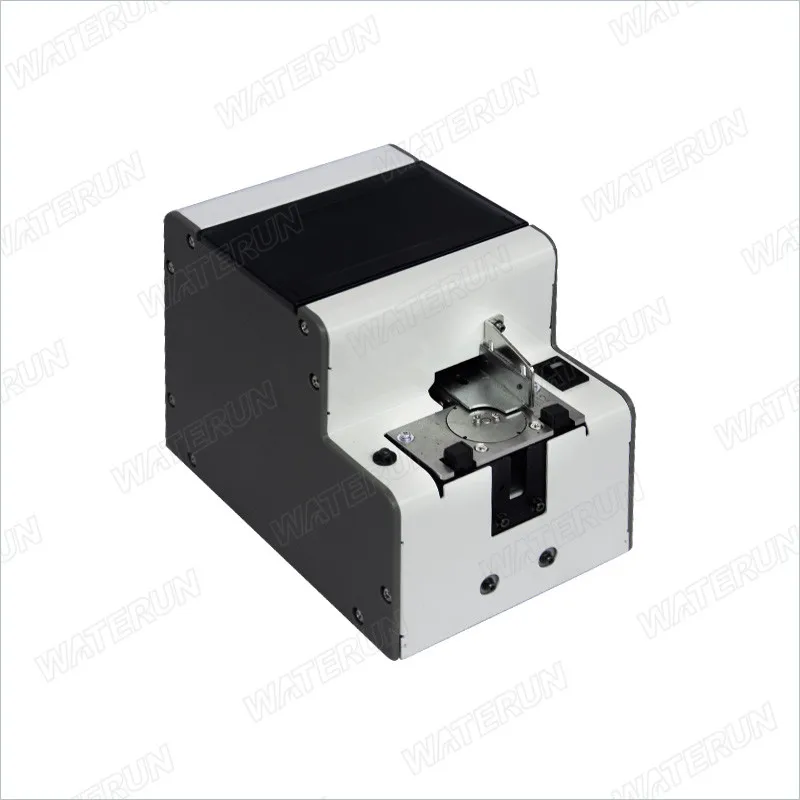

6.The rail of the screw feeder is adjustable. (Applicable screws: M1.5 – M5.0)
Applications:
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
Model | LS-400XX double X-axis automatic screw locking machine |
Voltage | 110V / 220V AC |
Drive Mode | 5-Axis precision step motor |
Operating Range (X * Y * Z) | 500 x 400 x 100mm |
Movement Speed | X * Y Axis: 0.1~800mm/sec, Z Axis :0.1~400mm/sec |
Repeatability Accuracy | ±0.02mm (X * Y * Z) |
Minimum Analysis | 0.01mm (X * Y * Z) |
Maximum Load Weight | 8kgs (for work platform) |
Program Capacity | Max 255 Programs |
Operate Temperature | 10℃~40℃ |
Operate Humidity | 20~90% |
External Dimensions | 900mm x 1100mm x 800mm |
Weight | about 85kgs |
Basic Configuration:
Our Service
Best Quality
100% inspection before shipments.
Zero mistake is our goal.
Cost Down
we always offer competitive prices and help our customers to cost down.
Fast Delivery
We keep a lot of stock for regular products. Usually, our lead time is only 3 days.
Our Company
Packing & Delivery
Item | double X-axis automatic screw locking machine | ||||
Package | 1 set into one wooden carton as safety condition | ||||
External Dimension | 900mm x 1100mm x 800mm | ||||
Weight | about 85kgs | ||||
Delivery | about 20 working days | ||||
Payment | Bank, Westerun Union, Paypal | ||||
Port | Shenzhen | ||||
Shipment | A.By Courier: 4-7 Working days by special offer | ||||
B.By Air: 7 Working days at appointed airport | |||||
C.By Sea: 20-25 Working days at appointed port | |||||
Our Certifications
Exhibitions
NEPCON Thailand 2016
The exhibition team presented our hot sell and new products Fume Extractor and Automatic Screw Fastening Robots, Soldering Robot and Glue Dispensing Robot, and also provided solutions to achieve the complete automation.
NEPCON Vietnam 2015
We showed the Soldering Fume Extraction System Models and Visitors are invited to observe the significant effect of fume purify in the simulated work environment.
KES 2014
We have attended the KES which offers a comprehensive and energy saving lighting equipment, showing our fume extraction systems for different kinds of application.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for automatic screw locking machine?
A: Generally it is 5-10 days if the goods are in stock. or it is 25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
