4SD4 series motor oil submersible water pump 1hp AC energy

Product Overview

Description



4SD quality plastic impeller submersible pump

>> Applications

    For water supply from wells or reservoirs.
    For domestic use,for civil and industrial applications.
    For garden use and irrigation.

>> Operating conditions

   Maximum fluid temperature up to +35°C.
   Maximum sand content: 0.25%.
   Maximum immersion :80m.
   Minimum well diameter: 4".

>> Motor and Pump

   Rewindable motor or Full obturated screen motor
   Three-phase: 380V - 415V/50Hz
   Single-phase:220V - 240V /50Hz
   Equip with start control box or digital auto-control box
   Pumps are designed by casing stressed
   Curve tolerance according to ISO 9906

>> Options on request

   Special mechanical seal
   Other voltages or frequency 60 Hz
   Single phase motor with built-in capacitor

>>Warranty: 1 year

   (according to our general sales conditions).

>>Features

  1. CS, GS, RoHS, SONCAP certificated.

  2. 100% copper wire, stainless steel shaft, brass/cast iron outlet.

  3. Wide voltage range design, single-phase and three-phase.

  4. Strict complete testing for each product.

  5. Dedicated sales representitives.

  >>Materials

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	(1) Cast-Cu ASTM C85500 (2) AISI 304 SS
Suction lantern	(1) Cast-Cu ASTM C85500 (2) AISI 304 SS
Diffuser	Plastic. PC
Impeller	Plastic. POM
Shaft	(1) AISI 316 SS (2) AISI 304 SS
Shaft coupling	(1) AISI 316 SS (2)AISI 304 SS
Wear ring	AISI 304 SS & Ceramic
Motor external casing	AISI 304 SS
Top cover	(1) Cast-Cu ASTM C85500 (2) AISI 403 SS (3) Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic/TC)
Shaft	AISI 303 SS-ASTM 1045/5140
Bearing	NSK
Seal lubricant oil	Oil for food machinery and pharmaceutic use.



>>Certificates







Q: Are you a manufacturer or trading company?

A: We are a manufacturer that specialized in submersible pump.





Q: How long is your delivery time?

A: The batch order can be shipped to you within 20-30days after order confirmation.





Q: How can I get some samples?

A: Usually we can’t offer free sample, pls pay the sample and express fee.But the sample costing can be deducted in your first large order.





Q: What is your terms of payment ?

A: 30% T/T in advance ,70% balance before shipment.





Q: What is your terms of payment ?

A: 30% T/T in advance ,70% balance before shipment.









  >>Homebase Introduction



Company Overview

Zhejiang Homebase Industrial Co. Ltd. Is located to East Bay of China East Sea with a beautiful and charming landscape, also well-known as Marine Garden, Yuhuan City, Zhejiang, China. It was established in 2003, with a floor area of 50000 m2, building area of 45000 m2 and a total investment of RMB 100 million. We are specialized in manufacturing stainless steel water pumps and other household products. Our products have already spread over the Europe, Africa, Middle East and over 20 provinces of mainland, which are very popular among the customers for its high-grade and unique design.



Technological Advantage

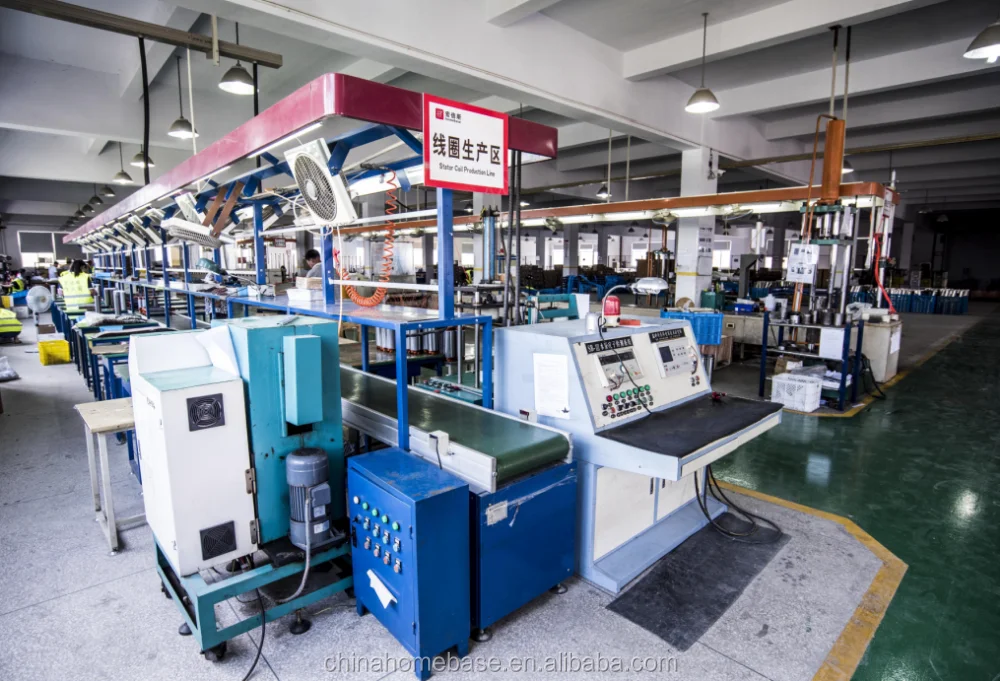

We have strong R&D capability and a superior designing team, we have 350 employees and 30+ R&D engineers, has got 13 Proprietary Intellectual Property Rights, 1 inventing patent and over 20 varieties patents. We adopts advanced equipments like Automatic Shaping Machine, Digital Display Dynamic Balancer, Vacuum Impregnation Drying Machine and high precision test equipments such as Water Pump Integrated Performance Testing System. All these ensured the best foundation for producing high-class pumps.



Quality Control

Accredited with the ISO9001:2008 quality control system and obtained the CE, ROHS and GS certificates, also with the Group Brand Mark-GMC.  We are based on strict quality control,  it makes our pumps the Brand at the top both domestic and abroad.
