Manufacture Sold And Factory Price!! UNS C52400 Phosphor Bronze Rod
- Category: >>>
- Supplier: Sichuan Liaofu Special Steel Trading Co. Ltd.
Share on (60547678099):
Product Overview
Description
JIS C5240, UNS C52400, EN CuSn10 Phosphor Bronze
chemical component
p0.03-0.05 sn 9.5-10.5 fe<0.1 pb<0.02 zn<0.2 cu balance
QSn8-0.3 /DIN CuSn8/c52100 tin bronze
we have our own cooperative copper factory,mainly do aluminum bronze and brass,both have sheet,bar,pipe and wire
Standard: GB/T 5231-2001
QSn8-0.3 features and scope of application
QSn8-0.3 aluminum bronze iron, high strength and friction reduction, good corrosion resistance, pressure and good processability in thermal state, can be electric welding and gas welding,stannum bronze can be used as high tin wear-resistant bronze. With high strength, good anti-friction, and excellent corrosion resistance in the atmosphere, fresh water, and seawater, suitable for heat processing and welding.
Chemical composition of QSn8-0.3
Sn:7.0-9.0
P:0.03-0.35
Zn:≤0.20
Ni:≤0.20
Fe:≤0.01
Pb:≤0.05
Cu:REST
Note: the tensile mechanical properties at room temperature of the longitudinal bars
QAl9-4 heat treatment specification: thermal processing temperature 750 ~ 850 °C; annealing temperature 700 ~ 750 °C; quenching temperature 850 °C water; tempering temperature 500 ~ 550 °C.
| Brand Name | Material Composition | Size(Diameter) | |||||||||||||
| Bronze | Aluminum bronze | QAl9-2(C61200) | QAl9-4(C61400) | QAl9-5-1-1 | QAl10-3-1.5(C62300) | QAl10-4-4(C63000) | 10-180(mm) | ||||||||
| Tin bronze | QSn4-4-4 | QSn7-0.2 | QSn6.5-0.1(C51900) | QSn4-3-0.3(C51100) | QSn6.5-0.4(C51500) | 10-60 | |||||||||
| Silicon bronze | QSi3-1 | QSi1-3 | C65100 | CuNi2Si | C54400 | 10-60 | |||||||||
| Copper-Nickel alloy | Nickel -Znic Alloy | BZn15-20 | BZn15-21-1.8 | BZn15-24-1.5 | 15-50 | ||||||||||
| Aluminum cuoronickel | BAl13-3 | BAl6-1.5 | 15-50 | ||||||||||||
| Brass | Ordinary brass | H90(C22000) | H68(C26200) | H62(C27400) | H63(C27200) | H70(C26200) | 20-180 | ||||||||
| Iron brass | HFe58-1-1 | HFe59-1-1 | 10-180 | ||||||||||||
| Pb Brass | HPb63-0.1 | HPb62-0.8(C35000) | HPb59-1(C37000) | HPb62-2(C35300) | HPb60-2(C37700) | 10-180 | |||||||||
| Aluminum brass | HAl67-2.5 | HAl60-1-1 | HAl59-3-2 | HAl66-6-3-2 | 10-180 | ||||||||||
| Nickel-silver | HNi65-5 | HNi56-3 | 10-180 | ||||||||||||
| Manganese brass | HMn58-2 | H57-3-1 | HMn55-3-1 | HMn60-3-1-0.75 | 10-180 | ||||||||||
| Tin Brass | HSn62-1 | HSn60-1 | 10-180 | ||||||||||||
| Silicon Brass | HSi80-3 | C64200 | |||||||||||||
Aluminum Bronze
Item | Specification | Characteristics | Application | |||
ASTM | DIN | JIS | GB | |||
- | QAl9Mn2 | - | QAl9-2 | 15.0-60.0mm
| High strength, good anti-friction quality, good corrosion resistance in the atmosphere, fresh water, seawater, hot processing, can be welding, brazing is not easy. | Widely used in machinery, ships, aviation and manufacturing sectors such as bearings, bushings, pump parts, gear turbo, seat, bolts, nuts, structural parts. |
C61400 | CuA18Fe3 | C6161 | QAl9-4 | |||
C62300 | CuA110Fe3Mn2 | C6191 | QAl10-3-1.5 | |||
C63000 | CuA110Ni5Fe4 | C6301 | QAl10-4-4 | |||
C66800 | - | - | PW23608 | 6.0-125.0mm | High strength,high hardness,high precision,heating and cutting. | Widely used in construction machinery industry, hydraulic pump/motor, synchronizer loop,turbocharger,bearing, bushing,gear,mold standard parts,engine wear resistance. |
C67300 | - |
| PW23604 | 6.0-125.0mm | ||
C67420 | CW713R | - | PW23601 | 6.0-110.0mm | ||
we have sold brass tube,hpb59-1 sheet and bar zhmn brass to tailand,pakistan,india,poland and so on,u can find some of our pictures below

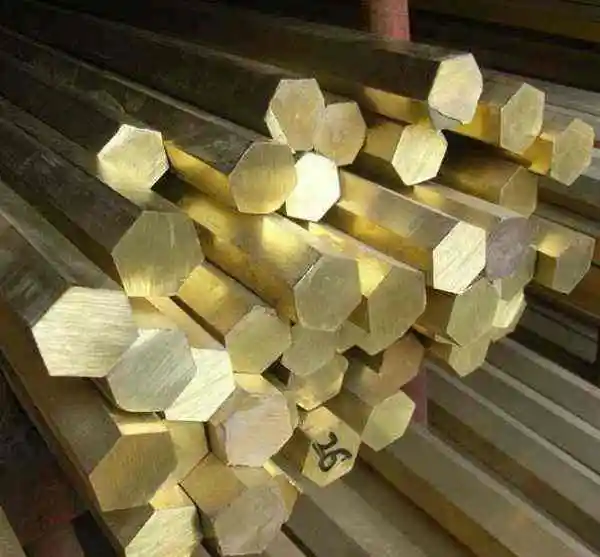

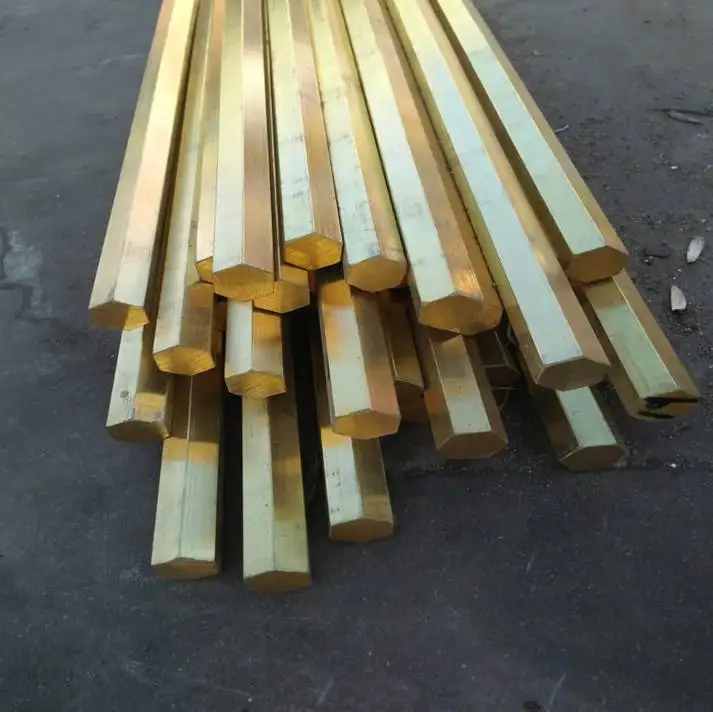

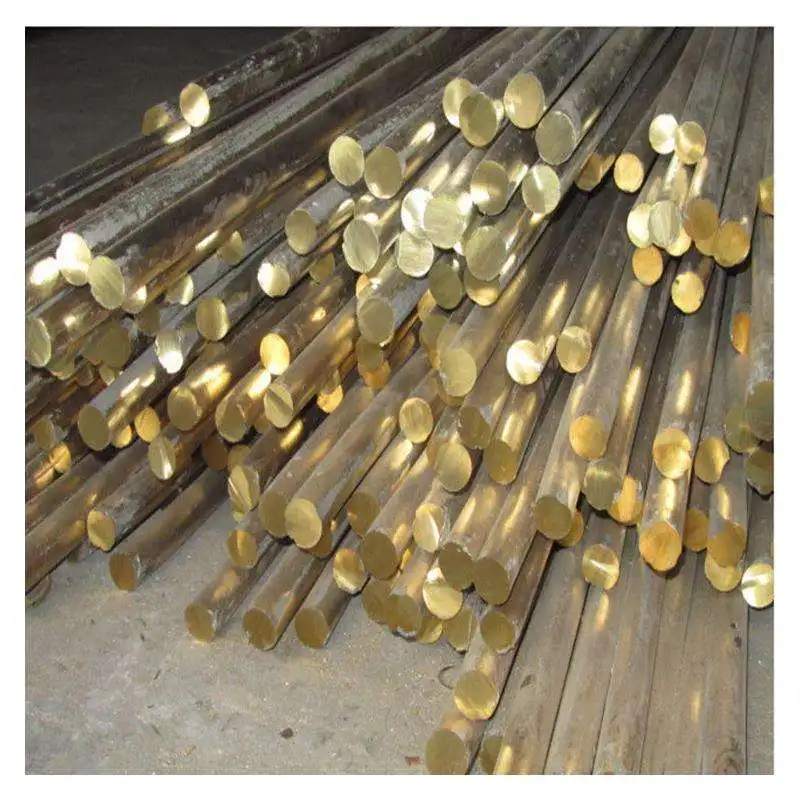

aluminum bronze bar
Our Main Products
Bronze
1 chromium bronze QCR0.5 QCR0.5-0.2-0.1 QCR0.6-0.4-0.05
2 phosphor bronze PB1 PB2
3 packfong C2112C2111 C2113
4 silicon bronze QSI3-1 QSI 1-3 QSN3.5-3-1.5
5 manganese bronze QMN1.5 QMN2 QMN5
6 lead bronze ZCuPb10Sn10 ZCuPb15Sn8 ZCuPb20Sn5 ZCuPb17Sn4Zn4
7 aluminum bronze QAL9-4 QAL9-2 QAL9-4-4-2 QAL10-3-2 QAL25-6-6-6 QAL10-4-4 QAL10-5-5 QAL11-6-6
8 tin bronze QSn4-3,QSn6.5-0.1,QSn7-0.2,QSn6.5-0.4, QSn1.5-0.2 , QSn4-4-4 QSn7-0.2 QSn8-0.3 , ZQSn6-6-3 , ZCuSn5Pb5Zn5, ZCuSn10Pb1, ZCuSn10Pb2 ,3-8-6-1 , 3-11-4
brass
1 iron aluminium brass 35-2-2-1 38-2-2
2 aluminum brass HAL66-6-3-2,HAL61-4-3-2,HAL60-1-1,HAL59-3-2
3 brass H90,H62,H68,H85,H70,H65
4 lead brass HPB63-3,HPB63-0.1,HPB62-0.8,HPB62-2,HPB60-2,HPB59-3,HPB59-1
certificates
process of produce
