5 t/h wood pellet mill making machine CE wood pellet machine wood pelletizer
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (60547682058):
Product Overview
Description
5 t/h wood pellet mill making machine CE wood pellet machine wood pelletizer
Company Information
Jiangsu YONGLI Machinery Co.,Ltd. was founded in 2003. We are an excellent provider and operator for feed,biomass, fertilizer and Silo equipments. With the principle of High Quality, Competitive Price, Technical Innovation, Excellent Service, we constantly develop domestic market and abroad market, until now, we have finished hundreds feed, biomass, fertilizer and silo projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc, and gain great reputation from our clients. YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.
Our equipments have exported to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Japan, Sri Lanka, Dubai, Australia, New Zealand and so on. With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.
Since the year of 2003, we have finalized numerous biomass pellet projects globally, with a wide range capacity from 1t/h to 100t/h.
The projects we customized base on the clients’ requirement to process various kinds of raw material into pellet, which including wood logs, wood branches, wood chips, sawdust, forestry waste, paper pulp, pine waste, palm waste, bagasse, straw, rice husk, alfalfa, sorghum, corn stalk...etc.
Quality machinery & rich experience lead us to be more & more popular in the global market.
So, if any inquiries about the biomass pellet production line, feel free to contact with us at your earliest convenience. Here we will present you the best solution !
Thank you
Jessica Yang
Jiangsu Yongli Machinery Co., Ltd.
Mobile/Wechat: +86 - 151 90513782
Product Overviews
Model | Capacity (t/h) | Power (kw) | Inner diameter of die (mm) | Pellet size (mm) | Dimension (mm) | Net weight (T) |
YPM250 | 0.1-0.2 | 18.5 | 250 | Ø6,Ø8,Ø10 | 1300*1330*850 | 0.73 |
YPM320 | 0.3-0.5 | 37 | 320 | Ø6,Ø8,Ø10 | 2100*1100*1140 | 1.2 |
YPM350 | 0.5-0.8 | 55 | 350 | Ø6,Ø8,Ø10 | 2500*1100*1150 | 1.65 |
YPM420 | 0.9-1.2 | 90 | 420 | Ø6,Ø8,Ø10 | 3000*1200*1470 | 2.8 |
YPM520 | 1.3-1.8/1.8-2.5 | 132/160 | 520 | Ø6,Ø8,Ø10 | 3200*1300*1420 | 4 |
YPM600 | 2.5-3 | 185 | 600 | Ø6,Ø8,Ø10 | 3000*1750*1810 | 4.5 |
YPM660 | 3-4 | 200 | 660 | Ø6,Ø8,Ø10 | 3570*1800*1850 | 7.5 |
YPM800 | 4-6 | 315 | 800 | Ø6,Ø8,Ø10 | 4300*1900*2040 | 11 |
Drawing for a complete wood pellet line. ( Reference only )
* We customize suitable design according to the raw material status & specific demands of our clients on the capacity.

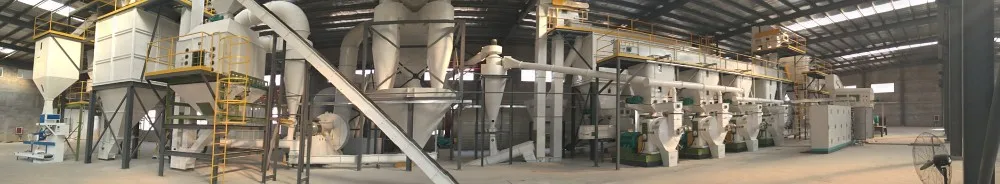

Brief introduction about the complete wood pellet line.
A complete pellet line Including:
1. Wood log debarking process ( optional )
2. Chipping process
3. Grinding process
4. Drying process
5. Pelleting process
6. Cooling & bagging process
Wood log debarking machine.
* High strength roller & teeth guarantee the high ratio of the peeling, up to 98%.
* Barks discharge device is adopted at the bottom of the equipment to delivery the barks out of the equipment continuously.
* The equipment also adopt SKF bearing & Siemens motor.
Wood chipper.
* Chopping wood logs into small wood chips, with dimension of 30*30*5mm.
* Model of wood chipper will be decided by the diameter of wood logs.
* Germany Technology, dismountable roller-knife is adopted.
* Adopt Siemens motor & SKF bearing.

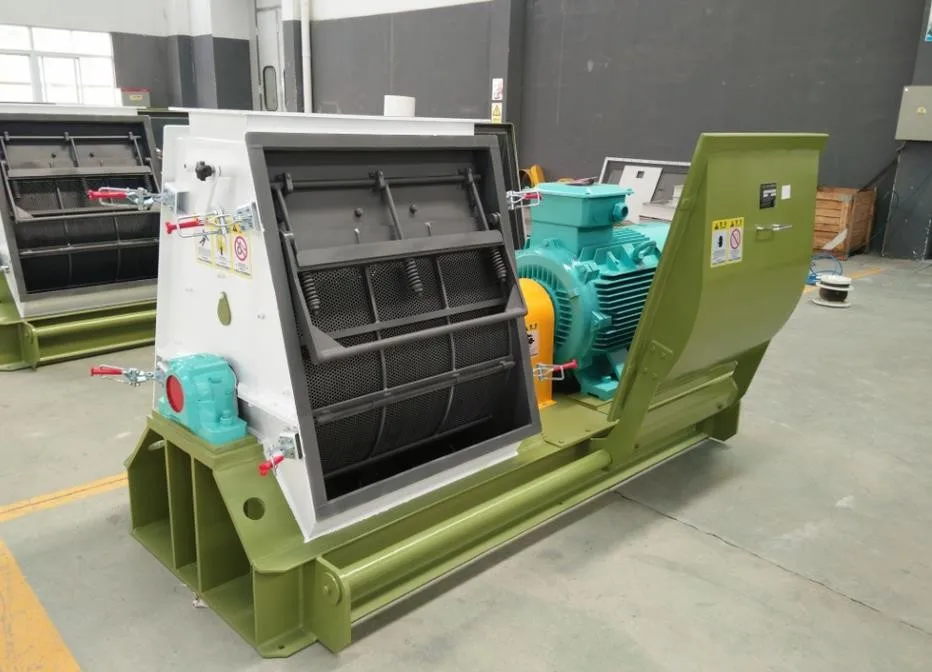

Hammer mill.
* Crush wood chips into sawdust.
* Adopt Siemens motor & SKF bearing.

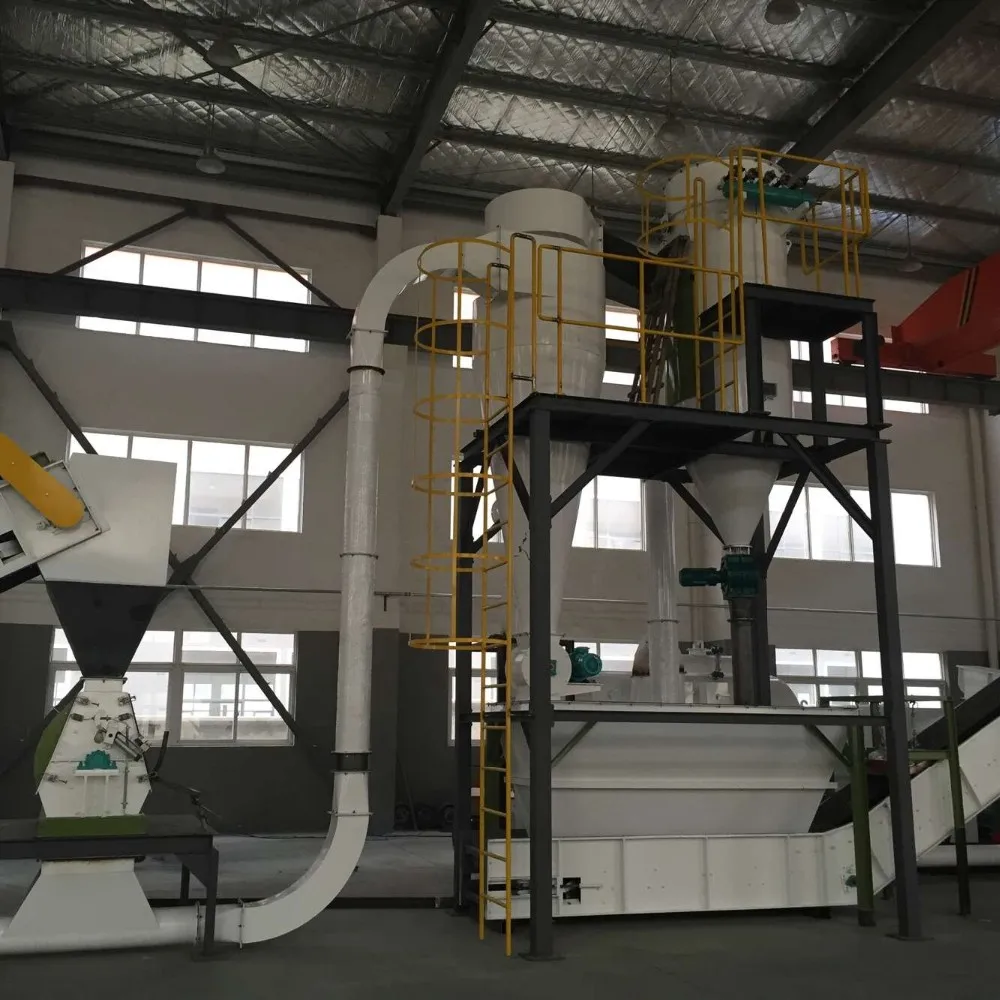

Grinding Process.
* With hammer mill, fan, cyclone & pulse filter & necessary convey equipment.
* The sawdust will be conveyed to the drying process by the cyclone & other conveying equipment.

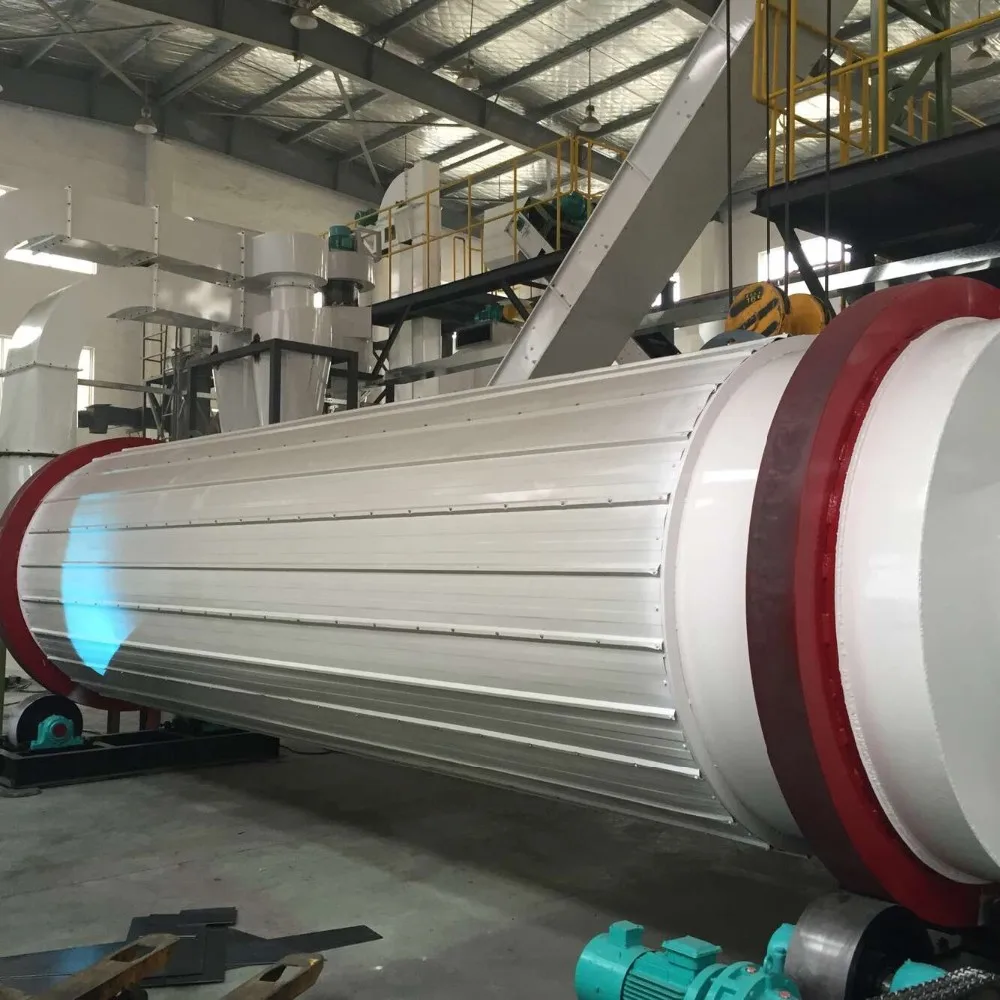

Three Layer Drum Dryer
* High efficiency, save much more floor space. Adopt anti-fire device.
Automatic stove.
* Heat source for the dryer, adopt automatic feeding system.
* Adopt automatic feeding system, Saving labor cost.

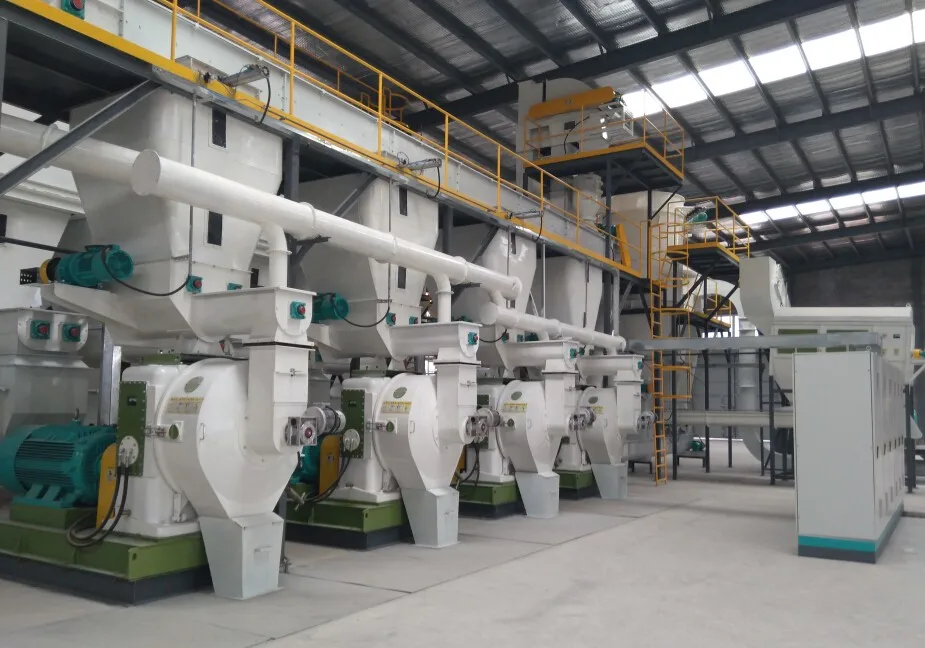

Wood Pellet machine.
* Ring die style wood pellet mill.
* Gear driving system, which is more stable than belt driving system.
* Adopt automatic lubrication system & oil cooling system to guarantee the continuously running.
* Siemens motor & SKF bearing.
* Ring die was placed vertically and it is more easier to change the ring die, one hour is enough.
Automatic lubrication system & oil cooling system for the wood pellet machine.
Wood pellet cooling & sieving process.
* With cooler, screener and necessary convey equipment.
Contact: Ms Jessica Yang
Mobile/Wechat: +86 - 151 90513782
Feel free to contact with us at any time.
YONGLI Customers

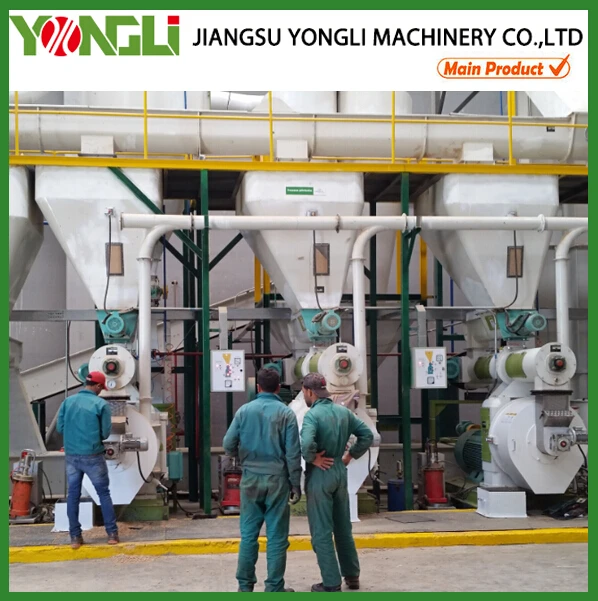

Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details! You are also always welcome!
Production Flow
If you are interested in it, please kindly review the working process flow of our machine in YONGLI workshop:
CE Certification
YONGLI passed CE certification for all of the exported machine:
Packaging & Shipping
YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port. The details for of shipment pictures for YONGLI machine as below:
Our Services
1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
