Semi Customized 2 inch 240*320 LCD with white LED all viewing angle ILI9335 built in SPI RGB TFT LCD display module
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd. [Guangdong China]Shenzhen
Share on (60547777599):
Product Overview
Description

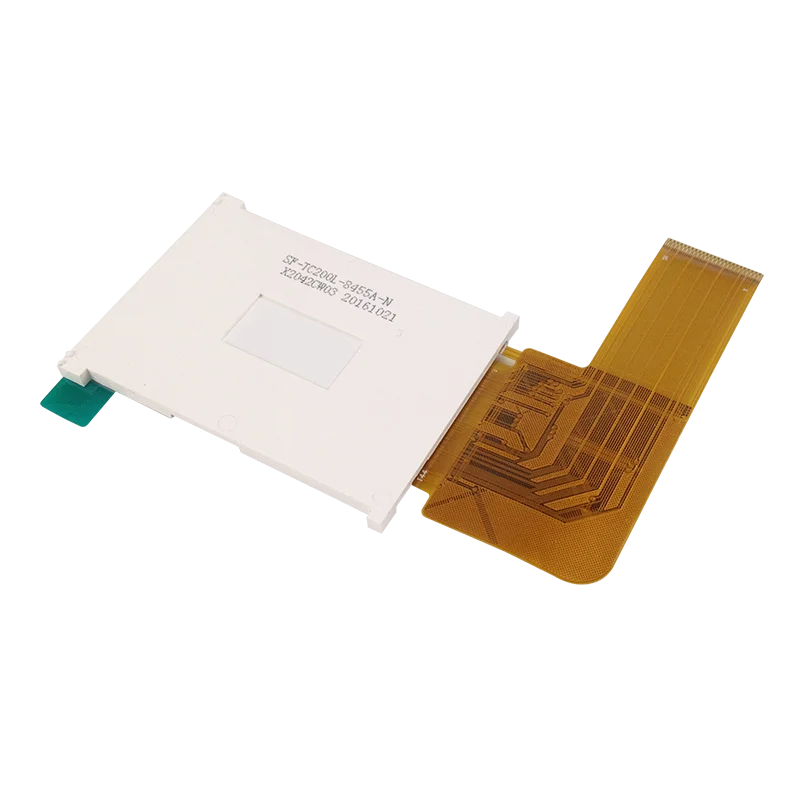

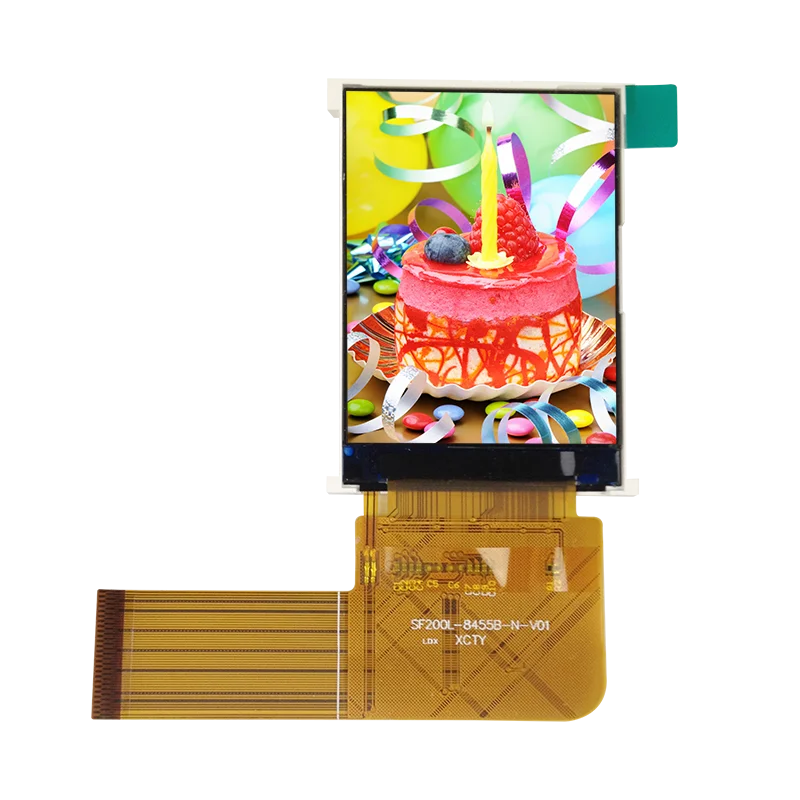

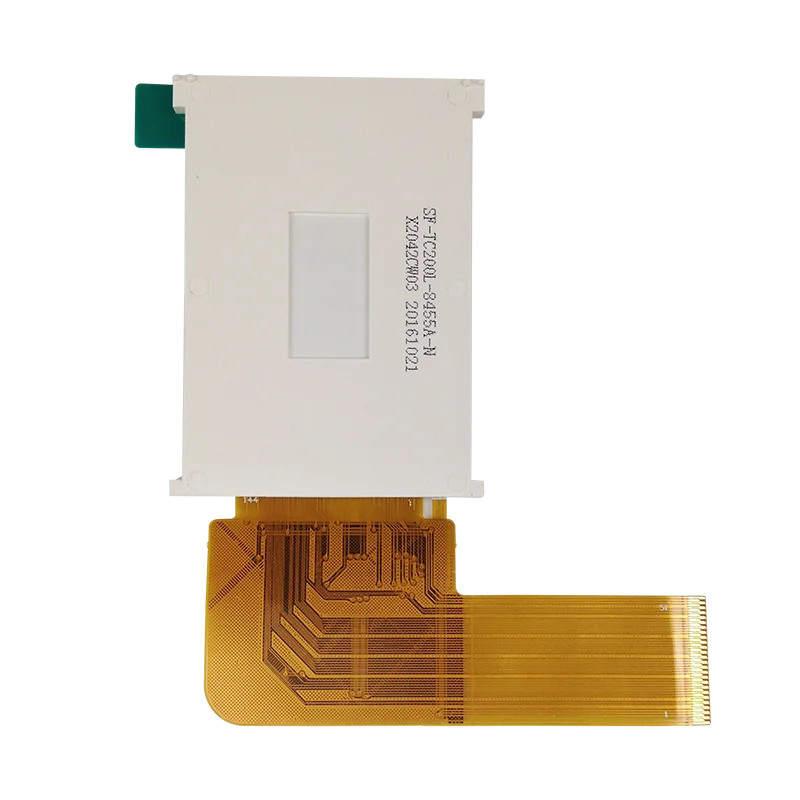

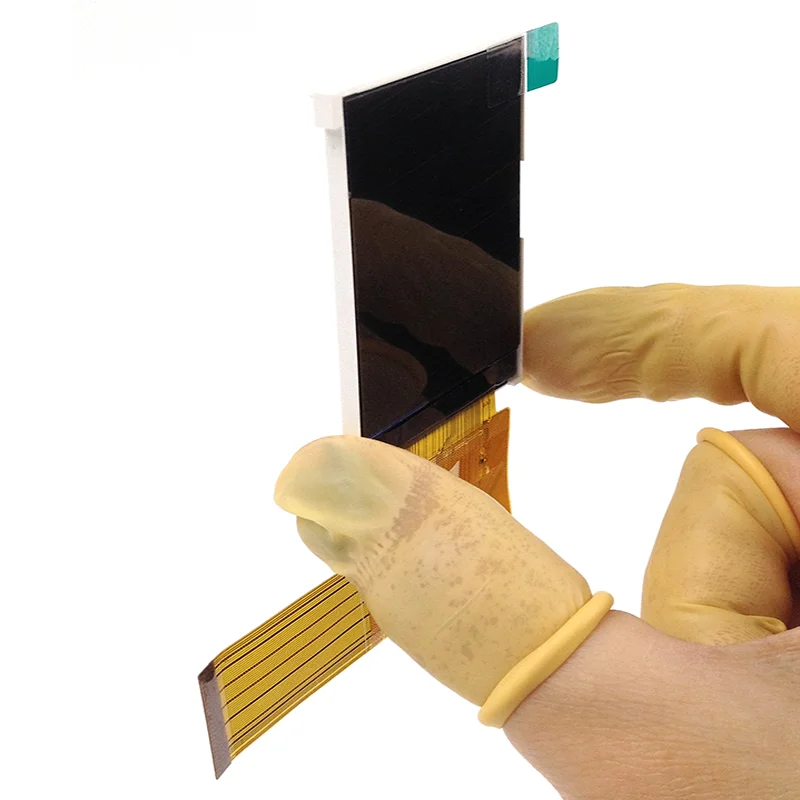

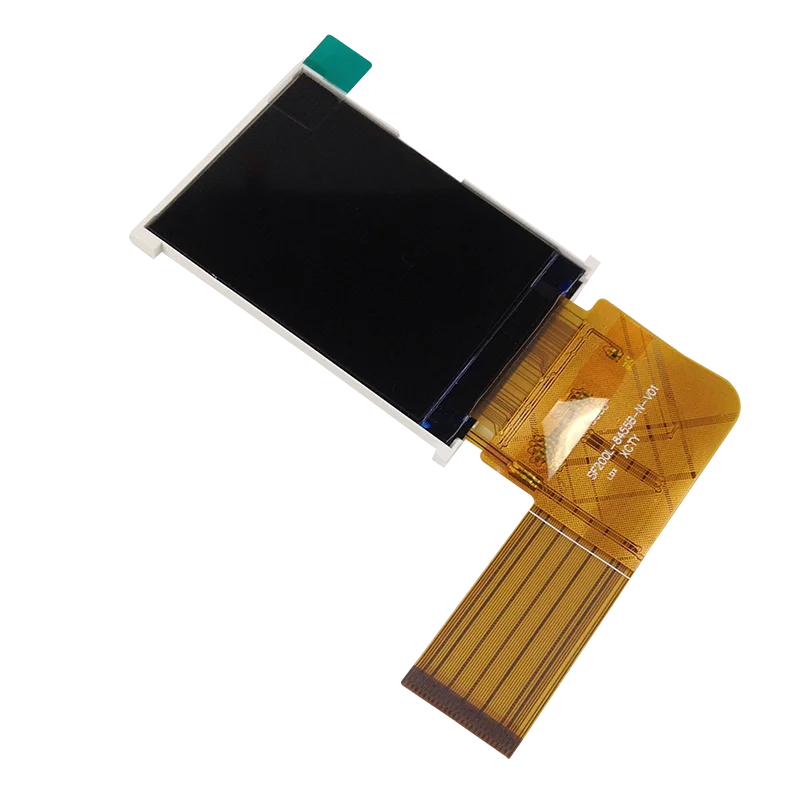

Semi Customized 2 inch 240*320 LCD with white LED all viewing angle ILI9335 built-in SPI+RGB TFT LCD display module
1. Display Type: | 2 inch 240*320 TFT |
2. DRIVER IC: | ILI9335 |
3. Resolution: | 240x320 dots |
4. Pin NO# : | 51PINS |
5. Outline Dimensions: | 38.5*52.05*2.6 mm |
6. Luminous Intensity for LCM | 250Cd/m2 |
7. Interface Type: | SPI+RGB |
8. Backlight: | White LED |
9. Operating voltage: | +2.6V~3.3V |
10.Viewing Direction : | 12 O’clock |
11.Operating Temp: | -20°C~+70°C |
12.Storage Temp: | -30°C~+80°C |
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
