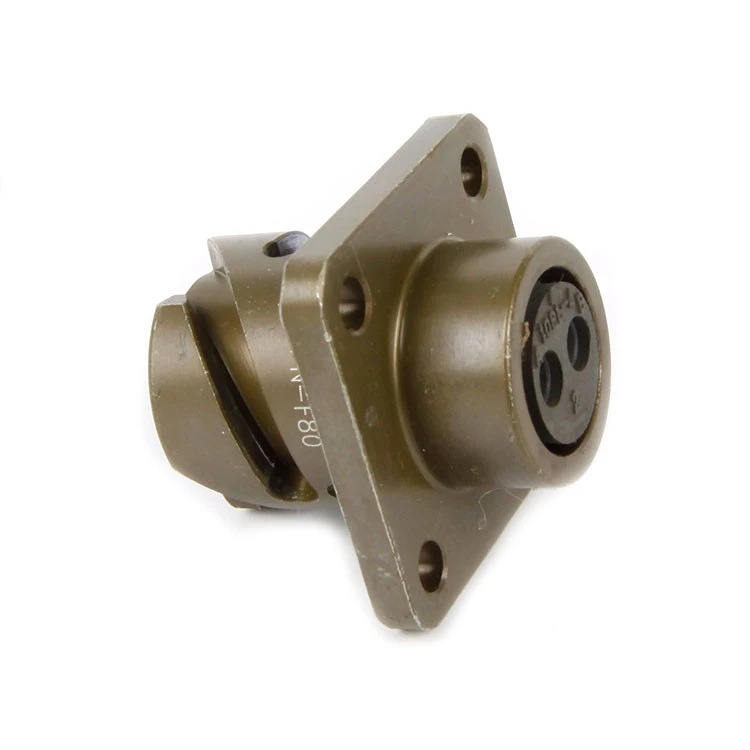

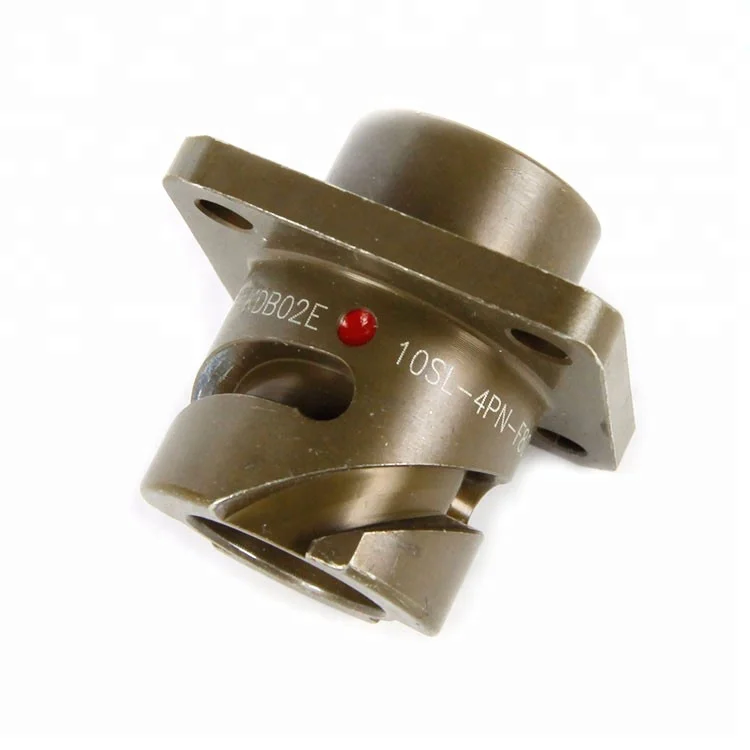

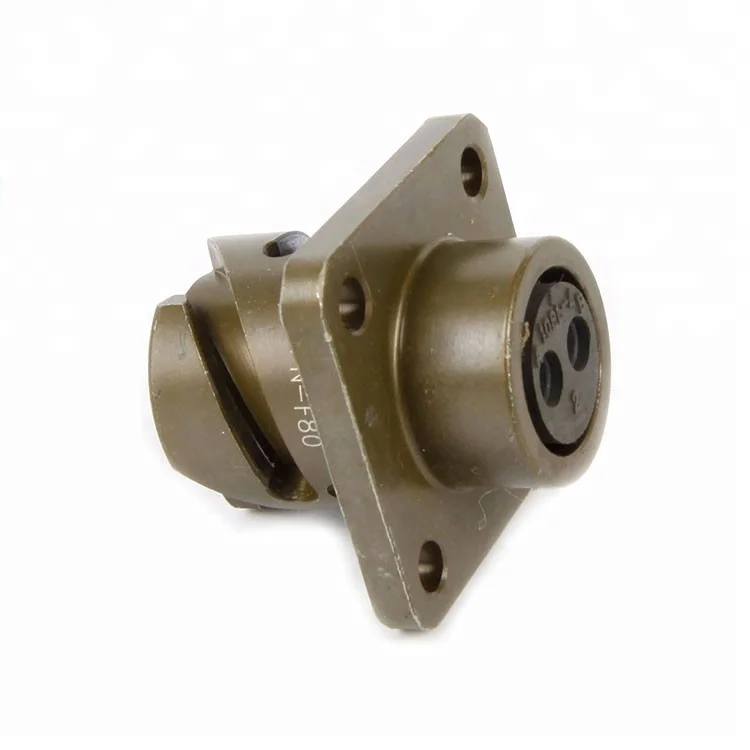

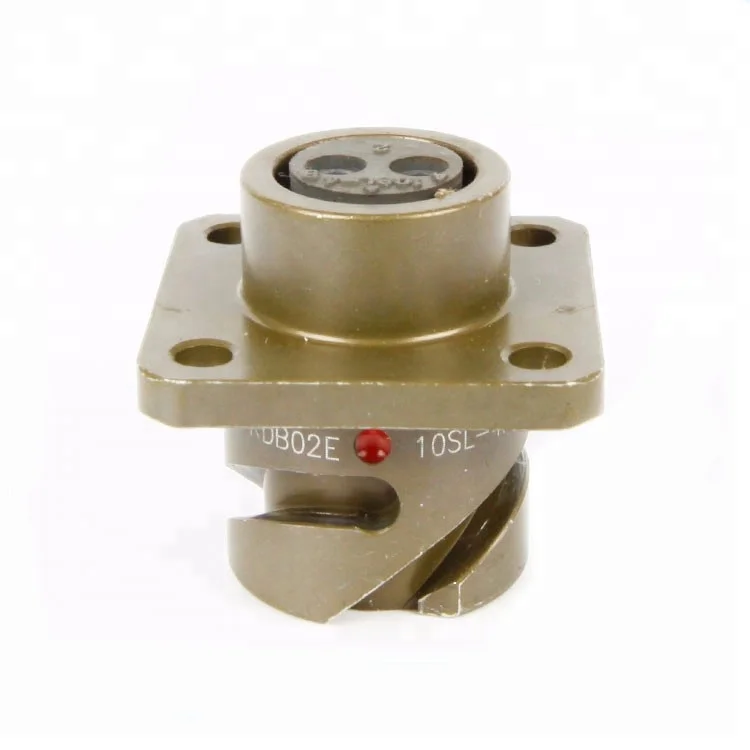

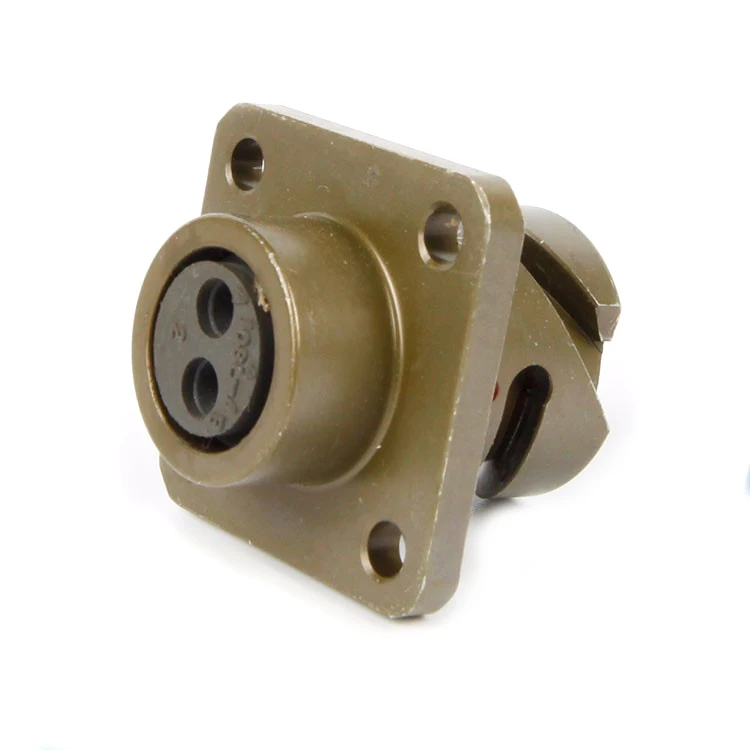

KDB02E 10SL-4PN-F80 anti bayonet connection military circular connector
Conform to GJB101A standard. With reference to the American MIL-DTL-5015 standards. They are equailvant to JY series, YB series and MS series, MS series. They can cooperate in use with the receptacles which have the same type. This series connectors are quick coupled by bayonets. Their contacts are soldered.
HOW TO ORDER
| Identification Code MS | 3106 | A | 18 | 10 | P | Y | |||||
Shell NO. 3100 = Wall mounting receptacle | |||||||||||
Service Class A = Solid shell, solder contacts and non-pressurized | |||||||||||
| Shell Size 10SL, 12S, 12, 14S, 14, 16S, 16, 18, 20, 22, 24, 28, 32, 36 | |||||||||||
Contact layout (See below)
| |||||||||||
Contact Type P = Pin | |||||||||||
| Alternate positioning NO Mark-N key, (W)-W key, (X)-X key, (Y)-Y key, (Z)-Z key | |||||||||||
Specifications
A. Materials
Shell: Aluminum alloy; Olive drab cadmium or zinc plating
Insulator: Synthetic rubber
Contact: Copper alloy; Sliver plating
Gasket & Grommet: Synthetic rubber
B. Electrical specifications
Operating voltage & Test voltage,
| Service class | Operating voltage | Test voltage | Air Spacing | Cree page | |
| DC (V) | AC (V) | AC (V) | Nominal (Inches) | Nominal (Inches) | |
| Inst. | 250 | 200 | 1000 | - | 1/16 |
| A | 700 | 500 | 2000 | 1/16 | 1/8 |
| D | 1250 | 900 | 2800 | 1/8 | 3/16 |
| E | 1750 | 1250 | 3500 | 3/16 | 1/4 |
| B | 2450 | 1750 | 4500 | 1/4 | 5/16 |
| C | 4200 | 3000 | 7000 | 5/16 | 1 |
Rated current (+20oC),
Contact size | Contact resistance (mΩ) | Test current (A) | Potential drop (mV) |
16 | 16 | 13 | 49 |
12 | 3 | 23 | 42 |
8 | 1 | 46 | 26 |
4 | 0.5 | 80 | 23 |
0 | 0.2 | 150 | 21 |
Insulator resistance: +25oC ≥ 5000MΩ
- C. Mechanical specifications
- Operating temperature: -55oC ~ +125oC
Sealing: Under water (6 feet in water): 48 hours per MIL-DTL-5015, 4.6.19. Meet 20 days extreme humidity testing per.
Contact size | Outside dia. of insulation | |||
Min. | Max. | |||
inches | mm | inches | mm | |
16 | 0.064 | 1.63 | 0.130 | 3.30 |
12 | 0.114 | 2.90 | 0.170 | 4.32 |
8 | 0.164 | 4.17 | 0.255 | 6.48 |
4 | 0.275 | 6.98 | 0.370 | 9.40 |
0 | 0.415 | 10.54 | 0.550 | 13.97 |
Durability: ≥ 100 cycles
Salt spray: MIL-STD-1344 method 1001, condition B, ≥ 48 hours (Cadmium plating)
Heat: at +125oC, 60 hours; at +85oC, 1000 hours
Chemical resistance: in Hydraulic fluid or lubricating oil, 20 hours
Vibration: 10 ~ 2000Hz, acceleration: 10 g’s
Shock: acceleration: 50g
Contact retention & Separation force
Contact size | Retention | Separation force min. | ||
N | Lbs. | N | Lbs. | |
16 | 44 | 10 | 1 | 0.25 |
12 | 67 | 15 | 2 | 0.50 |
8 | 89 | 20 | 3 | 0.75 |
4 | 89 | 20 | 4 | 1.00 |
0 | 111 | 25 | 9 | 2.00 |
