Secukey Hot Selling Biometric Fingerprint Access Control and Time Attendance
- Category: Fingerprint Attendance >>>
- Supplier: Secukey Technology Co. Ltd.
Share on (60548157543):
Product Overview
Description

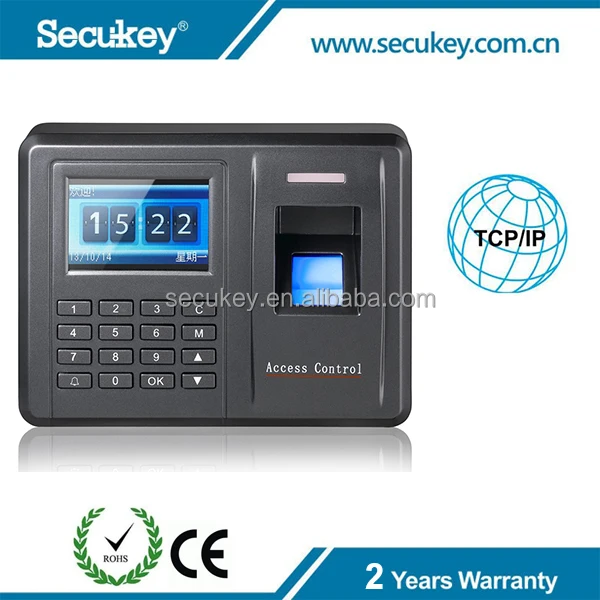

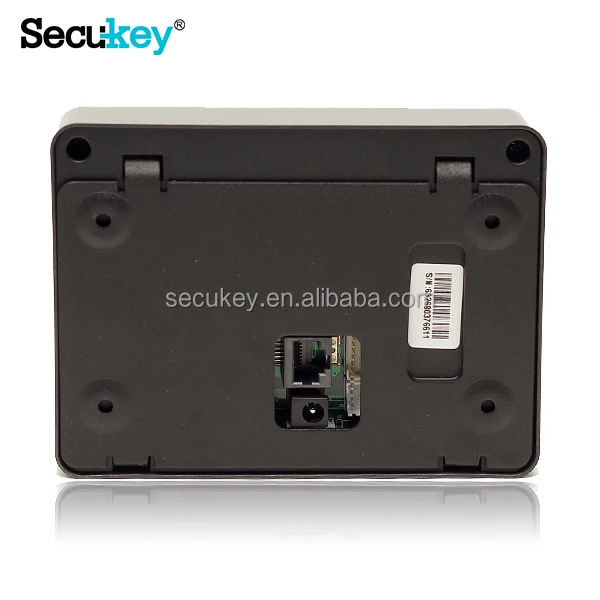

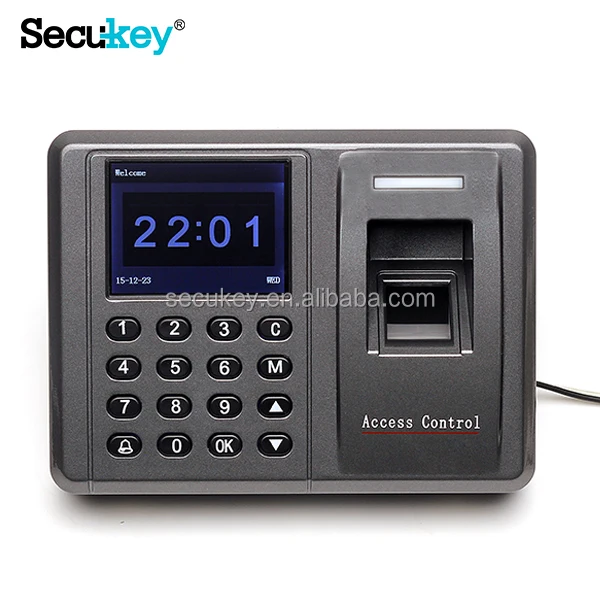

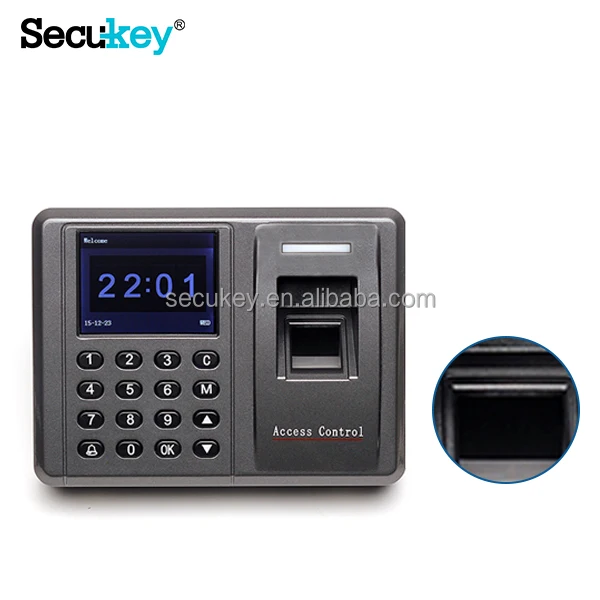

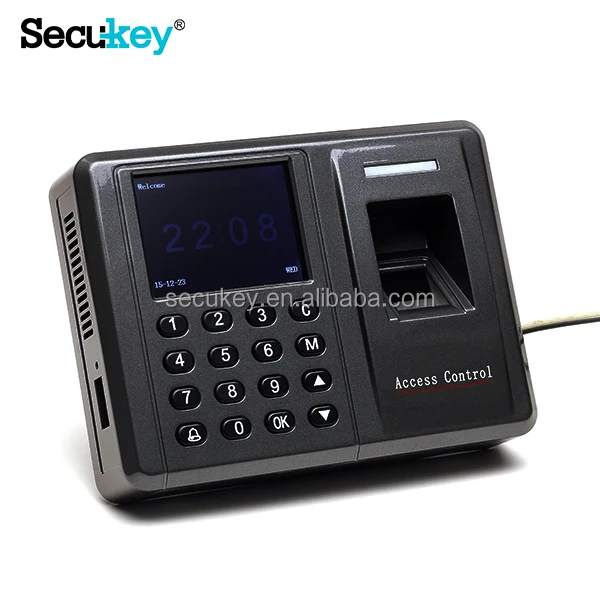

Secukey Hot Selling Biometric Fingerprint Access Control and Time Attendance (Model: F5)
Product Description
• Network access control / Time attendance
• 1000 FP users, 1000 card users, 1000 PIN users
• 100,000 event buffers
• Wiegand 26bits input & output
• Connect to PC via TCP/IP
Parameter
Biometric Fingerprint Access Control
User Capacity | 3000 |
Fingerprint | 1000 |
Card | 1000 |
PIN | 1000 |
Operation Voltage | +12V |
Access Mode: | Fingerprint ,Card, PIN, Fingerprint & Card, Fingerprint & PIN |
Fingerprint Reader | Optical Fingerprint Module |
Resolution | 500DPI |
Identification time | <1S |
FAR | <0.0001% |
FRR | <0.01% |
Proximity Card Reader | Industry Standard 26 bits |
Radio Technology | 125KHz Industry Proximity EM Card |
Read Range | 2~7 cm |
PIN Reader | 1~8 digits PIN |
Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, Wiegand output,Wiegand Input, Door Bell |
Communication | TCP/IP |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 1-99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Alarm Output Load | 5 Amp Maximum |
Wiegand Interface | Wiegand 26 bits Input & Output |
Environment | Indoor |
Operating Temperature | -20℃~+50℃ |
Operating Humidity | 20%RH-90%RH |
Physical | ABS Enclosure |
Dimensions | 140mm * 105mm * 35mm |
Unit Weight | 300g |
Shipping Weight | 500g |
