PIR PID Duct Sheet For HVAC System

Product Overview

Description

PU PID Duct Sheet For HVAC System

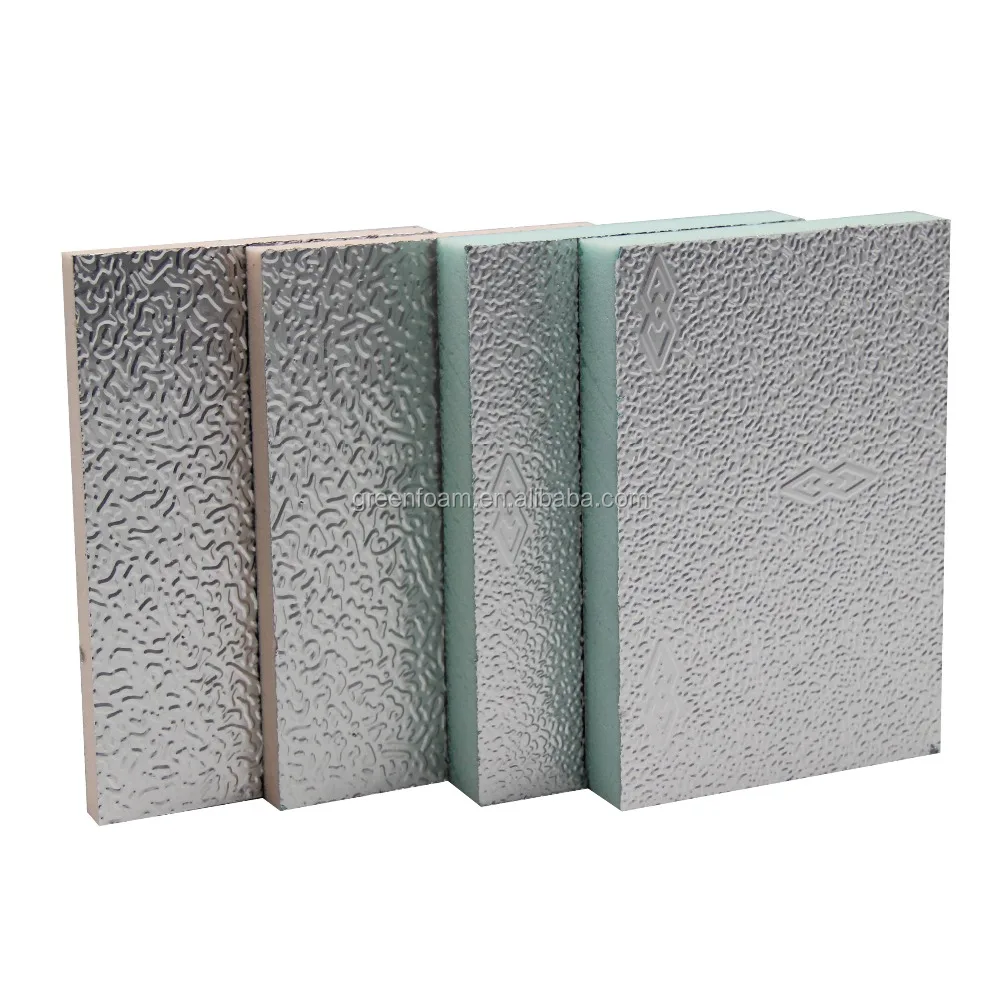

PU Foam Pre-insulated Duct Panel with Aluminum Foil / Pre-insulated Duct Panel / PU Foam Pre-insulated Duct Panel





Specifications:



PU PID Duct Sheet for HVAC System



1. Be used for HVAC Duct system;

2. Save energy, safe system;

3. Fireproof.

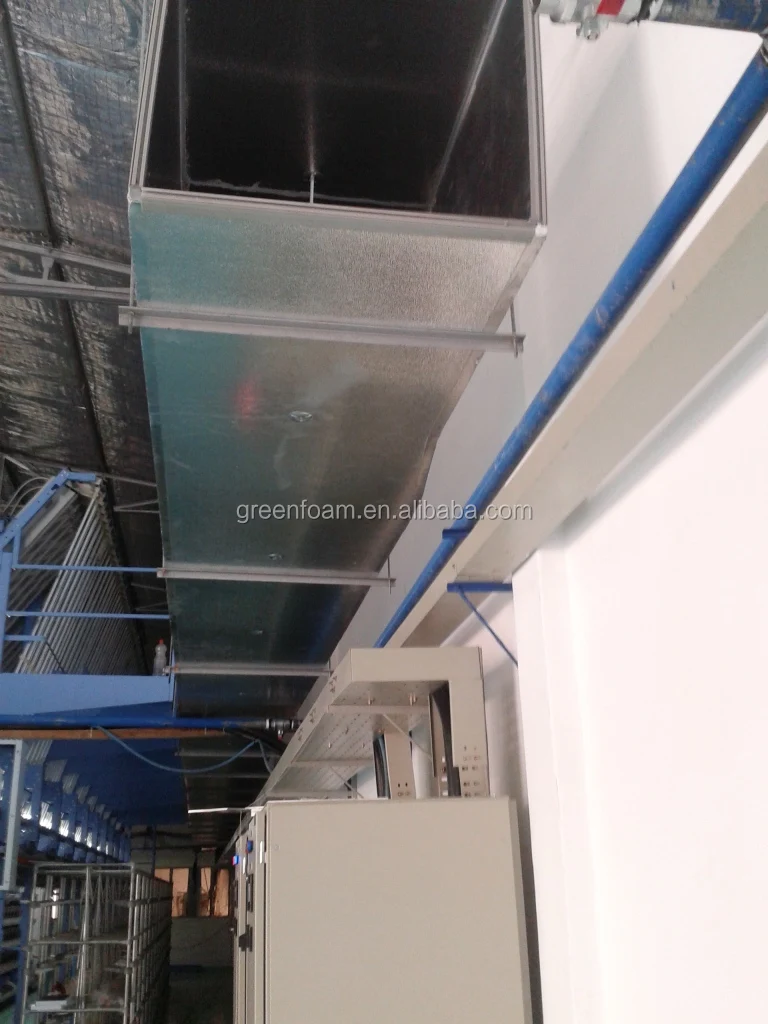

Compared with traditional galvanized Iron ( steel metal) ductwork, PU Foam Pre-insulated Duct Panel with Aluminum Foil have offers a high performance, light weight and robust system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on.





Technical Data:



Standard Size	3950/2950/2900*1200*20mm
Foam Density	50 kg/m3
Aluminum foil thickness	0.08mm/0.2mm
Thermal Conductivity	0.02W/m.k
Compressive Strength	0.25MPa
Bending Strength	2MPa
Water Absorption	0.1%
Dimension Change	0.3%
Maximum Wind Velocity	13-20m/s
Maximum Running Temperature	70 ℃







Accessories and Tools:

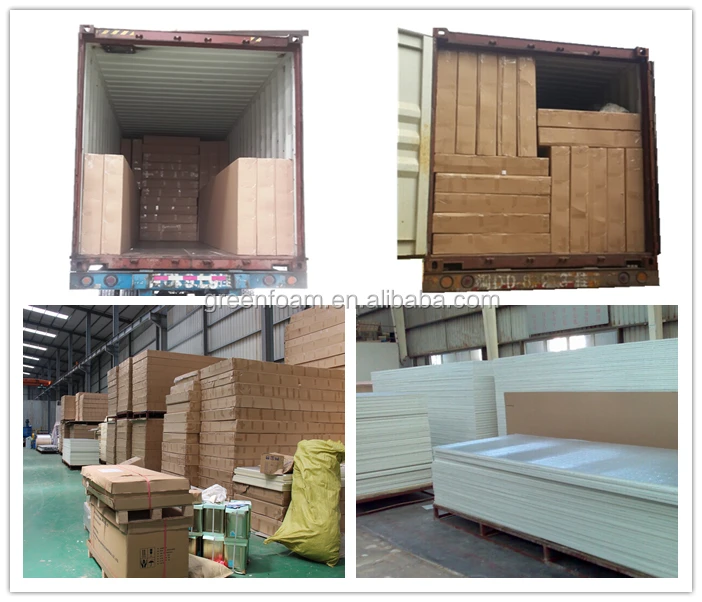

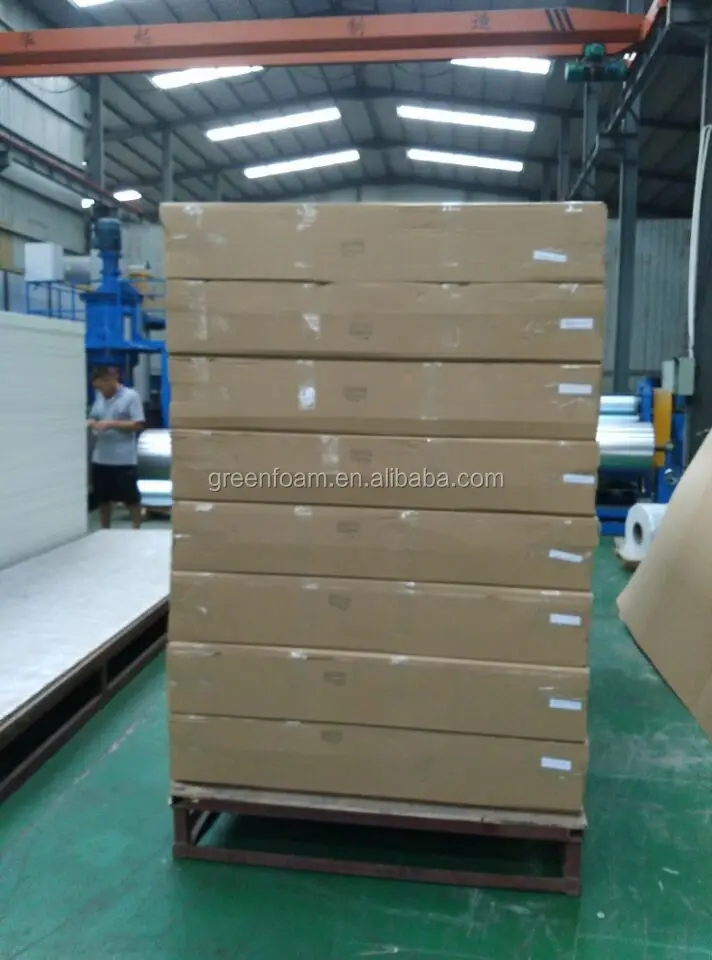

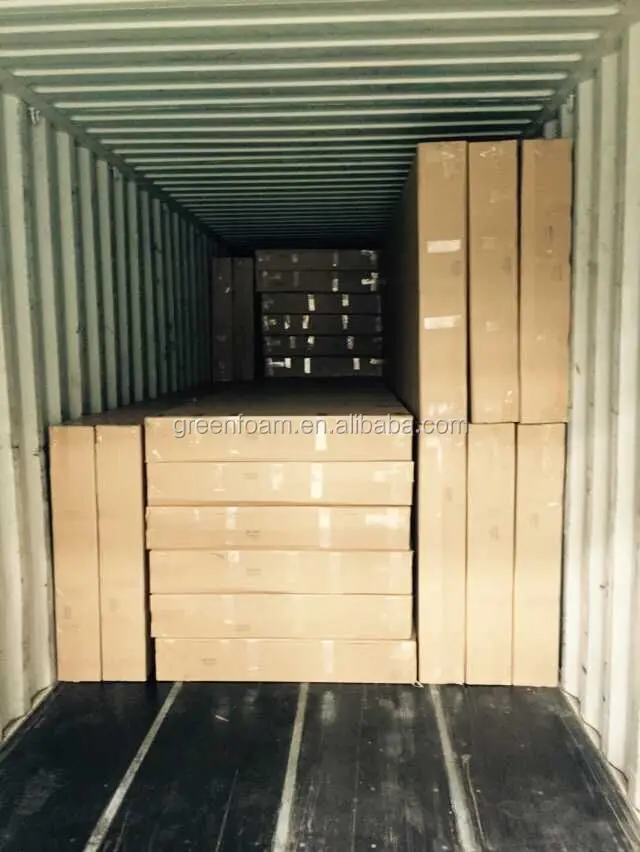

PU Foam Pre-insulated Air Conditioning Duct Panel will be packed as below details:

1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).

2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.



PHOTOS:



Green Foam Insulation Material Co., Ltd is a professional manufacturer of Pre-insulated HVAC duct System and other thermal insulation materials, such as Polyurethane (PU) / PIR / Phenolic Foam Pre-insulated HVAC duct, Phenolic Foam Insulation Board, Pre-insulated Polyurethane Foam Duct Panel, Phenolic Foam Pipe Insulation, Insulated Flexible Duct, Air Grille & Diffuser, Air Damper etc.



Greenfoam is approved by ISO 9001:2008 quality management system. It always takes "Save Energy, Safe System" as the mission of our sustainable development. Product quality is our core-competitiveness.
