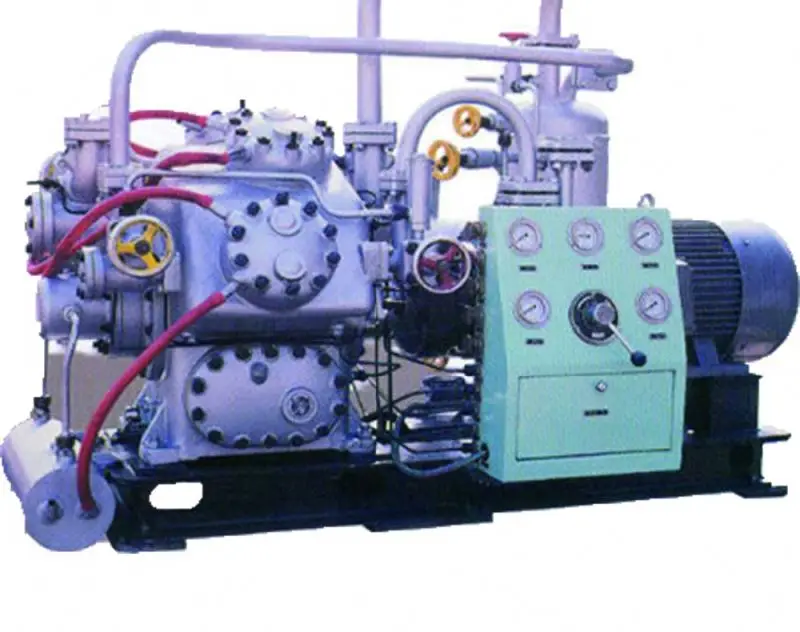

100 Series Dalian Reciprocating Ammonia Refrigeration Compressor Unit 4ASJ10

Product Overview

Description









Applying range

The series of compressors which are designed to the condensing temperatures below 40℃ and evaperator temperatures of +5℃-30℃ for single-stage and -25 ℃ to -45℃ for tow-stage can be applied to equipment for refrigeration, freezing and air conditioning applications.



Construction

This series of compressors which are available in single-stage and internally compound stage types and with R717,R12 R22 are counter flow reciprocating compressors of high speed and multicylinder,These compressors Featrue capacity controls which can effect no-load starting, oil charge and drain valves being able to errect charging oil during run if needed, And they are directly coupling,control panel (auto-natic protection) which are mounted on a common base. The control panel has high pressure, intermediate pressure and oil pressure relays which ensure running reliability of the machine.



 Working condition

Refrigerant Item	Single-stage		Two-stage
			R717 R22
	R717 R22	R12	L.P.	H.P.
Max. discharge pressure MPaG	≤1.5	≤1.15	≤0.7	≤1.5
Max.discharge temperature℃	≤150	≤130	≤120	≤150
Max.Paessune difference MPaG	≤1.4	≤12	≤0.8	≤1.4









Specification

	Item			Unit	2AZ10	4AV10	6AW10	8AS10	4ASJ10	8ASJ10
Unit	Refrigerating capacity	Standard cond.		KW	26.7(23000)	54(46500)	81.4(70000)	108(93000)	tk=+35℃l7.5	tk=+35℃37.2
		Air conditioning cond.		(Kcal/h)	54(46000)	116(100000)	174.4(150000)	232.6(200000)	t0=-35℃(15000)	t0=-35℃(32000)
	shaft power	Standard cond.		kw	8.12	16	23.8	31.6	10.1	20.4
		Air conditioning cond.			12	24	36	48
	Total weight	Standard cond.		kg	575	1066	1330	1520	1300	1700
		Air conditioning			603	1100	1480	1600
Compressor	Type				Vertical	V	W	W	W	W
	Cylinder bore			mm	100	100	100	100	100	100
	Piston stroke			mm	70	70	70	70	70	70
	Number of cylinders			purchase	2	4	6	8	high stagel low stage3	high stagel low stage3
	Revolution			r/min	960	960	960	960	960	960
	Theoretical displacement			m3/h	63.3	126.6	190	253.3	high stagel low stage3	high stagel low stage3
	Capacity regulating range					0,1/2,1	0,1/3,2/3,1	0,1/4,1/2,3/4,1	0,1/3,2/3,1	0,1/3,2/3,1
	Suction pipe dia.			mm	50	50	65	80
	Discharge pipe dia.			mm	40	50	65	80
	Oil charge of crankcase			kg	8.5	12	15	15	8	15
	Diameter of cooling water inlet/outlet pipe			in	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"
	Cooling water consumption			kg	300	500	750	1000	500	1000
	Compressor weigth			kg	238	553	654	713	560	778
Motor	Type	Standard cond.			Y160L-6	Y200L2-6	Y250M-6	Y280S-6	Y180L-6	Y225M-6
		Airconditioning cond.			Y180L-6	Y225M-6	Y280S-6	Y280M-6
	Power	Standard cond.		kw	13	22	37	45	15	30
		Air conditioning cond.			15	30	45	55
	Voltage	Standard cond.		V			380
		Air conditioning cond
	Revolution	Standard cond.		r/min			960 Syuchro revolution
		Air conditioning cond.
Electric control	Starter	Standard cond.	Type			XQ01-22	XQ01℃K)	XQ01-55	4ASJ10-17/D	XQOA-AO
		Air conditioning cond.	Type			XQ01-30	XQ01-55	XQ01-55
	Control panel	Model			DAK2-15 with starter	ZK-3C2	ZK-3C3	ZK-3C4	4ASJ10-17/N	ZK-4C4









 Spare parts list of 100 series compressors

No.	Drawing No.	Part	Unit	Quantity per set
				2AZ10	4AZ10	6AW10	8AS10	4ASJ10	8ASJ10
1	2110-01-2	Main bearing	pcs	2	2	2	2	2	2
2	2113-02-00	Crankshaft assembly	set	1
3	2112-02-00		set		1
4	2111-02-00		set			1
5	2110-02-00		set				1		1
	2116-02-00							1
6	2110-03-00	Connecting-rod assembly	set	2	4	6	8		6
7	2115-12-00	Piston connecting-rod assembly	set					4	2
8	2110-03-3	Large end metal	set	2	4	6	8	4	8
9	2110-03-1	Small end bushing	pcs	2	4	6	8
10	2115-12-1	Needle outer bushing	pcs					4	2
11	2113-04-00	Shaft seal assembly	set	1
	2112-04-00				1	1	1	1	1
12	2110-04-2	Fixed ring	pcs	1	1	1	1	1	1
13	2110-0^-5	Movable ring	pcs	1	1	1	1	1	1
14 15	2113-10-100	Oil pump assenbly	set	1
	2115-1(M00 2110-10-400		set		1	1	1		1
	2116-1CM00							1	1
16	2110-12-00	Piston assembly	set	2	4	6	8		6
17	2110-12-2	Pistonring	pcs	4	8	12	16	8	16
18	2110-12-3	Oil ring	pcs	2	4	6	8	4	8
19	2110-12^	Piston pin	pcs	2	4	6	8	4	8
20	2113-13-00	Vah/e cylinder-liner assembly	set	2
21	2110-13-00		set		4	6	8
22	2115-13-00		set					3	6
23	2115-23-00		set					1	2
24	2110-13-7	Discharge valve plate	pcs	2	4	6	8	4	8
25	2110-13-10	Suction valve plate	pcs	2	4	6	8	4	8
26	2110-13-9	Valve spring	pcs	24	48	72	96	30	60
27	2115-13-1	Suction valve spring	pcs					18	36
28	GB309	Needles 3x30	pcs					156	78
