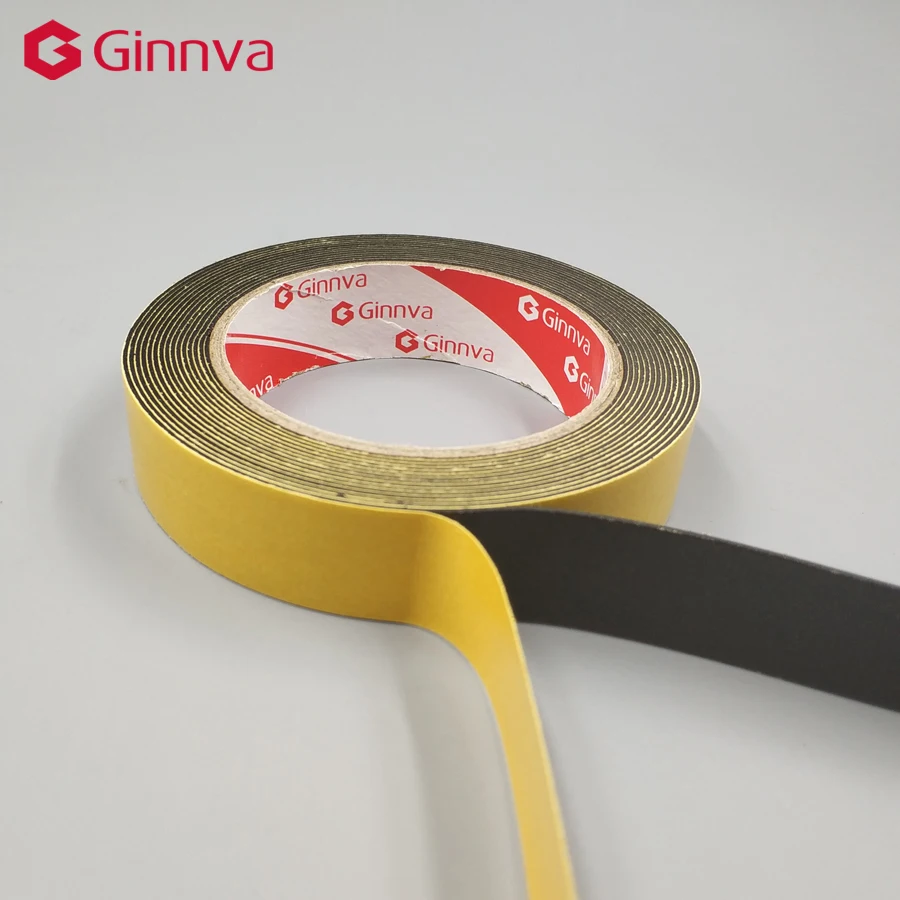

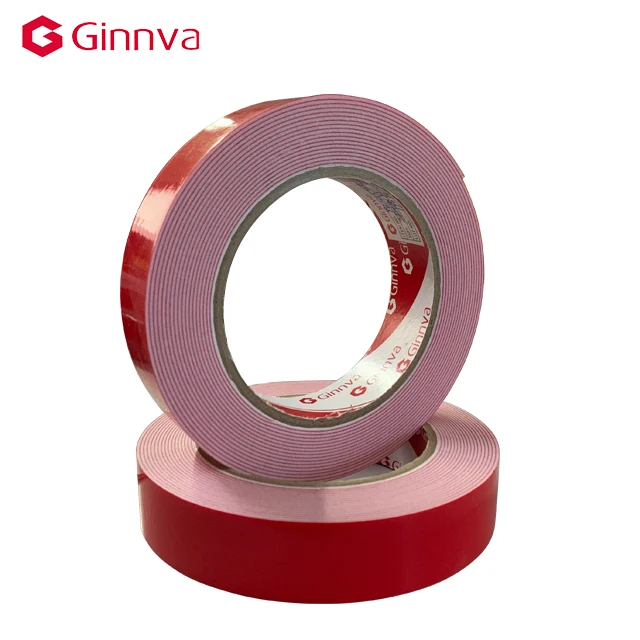

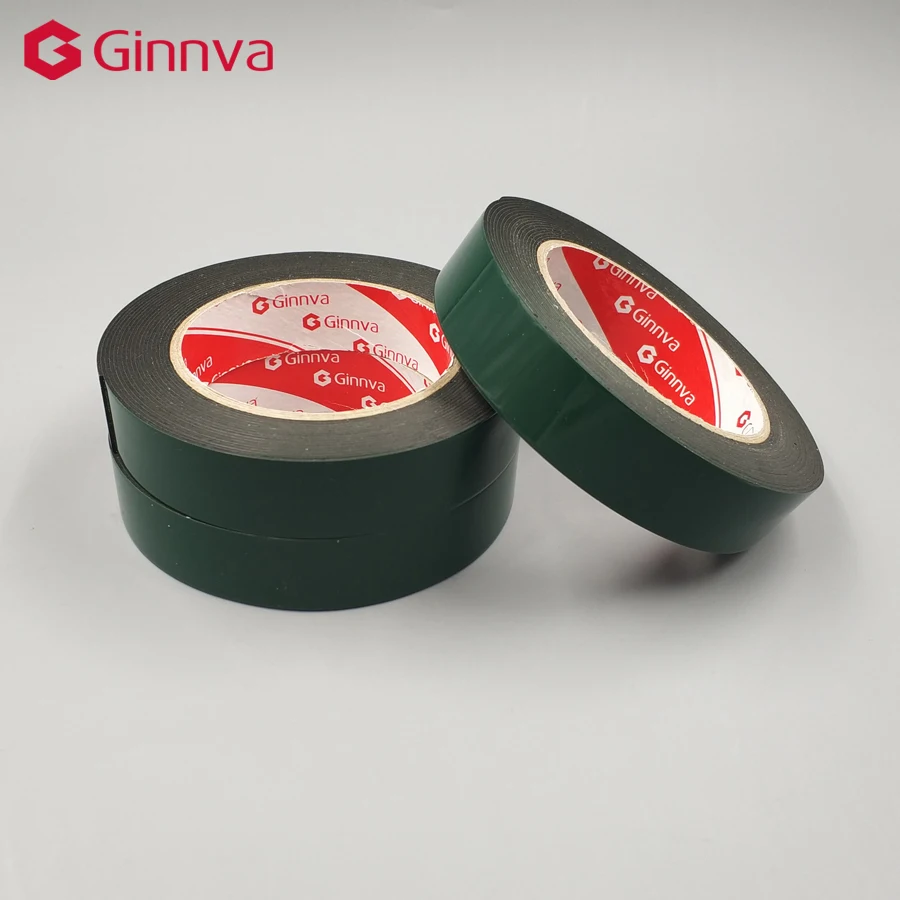

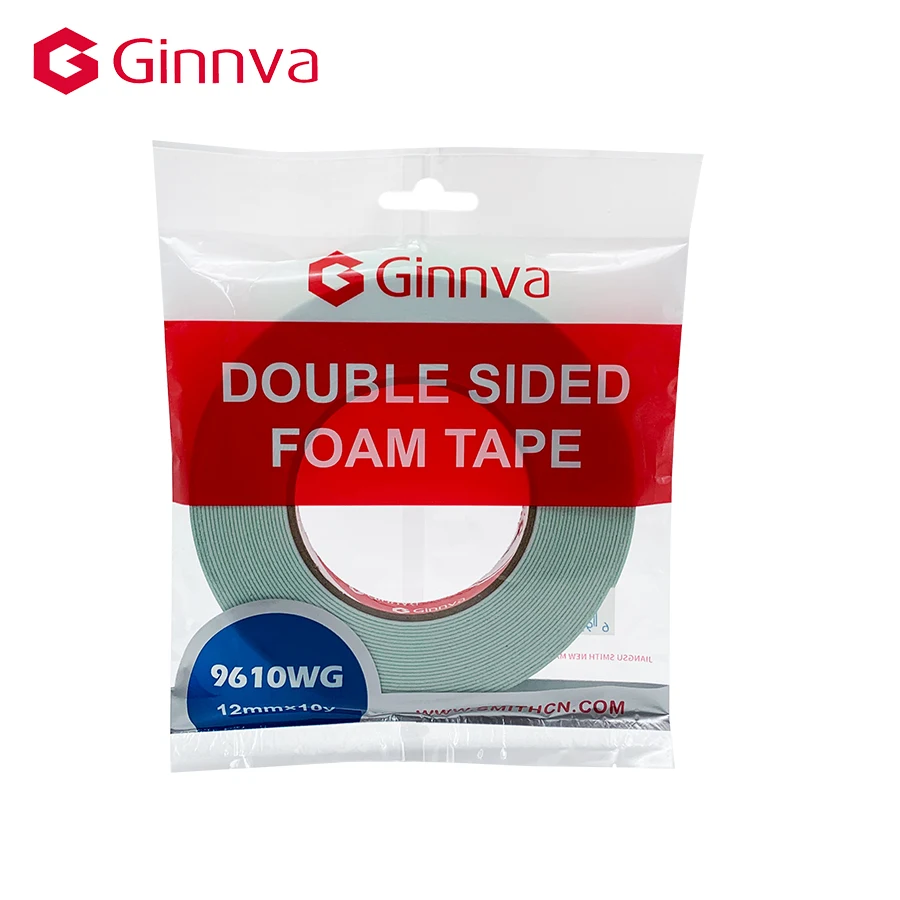

EVA double sided adhesive round foams tape for automotive

PRODUCT INFORMATION

Sort:

Double Sided PE Foam Tape

Type: 981010G and 981010R

Constructure:

PE Foam/Acrylic Adhesive/Green(Red) PE release film

Performance:

Item

Unit

Data

Test Standard

Total thickness

mm

1.0±0.1

ASTM D-3652

180°peel adhesion

(N/in)

>15

PSTC-101

Holding power(hrs/1kg)

h

>12

PSTC-107

60℃ holding power (hrs/0.5kg)

h

>12

PSTC-107

Features:

good water-proof and dust-proof hermetical property, sealing, anti-vibration, cushion, anti-shock, anti-temperature change and insulation. And it has good performance in anti-shock adsorption, rebound resistance and heat resistance.

Applications:

Sticking of rims in auto rear view mirror, medical devices, furniture decoration and photo frames. Fixing and positioning of LCD and FPC. Sticking of varieties of metal and plastic badges and signs.   Fixing and assembly application in household appliances and automobiles; other special sticking and joint applications.

Color: Green, Red

Product Sizes:

(1) Jumbo roll size:

(2) Cut size:

1040MM*300M

As per customer requirements

Storage and Usage Conditions:

l Tape should be stored in a cool (15℃~35℃), dry (40%~75% Humidity) area away from direct sunlight, air conditioner and other heat sources.

l Tape jumbos should be placed vertically in well package and avoid to be pressed against glue surface.

l Tape should be used within 12 months from date of production. Surfaces to which tape is applied should be clean, dry and free of grease, oil, moisture, dirt and other contaminants.

Remarks:

l The physical and performance characteristics shown above are obtained from tests recommended by ASTM standard and Smith Company's Research & Development Department and do not represent a guarantee of product performance.

l Individual rolls may vary slightly from the above values. The user should try use and determine whether the product is suitable for his particular applications. There is no warranty of fitness for a particular purpose.

l It is always recommended for customer to trial use for their specific applications before large quantity.

Issuance date: 2014—08—01

Version#: B/0
