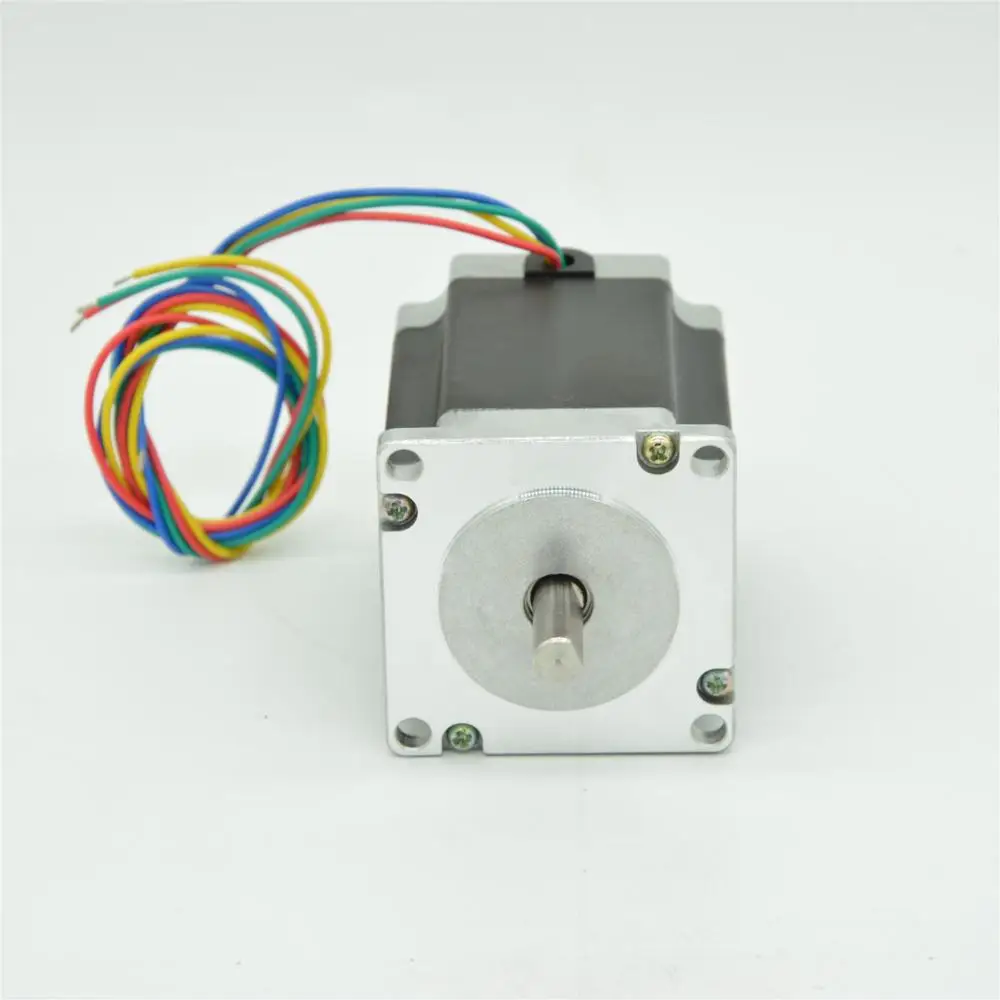

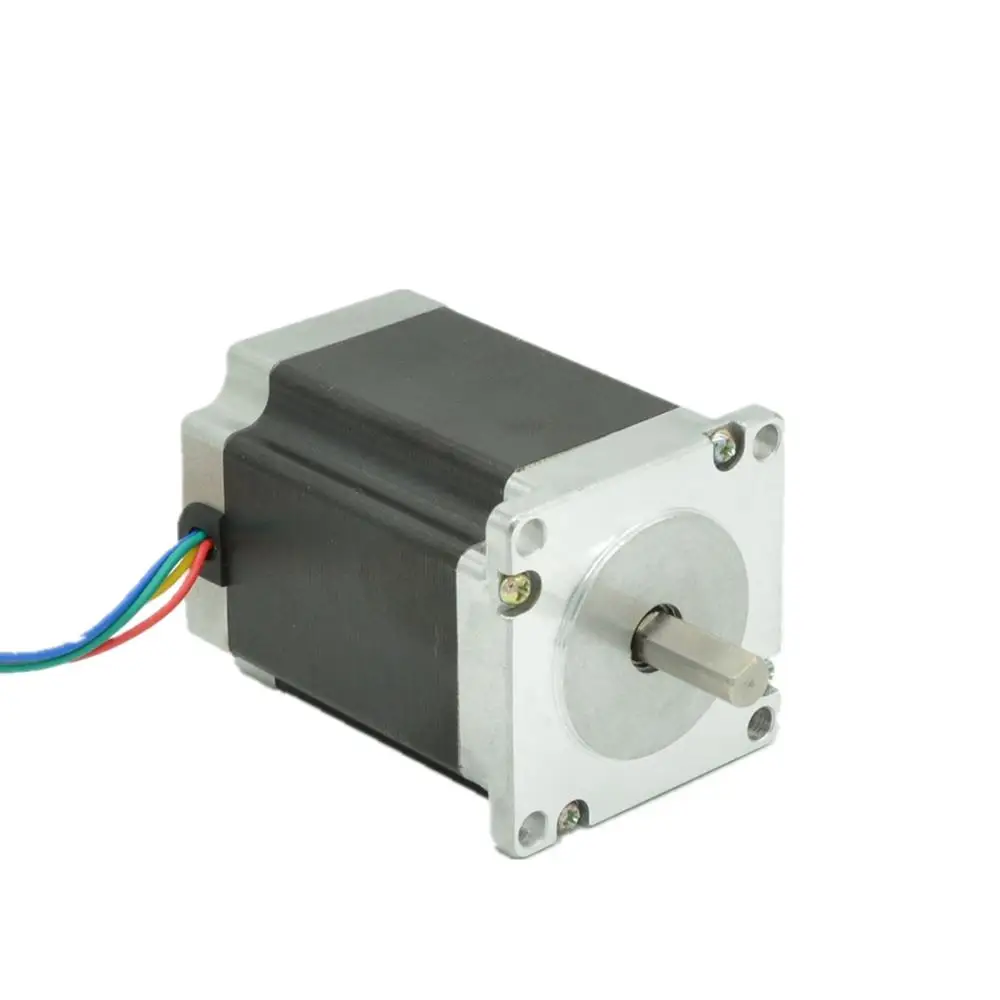

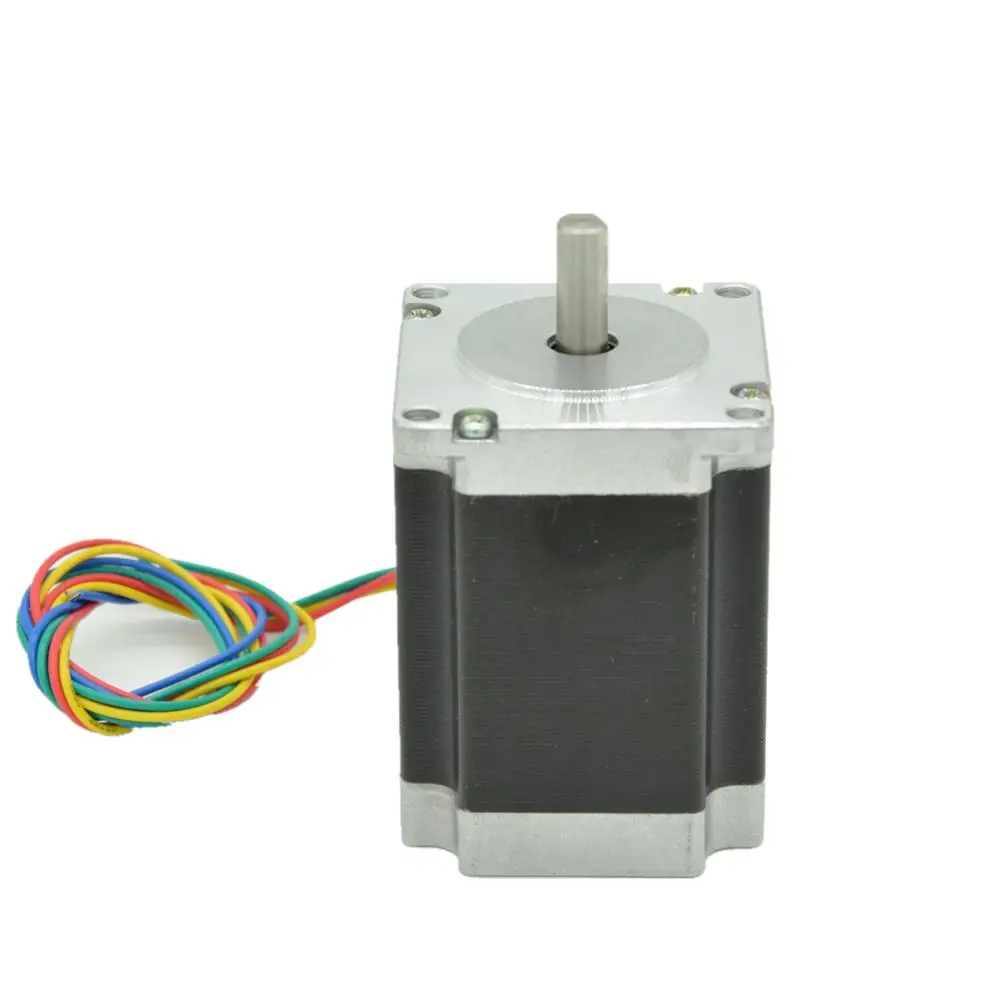

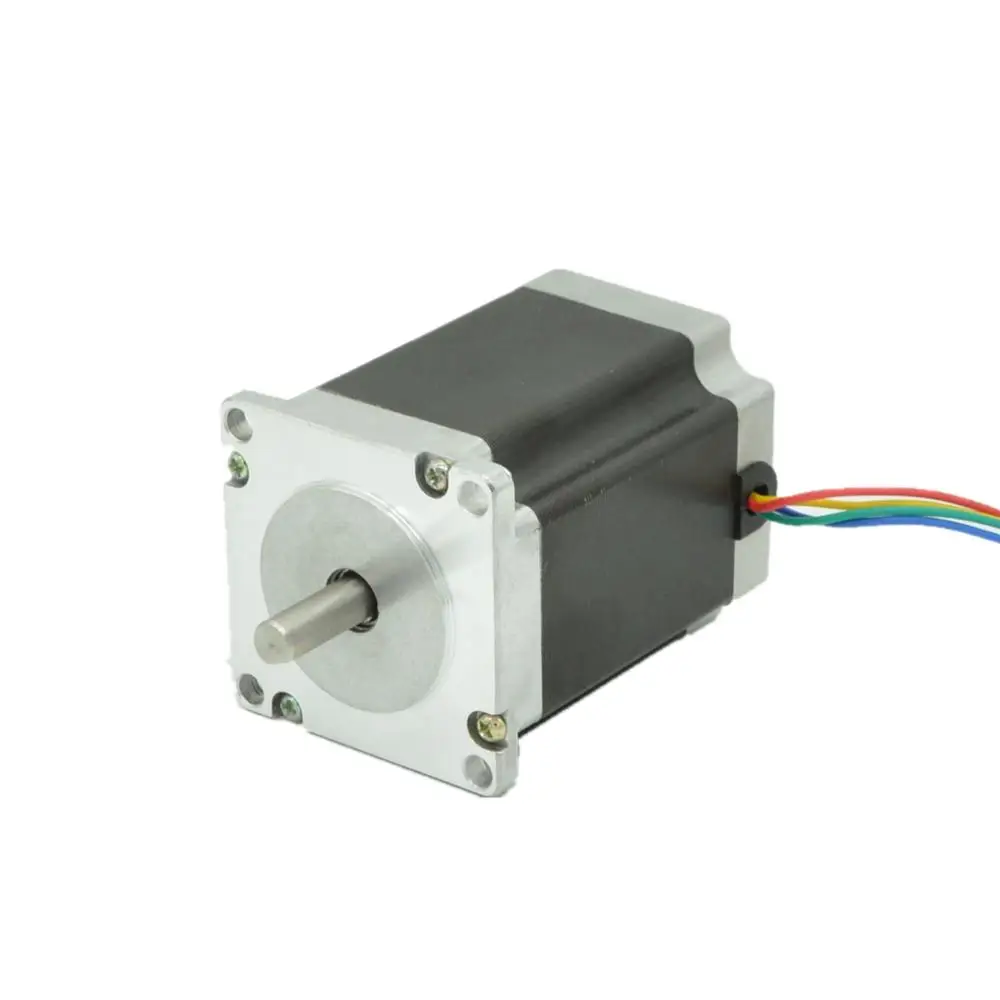

1.8 degree 2 phase 57 stepper motor from JUGETEK for CNC
- Category: >>>
- Supplier: Jugetek (Shanghai) Co. Ltd.
Share on (60548341485):
Product Overview
Description
Nema23 76mm Stepper Motor
Electrical Specification
| Manufacturer Part Number | 23HS30-2804S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 2.0Nm(269oz.in) |
| Rated Current/phase | 2.8A |
| Phase Resistance | 1.13ohms |
| Recommended Voltage | 24-48V |
| Inductance | 5.4mH±20%(1KHz) |
Physical Specification
| Frame Size | 57 x 57mm |
| Body Length | 76mm |
| Shaft Diameter | 8mm |
| Shaft Length | 21mm |
| D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 500mm |
| Weight | 1.2kg |

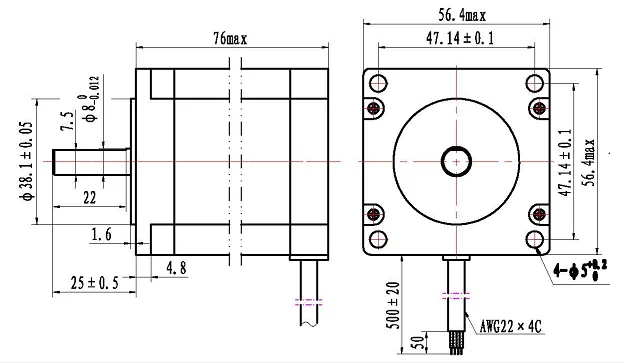

Dimension:
NEMA 23 stepper motor:
Packaging & Shipping
About the shipping methods , for samples or small batch , air shipping is recommended .
For mass production or big batch, ocean shipping is recommended .
Our Services
Our Main Product:
Certification:
Application:
Our service for products and delivering :
1. Sample order lead time is in 2 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, T/T,
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
Company Information
Company introduction:
JUGETEK Co., Ltd. Our factory producing stepper driver, stepper motor, linear motion related products. products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. In addition, we can produce suitable drivers for all motors, and linear motion, such as linear rail , ball screw, linear stages, etc. Of couse , we always research and develop new products.
Production line:
Warehouse in Shanghai & Ningbo:
Our team:
CIIF Exhibition:
FAQ
Question: 1. How to choose the suitable stepper motor?
Answer:There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm some them and told us, we can send you the suitable one.
Question: 2.Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.
Question: 3. Do you have any certification for your stepper motor?
Answer: Yes, you can find CE and RoHS on Alibaba,
Question: 4. Could I visit your company when I come to China for our business trip?
Answer: Yes, Our warehouse and sales branch are on Shanghai.
