Calcium sulphate pvc raised floor system for fireproof
- Category: Engineered Flooring >>>
- Supplier: Jiachen Floor Changzhou Co. Ltd.
Share on (60548640215):
Product Overview
Description
About Jiachen
About company
Product Description

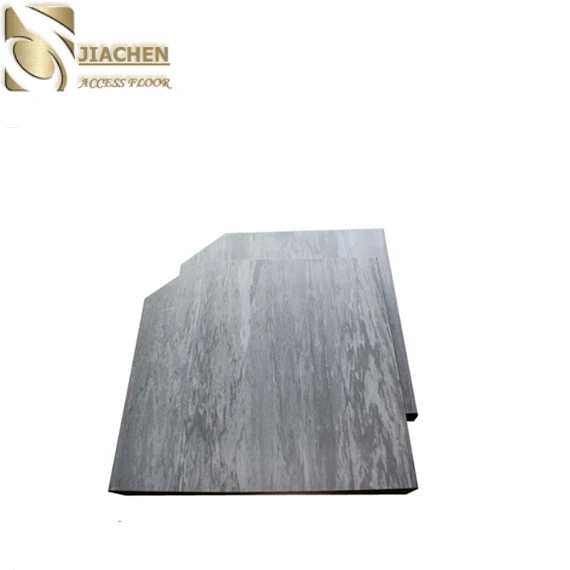

Its core is made of choice high-strength calcium sulphate, with anti-static and good abrasion-proof HPL or PVC on the surface. The bottom uses galvanized steel plate or aluminium foil, and the floor is inlaid with conductive tape around.
Features & advantages:
·Strong in carrying capacity and good in anti-static function.
·Having accurate flatness and external dimension, floors can be interchanged
randomly.
·Environmental-friendly, water-proof, good in fire prevention and corrosion resistance.
·Green and environmental-friendly, without pollution.

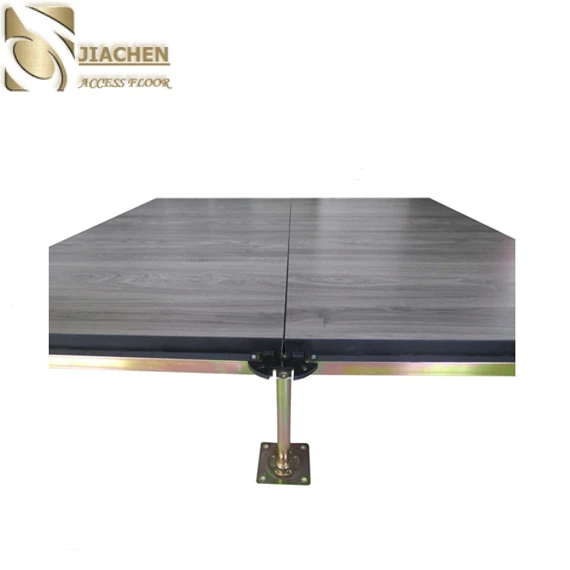

Supports System:
Pedestal and beam system
If installation height is less than 200mm, you can install without beams. If installation height is more than 200mm, you’d better install with beams to reinforce connection.
Applicability:
5A intelligent office buildings, meeting rooms, audio-visual classrooms, offices, resting rooms, exhibition halls, banks and entertainment places.
Technical Datas:
|
Type
|
Concentrated load Deflection=2mm |
Impact
|
Ultimate
|
Uniform
|
Rolling Load
|
System
|
|||
|
|
lb
|
N
|
Kg
|
Load(N)
|
Load(N)
|
Load(N/m)
|
10 passes(N)
|
10000passes(N)
|
resistance
|
|
CS-FS800
|
≥800
|
≥3550
|
≥360
|
670
|
10700
|
17000
|
3169
|
2250
|
106-1010Ω Static dissipative |
|
CS-FS1000
|
≥1000
|
≥4450
|
≥450
|
670
|
13350
|
23000
|
3658
|
3169
|
|
|
CS-FS1250
|
≥1250
|
≥5560
|
≥560
|
670
|
16680
|
33000
|
4558
|
3658
|
|
|
Size
|
600x600x25mm,600x600x30mm,600x600x35mm,610x610x30mm
|
||||||||
|
Flatness
|
≤0.1mm
|
||||||||
|
Vertical
|
≤0.1mm
|
||||||||
