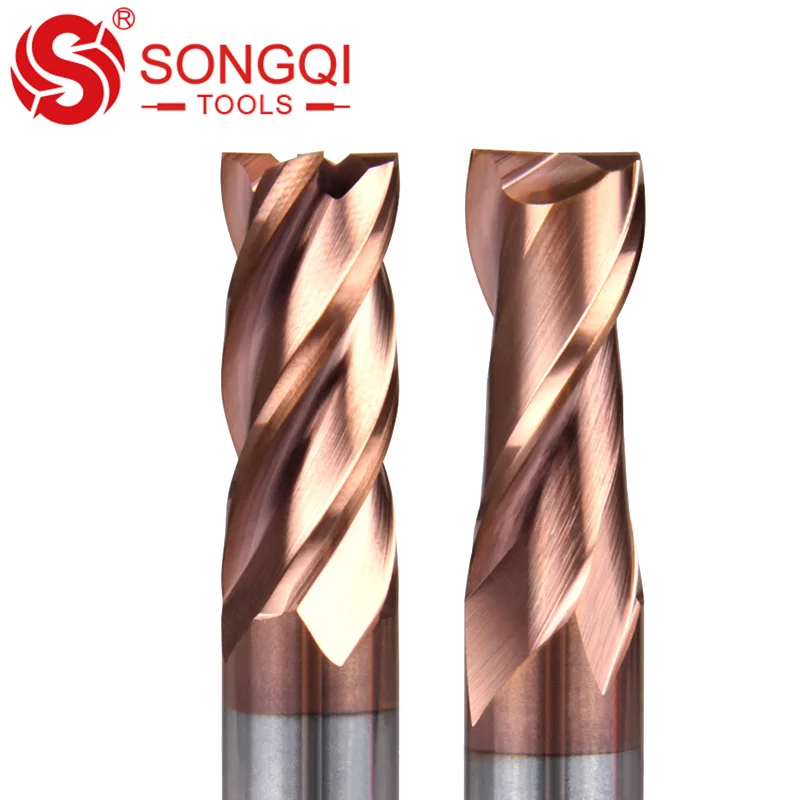

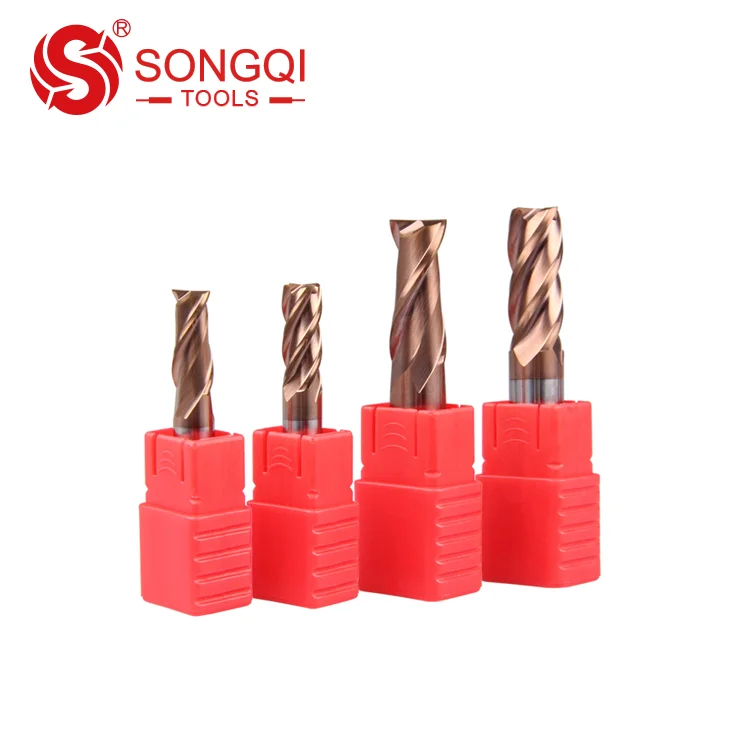

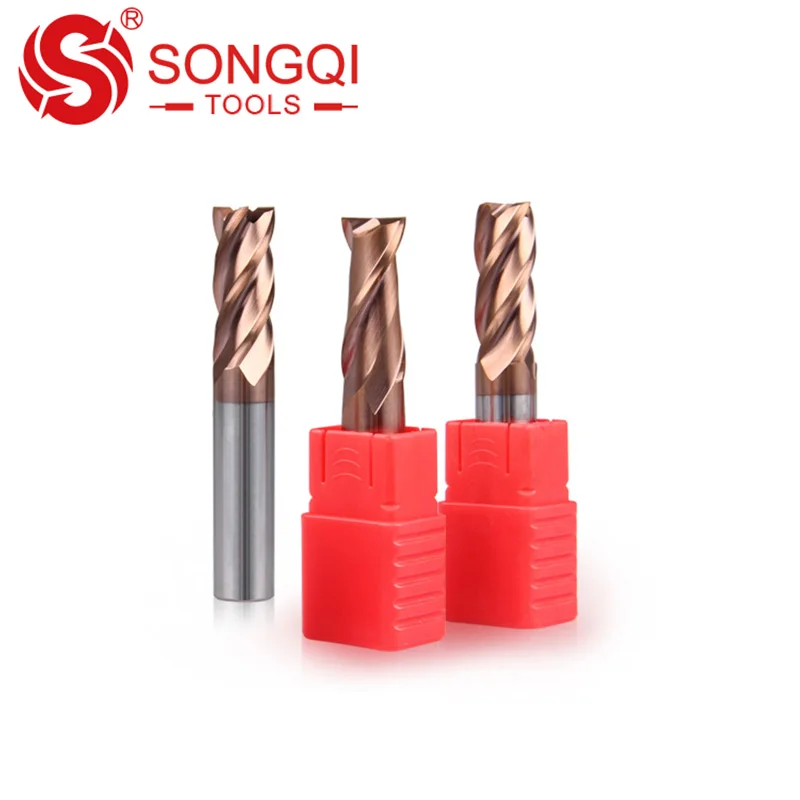

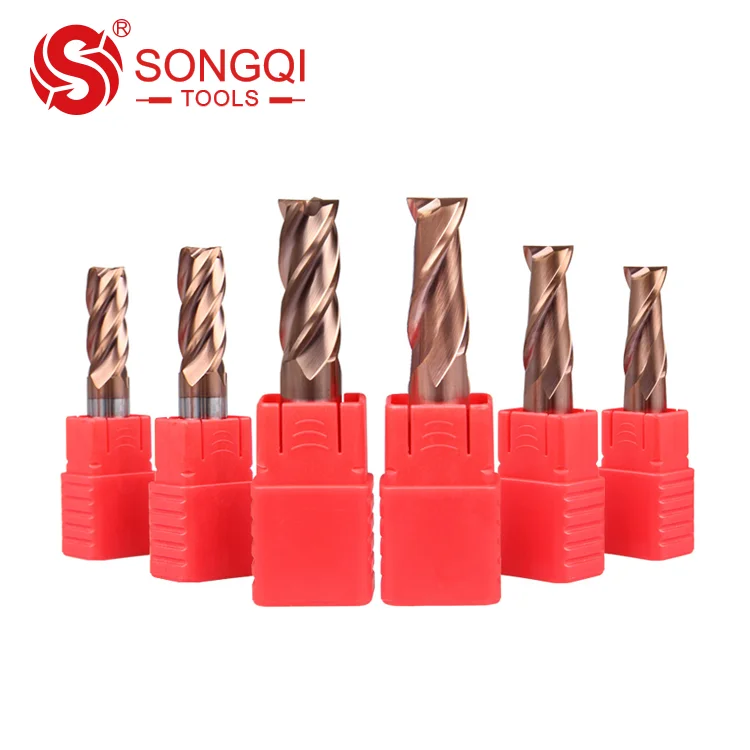

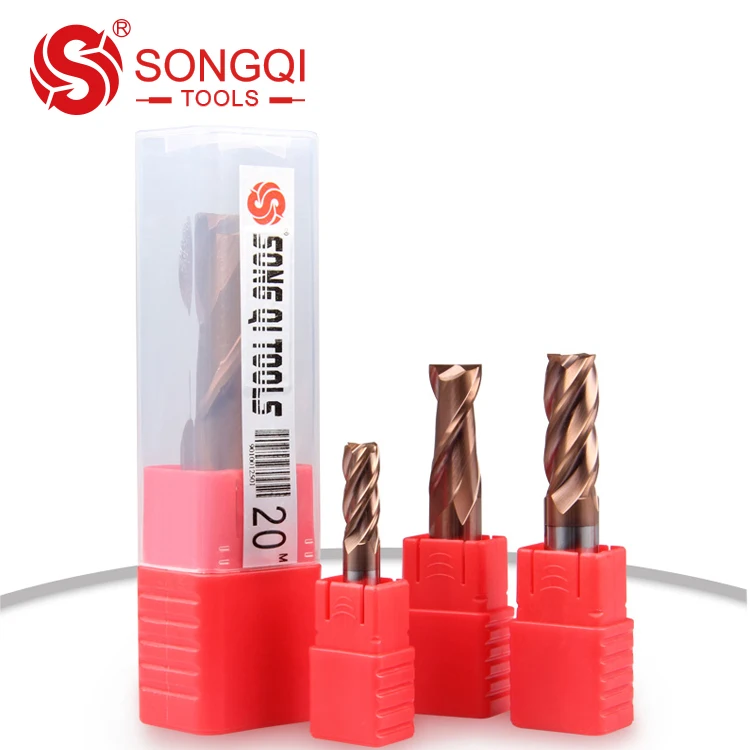

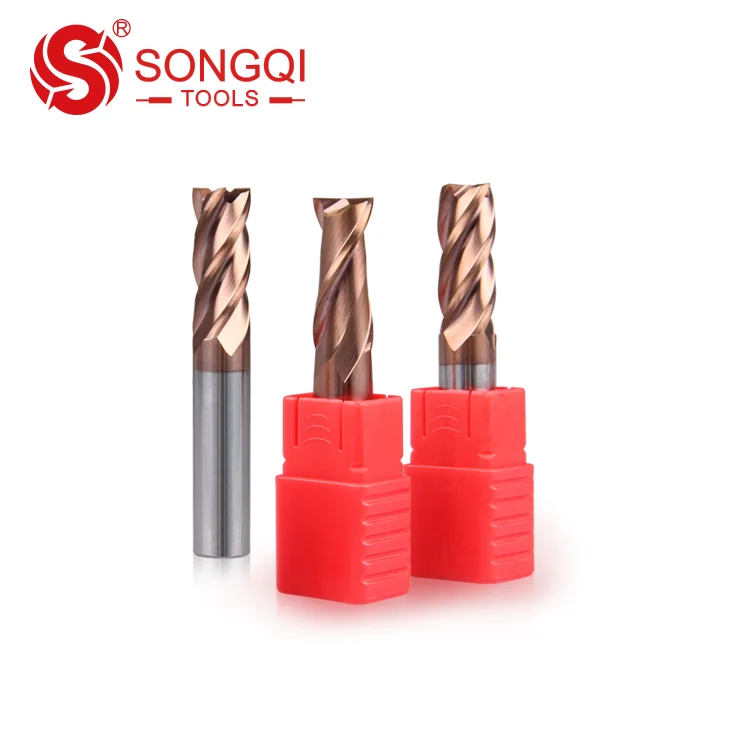

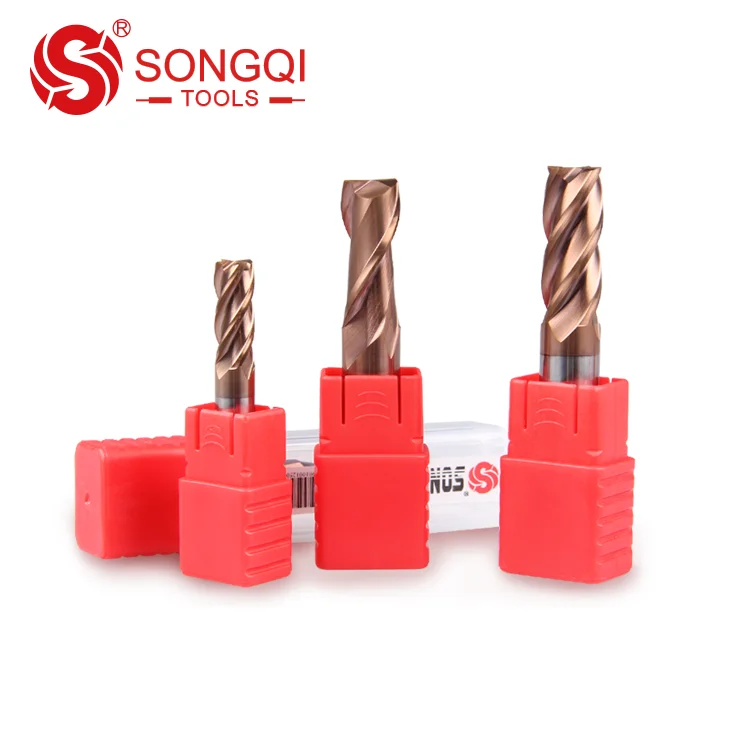

2/3/4 Flute Solid Carbide End Mill Cutters with 45/50/65/68HRC

Product Overview

Description





2/3/4 Flute Solid Carbide End Mill Cutters with 45/50/65/68HRC





• Product Name: Tungsten Carbide Square End Mill Milling Cutter


• Material: Solid Tungsten Carbide


• Coating Material:  TISIN


• Hardness: 45/55/65 HRC


• Flute: 2/3/4 Flute


• Helix Angle: 30/45/55 Degree


• Application: General-purpose operation Slotting, Drilling, Profiling


• Working Machine: CNC (computer numeric controlled) tool and cutter grinder machines


• Coolant: Water, water-soluble oil, and high-flashpoint oil


• Workpiece material: Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze





Size	Dia (mm)	Shank  Dia (mm)	Flute  Length (mm)	Overall  Length (mm)	Gross  weight (g)	Number  of  Flute	HRC
M1	1	4	3	50	10	2/3/4 F	45/55/65
M1.5	1.5	4	4	50	10
M2	2	4	6	50	10
M2.5	2.5	4	7	50	12
M3	3	4	9	50	12
M4	4	4	10	50	12
M5	5	6	13	50	21
M6	6	6	16	50	21
M8	8	8	22	60	40
M10	10	10	25	75	81
M12	12	12	30	75	100
M14	14	14	35	100	150
M16	16	16	40	100	269
M18	18	18	42	100	319
M20	20	20	55	100	377















 Q: Is OEM available?

A: Yes, OEM and customization are available. Also, we can provide label printing service.



Q: Are samples available?

A: Free samples are available while freight is chargeable.



 Q: What is your payment terms?

A: T/T,L/C,D/A,D/P,Paypal for different circumstances.



Q: What's your delivery way?

A: Express delivery, air shipping, sea shipping are available for your request.



 Q: What's your delivery time?

A: Usual delivery time is 5-10days after recieving the advance payment;

    For the customized product, 15-30 days after receiving the advance payment.
