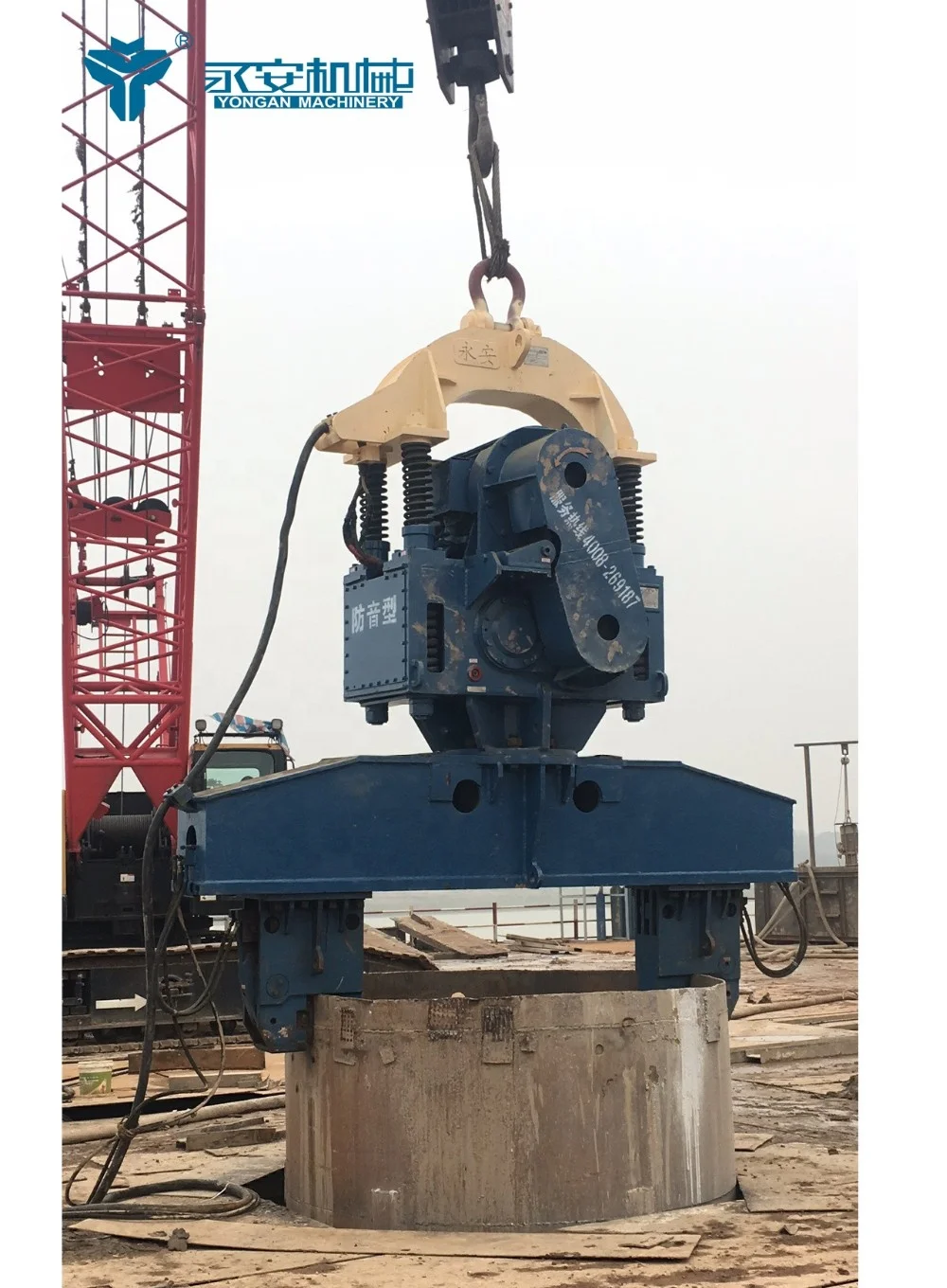

DZ45 Crane Lifted Type Piling Machinery Electric Vibratory Pile Driving Hammers for sale
- Category: Used Machinery & Equipment >>>
- Supplier: Shanghai Yongan Machinery Co. Ltd.
Share on (60548903305):
Product Overview
Description
Product Application
Electric vibro piling hammer DZ series is well developed by Yongan machinery since 1985, suitable to drive and extract piles for different geological situation except the hard rock layer. For example, sheet piles, H beam, I beam, Z beam, steel pipes, pre-made concrete pile, cast-in-place concrete pile, and so on. Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile. The equipment is already used in many projects both at home and abroad, perfect performance and high efficiency enables us to gain good reputation from customers.
Main Features
With more than 30 years' experience and improvement, the quality of Yongan electirc vibratory piling hammers is ensured with following features:
1, Shock-proof motor, which is developed together by company engineer and supplier technic team, has long working life.
2, Reducer casing
3, FAG bearing, original imported, 3 layers combination, very stable and won't crack during working
4, Simens, Schneider brands for electric components
5, Italian brand for hydraulic oil pump
6, Improved magnetic oil stain deposit system
7, Noise proof design with rubber pad on and under the spring
8, Normal frequency and variable frequency system Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust according to defferent soil layer frequency. It can save time, energy and cost.
Main Features
With more than 30 years' experience and improvement, the quality of Yongan electirc vibratory piling hammers is ensured with following features:
1, Shock-proof motor, which is developed together by company engineer and supplier technic team, has long working life.
2, Reducer casing
3, FAG bearing, original imported, 3 layers combination, very stable and won't crack during working
4, Simens, Schneider brands for electric components
5, Italian brand for hydraulic oil pump
6, Improved magnetic oil stain deposit system
7, Noise proof design with rubber pad on and under the spring
8, Normal frequency and variable frequency system Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust according to defferent soil layer frequency. It can save time, energy and cost.
Specification for Electric Vibro Hammer DZ45 | ||
Motor Power | 45kw | |
Eccentric Moment | 287Nm | |
Driving Force | 380kn | |
Speed | 1100r/m | |
Amplitude | 6.2mm | |
Max Line Pull | 180kn | |
Size | 1.65*1.2*2.3m | |
Weight | kg | |
Delivery time | 20 days | |
Generator Power | 150kw | |
Crane capacity | 25T | |

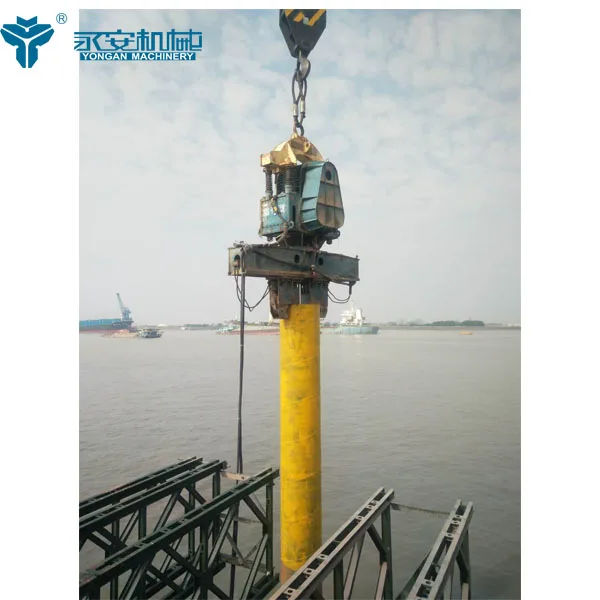

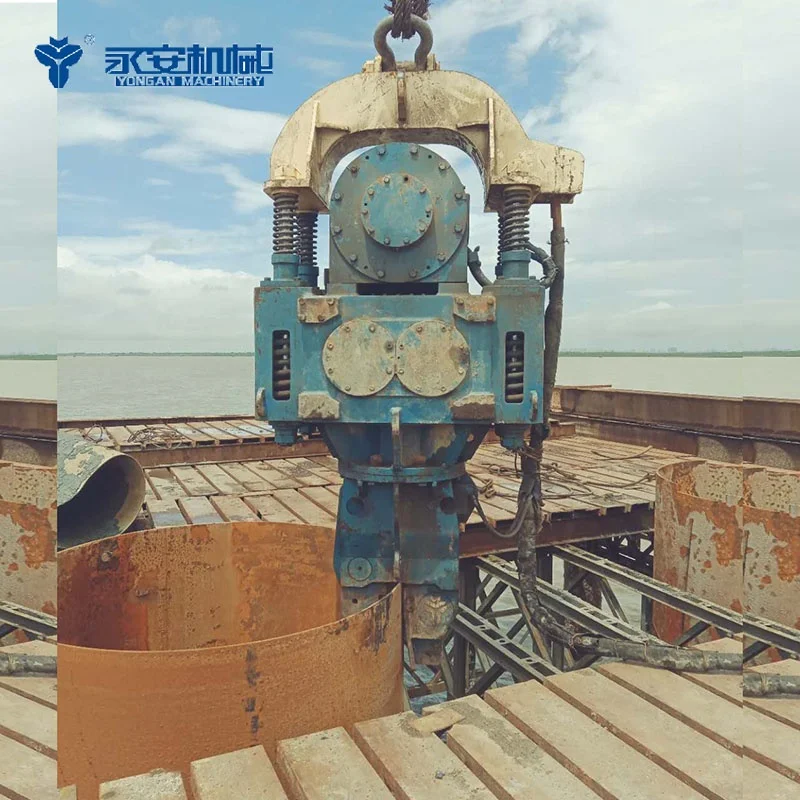

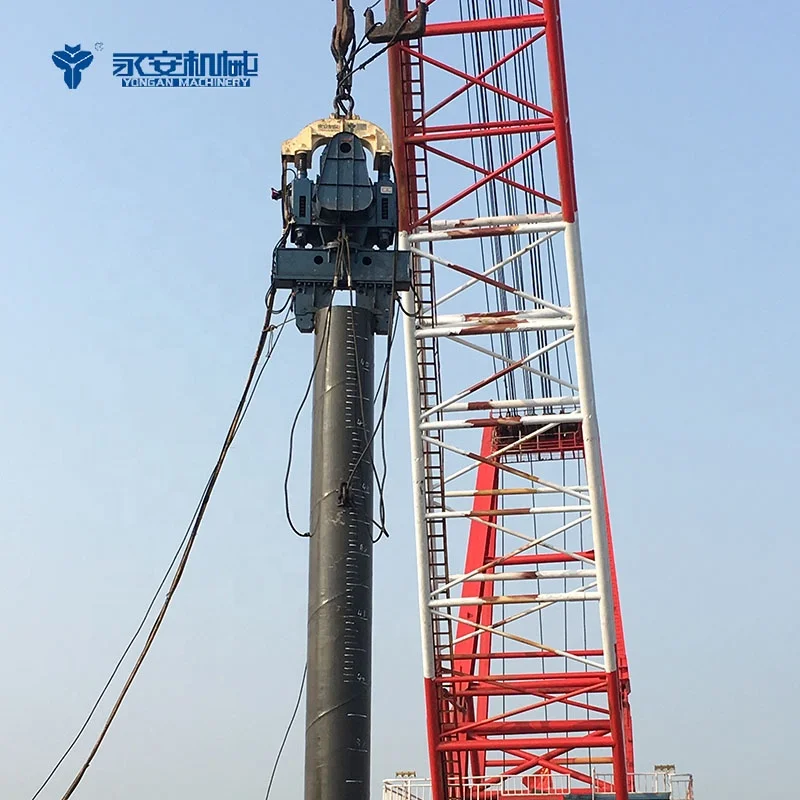

For steel pipes piling and extracting, with standard clamps.

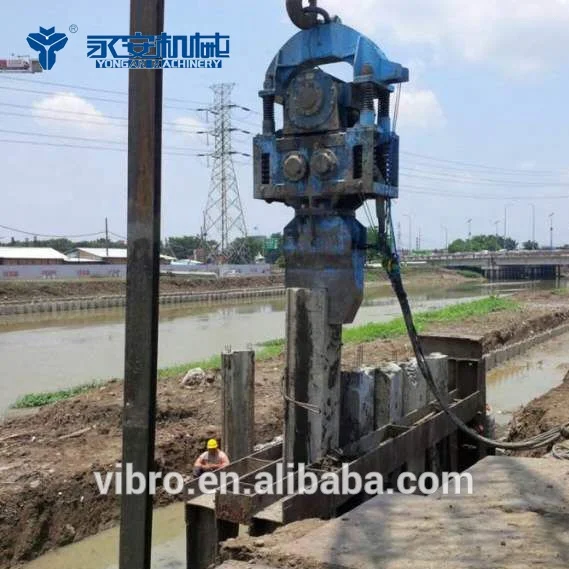

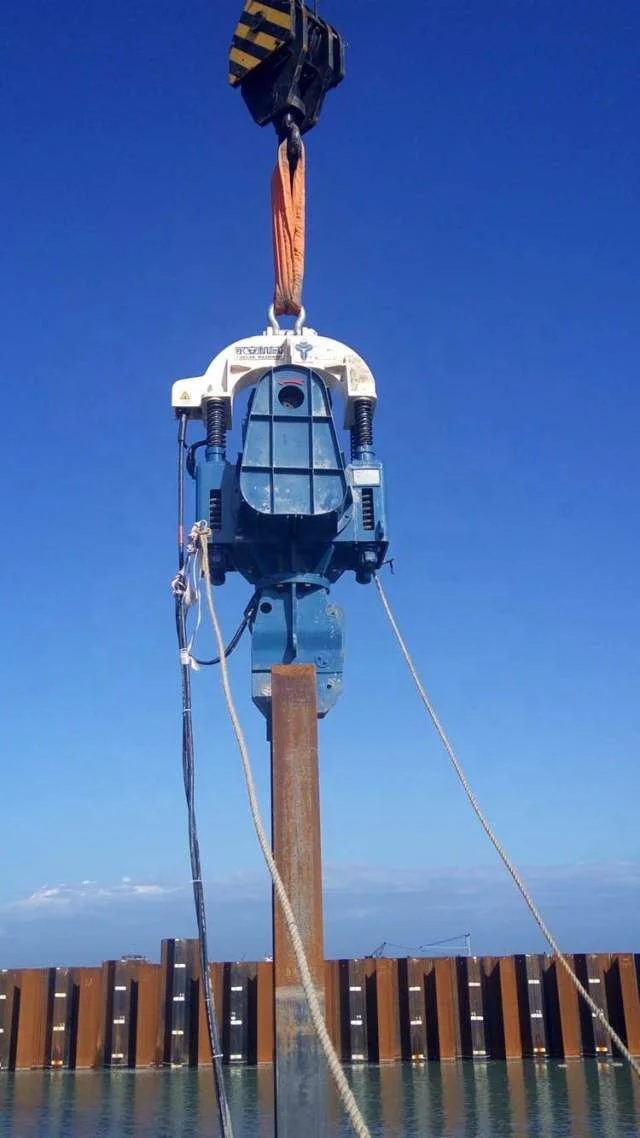

For sheet pile driving and extracting, with singe clamp.
For concrete sheet pile, with customized clamp.
Certifications
Our ServiceAfter-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | Hammer packed in shrink film, accessories in wooden box, together with control cabin in one container. | |
